Does Laser Cutting Use Gases
Does Laser Cutting Use Gases
Laser cutting is one of the most precise and efficient methods for shaping materials in modern manufacturing. From metal fabrication and automotive parts to electronics and signage, it’s a process that relies on intense, focused beams of light to slice through materials with exceptional accuracy. But while the laser itself does the cutting, gases play a critical—yet often overlooked—role in how effectively that cutting happens.
In laser cutting, different types of gases are used to either assist the cutting process or protect the laser and workpiece from damage. These gases help blow away molten material, cool the cutting zone, and prevent oxidation or contamination. Depending on the material and the laser type—CO2, fiber, or Nd:YAG—the choice of gas can vary widely, with common options including oxygen, nitrogen, and sometimes even air or argon. Each gas affects the speed, edge quality, and overall finish of the cut in its own way.
Understanding the role of gases in laser cutting is key to optimizing performance, improving product quality, and reducing costs. In this article, we’ll break down which gases are used, why they’re important, and how they influence the cutting process from start to finish.
Table of Contents

Why Laser Cutting Uses Gas at All

Gas plays a fundamental role in laser cutting—not as a bystander, but as a critical process medium that directly determines the quality, stability, and efficiency of the cut. The assist gas interacts with the laser beam, the molten pool, and the surrounding material in complex ways that go far beyond simply “blowing away debris”.

Ejecting Molten Material

When the laser beam strikes the workpiece, it generates temperatures that can exceed several thousand degrees Celsius, enough to melt or vaporize the material instantly. This creates a molten pool at the cutting front. However, without active removal, this molten metal would solidify back into the kerf, clogging the cut and leaving rough, uneven edges.
The assist gas—delivered through a coaxial nozzle at pressures ranging from 5 to over 20 bar, depending on the material—acts as a mechanical ejector. The high-velocity gas jet physically blows the molten and vaporized material out of the kerf, clearing the path for the laser beam to continue cutting deeper or farther along the contour.
The efficiency of this ejection process depends on several parameters: nozzle design, gas pressure, flow dynamics, and stand-off distance (the gap between the nozzle and the workpiece). Proper gas flow ensures continuous material removal and consistent kerf geometry. Without this, molten residue would cause burr formation, reduce cutting speed, and degrade edge quality.

Maintaining Beam Transparency

Laser cutting generates intense localized heating that produces plumes of vapor, metal fumes, and fine particulate matter. These by-products can rise into the beam path and scatter or absorb the laser energy, especially with high-power CO2 or fiber lasers. Even a slight reduction in beam transmission efficiency leads to incomplete cuts, inconsistent penetration, or excessive thermal loading.
The assist gas creates a clear channel between the nozzle and the cutting zone. The directed flow removes the smoke and particulates almost instantaneously, keeping the optical path transparent. In systems using reactive gases like oxygen, this also minimizes unwanted optical absorption due to combustion products. The result is a stable, unimpeded beam focus and a consistent energy density at the work surface—crucial for maintaining precision in fine-feature or high-speed cutting operations.

Controlling Chemistry at the Cutting Front

The gas type determines the chemical environment at the cutting front and significantly influences cutting speed, edge quality, and thermal behavior.

  • Oxygen-assisted cutting is used mainly for carbon and mild steels. Oxygen reacts exothermically with the hot metal, releasing additional heat that supplements the laser energy. This chemical reaction accelerates the cutting process, allowing lower laser power or higher cutting speeds. However, the oxidation also leaves a dark, oxidized edge that may require post-processing.
  • Nitrogen-assisted cutting is common for stainless steel, aluminum, and other oxidation-sensitive materials. Nitrogen is inert and prevents oxidation by displacing ambient air and shielding the molten metal from oxygen. This produces bright, oxide-free edges with minimal discoloration—essential for applications where surface finish and weldability matter.
  • Argon or helium may be used in specialized cutting of titanium or reactive alloys, where complete chemical inertness is required to avoid contamination or embrittlement.
By selecting and controlling the gas type, pressure, and flow rate, operators can tailor the chemical behavior of the cut zone to match specific performance or aesthetic requirements.

Stabilizing the Laser–Material Interaction

The laser cutting process involves a delicate balance between heating, melting, and ejection. The gas flow stabilizes this balance by maintaining steady material removal and temperature conditions at the interaction zone.
A consistent gas jet prevents fluctuations in melt pool dynamics, which could otherwise lead to intermittent cutting, striations, or localized overheating. In fiber laser systems, this stabilization is particularly important because even minor irregularities in molten metal behavior can deflect the beam or cause micro-explosions that disrupt the cutting front.
Essentially, the assist gas acts as both a mechanical stabilizer (removing melt efficiently) and a thermal regulator (maintaining consistent conditions), ensuring the process remains continuous and predictable.

Cooling and Stabilizing the Kerf

As the laser advances, the kerf—the narrow slit left behind—retains residual heat. If not properly managed, this heat can cause thermal distortion, warping, or even local re-melting of the edges. The assist gas mitigates these effects by cooling the material immediately around the cutting front.
In high-speed nitrogen cutting, for instance, the gas expands rapidly as it exits the nozzle, producing localized cooling due to the Joule–Thomson effect. This cooling helps maintain tight tolerances and prevents the formation of heat-affected zones (HAZ) that could compromise mechanical properties or dimensional accuracy.
Additionally, uniform gas flow helps maintain kerf width consistency, especially in thicker materials, by preventing the molten material from narrowing or widening the slit unevenly as the cut progresses.

Protecting Optics and Nozzle Components

Laser optics are extremely sensitive to contamination. Molten spatter, vaporized particles, and metal oxides can travel upward toward the focusing lens or protective window, adhering to surfaces and degrading optical transmission. Over time, this contamination can cause local heating, lens damage, or beam distortion.
The assist gas provides a protective barrier that prevents back-spatter from reaching the optics. In coaxial systems, the gas flow also cools and shields the nozzle tip itself from excessive heat and material buildup, maintaining consistent flow characteristics. Clean optics and stable nozzle conditions translate directly into longer maintenance intervals, reduced downtime, and sustained cutting accuracy.
Laser cutting gases do far more than just “blow away debris.” They are an integral part of the laser–material interaction system.
They eject molten material, keep the beam path clear, control chemical reactions, stabilize the cutting process, cool the kerf, and protect delicate optical components. Each of these roles is interconnected—remove the gas, and the process breaks down in seconds.
In essence, assist gases turn the raw energy of the laser into a controlled, high-precision manufacturing tool capable of producing clean, accurate cuts across a wide range of materials and thicknesses.

Cutting Modes and What the Gas Actually Does

Not all laser cuts work the same way. The way gas interacts with the molten or vaporized material depends on the cutting mode being used. Each mode—reactive cutting, fusion cutting, and vaporization (or ablation)—uses the assist gas differently to achieve the desired result. The gas isn’t just a passive flow; it’s an active player in determining the thermal behavior, edge finish, and cutting efficiency.

Reactive Cutting (Oxygen Assist)

Reactive cutting, also known as flame cutting or laser-oxygen cutting, is the mode most commonly used for carbon steel and mild steel. In this process, the gas—oxygen—does far more than blow away molten metal; it chemically reacts with the heated material to produce additional heat.

Here’s how it works:

  • The laser beam first heats the steel surface to its ignition temperature (around 800–900℃).
  • Once that temperature is reached, oxygen supplied through the nozzle reacts with the hot iron to form iron oxide (FeO, Fe2O3, Fe3O4).
  • This oxidation reaction is exothermic—it releases substantial additional heat, sometimes doubling or tripling the effective energy at the cutting front.
  • This extra heat accelerates the melting and ejection of material, enabling higher cutting speeds than the laser power alone could achieve.

The oxygen stream simultaneously:

  • Drives molten oxide and metal out of the kerf, keeping the cut open.
  • Sustains the oxidation reaction by supplying fresh oxygen to the reaction zone.
  • Cools and stabilizes the area just behind the cut, preventing burnback.

Advantages:

  • High cutting speeds on carbon steels.
  • Can cut thicker materials with lower laser power.

Limitations:

  • The reaction leaves an oxidized, rough, and darkened edge.
  • Post-processing (grinding, polishing, or coating) may be needed if oxidation is undesirable.
  • Not suitable for oxidation-sensitive materials like stainless steel or aluminum.
In summary, in reactive cutting, the gas doesn’t just assist—it’s a reactant and a heat source. Oxygen actively drives the cutting process by releasing chemical energy right at the cutting front.

Fusion Cutting (Nitrogen or Argon Assist)

Fusion cutting, sometimes called melt ejection cutting, is the preferred mode for stainless steel, aluminum, titanium, and other non-ferrous metals where oxidation must be avoided.

In this mode:

  • The laser beam melts the material at the cutting front without initiating any chemical reaction.
  • An inert gas, typically nitrogen or argon, is blown through the nozzle at high pressure (often 10–20 bar or more).
  • The gas jet mechanically expels the molten material from the kerf, leaving behind a smooth, shiny, oxide-free edge.

Because nitrogen and argon are inert:

  • They do not react with the hot metal.
  • They prevent air from entering the cutting zone, eliminating oxidation or discoloration.
  • The result is a clean, bright edge that requires no further finishing.
Nitrogen is the most common choice because it’s inexpensive, widely available, and provides excellent results. Argon is used for specialized applications—especially for reactive materials like titanium—where complete inertness and contamination prevention are critical.

However, since there’s no exothermic heat added by a reaction (unlike oxygen cutting), fusion cutting relies entirely on the laser’s energy to melt the material. That means:

  • It generally has lower cutting speeds than reactive cutting.
  • It requires higher laser power to achieve full penetration, especially in thicker sheets.
Still, the tradeoff is worth it when edge quality and chemical purity are priorities—such as in food-grade stainless steel, aerospace components, and medical devices.

Summary of what the gas does in fusion cutting:

  • Provides a clean, oxygen-free atmosphere.
  • Expels molten material mechanically.
  • Cools and stabilizes the cut.
  • Prevents oxidation, discoloration, and contamination.
In short, in fusion cutting, the gas is a protector and cleaner, ensuring a chemically pure, visually flawless edge.

Vaporization and Ablation Cutting (Thin Organics and Acrylic)

The third mode, vaporization or ablation cutting, operates on a completely different principle. It’s used for non-metals and thin materials like wood, paper, textiles, plastics, and acrylics, where the material can vaporize directly under the laser beam.

Here’s what happens:

  • The laser beam raises the surface temperature rapidly to the boiling or decomposition point.
  • The material vaporizes or ablates (removes in fine layers), rather than melting.
  • The assist gas—usually air or inert gas like nitrogen—helps remove the vaporized material and combustion products from the kerf.

The assist gas serves several functions here:

  • Clears the vapor plume and smoke to keep the beam path transparent.
  • Prevents excessive charring or flaming by diluting or displacing oxygen.
  • Cools the cutting area, reducing thermal damage or discoloration at the edges.
  • In materials like acrylic, it helps maintain a smooth, polished edge by ensuring uniform vaporization and preventing microbubbles from forming in the melt zone.
Because the material is removed by vaporization, this mode doesn’t need high gas pressure—a gentle flow is enough. The focus is on maintaining optical clarity and controlling localized heat rather than blowing out molten metal.

Applications include:

  • Laser engraving and marking.
  • Cutting thin organic films, foams, or fabrics.
  • Precision cutting of acrylic displays and signage.
In this mode, the gas acts mainly as a beam stabilizer and cooling agent, not a reactive or mechanical force.
Each cutting mode distinctly uses the assist gas—sometimes as a reactant, sometimes as a mechanical ejector, and sometimes as a cooling and cleaning medium. Understanding which mode is in play—and what the gas is doing—reveals just how integral gases are to the precision and efficiency of laser cutting technology.

The Common Gases: Strengths, Limits, and Typical Use

Assist gases are the unsung enablers of laser cutting. They don’t just clear debris — they shape the physics and chemistry of the entire process. The type of gas, its purity, and delivery parameters (pressure, flow rate, and nozzle design) directly influence the cutting mechanism, thermal profile, oxidation level, edge finish, and even machine reliability.
Different gases serve different cutting modes and materials. Some react chemically to release heat (reactive gases), while others act purely as mechanical ejectors or protective atmospheres (inert gases). Below is a detailed look at the most commonly used gases — how each functions, their operating characteristics, and their real-world tradeoffs.

Oxygen (O2)

  1. Best for:
  • Carbon steels, mild steels, and low-alloy steels
  • Occasionally used for coated steels or structural-grade materials where surface oxidation is acceptable
  1. What it does: Oxygen supports reactive laser cutting. When the laser heats steel to approximately 800–900℃, the surface reaches the ignition temperature of iron. At that point, the oxygen jet chemically reacts with the iron to form iron oxides (FeO, Fe2O3, Fe3O4). This oxidation reaction is highly exothermic — it releases substantial additional heat directly at the cutting front, often increasing the total energy input by 30–50% beyond the laser power alone. This extra heat accelerates melting and enables deeper penetration into thick materials with lower laser power and lower gas pressure than inert cutting modes require. The oxygen jet also physically ejects molten oxides and metal, maintaining a clean kerf. The combined chemical and mechanical effects make oxygen-assisted cutting extremely efficient for steels up to several tens of millimeters thick.
  2. Typical pressures:
  • Low to moderate: typically 0.5–6 bar (7–90 psi) depending on thickness and nozzle size
  • Too high a pressure can disturb the oxidation front or cause excessive turbulence in the molten pool
  1. Process behavior:
  • The oxidation front produces a narrow, bright zone of intense heat, enabling deep, narrow kerfs.
  • The reaction sustains itself as long as the oxygen supply and laser energy are maintained.
  • Oxide formation increases the HAZ (heat-affected zone) but stabilizes melt flow.
  1. Pros:
  • High cutting speed and efficiency for carbon steels.
  • Lower laser power requirement for a given material thickness.
  • Excellent throughput for industrial fabrication and construction steel applications.
  1. Cons:
  • Oxidized, dark edges (iron oxide layer) requiring cleaning or machining for cosmetic or corrosion-sensitive parts.
  • Wider HAZ due to chemical heat release.
  • Not compatible with stainless steel, aluminum, or titanium — oxidation degrades these materials’ surface quality.
  • Potential nozzle wear from oxide particles and thermal backflow.
  1. Practical insight: Oxygen cutting is often the most economically efficient method for mild steel, but edge oxidation and dross limit its use in industries demanding surface integrity (e.g., food-grade or decorative applications).
Oxygen transforms the cutting process from purely thermal to thermochemical. It adds energy through oxidation, boosting cutting performance at the cost of edge purity.

Nitrogen (N2)

  1. Best for:
  • Stainless steel, aluminum, brass, copper, and galvanized or coated steels
  • Any application requiring oxide-free, bright, and weld-ready edges
  1. What it does: Nitrogen supports fusion cutting. It’s chemically inert and does not react with the molten metal. Instead, it performs two critical functions: Physically ejects molten material from the kerf through high-velocity flow; Shields the cutting front from ambient oxygen, preventing oxidation, discoloration, and surface contamination. Because nitrogen adds no chemical heat (unlike oxygen), all the energy required to melt the material must come from the laser beam itself. This makes nitrogen cutting more demanding in terms of laser power and gas flow dynamics, but produces exceptionally clean, smooth, and oxide-free edges.
  2. Typical pressures:
  • High pressure: typically 10–25 bar (145–360 psi)
  • For thicker stainless steel (>10 mm), pressures may exceed 30 bar to ensure complete molten metal expulsion.
  1. Process behavior:
  • Nitrogen prevents the formation of chromium oxides on stainless steel, maintaining its corrosion resistance.
  • At high flow rates, it stabilizes the molten pool and minimizes striation marks on the cut edge.
  • Edge roughness decreases with optimized gas velocity and nozzle alignment.
  1. Pros:
  • Oxide-free, bright edges are ideal for welding, painting, and coating.
  • Minimal post-processing — edges are ready for use or assembly.
  • No discoloration or thermal tinting.
  • Stable process with low variability once parameters are tuned.
  1. Cons:
  • High gas consumption and high operating costs due to high-pressure delivery.
  • Slower cutting speeds compared to oxygen (no exothermic heat).
  • Higher power requirement for thick materials.
  1. Practical insight: For stainless steel and aluminum, nitrogen cutting is the industry standard. In clean manufacturing environments (food-grade, medical, aerospace), nitrogen purity (≥99.99%) is essential to prevent micro-oxidation that can affect downstream weldability.
Nitrogen is the precision gas of laser cutting — it ensures purity, edge brightness, and corrosion resistance, trading speed for quality.

Clean, Dry Shop Air

  1. Best for:
  • Mild steel, aluminum, and stainless steel up to moderate thickness (typically ≤6–8 mm)
  • General fabrication, prototype manufacturing, and cost-sensitive production
  1. What it does: Shop air is an economical hybrid assist gas composed of roughly 78% nitrogen, 21% oxygen, and small traces of argon and CO2. It behaves as a middle ground between oxygen and nitrogen cutting: The oxygen fraction slightly enhances cutting speed through limited oxidation; The nitrogen majority prevents excessive oxidation, maintaining reasonably clean edges. This makes air-assisted cutting a practical solution for shops seeking to reduce gas costs while maintaining acceptable edge quality.
  2. Typical pressures:
  • Moderate to high: typically 6–12 bar (90–175 psi)
  • Pressure depends on compressor capacity and material type.
  1. Process considerations:
  • Air must be dry and oil-free. Moisture or oil contamination can cause laser lens fouling, spatter, and uneven cuts.
  • High-quality air systems use multi-stage filtration (coalescing, desiccant, and carbon filters) to protect optics and maintain cut consistency.
  1. Pros:
  • Extremely cost-effective — no bottled gas or delivery logistics.
  • Good balance between speed and quality.
  • Versatile — suitable for many metals and non-metals in daily shop work.
  • Environmentally sustainable, as it uses atmospheric air.
  1. Cons:
  • Edges may show light oxidation or discoloration, particularly on stainless steel.
  • Not suitable for precision, high-finish applications.
  • Compressor maintenance is critical; impurities can degrade optics or alter cut consistency.
  1. Practical insight: For job shops and contract fabricators, compressed air is often the best value solution. With a modern high-pressure air compressor and filtration, air cutting can deliver near-nitrogen quality at a fraction of the cost.
Shop air offers the best cost-performance compromise. It enables efficient cutting across a range of materials with only minor tradeoffs in finish.

Argon (Ar)

  1. Best for:
  • Reactive metals: titanium, magnesium, zirconium, and special alloys
  • Precision components requiring zero oxidation and chemical purity
  1. What it does: Argon is a noble gas — completely inert, denser than air, and incapable of chemical reaction even at extreme temperatures. In laser cutting, argon’s primary function is to: Displace oxygen and nitrogen entirely, forming a perfectly inert atmosphere; prevent oxidation, nitriding, and embrittlement of sensitive materials; shield the molten pool to maintain metallic purity. Because argon is heavier than air, it tends to blanket the cutting front effectively but requires slightly higher flow rates to ensure the molten pool stays protected.
  2. Typical pressures:
  • 5–20 bar (70–290 psi) depending on thickness and cut speed.
  • Flow must be sufficient to maintain inert shielding without disturbing the melt zone.
  1. Process behavior:
  • Produces chemically clean, silver-bright edges on reactive metals.
  • Prevents hydrogen pickup and oxygen contamination, both of which can cause brittleness in titanium.
  • Requires careful nozzle design to avoid turbulence, as argon’s density can slow ejection of molten metal.
  1. Pros:
  • Absolute chemical inertness — no oxidation or nitriding.
  • Ideal for critical industries (aerospace, biomedical, high-purity electronics).
  • Compatible with titanium and superalloys that cannot tolerate even trace oxidation.
  1. Cons:
  • High cost relative to nitrogen or oxygen.
  • Lower cutting speeds since there’s no chemical heat contribution.
  • Heavier gas — may require higher pressure to maintain flow uniformity.
  1. Practical insight: Argon is typically reserved for specialized, high-value cutting rather than general fabrication. It’s indispensable when even microscopic oxide films could compromise weldability or biocompatibility.
Argon is the pure gas — used when material integrity outweighs all other considerations.

Helium (He) and Helium Mixes

  1. Best for:
  • High-reflectivity materials: copper, brass, aluminum
  • Thin organics, composites, and ceramics
  • Precision and micro-cutting where minimal HAZ is critical
  1. What it does: Helium is inert, extremely light, and has very high thermal conductivity — about six times that of argon. In laser cutting, these properties make helium ideal for rapid heat dissipation and plasma suppression: The helium jet removes heat efficiently from the kerf, minimizing HAZ and thermal distortion; it helps stabilize the plasma plume that forms above reflective or conductive materials, improving laser beam coupling and consistency. Helium’s low density allows it to flow at very high velocity, enhancing debris removal without oxidizing the material. Helium is often used as an additive gas, blended with nitrogen or argon (typically 5–20%) to improve cooling and cut stability while controlling cost.
  2. Typical pressures:
  • 5–15 bar (70–220 psi), depending on material and setup.
  1. Process behavior:
  • Enhances edge definition and reduces dross on reflective metals.
  • Useful in multi-pass precision cutting and thin-film ablation, where localized heat must be tightly controlled.
  • Reduces micro-cracking in delicate ceramics and composites.
  1. Pros:
  • Excellent heat removal and beam stabilization.
  • Improves quality and consistency on reflective or thermally sensitive materials.
  • Minimizes HAZ and distortion.
  1. Cons:
  • Very expensive due to limited global supply.
  • Low density requires high flow rates to maintain effective coverage.
  • Typically uneconomical for general metal cutting.
  1. Practical insight: Helium is used where precision and control matter more than speed or cost — for example, in electronics, optics, or aerospace microcomponents.
Helium is the stability gas — valued for its ability to control heat and plasma dynamics in the most demanding applications.
Laser cutting gases are not interchangeable — each has a specific thermochemical role: Oxygen boosts speed through oxidation; Nitrogen delivers bright, oxide-free edges; Air balances economy and versatility; Argon safeguards purity for sensitive materials; Helium enhances control and thermal stability in precision work.
Choosing the right gas — and using it at the correct pressure, purity, and flow — is what separates a functional cut from a production-grade, precision result.

How Gas, Nozzles, and Optics Work Together

Laser cutting is not just about light and gas—it’s about precision coordination between the optics, gas delivery system, and nozzle design. These elements form a tightly controlled system that determines how energy, heat, and pressure interact at the cutting front. The quality of this interaction directly influences edge smoothness, kerf width, and cutting speed.

Nozzle Geometry

The nozzle geometry defines how the assist gas exits and interacts with the molten pool. Its orifice diameter, taper angle, and internal shape control gas velocity and pressure distribution. A small-diameter nozzle (typically 1.0–1.5 mm) delivers a high-velocity jet ideal for fine, thin cutting, while larger orifices (up to 3 mm) are used for thicker materials requiring greater flow. The convergent or conical nozzle design minimizes turbulence, maintains laminar flow, and ensures the gas jet reaches the cutting zone in a concentrated, uniform stream. Any distortion in nozzle geometry—through wear, debris, or thermal expansion—can cause uneven gas flow, leading to rough edges or incomplete cuts.

Stand-Off Distance

The stand-off distance—the gap between the nozzle tip and the workpiece surface—directly affects how efficiently the gas jet transfers momentum into the kerf. When this gap is too small, molten material and back-spatter can strike the nozzle, damaging it or disturbing gas flow. Too large, and the gas loses velocity before reaching the cut, reducing ejection power. In precision laser systems, the ideal stand-off distance is typically between 0.5 and 1.5 mm, depending on the nozzle size and material type. Maintaining a consistent stand-off distance is critical for steady flow and uniform edge quality, which is why many modern systems use capacitive height sensors for automatic control.

Coaxial Flow Alignment

For consistent cutting, the gas jet and laser beam must be perfectly coaxial—aligned on the same axis. Even a minor offset can cause asymmetric pressure in the kerf, resulting in uneven dross formation, edge taper, or cut deviation. Coaxial alignment ensures that molten material is expelled evenly from both sides of the cut and that the beam’s energy density remains symmetrical. This alignment is especially important for high-precision cutting of thin materials, where minor deflections can significantly degrade edge quality.

Focus Position

The focus position—where the laser beam converges relative to the material surface—determines the energy distribution and how the gas interacts with the molten pool. Focusing slightly below the surface (negative focus) increases energy density within the material, improving melt ejection in thicker sections. Focusing on or slightly above the surface (zero or positive focus) is better for thin materials or vaporization cutting, where minimal melt and heat input are desired. The focus and gas jet must work in tandem: the gas flow clears molten metal precisely where the beam’s energy is most concentrated.

Pressure VS. Thickness

The relationship between gas pressure and material thickness is fundamental. Thin sheets require lower gas pressure (often 4–8 bar) to prevent turbulence and maintain a smooth, narrow kerf. Thicker materials, on the other hand, demand higher pressures (10–25 bar for nitrogen, up to 6 bar for oxygen) to deliver enough momentum to eject larger volumes of molten material from deeper kerfs. The correct pressure balance ensures consistent cut-through without excess oxidation, gas waste, or instability at the cutting front.
Gas, nozzles, and optics work as an integrated system. The nozzle geometry shapes gas delivery, the stand-off distance controls its effectiveness, and coaxial alignment ensures symmetry. Meanwhile, the focus position defines how the beam’s energy couples with the material, and the pressure selection tailors gas momentum to material thickness. When optimized together, these parameters form a stable, high-speed cutting environment where energy, heat, and gas flow act in perfect synchrony—producing clean, precise, and repeatable results.

Material-by-Material Guidance

No single gas fits every laser cutting application. Each material interacts differently with laser energy and assists gases depending on its thermal conductivity, reflectivity, oxidation behavior, and melting characteristics. Choosing the right gas for each type of material ensures clean edges, efficient cutting speeds, and predictable performance.

Mild and Carbon Steels

  • Typical gases: Oxygen (O2) for production cutting; Air for economy operations.
  • Behavior and gas role: In mild and carbon steels, reactive oxygen cutting is the standard. When the laser heats the surface to about 800–900℃, oxygen reacts exothermically with iron to form iron oxides. This chemical reaction releases extra heat — effectively amplifying the laser’s energy — allowing faster cutting and deeper penetration even with moderate laser power. The oxygen also drives molten oxides and metal out of the kerf, keeping it open and clear. However, this leaves a dark, oxidized edge that may require grinding or coating if a clean finish is required. For thin sections or general fabrication, dry compressed air can substitute oxygen at a lower cost, offering acceptable edge quality with slightly reduced speed.
  • Typical pressure: 0.5–6 bar (oxygen); 6–12 bar (air).
  • Best for: Construction steel, frames, machinery components.
Oxygen provides cutting power through oxidation; it’s fast, economical, and ideal for structural steels, but produces an oxidized edge.

Stainless Steels

  • Typical gases: Nitrogen (N2) for quality cutting; Air for lower cost; Oxygen for rough or thick cutting.
  • Behavior and gas role: Stainless steels are valued for their corrosion resistance, which depends on maintaining a clean, oxide-free surface. Nitrogen cutting is therefore preferred because it’s inert and prevents oxidation. The high-pressure nitrogen jet (10–25 bar) blows molten metal out of the kerf while shielding the cut zone from air. This produces bright, metallic edges that require no post-processing and maintain weldability. Oxygen can cut stainless steel faster by adding heat, but it leaves a heavy oxide layer and heat tint that must be removed mechanically or chemically. Air cutting provides a middle ground for non-cosmetic parts where slight oxidation is acceptable.
  • Typical pressure: 10–25 bar (nitrogen).
  • Best for: Food processing equipment, architectural panels, precision parts.
Nitrogen ensures oxide-free, weld-ready edges; oxygen gives speed but sacrifices surface quality.

Aluminum Alloys

  • Typical gases: Nitrogen (N2); Air for economy; Helium (He) or He/N₂ blends for premium results.
  • Behavior and gas role: Aluminum’s high reflectivity and thermal conductivity make it a challenging material to cut efficiently. Nitrogen is the gas of choice because it prevents oxidation and removes molten material cleanly, resulting in smooth, silver edges. Oxygen is rarely used since aluminum oxides are tenacious, can contaminate the surface, and increase dross formation. To improve consistency on reflective alloys (like 5xxx or 6xxx series), helium additions help stabilize the plasma plume and improve cooling. This reduces spatter and produces highly polished edges — especially valuable for precision components or visible finishes.
  • Typical pressure: 12–22 bar (nitrogen).
  • Best for: Aerospace panels, automotive parts, decorative trim.
Nitrogen provides clean, oxide-free cuts; helium enhances stability and finish for demanding applications.

Copper and Brass

  • Typical gases: Nitrogen (N₂), Argon (Ar), or Helium (He).
  • Behavior and gas role: Copper and brass are extremely reflective and thermally conductive, which historically made them difficult to cut with older CO2 lasers. Modern fiber lasers, however, handle these materials better due to their shorter wavelength (~1 µm), which is absorbed more effectively. Nitrogen is most common for general use—it’s inert and inexpensive, providing good edge quality without oxidation. Argon and helium are used in high-value or precision work because they stabilize the plasma, minimize heat distortion, and prevent micro-cracking. These gases are essential for components where even slight surface oxidation can affect electrical or optical performance.
  • Typical pressure: 10–20 bar (nitrogen/argon); 5–15 bar (helium).
  • Best for: Electrical components, heat exchangers, decorative fixtures.
Inert gases prevent oxidation and control heat; helium and argon deliver superior precision and stability for high-end applications.

Titanium, Nickel Alloys, and Magnesium

  • Typical gases: Argon (Ar); Nitrogen (N2) in controlled cases; Helium (He) for fine cutting.
  • Behavior and gas role: These are high-performance reactive materials, common in aerospace, medical, and energy industries. They are highly sensitive to oxidation and nitrogen absorption, which can cause embrittlement or surface contamination. For this reason, argon—a chemically inert noble gas—is the safest and most widely used choice. It provides a pure, oxygen-free environment, preserving material integrity and preventing color changes. Helium is sometimes added for better heat removal and plasma stabilization. Nitrogen may be used only when the slight formation of nitrides is tolerable, or the part will be machined post-cutting. Magnesium, in particular, must never be cut with oxygen or air due to its flammability.
  • Typical pressure: 5–15 bar (argon).
  • Best for: Jet engine parts, surgical tools, precision aerospace components.
Argon ensures chemical purity and prevents oxidation; helium assists with cooling and precision.

Galvanized Steels

  • Typical gases: Nitrogen (N2) or Air; Oxygen (O2) for thick structural parts.
  • Behavior and gas role: Galvanized steels are coated with zinc, which vaporizes at around 900℃—well below steel’s melting point. This creates zinc vapor that can interfere with the laser beam and molten pool. Nitrogen is typically used to control vapor formation, minimize oxidation, and maintain consistent kerf width. For thin sheets and general fabrication, compressed air offers good performance and lower cost. In heavier gauges, oxygen may be used to sustain cut-through, though it can leave zinc oxide buildup. Effective fume extraction is essential to prevent vapor condensation and protect optics from zinc contamination.
  • Typical pressure: 8–15 bar (nitrogen/air).
  • Best for: HVAC ducts, coated panels, appliance components.
Nitrogen minimizes zinc burn and oxidation; air balances cost and performance for light fabrication.

Non-Metals (CO2 Lasers Dominate Here)

  • Typical gases: Air, Nitrogen (N2), sometimes CO2 (beam medium, not assist gas).
  • Behavior and gas role: For non-metallic materials—such as wood, plastics, acrylic, paper, textiles, and composites—CO2 lasers are preferred because their 10.6 µm wavelength is strongly absorbed by organic materials. The cutting mechanism is vaporization rather than melting. The assist gas helps remove vaporized material and prevents combustion. Air or nitrogen clears smoke, cools the surface, and maintains beam transparency. Because non-metals are typically thin and lightweight, the gas pressure is low (1–2 bar), sufficient only to keep the kerf clean without damaging the material.
  • Typical pressure: 1–2 bar (air/nitrogen).
  • Best for: Acrylic signs, wood products, fabric patterns, polymers.
Air or nitrogen clears vapor and smoke, prevents burning, and keeps edges smooth and clear.
Every material responds differently to laser cutting, and the assist gas selection defines the result. Selecting the right gas for each material turns raw laser power into controlled precision—ensuring every cut meets its mechanical, visual, and functional requirements.

Gas Supply Options and What They Mean for Cost

Assist gases are essential for laser cutting — but how you store, deliver, and generate them can dramatically affect your operating costs, reliability, and production efficiency. Gas supply systems range from portable cylinders to large on-site generation setups, each suited to different consumption levels and budgets. Choosing the right supply method depends on factors like cutting volume, gas type, pressure requirements, purity, and long-term cost per cubic meter.

Cylinders and Bundles

For small or moderate cutting operations, gases are most commonly supplied in high-pressure cylinders (single bottles) or bundles (packs of 6–12 interconnected cylinders). These are filled at industrial gas plants and delivered ready for use.

  1. Details: Each cylinder typically holds 7–10 cubic meters of gas at 200–300 bar, while a bundle can supply up to 150 cubic meters. They are straightforward to use, require minimal infrastructure, and are ideal for low-to-medium gas consumption—such as prototype shops, job shops, or operations running one laser intermittently.
  2. Advantages:
  • Low initial setup cost.
  • Simple to install and maintain.
  • Easy to switch between different gases (O2, N2, Ar).
  1. Drawbacks:
  • High cost per cubic meter due to frequent deliveries and rental fees.
  • Pressure drops as cylinders empty, which can affect cut consistency.
  • Handling and storage regulations apply (safety and transport restrictions).
  1. Typical users: Small fabrication shops, R&D facilities, low-volume manufacturers.
  2. Cost implication: Lowest entry cost but highest long-term cost per unit of gas.

Micro-Bulk and Bulk Tanks

For higher consumption, gas can be delivered as liquefied nitrogen or oxygen in insulated storage tanks. These systems automatically vaporize and regulate the gas to supply the laser at constant pressure and flow.

  1. Details:
  • Micro-bulk tanks: 500–3,000 liters capacity, suited for medium-sized shops.
  • Bulk tanks: 3,000–30,000+ liters, for high-throughput facilities with multiple lasers.
  • The liquid gas is stored at cryogenic temperatures (–196℃ for nitrogen, –183℃ for oxygen) and automatically converted to gas before entering the cutting line.
  1. Advantages:
  • Stable pressure and purity for consistent cut quality.
  • Lower cost per cubic meter compared to cylinders.
  • Reduced downtime — fewer changeovers or handling requirements.
  • Supplier-managed refills (automated telemetry in modern systems).
  1. Drawbacks:
  • Higher upfront cost for installation and site preparation.
  • Requires regular maintenance and periodic supplier refills.
  • On-site space and safety clearances are needed for cryogenic tanks.
  1. Typical users: Medium-to-large fabrication plants, 24/7 cutting operations, OEM manufacturers.
  2. Cost implication: Medium capital cost, significantly lower per-unit gas cost (30–50% savings over cylinders). Excellent for steady, high-demand production.

On-Site Nitrogen Generation (PSA or Membrane Systems)

When nitrogen is used heavily — especially for high-pressure fusion cutting — many facilities invest in on-site nitrogen generation systems. These produce nitrogen directly from ambient air using Pressure Swing Adsorption (PSA) or membrane separation technology, eliminating dependency on delivered gas.

  1. Details:
  • PSA systems use adsorption towers filled with carbon molecular sieve (CMS) to separate nitrogen from oxygen. They can achieve purities of 95%–99.999%, adjustable to suit laser cutting needs.
  • Membrane systems use semi-permeable fibers that let oxygen and moisture pass through faster than nitrogen, producing purities typically between 95%–99.5%.
  • The generated nitrogen feeds directly into a high-pressure booster or buffer tank and is delivered to the cutting machine through a regulated pipeline.
  1. Advantages:
  • Lowest long-term cost for nitrogen; eliminates cylinder or bulk deliveries.
  • Continuous, on-demand supply — no risk of running out mid-production.
  • Purity can be optimized to balance quality vs cost.
  • Rapid ROI (1–3 years) for high-consumption operations.
  1. Drawbacks:
  • Higher initial capital investment for the generator, compressor, and storage system.
  • Requires consistent maintenance and quality monitoring.
  • Power consumption adds to operating cost.
  1. Typical users: Large metal fabrication shops, multi-laser facilities, OEMs.
  2. Cost implication: High initial investment but lowest per-unit nitrogen cost (up to 80% savings vs bottled gas). Ideal for consistent, high nitrogen demand.

Compressors for Shop Air Assist

Using compressed shop air as the assist gas has become increasingly popular — especially for fiber lasers cutting mild steel, stainless steel, and aluminum up to moderate thickness. Modern compressor systems can deliver clean, dry, oil-free air at pressures between 8–15 bar, making them suitable for many general cutting operations.

  1. Details:
  • A high-quality system includes:
  • A rotary screw or scroll compressor.
  • Filtration and drying units (coalescing, desiccant, and carbon filters).
  • A receiver tank for pressure stabilization.
  • Clean, dry air acts as a hybrid assist gas — containing ~78% nitrogen and ~21% oxygen — offering a balance between speed (from oxygen) and cleanliness (from nitrogen).
  1. Advantages:
  • Lowest operating cost once the compressor is installed.
  • Unlimited gas availability without deliveries or refills.
  • Works for most production materials at moderate thicknesses.
  1. Drawbacks:
  • Requires investment in a high-quality filtration system to protect optics.
  • Slight oxidation on edges, especially in stainless steels.
  • Limited performance for thick-section cutting compared to high-purity nitrogen.
  1. Typical users: Job shops, general metal fabricators, small-to-medium production lines.
  2. Cost implication: Lowest total cost for moderate-demand operations; payback within 6–18 months compared to cylinder use.

Oxygen Supply Systems

Oxygen is used primarily for reactive cutting of carbon and mild steels. Because consumption rates are generally lower than nitrogen, most users rely on cylinders, bundles, or small micro-bulk systems rather than on-site generation.

  1. Details:
  • Oxygen enhances the laser cutting process by triggering oxidation reactions that add exothermic heat, increasing cutting speed and depth. Purity (99.5% or higher) and stable pressure are key to consistent performance.
  • In high-volume steel processing, liquid oxygen tanks are sometimes used to maintain an uninterrupted flow. For smaller users, bottled oxygen offers simplicity and flexibility with minimal capital cost.
  1. Advantages:
  • Simple storage and low infrastructure needs.
  • Fast cutting speeds on thick carbon steels.
  • Long shelf life and predictable consumption.
  1. Drawbacks:
  • Reactive and combustible — requires strict safety protocols.
  • Handling and leak prevention are critical.
  • Not suitable for oxidation-sensitive materials.
  1. Cost implication: Moderate overall — cheaper per unit than nitrogen, but with limited usage scope.
Choosing the right gas supply setup is not just about cutting performance — it’s a strategic cost decision that determines long-term profitability and production reliability.

What Drives Gas Cost Per Part

Assist gas consumption is one of the largest variable costs in laser cutting, second only to power usage. While the type of gas defines the general cost level, the way the process is configured — pressure, nozzle size, piercing, and cutting strategy — determines how much gas is actually used per part. Efficient use of gas can make the difference between a profitable operation and one that quietly leaks money with every sheet.

Assist Gas Choice and Material Thickness

The single biggest influence on gas cost per part is the assist gas type — primarily oxygen, nitrogen, or compressed air — and the material thickness being cut.

  • Oxygen (O2): Used for carbon and mild steels, oxygen cutting relies on chemical oxidation to add heat. Gas pressures are relatively low (0.5–6 bar), and consumption per part is minimal. Because oxygen cutting speeds are high and gas use is low, the cost per part is typically the lowest of all methods. However, post-processing costs can rise due to oxidized edges that require cleaning or painting.
  • Nitrogen (N2): For stainless steel and aluminum, nitrogen provides clean, oxide-free edges — but at a price. Nitrogen cutting uses high pressure (10–25 bar) and large gas volumes, especially on thicker sheets, dramatically increasing per-part gas consumption. The thicker the material, the more pressure and flow are needed to clear molten metal from a deeper kerf. Thus, gas cost rises almost exponentially with thickness.
  • Shop Air: Clean, dry air (78% nitrogen, 21% oxygen) provides a low-cost compromise. Air-assisted cutting operates at moderate pressures (6–12 bar) and produces edges that are slightly oxidized but acceptable for general fabrication. It cuts gas cost by 70–90% compared to bottled nitrogen, making it ideal for job shops that prioritize throughput over perfect surface finish.
Gas cost increases with both purity and pressure. Oxygen is cheapest per cut, nitrogen is the most expensive but cleanest, and air offers an economic middle ground. Thicker materials multiply nitrogen and air consumption, so cost management starts with matching gas type to material and finish requirements.

Nozzle Diameter and Pressure

The nozzle geometry directly determines how much gas is used. Both diameter and pressure influence the gas flow rate — and therefore, cost.

  • Nozzle Diameter: Larger nozzles (2.0–3.0 mm) deliver more gas volume for deeper or wider kerfs, while smaller nozzles (1.0–1.5 mm) are used for fine cuts on thin materials. Because gas flow increases with the cross-sectional area of the nozzle, even small increases in diameter can significantly raise gas consumption.
  • Pressure: Gas flow rises rapidly with pressure. For example, doubling pressure from 10 to 20 bar nearly doubles nitrogen flow — and therefore doubles cost. The goal is to use just enough pressure to clear the melt cleanly without wasting gas.
  • Optimization Tip: Modern cutting systems use automatic gas control and flow sensors to adjust pressure dynamically by thickness and speed. Fine-tuning nozzle and pressure parameters can reduce gas cost by 15–30% without affecting cut quality.
Bigger nozzles and higher pressures mean faster cutting, but exponentially higher gas use. Right-sizing nozzles and optimizing pressure are the simplest ways to cut gas costs without compromising performance.

Piercing Strategy

Each pierce — the initial point where the laser melts through the material — consumes a high burst of gas and power. On thick or multi-part nests, piercing can represent a surprising share of total gas use.

Piercing modes affect cost in several ways:

  • High-pressure piercing uses full cutting pressure to clear molten metal quickly, consuming more gas per pierce.
  • Low-pressure or ramped piercing gradually increases pressure, using less gas and minimizing spatter.
  • Pre-piercing outside the part boundary (where possible) can prevent rework and reduce waste gas usage during re-cuts.
In advanced CNC systems, “pierce-on-the-fly” strategies — where piercing happens dynamically as the laser moves — can reduce total pierce count, improving both speed and gas efficiency.
Optimization Tip: For high-volume cutting, optimizing pierce count, time, and pressure can cut overall gas consumption by 10–20%, particularly on thicker nitrogen-cut materials.
Minimizing pierces or using controlled-pressure piercing strategies reduces wasted gas, heat distortion, and spatter rework.

Cut Path Efficiency

Gas consumption is directly proportional to cutting time, and cutting time depends on path planning. Even if all other parameters are optimized, poor nesting and inefficient tool paths waste both time and gas.

Factors affecting path efficiency:

  • Nesting optimization: Compact part layouts minimize total cutting distance and reduce the gas used per sheet.
  • Common-line cutting: Sharing edges between adjacent parts saves time, gas, and energy.
  • Short lead-ins and optimized travel moves minimize gas flow during non-cutting transitions.
  • Auto-shutdown features on assist gas valves ensure no gas flows when the laser is idle.
A 10% reduction in total cut path length can reduce gas consumption and per-part cost by a similar margin. Many modern CAM systems include gas-aware nesting algorithms that balance production speed and consumption.
Efficient nesting and cutting paths lower gas use per part by reducing unnecessary on-time and idle gas flow.

Rework and Finishing

The most expensive gas is the one that doesn’t produce a finished part. Poorly optimized gas parameters lead to rough edges, dross, or heat tint, requiring rework, grinding, or chemical cleaning — all of which add hidden cost far beyond gas itself.

Examples of rework-related gas waste:

  • Oxygen cutting: Excessive pressure or poor nozzle alignment can create heavy oxide layers, requiring surface cleaning.
  • Nitrogen cutting: Too little pressure causes incomplete melt ejection, leading to dross that must be manually removed.
  • Air cutting: Contaminated or wet air can damage optics or leave inconsistent finishes, increasing scrap.
By investing in consistent gas quality (clean, dry, pure), operators avoid unnecessary finishing steps and re-cuts. Reducing rework by just 2–3% can outweigh small increases in gas cost from using a cleaner supply or better filtration.
Gas quality and parameter control directly affect edge finish. Every hour spent on post-cut cleaning represents wasted gas, energy, and labor.
Gas cost per part is not just about the gas price — it’s about how efficiently that gas is used. Gas cost per part is driven by both technical settings and operational discipline. Choosing the right gas, maintaining efficient nozzle and pressure settings, minimizing pierces, optimizing cut paths, and avoiding rework together define real profitability. In a competitive shop, mastering gas efficiency can cut operating costs by 20–40% — without changing a single material or laser.

Sustainability Considerations

As manufacturing increasingly focuses on environmental responsibility, laser cutting operations are under pressure to become cleaner, more efficient, and less wasteful. While lasers already outperform many mechanical cutting methods in terms of material use and precision, their gas consumption, energy demand, and system maintenance also affect sustainability.
From cylinder logistics to filtration management, every aspect of the gas delivery and cutting process influences both environmental impact and operating cost. Understanding and optimizing these factors helps reduce carbon footprint while improving long-term efficiency.

Cylinder Logistics

Traditional gas supply through compressed cylinders and bundles comes with a hidden environmental cost. Each cylinder delivery requires transport, storage, and frequent replacements. These logistics generate emissions from trucks, forklifts, and handling equipment, especially when high-pressure nitrogen or oxygen is used daily.

  1. Environmental impacts:
  • Frequent transport: Gas deliveries contribute to greenhouse gas (GHG) emissions from fuel use and vehicle idling.
  • Cylinder manufacturing and testing: Steel cylinder production and hydrostatic recertification are energy-intensive processes.
  • Return handling: Empty cylinders must be collected and re-pressurized at remote facilities, adding another logistics loop.
  1. Sustainable alternatives:
  • Bulk or micro-bulk systems reduce delivery frequency and transport emissions per cubic meter of gas delivered.
  • On-site nitrogen generation (via PSA or membrane systems) eliminates transport — producing nitrogen directly from ambient air, using only electricity. This can reduce the CO₂ footprint of nitrogen use by up to 70–80% over the cylinder model.
  • Optimized delivery scheduling (using telemetry) also helps minimize partial-fill truck trips and unnecessary refills.
Reducing gas delivery frequency or moving to on-site generation drastically cuts logistics-related emissions and waste.

Energy Efficiency

Although laser cutting is highly precise, the energy input—from the laser source, assist gas compression, and ancillary systems—can be significant. Improving energy efficiency lowers both cost and environmental impact.

Energy factors to consider:

  • Laser source type: Modern fiber and disk lasers convert electrical power to laser energy with 30–45% efficiency, compared to around 10–15% for CO2 lasers. Upgrading to newer laser sources can cut total power consumption by up to 50% for the same throughput.
  • Gas compression: High-pressure nitrogen cutting consumes large amounts of electricity for gas generation and compression. Using on-demand nitrogen generation with smart compressors helps avoid running compressors at idle.
  • Standby control: Intelligent cutting systems can shut down gas flow and laser power between jobs or when idle, minimizing wasted energy.

Additional energy optimizations:

  • Maintain clean optics and lenses—dirty optics cause energy loss that the laser compensates for with higher power draw.
  • Regularly inspect gas lines and fittings—leaks waste compressed gas and the electricity used to generate it.
Selecting efficient laser sources and managing gas compression systems effectively can significantly lower both energy use and carbon footprint per part.

Process Optimization

Sustainability isn’t just about technology—it’s about how intelligently the process is run. Optimized cutting parameters reduce waste, gas consumption, and rework, all of which directly improve environmental performance.

Best practices for sustainable process optimization:

  • Minimize gas use: Fine-tune pressure and nozzle size to the lowest level that still achieves clean cuts. Over-pressurization wastes gas and energy.
  • Use adaptive control systems: Modern lasers can dynamically adjust gas flow based on real-time cutting feedback. This can save 10–20% in gas consumption per sheet.
  • Improve nesting efficiency: Efficient part nesting reduces offcuts and gas-on time, minimizing total emissions per product.
  • Reduce rework: Correct gas purity and flow to prevent oxidation or dross buildup, reducing the need for grinding or re-cutting, which both consume additional energy and labor.
  • Switch intelligently between gases: Use air assist where possible instead of nitrogen, especially on thinner sheets, to reduce dependence on high-purity gas.
Every cubic meter of gas not used saves both the energy needed for its production and the emissions from its compression and delivery. Sustainability and efficiency go hand in hand — reducing waste and rework lowers both emissions and operational costs.

Filtration Upkeep

Assist gas quality — particularly air or nitrogen — depends heavily on proper filtration. Poor filtration increases contamination, reduces cut quality, and leads to premature optics wear or machine downtime, which indirectly raises energy and resource consumption.

  1. Filtration system elements:
  • Coalescing filters remove oil and liquid aerosols.
  • Desiccant dryers remove moisture to prevent oxidation or nozzle freezing.
  • Carbon filters eliminate hydrocarbons that could damage optics or discolor stainless steel cuts.
  1. Sustainability angle: When filters clog or degrade, compressors and gas generators must work harder to maintain pressure — consuming more energy. Additionally, contaminated gas increases rework rates and scrap. Establishing a preventive maintenance schedule ensures filters operate at peak efficiency and avoids unnecessary replacements.
  2. Best practices:
  • Replace filters according to operating hours or pressure drop indicators.
  • Use recyclable or serviceable filter elements to reduce waste.
  • Monitor pressure differentials across filters to detect inefficiencies early.
Proper filtration maintenance preserves system efficiency, reduces rework, and extends equipment life—all of which contribute to long-term sustainability.
Laser cutting’s environmental impact depends not only on the gases used but also on how those gases are supplied, controlled, and maintained. Reducing logistics, improving energy efficiency, optimizing processes, and keeping filtration systems in top condition all contribute to a leaner, cleaner, and more sustainable cutting operation. The most sustainable system is one that combines technical precision with operational discipline — producing high-quality parts with minimal waste, minimal energy, and maximum efficiency.

Process Parameters That Interact With the Gas

The quality, efficiency, and cost of a laser cut depend on how precisely the process parameters are tuned to work in harmony with the assist gas. The laser’s power and motion define how material melts or vaporizes, while the gas ensures that molten material is cleared, oxidation is controlled, and the kerf stays stable.
Even with the right gas type and pressure, poor control of focus position, cutting speed, piercing method, or nozzle condition can turn a clean cut into one that’s rough, inconsistent, or wasteful. Each of these parameters directly interacts with gas flow dynamics and determines how effectively the beam and gas perform as a single, controlled system.

Focus Position

The focus position—where the laser beam converges relative to the workpiece surface—determines the energy density and how the assist gas interacts with the molten pool. The focus is typically set above, on, or below the surface, depending on material thickness and cutting mode.

  1. How it affects gas behavior:
  • Focus above the surface (positive focus): Common in thin-sheet cutting. The beam spreads as it enters the material, creating a wider kerf. Gas flow more easily ejects molten material, improving cutting speed but slightly reducing edge sharpness.
  • Focus on the surface (zero focus): Provides balanced energy distribution for medium-thickness materials, maintaining smooth gas–melt interaction.
  • Focus below the surface (negative focus): Used for thicker materials or fusion cutting. The concentrated energy penetrates deeper, but molten material must travel farther to exit the kerf. This requires higher gas pressure and stable flow to prevent dross buildup.
  1. Practical insight: Focus and gas flow are interdependent — too shallow a focus with low gas pressure causes incomplete cutting; too deep a focus with excessive pressure can create turbulence that disturbs the melt pool. Modern machines use automatic focus control linked to gas settings to maintain optimal interaction throughout the cut.
The right focus position ensures that the gas jet and laser energy converge precisely where material removal occurs, maintaining efficient melt ejection and consistent edge quality.

Power and Feed Rate

Laser power determines how quickly material melts or vaporizes, while feed rate (cutting speed) controls how long the beam and gas act on a given point. Together, these parameters define the thermal load and gas demand during cutting.

  1. How they influence gas behavior:
  • At higher power, the molten pool becomes deeper and more turbulent, requiring stronger gas flow to eject molten material and prevent re-solidification.
  • Low power or excessive feed rate leads to incomplete melting, causing dross and rough edges because the gas cannot fully remove material.
  • High power with low feed rate overheats the kerf, creating excessive vapor and instability in the gas jet, which can lead to blowouts or burning.
  1. Balancing act: For each material thickness, there’s an ideal combination of power, feed rate, and gas pressure. For example, a 2-mm stainless steel sheet cut with nitrogen might require 2 kW at 20 bar, while a 10-mm sheet might need 8 kW at 25 bar. Increasing power without matching gas pressure can cause melt accumulation or striation.
  2. Optimization: Advanced systems use adaptive gas control — automatically adjusting flow rate based on laser power and speed — ensuring the right gas velocity for the heat input at every moment.
Power and speed define the thermal load; gas flow clears the result. The three must be synchronized to achieve high-speed, clean-edge cutting without waste.

Piercing Strategy

Piercing is the process of initiating the cut — melting through the material before continuous cutting begins. It’s one of the most gas-intensive steps, as the laser must penetrate the surface while the gas clears molten material and vapor from the pierce point.

  1. How it affects gas use and quality:
  • High-pressure piercing: Uses full cutting pressure to eject molten material quickly, but consumes more gas. Ideal for thick materials where rapid clearance prevents spatter buildup.
  • Low-pressure or ramped piercing: Starts at low pressure and gradually increases, conserving gas while preventing turbulence and surface blowback.
  • Pre-piercing or pierce-on-the-fly: Reduces idle gas flow by integrating piercing into motion or performing it outside the finished contour.
  1. Piercing and stability: An unstable piercing sequence can lead to molten metal adhering to the surface, blocking the nozzle, and disturbing gas symmetry. Many modern systems use multi-pulse or burst piercing strategies that combine controlled laser pulses with synchronized gas bursts to ensure efficient, low-spatter initiation.
Optimizing piercing not only saves gas but also prevents nozzle contamination and rework. Controlled piercing is the foundation of stable, efficient cutting.

Nozzle Wear and Height Control

The nozzle is where the gas and laser beam meet — making it the single most critical component in gas delivery. Its condition and distance from the material (stand-off height) dictate how effectively the gas jet reaches the cutting front.

  1. Effects of nozzle wear:
  • Erosion or deformation widens the gas stream, creating asymmetric flow that leads to rough edges and dross.
  • Spatter contamination blocks part of the nozzle orifice, misaligning the gas jet and deflecting the laser beam.
  • Worn nozzles increase turbulence, reducing gas velocity and cutting consistency.
  1. Height control:
  • Stand-off distance (usually 0.5–1.5 mm) determines jet focus. Too close, and backflow or molten splash can damage the nozzle. Too far, and gas momentum dissipates before reaching the kerf.
  • Modern laser heads use capacitive sensors to automatically maintain precise nozzle height, adjusting in milliseconds to material warping or unevenness.
  1. Maintenance best practices:
  • Inspect and clean nozzles daily.
  • Replace worn nozzles at the first sign of uneven edge formation.
  • Use correct nozzle geometry (conical or cylindrical) matched to the gas type and flow pattern.
Nozzle condition and height control are vital for consistent gas delivery. Stable, coaxial flow ensures the laser and gas perform as one, producing clean, repeatable cuts.
Gas and process parameters operate as a single system. Proper tuning ensures that the laser’s energy and the gas’s kinetic force complement each other — clearing molten metal efficiently, minimizing waste, and maintaining perfect edge quality. Optimized focus, power, piercing, and nozzle control not only improve performance but also reduce gas use, rework, and total operating cost, making the process both technically and economically efficient.

Quality Outcomes You Can Expect from Gas

The assist gas you choose doesn’t just influence cutting speed and cost — it defines the final quality of the part. From edge color and roughness to weldability and post-processing needs, gas type determines how the laser interacts with the molten metal and the surrounding atmosphere.
Each gas produces a distinct thermal and chemical effect at the cutting front. The differences are especially clear when comparing oxygen, nitrogen, and air — the three most common gases used in production cutting. Understanding what to expect from each allows you to balance speed, surface finish, and downstream requirements more effectively.

Oxygen on Mild Steel

  1. Typical use: Carbon and mild steels (up to 25–30 mm thick).
  2. How it works: Oxygen cutting is a reactive process. When the laser heats the steel to its ignition temperature (around 800–900°C), oxygen reacts exothermically with iron, forming iron oxides and releasing additional heat. This chemical energy supplements the laser beam, allowing high cutting speeds and deep penetration with relatively low laser power.
  3. Quality outcomes:
  • Edge color and finish: Oxygen produces a dark gray to black oxide layer along the cut edge, formed from iron oxides (FeO, Fe2O3, Fe3O4). This layer is rougher than a nitrogen-cut edge but structurally sound for most fabrication work.
  • Surface condition: The cut edge is typically slightly rough but consistent. For structural steel, this is acceptable; for cosmetic parts, post-processing such as grinding or shot blasting may be needed.
  • Dimensional precision: Oxygen’s exothermic reaction widens the heat-affected zone (HAZ), so edge geometry can taper slightly on thicker sections.
  • Weldability: The oxide layer must be removed before welding or painting to prevent contamination and adhesion issues.
  1. Advantages:
  • High cutting speeds on thicker materials.
  • Low gas consumption and simple supply logistics.
  • Suitable for structural and load-bearing applications.
  1. Limitations:
  • Oxidized edge unsuitable for visible or corrosion-resistant parts.
  • Not ideal for thin sheets due to heat distortion.
Oxygen cutting delivers fast, robust results—edges are strong and consistent, but visibly oxidized. It’s ideal where performance matters more than appearance.

Nitrogen on Stainless Steel and Aluminum

  1. Typical use: Stainless steels, aluminum alloys, copper, and brass — materials where oxidation must be avoided.
  2. How it works: Nitrogen is an inert gas, meaning it doesn’t chemically react with the molten metal. Instead, it mechanically ejects molten material while displacing oxygen from the cutting zone. This prevents oxidation and surface discoloration, leaving a bright, metallic finish.
  3. Quality outcomes:
  • Edge color and finish: Nitrogen produces silver or bright gray edges with no oxide formation. On stainless steel, the surface remains smooth and shiny, ready for downstream processes like welding or polishing. On aluminum, the edge is clean, with a fine grain and no burnt appearance.
  • Surface integrity: Because no oxidation occurs, there’s no heat tint or chemical alteration. The result is a non-reactive edge that preserves the alloy’s natural corrosion resistance.
  • Dimensional precision: The cut kerf is narrow, and the edge is crisp, with minimal striations. Nitrogen cutting achieves very high edge quality at the cost of a slower speed compared to oxygen.
  • Weldability: Welds are clean and strong — no oxide layer to remove beforehand. This makes nitrogen cutting ideal for precision fabrication.
  1. Advantages:
  • Oxide-free, corrosion-resistant edges.
  • No post-processing required for most parts.
  • Maintains base metal properties and appearance.
  1. Limitations:
  • Requires high gas pressure (10–25 bar) and large volumes of nitrogen.
  • Slower than oxygen-assisted cutting.
  • Higher gas cost per part, particularly on thick materials.
Nitrogen produces a flawless, bright edge that’s ready to use — perfect for applications demanding visual quality or weld-ready surfaces, such as food equipment, architecture, and precision sheet metal fabrication.

Air on Thin–Mid Gauges

  1. Typical use: Mild steel, stainless steel, and aluminum up to ~6 mm thick.
  2. How it works: Compressed shop air (roughly 78% nitrogen, 21% oxygen, and 1% argon and other gases) behaves as a hybrid assist gas — combining the reactive benefits of oxygen with the inert stability of nitrogen. It’s delivered through a high-quality filtration and drying system to keep it clean and dry.
  3. Quality outcomes:
  • Edge color and finish: On mild steel, air produces a light oxide film, lighter than that formed in pure oxygen cutting. On stainless steel and aluminum, the edge shows slight discoloration or yellowing from limited oxidation, but is still smooth and well-defined.
  • Surface condition: The cut is cleaner than oxygen and nearly comparable to nitrogen for thin sheets. The surface may show minimal edge roughness, especially at high speeds.
  • Dimensional precision: Kerf width is narrow and stable for thin gauges, making air suitable for high-speed production cutting where fine tolerances are acceptable.
  • Post-processing: For non-decorative or coated parts, air-cut edges typically need no additional finishing.
  1. Advantages:
  • Extremely low gas cost — air is free once filtration and compression are in place.
  • Balanced quality and speed — faster than nitrogen, cleaner than oxygen.
  • Eco-friendly and maintenance-light, with no bottled gas required.
  1. Limitations:
  • Slight oxidation can affect cosmetic parts or weldability in high-spec applications.
  • Edge quality degrades in thicker sections (>6–8 mm).
Air-assisted cutting yields clean, economical results on thin to mid-thickness materials. It’s ideal for general fabrication, prototyping, and industrial work where surface perfection isn’t critical.
Ultimately, the “right” quality outcome depends on your production goals. Oxygen cuts the fastest, nitrogen cuts the cleanest, and air cuts the cheapest — and balancing these three is the key to efficient, sustainable laser cutting.

Troubleshooting Guide

Even in a well-tuned laser cutting system, issues can appear that compromise edge quality, throughput, or consistency. Because assist gases play a critical role in melting, ejection, and cooling, many common defects are rooted in gas flow, pressure, and nozzle dynamics. Understanding how to diagnose and correct these problems quickly can save time, gas, and materials.

Bottom Dross / Hanging Burrs

  1. What it looks like: Molten metal accumulates and solidifies along the lower edge of the cut, forming rough burrs or beads that hang beneath the part.
  2. Probable causes:
  • Insufficient assist gas pressure or flow velocity. The gas jet isn’t strong enough to eject molten metal from the kerf.
  • Nozzle stand-off too large. The gas jet loses focus and momentum before reaching the cutting zone.
  • Laser power too low or feed rate too high. Material isn’t fully melted, leaving partially fused metal at the bottom edge.
  • Worn or misaligned nozzle. Asymmetric flow causes uneven ejection.
  1. Corrective actions:
  • Increase gas pressure (especially for nitrogen cutting).
  • Check nozzle-to-material distance (typically 0.5–1.0 mm).
  • Replace worn or contaminated nozzles.
  • Reduce feed rate slightly or increase power for better melt-through.
  • For oxygen cutting, check purity and avoid moisture contamination that reduces reaction heat.
Clean, sharp edges with no molten buildup, minimal post-processing, and consistent kerf geometry.

Heavy, Grainy Striations

  1. What it looks like: Vertical lines or grooves along the cut edge — often irregular and rough, especially on thicker materials.
  2. Probable causes:
  • Unstable gas flow or turbulence due to nozzle damage or poor coaxial alignment.
  • Incorrect focus position. The beam is not centered where the gas flow is most effective.
  • Feed rate too low. Overheating causes uneven melt removal and increased roughness.
  • Pressure too low for material thickness. The molten stream becomes unstable.
  1. Corrective actions:
  • Inspect and clean or replace the nozzle.
  • Verify coaxial alignment between the beam and gas jet.
  • Adjust focus — typically just below the surface for thick steel or on-surface for thin sheets.
  • Increase gas pressure and cutting speed to stabilize melt ejection.
Uniform, fine striations or smooth, polished edge faces with reduced drag lines and consistent texture.

Matte, Discolored Stainless Edges (on Nitrogen)

  1. What it looks like: Edges appear dull gray, yellowish, or lightly oxidized instead of bright metallic silver.
  2. Probable causes:
  • Insufficient nitrogen purity. Even small traces of oxygen (above 0.05%) can cause oxidation and color changes.
  • Low gas pressure or flow rate. Molten metal isn’t fully shielded, allowing oxygen intrusion.
  • Dirty gas lines or filters. Contamination introduces moisture or oil aerosols into the flow.
  • Focus too deeply. The molten pool stays exposed to air longer, promoting oxidation.
  1. Corrective actions:
  • Use high-purity nitrogen (≥99.99%) for stainless steel.
  • Increase pressure (typically 16–25 bar depending on thickness).
  • Replace filters or service the nitrogen supply system.
  • Move the focus slightly upward (toward the surface) for a tighter, cleaner melt zone.
Bright, reflective, oxide-free edges — ideal for welding, polishing, or cosmetic applications.

Edge Taper / Wide Kerf

  1. What it looks like: Cut edges are not perfectly vertical; the top edge is wider than the bottom (tapered kerf), or the kerf width varies along the cut.
  2. Probable causes:
  • Focus misalignment. The beam waist is set too high or too low relative to the material thickness.
  • Nozzle not coaxial with the beam. Asymmetric gas flow widens the kerf on one side.
  • Excessive gas pressure. High velocity disrupts the melt stream and erodes sidewalls.
  • Optics contamination. Dirty lenses scatter the beam, broadening the spot size.
  1. Corrective actions:
  • Adjust focus position: generally at mid-thickness for clean, vertical edges.
  • Realign the beam to the nozzle centerline using calibration tools.
  • Reduce gas pressure incrementally to minimize sidewall erosion.
  • Clean or replace the protective window and focusing lens.
Consistent kerf width with smooth, parallel edge walls and minimal taper — ensuring accurate dimensional tolerances.

Pierce Spatter Contaminating the Lens

  1. What it looks like: After piercing, the cutting quality suddenly degrades. You may see smoky trails, poor focus, or inconsistent edges.
  2. Probable causes:
  • Pierce spatter is ejected upward into the nozzle or protective window.
  • Piercing too close to the surface or with insufficient gas clearance.
  • Gas flow turbulence during piercing. The jet lacks focus, allowing melt blowback.
  • Nozzle too low. Spatter rebounds directly toward optics.
  1. Corrective actions:
  • Raise the nozzle slightly (1.5–2 mm) during piercing or use a pierce height mode if available.
  • Reduce laser power ramp or use a ramped gas pressure piercing strategy.
  • Install a sacrificial protective window (cover glass) below the focusing lens to prevent permanent damage.
  • Check for dried spatter on the nozzle tip and clean regularly.
Stable, clean pierces with no contamination of optics and consistent beam quality throughout production runs.

Random Cut Interruptions

  1. What it looks like: The laser stops cutting mid-path or produces inconsistent results — uncut spots, incomplete penetration, or sudden dross buildup.
  2. Probable causes:
  • Gas supply instability. Pressure regulator lag or low cylinder level is causing pressure drops.
  • Moisture or oil contamination in the gas or compressed air system.
  • Height control fluctuations from warped material or capacitive sensor errors.
  • Intermittent beam interference due to dirty optics or back reflections.
  1. Corrective actions:
  • Verify gas supply stability and check regulators or solenoid valves for delay.
  • Inspect filtration and air-drying units — replace filters if saturated.
  • Clean the nozzle and recalibrate the height sensing system.
  • Ensure consistent grounding to prevent sensor noise.
  • Clean beam path optics and replace protective glass if clouded.
Reliable, uninterrupted cutting with consistent edge quality and stable process flow across all parts.
Gas performance problems often show up first as edge quality issues, not equipment failures. Clean, dry, stable gas flow — combined with proper focus, pressure, and nozzle condition — ensures consistent results, minimal rework, and maximum uptime. A disciplined troubleshooting routine keeps both the laser optics and gas system in sync, delivering the precision and reliability that laser cutting is known for.

Safety with Assist Gases

Assist gases make laser cutting fast, clean, and precise — but they also introduce safety hazards that must be managed carefully. Gases such as oxygen, nitrogen, and compressed air are stored and delivered under high pressure, and in some cases (like oxygen or reactive metal cutting), they can significantly increase the risk of fire, explosion, or chemical reaction. In addition, gas flow and cutting byproducts can pose asphyxiation and fume hazards if not properly ventilated.
Laser systems are safe when maintained and operated correctly, but a clear understanding of the physical and chemical risks of assist gases is vital for both operators and facility safety teams.

Oxygen

Hazard: Fire acceleration and material ignition. Oxygen itself is not flammable — but it supports and accelerates combustion. In laser cutting, it reacts exothermically with molten steel to create high temperatures at the cut front. The same reactivity that makes oxygen effective also makes it dangerous when leaks, contaminated fittings, or flammable materials are nearby.

Safety considerations:

  • No oil, grease, or organic materials should ever come into contact with oxygen lines, valves, or regulators — these can spontaneously ignite.
  • Always use oxygen-rated hoses and components designed for high-purity service.
  • Ensure proper ventilation around oxygen supply areas to prevent localized enrichment of air above 23% oxygen concentration — this dramatically increases flammability.
  • Keep flammable items (rags, lubricants, paper) well away from oxygen cylinders and cutting stations.
  • During maintenance, bleed and purge oxygen lines slowly to prevent adiabatic heating and ignition inside fittings.
Oxygen is safe when contained and pure — but dangerous when combined with hydrocarbons or confined in enriched atmospheres. Treat it as an oxidizer, not as “just another gas.”

High Pressure

Hazard: Physical injury, equipment failure, or gas jet damage. Assist gases — especially nitrogen and air for fusion cutting — are used at pressures up to 25–30 bar (360–435 psi). This creates a serious risk of line rupture, hose whip, or component failure if the system is mishandled or poorly maintained.

  1. Safety considerations:
  • Use rated pressure regulators and certified high-pressure hoses for each gas type.
  • Never modify fittings or attempt temporary connections between incompatible gas systems.
  • Always depressurize lines before servicing.
  • Ensure gas lines are securely clamped and protected from vibration or mechanical impact.
  • Wear eye and face protection when checking for leaks — escaping gas jets can cause frostbite or eye injury.
  • Use soapy water or a leak detection solution, never open flames, to check for leaks.
  1. Operational control: Modern laser systems include pressure interlocks and fail-safe valves that prevent gas flow when a door or guard is open — these should never be bypassed.
High-pressure gases are powerful tools but require rigid respect for rated components, secure connections, and controlled handling procedures.

Asphyxiation Risk

Hazard: Oxygen displacement in confined spaces. Inert gases such as nitrogen, argon, and carbon dioxide are non-toxic, but they can displace oxygen from the air, creating a silent, invisible asphyxiation hazard. Because they are odorless and colorless, oxygen depletion often goes unnoticed until symptoms appear (dizziness, confusion, loss of consciousness).

Safety considerations:

  • Avoid venting nitrogen or argon inside enclosed areas — always vent outside or into an extraction system.
  • Install oxygen deficiency monitors in laser cutting rooms using large volumes of nitrogen or argon.
  • Keep confined spaces (e.g., gas cabinets, pit installations) well ventilated.
  • Train personnel on asphyxiation awareness — emphasize that inert gases are dangerous precisely because they seem harmless.
  • Never enter a gas storage or enclosed cutting room without confirming oxygen levels are above 19.5%.
Inert gases don’t burn, explode, or smell — but they can silently remove oxygen from the air. Proper ventilation and continuous monitoring are your best defenses.

Fumes and Particulates

Hazard: Inhalation of metallic or chemical particles produced during cutting. Laser cutting vaporizes and ejects material — especially when cutting coated steels, stainless alloys, or non-metals — generating fine particulates, oxides, and fumes that must be captured and filtered.

  1. Common risks:
  • Zinc oxide from galvanized steel can cause “metal fume fever.”
  • Hexavalent chromium from stainless steel is toxic and carcinogenic.
  • Aluminum and magnesium dust can form explosive mixtures in confined airspaces.
  • Cutting plastics or organics (e.g., acrylic, PVC) releases volatile organic compounds (VOCs) and corrosive gases.
  1. Control measures:
  • Use proper downdraft extraction or filtered exhaust systems at the cutting table.
  • Clean and maintain filters, ducts, and spark arrestors regularly to prevent dust buildup.
  • Wear respiratory protection when servicing or emptying filtration systems.
  • Avoid cutting materials that emit hazardous gases (like PVC) unless equipped with specialized filtration and scrubbing systems.
Good air quality is both a health and productivity issue — efficient fume extraction protects workers and prevents contamination of optics and sensors.

Reactive Metals

Hazard: Violent oxidation or combustion during cutting. Some metals — such as titanium, magnesium, and zirconium — are highly reactive at laser-cutting temperatures. When exposed to oxygen or air, they can ignite or even explode.

Safety considerations:

  • Always use argon or nitrogen for cutting reactive metals.
  • Keep oxygen lines completely isolated from systems used on titanium or magnesium.
  • Maintain clean cutting surfaces free from oil, dust, or prior oxidation — contaminants can trigger localized ignition.
  • Ensure that extraction systems are free of magnesium or titanium dust buildup, which can combust spontaneously when exposed to air or moisture.
  • Have appropriate Class D fire extinguishers (for combustible metal fires) readily available near cutting stations.
Reactive metals demand inert conditions. Even a small oxygen leak or contaminated surface can turn a clean cut into a combustion hazard.
Assist gases are critical to laser cutting performance — but each comes with its own safety responsibilities. Understanding their risks and maintaining proper control systems ensures safe, consistent operation. Laser cutting gases are powerful enablers of precision manufacturing — but they are not risk-free. Proper storage, clean systems, controlled pressures, and effective ventilation form the foundation of safe operation. Oxygen demands cleanliness; high-pressure demands respect; inert gases demand ventilation; and reactive materials demand caution.
Safety with assist gases isn’t just regulatory — it’s the key to protecting people, equipment, and productivity in every laser cutting facility.

Choosing the Right Gas for Your Job: A Quick Decision Path

Choosing the right assist gas for laser cutting is part science, part economics, and part practicality. Every shop faces a different mix of materials, edge-quality expectations, throughput demands, and budget realities. The decision doesn’t start with what gas is cheapest — it starts with what your parts, processes, and infrastructure can support.

What’s the Material and Thickness?

This is always the first and most fundamental question. The type of material — and how thick it is — determines whether you need a reactive, inert, or hybrid cutting mode.
For mild and carbon steels, oxygen is usually the best match. Oxygen reacts chemically with iron to create an exothermic cutting action, adding extra heat that speeds up the process and allows deeper penetration even at lower laser power. For a thick carbon steel plate, oxygen’s reactive cut is fast and economical.
For stainless steels and aluminum alloys, oxygen would damage the surface by creating heavy oxides, so nitrogen is preferred. Nitrogen is inert and physically pushes molten metal out of the kerf without reacting with it. The result is a clean, bright edge that’s weld-ready straight off the machine. However, because nitrogen cutting relies purely on mechanical ejection (no extra chemical heat), it requires higher pressures — often 10 to 25 bar — especially as material thickness increases.
For thin to mid-gauge materials, particularly when cutting prototypes, air can serve as a highly cost-effective alternative. Clean, dry compressed air contains roughly 78% nitrogen and 21% oxygen, providing a partial balance between the two extremes. It cuts faster than nitrogen on thin sheet steel and costs a fraction as much, though it leaves a slight oxidation tint.
Thicker materials generally demand higher gas pressure and flow to clear molten metal from a deeper kerf. Thin sheets might need only 6–8 bars of nitrogen or air, while thick stainless plates may require 20 bars or more. Matching pressure to thickness is key to both performance and gas efficiency.

What’s the Edge Requirement?

The next question is: what does the finished edge need to look like? Are you selling precision components, or are you fabricating parts that will be painted, welded, or hidden in an assembly?
If your job requires bright, oxide-free edges — such as in food-grade stainless steel, decorative panels, or parts that will be TIG welded — nitrogen is the clear choice. Its inert nature prevents oxidation, leaving a clean, metallic finish that needs no post-processing.
If your parts will be painted, coated, or used structurally where appearance isn’t critical, oxygen is often the smarter and faster option. It creates a darker oxide layer, but that’s fine for structural steel, heavy brackets, and general fabrication. The speed advantage is significant — often double or triple that of nitrogen in thick mild steel.
If your goal is simply functional, economical cutting for prototypes or general production, compressed air is an excellent middle ground. It produces slightly oxidized but smooth edges that are perfectly acceptable for most applications, especially in mixed-material job shops.

In short:

  • Choose nitrogen if edge appearance or weldability matters.
  • Choose oxygen if speed and depth matter.
  • Choose air if cost and versatility matter.

What’s Your Power and Throughput Target?

Your laser’s power and your production goals also play a major role in gas choice.
If your goal is maximum speed and throughput, particularly on thicker carbon steel, oxygen cutting is unmatched. The exothermic reaction provides extra heat that effectively amplifies your laser power. Even moderate-power systems (2–4 kW) can cut thick plate efficiently with oxygen.
If your priority is edge precision and dimensional consistency, especially on thin stainless or aluminum, nitrogen is the way to go. It delivers fine, controlled cuts with minimal distortion and a perfectly smooth surface. However, high-quality nitrogen cutting typically benefits from higher laser power (6–10 kW) to maintain speed despite the absence of oxidation heat.
If your workload includes varied materials or you run multiple shifts with mixed jobs, compressed air offers the most balanced solution. It provides reasonable speed, good quality, and minimal running cost. For high-power fiber lasers, air cutting can nearly match nitrogen speeds on thin steel and aluminum, making it an increasingly popular choice for job shops prioritizing flexibility.
Your power setting, desired productivity, and gas flow must all align. Higher power allows greater cutting speed, but gas flow must scale with it to clear the molten material effectively. Without enough gas velocity, even high laser power can’t prevent dross buildup or rough edges.

What’s the Cost Structure?

Assist gas is a significant contributor to per-part cost — especially in high-volume nitrogen cutting. Each gas has a distinct cost profile that must be weighed against quality and throughput.
Oxygen is typically the cheapest gas to run because it operates at low pressures (0.5–6 bar) and low flow rates. You use far less gas per part, and cylinder or bulk costs are modest. However, if your process requires grinding or cleaning oxide layers afterward, that added labor can erase the savings.
Nitrogen delivers pristine edges but at a steep cost. High flow rates at 20 bar or more mean rapid consumption, especially when supplied from bottled or bulk systems. Shops that rely heavily on nitrogen often switch to on-site generation systems (PSA or membrane) to dramatically reduce long-term costs and eliminate gas deliveries.
Air has the lowest cost of all once your compressor and filtration system are in place. There’s no recurring gas delivery, and the only expenses are electricity and filter maintenance. For mixed-material or prototype work, air cutting delivers exceptional economy — often reducing gas costs by 80–90% compared to bottled nitrogen.
The key is to think in terms of total cost per finished part, not just gas price. An oxygen cut might be cheaper per minute, but it needs post-finishing. A nitrogen cut might cost more per minute but be weld-ready out of the machine. The best choice balances both.

What Infrastructure Do You Have?

The right gas also depends on what your facility can support. Your gas infrastructure — cylinders, bulk tanks, generators, or compressors — often defines what’s practical.
If you use cylinders or bundles, you’re limited to low-to-moderate cutting volumes. It’s convenient for job shops or prototype work, but costly for full-scale production.
Bulk and micro-bulk tanks suit continuous, high-pressure nitrogen or oxygen supply, offering consistent flow and better per-unit cost. They require more space and management, but are the standard for large fabrication facilities.
On-site nitrogen generation is ideal if you use large volumes of nitrogen for fusion cutting. It eliminates deliveries, stabilizes purity, and cuts long-term gas expenses dramatically. Many modern shops pair nitrogen generation with high-pressure boosters to feed multiple lasers simultaneously.
Finally, compressed air systems provide unmatched flexibility. Once filtration and drying are in place, they can power both cutting and shop tools, simplifying logistics and slashing gas costs.
Your available infrastructure may ultimately determine which gas is feasible, particularly if you’re expanding or adding new laser systems.
Choosing the right assist gas isn’t about picking a single “best” option — it’s about finding the right balance for your material, quality needs, and budget.

Start by looking at your material and thickness, which dictate whether you need a reactive or inert process. Then decide how clean or cosmetic the edge finish must be — bright and weld-ready or simply functional. Match your laser power and production goals to the gas that supports your speed or quality targets. Balance all that against your cost structure, considering not just gas price but post-processing and rework. Finally, ensure your infrastructure can reliably supply the chosen gas at the right purity and pressure.

  • If you cut thick mild steel and need speed, oxygen is your ally.
  • If you cut stainless steel or aluminum and need flawless edges, nitrogen is your solution.
  • If you handle mixed materials and need flexibility and economy, air is your workhorse.
In the end, the right assist gas is the one that delivers the best combination of quality, cost efficiency, and consistency for your operation — every day, every part, every cut.

Summary

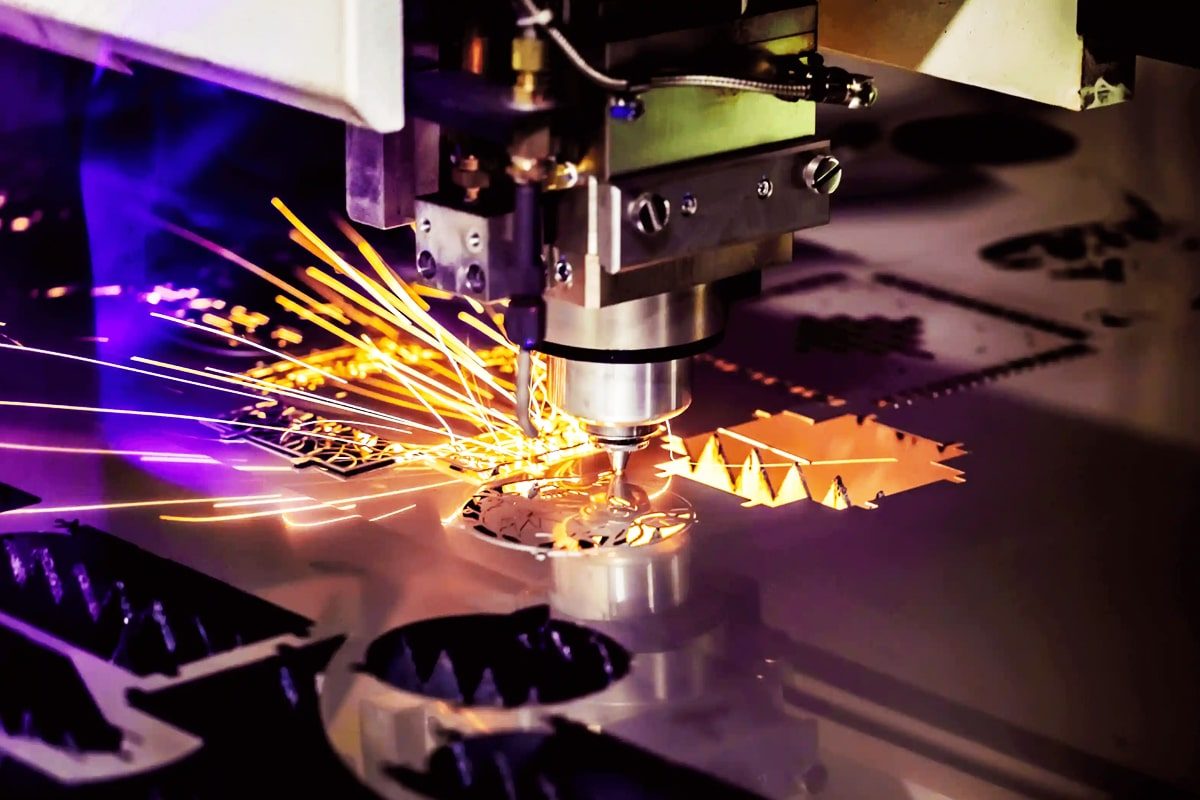

Laser cutting absolutely relies on gases. Whether it’s oxygen, nitrogen, air, argon, or specialized inert mixes, assist gases are central to how the process works. They do far more than just blow material away. Gases eject molten metal, stabilize the cutting front, cool the kerf, protect optics, and control the chemistry at the cut zone. The choice of gas — and how it’s delivered — defines everything from cut speed and edge quality to operating cost and safety.
Oxygen is used for reactive cutting of mild steels, offering high speed but oxidized edges. Nitrogen provides clean, oxide-free cuts for stainless steel and aluminum but demands higher pressure and cost. Air strikes a balance, offering versatility and economy for thin and mid-gauge work.
Gas supply options — from cylinders to on-site generation — influence both cost efficiency and sustainability. Safe handling of high-pressure and reactive gases is equally vital.
Ultimately, selecting the right assist gas is a technical and strategic decision. It aligns with your material, quality needs, throughput goals, and infrastructure. The right gas doesn’t just power the process — it defines the precision, consistency, and profitability of modern laser cutting.

Get Laser Cutting Solutions

At AccTek Group, we understand that precision, speed, and efficiency are only possible when every part of the laser cutting process — including the assist gas system — works in harmony. As a professional manufacturer of intelligent laser equipment, AccTek Group provides fully integrated solutions designed to optimize gas use, improve cut quality, and lower operating costs.
Our advanced fiber laser cutting machines feature smart gas control systems that automatically adjust pressure, flow, and type based on material and thickness, ensuring the best balance between performance and economy. Whether you’re cutting mild steel with oxygen, stainless steel with nitrogen, or mixed materials with compressed air, AccTek Group systems deliver consistent results with minimal waste.
From compact models for small workshops to high-power industrial systems with automated gas mixing and monitoring, every AccTek Group solution is engineered for reliability, precision, and long-term value.
If you’re ready to enhance productivity and reduce costs with an intelligent, efficient laser system, AccTek Group can design the right solution for your needs — built for your materials, your processes, and your goals.
Discover the future of laser cutting with AccTek Group.
AccTek Logo
Privacy Overview

This website uses cookies so that we can provide you with the best user experience possible. Cookie information is stored in your browser and performs functions such as recognising you when you return to our website and helping our team to understand which sections of the website you find most interesting and useful.
