Titanium Laser Cutting Machines

Fiber laser cutting machine tailored for titanium, delivering burr-free, oxide-free cuts, ±0.05 mm precision, and rapid speeds—ideal for aerospace, medical devices, racing, and energy parts.
Home » Laser Cutting Machines » Titanium Laser Cutting Machines
Whatsapp Envelope Phone-alt

Product Introduction

Titanium laser cutting machines are purpose-built to tame one of the toughest materials in modern manufacturing. Titanium’s high strength-to-weight ratio, low thermal conductivity, and natural reactivity demand cutting technology that can keep heat input and oxidation to an absolute minimum. Fiber lasers—typically 1 kW to 40 kW—deliver a tightly focused beam that melts and expels the metal along a programmed path, producing burr-free edges and a heat-affected zone often under 0.1 mm. Inert assist gases such as nitrogen or argon blanket the cut to prevent surface discoloration and preserve titanium’s corrosion-resistant oxide layer. Today’s machines pair high-power lasers with CNC automation, capacitive height sensing, and real-time pierce detection to maintain precision across thin foil, sheet, and plate up to 30 mm thick. Advanced motion systems reach cutting speeds exceeding 40 m/min on sheet stock, while intelligent nesting software drives material utilization above 90 %. Integrated fume extraction and optical protection systems safeguard operators and optics alike from titanium’s intense reflectivity and spatter. The result is a clean, repeatable process ideal for aerospace structures, medical implants, motorsport components, chemical processing equipment, and renewable-energy hardware. Compared with waterjet or mechanical methods, laser cutting offers tighter tolerances, faster cycle times, and dramatically lower post-processing costs, making it the go-to solution for high-value titanium fabrication.

Types of Titanium Laser Cutting Machines

Cutting Thickness Reference

Laser Power (kW) Thickness (mm) Cutting Speed (m/min) Focus Position (mm) Cutting Height (mm) Gas Nozzle (mm) Pressure (bar)
1KW 1 1.3-2.0 0 0.8 N2 1.55 12
2 0.1-1.4 -1 0.5 N2 2.05 12
1.5KW 1 1.4-2.1 0 0.8 N2 1.55 12
2 1.0-1.5 -1 0.5 N2 2.05 12
3 0.8-1.2 -1.5 0.5 N2 2.05 14
2KW 1 2.3-3.5 0 0.8 N2 1.55 12
2 1.7-2.6 -1 0.5 N2 2.05 12
3 1.3-2.0 -1.5 0.5 N2 2.05 14
4 1.0-1.5 -1.5 0.5 N2 2.05 14
5 0.65-1.0 -2 0.5 N2 2.05 14
3KW 1 3.0-4.6 0 0.8 N2 1.55 12
2 2.3-3.5 -1 0.5 N2 2.05 12
3 1.7-2.6 -1.5 0.5 N2 2.05 14
4 1.3-2.0 -1.5 0.5 N2 2.05 14
5 0.9-1.3 -2 0.5 N2 2.05 14
6 0.6-0.9 -2 0.5 N2 2.05 14
4KW 1 3.8-5.7 0 0.8 N2 1.55 12
2 2.9-4.3 -1 0.5 N2 2.05 12
3 2.2-3.2 -1.5 0.5 N2 2.05 14
4 1.7-2.5 -1.5 0.5 N2 2.05 14
5 1.1-1.6 -2 0.5 N2 2.05 14
6 0.8-1.2 -2 0.5 N2 2.05 14
8 0.6-0.9 -2.5 0.5 N2 2.55 16
6KW 1 5.1-7.8 0 0.8 N2 1.55 12
2 3.8-5.8 -1 0.5 N2 2.05 12
3 2.9-4.3 -1.5 0.5 N2 2.05 14
4 2.2-3.4 -1.5 0.5 N2 2.05 14
5 1.4-2.2 -2 0.5 N2 2.05 14
6 1.0-1.5 -2 0.5 N2 2.05 14
8 0.8-1.2 -2.5 0.5 N2 2.55 16
10 0.6-1.0 -3 0.5 N2 2.55 16
12 0.5-0.8 -4 0.5 N2 2.55 16
14 0.4-0.6 -4 0.5 N2 3.05 16
12KW 1 5.8-8.6 0 0.8 N2 1.55 12
2 4.3-6.5 -1 0.5 N2 2.05 12
3 3.4-5.0 -1.5 0.5 N2 2.05 14
4 2.2-3.2 -1.5 0.5 N2 2.05 14
5 1.5-2.3 -2 0.5 N2 2.05 14
6 1.2-1.8 -2 0.5 N2 2.05 14
8 1.0-1.4 -2.5 0.5 N2 2.55 16
10 0.8-1.2 -3 0.5 N2 2.55 16
12 0.6-0.9 -4 0.5 N2 2.55 16
14 0.5-0.7 -4 0.5 N2 3.05 16
16 0.3-0.5 -5 0.5 N2 3.05 16
18 0.2-0.3 -5 0.5 N2 3.05 16
20 0.15-0.25 -5 0.5 N2 3.05 16
20KW 1 8.6-13.0 0 0.8 N2 1.55 12
2 6.5-9.7 -1 0.5 N2 2.05 12
3 5.0-7.6 -1.5 0.5 N2 2.05 14
4 3.2-4.9 -1.5 0.5 N2 2.05 14
5 2.3-3.4 -2 0.5 N2 2.05 14
6 1.8-2.7 -2 0.5 N2 2.05 14
8 1.4-2.2 -2.5 0.5 N2 2.55 16
10 1.2-1.7 -3 0.5 N2 2.55 16
12 0.9-1.4 -4 0.5 N2 2.55 16
14 0.7-1.1 -4 0.5 N2 3.05 16
16 0.5-0.8 -5 0.5 N2 3.05 16
18 0.4-0.5 -5 0.5 N2 3.05 16
20 0.2-0.3 -5 0.5 N2 3.05 16
25 0.15-0.2 -7 0.3 N2 4.05 18
30KW 1 10.1-15.9 0 0.8 N2 1.55 12
2 7.9-11.9 -1 0.5 N2 2.05 12
3 6.2-9.2 -1.5 0.5 N2 2.05 14
4 4.0-6.0 -1.5 0.5 N2 2.05 14
5 2.8-4.2 -2 0.5 N2 2.05 14
6 2.2-3.3 -2 0.5 N2 2.05 14
8 1.8-2.6 -2.5 0.5 N2 2.55 16
10 1.4-2.1 -3 0.5 N2 2.55 16
12 1.1-1.7 -4 0.5 N2 2.55 16
14 0.9-1.3 -4 0.5 N2 3.05 16
16 0.6-0.9 -5 0.5 N2 3.05 16
18 0.4-0.6 -5 0.5 N2 3.05 16
20 0.26-0.4 -5 0.5 N2 3.05 16
25 0.18-0.26 -7 0.3 N2 4.05 18
30 0.09-0.13 -7 0.3 N2 4.05 18
40KW 1 16.6-25.0 0 0.8 N2 1.55 12
2 12.5-18.7 -1 0.5 N2 2.05 12
3 9.4-14.0 -1.5 0.5 N2 2.05 14
4 7.3-11.0 -1.5 0.5 N2 2.05 14
5 4.7-7.0 -2 0.5 N2 2.05 14
6 3.3-5.0 -2 0.5 N2 2.05 14
8 2.6-3.9 -2.5 0.5 N2 2.55 16
10 2.1-3.1 -3 0.5 N2 2.55 16
12 1.7-2.5 -4 0.5 N2 2.55 16
14 1.4-2.0 -4 0.5 N2 3.05 16
16 1.0-1.6 -5 0.5 N2 3.05 16
18 0.7-1.1 -5 0.5 N2 3.05 16
20 0.5-0.8 -5 0.5 N2 3.05 16
25 0.3-0.5 -7 0.3 N2 4.05 18
30 0.2-0.3 -7 0.3 N2 4.05 18
40 0.1-0.15 -9 0.3 N2 5.05 18

Compatible Titanium Grades

  • Grade 1 (UNS R50250)
  • Grade 2 (UNS R50400)
  • Grade 3 (UNS R50550)
  • Grade 4 (UNS R50700)
  • Grade 5 (UNS R56400)
  • Grade 6
  • Grade 7 (UNS R52400)
  • Grade 8
  • Grade 9 (UNS R56320)
  • Grade 10
  • Grade 11 (UNS R52250)
  • Grade 12 (UNS R53400)
  • Grade 13
  • Grade 14
  • Grade 15
  • Grade 16
  • Grade 17
  • Grade 18
  • Grade 19
  • Grade 20
  • Grade 21
  • Grade 22
  • Grade 23 (UNS R56401)
  • Grade 24
  • Grade 25
  • Grade 26
  • Grade 27
  • Grade 28
  • Grade 29
  • Grade 30
  • Grade 31
  • Grade 32
  • Grade 33
  • Grade 34
  • Grade 35
  • Grade 36
  • Grade 37
  • Grade 38
  • Ti-5553
  • Ti-6246

Application of Titanium Laser Cutting Machines

Titanium laser cutting machines serve sectors where low weight, high strength, and corrosion resistance are non-negotiable. In aerospace, they shape airframe brackets, rib stiffeners, and thin-wall honeycomb panels with micron-level accuracy while preserving material integrity for flight-critical parts. Medical-device manufacturers rely on laser cutting for orthopedic plates, spinal cages, and dental implants—components that demand sterile, burr-free edges and exacting geometries. In motorsport and high-performance automotive, laser-cut titanium forms exhaust systems, pedal boxes, and suspension links, delivering maximum strength with minimal mass. The energy and chemical-processing industries use titanium laser cutting to fabricate heat-exchanger plates, seawater piping, and pressure-vessel internals that must resist corrosion in harsh environments. Defense contractors benefit from rapid prototyping of lightweight armor and UAV structures, while consumer electronics brands employ laser-cut titanium for premium housings and wearables. From thin foil to thick plate, titanium laser cutting combines speed, precision, and clean edges—unlocking high-value applications across demanding markets.

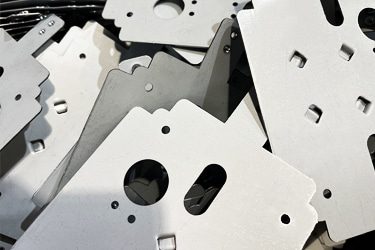

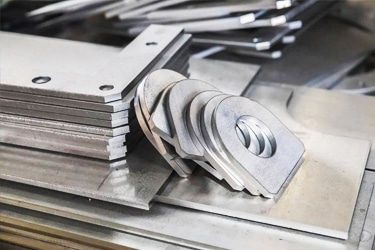

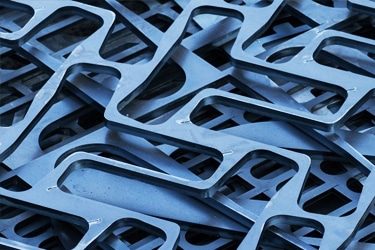

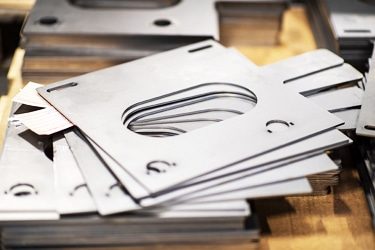

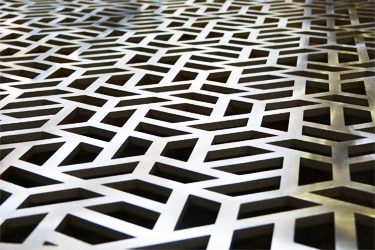

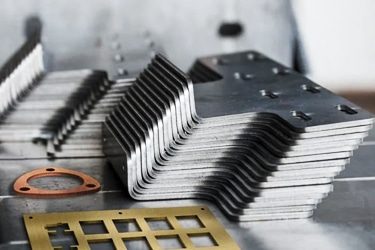

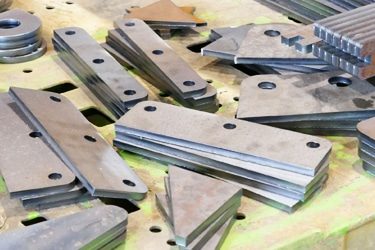

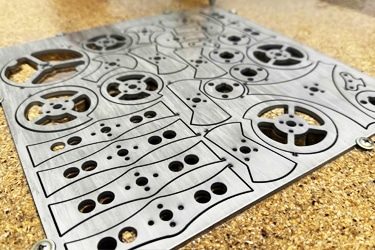

Titanium Laser Cutting Samples
Titanium Laser Cutting Samples
Titanium Laser Cutting Samples
Titanium Laser Cutting Samples
Titanium Laser Cutting Samples
Titanium Laser Cutting Samples
Titanium Laser Cutting Samples
Titanium Laser Cutting Samples

Customer Testimonials

Our shop cuts 6 mm grade 5 titanium every shift. This fiber laser pierces fast and leaves edges bright, so parts need no deburring. The beam stays steady on reflective metal thanks to back-reflection protection. Material library presets are accurate, and uptime has stayed above ninety-seven percent.
GraceAerospace Fabrication Manager
Switching from waterjet to this laser cut our 3Al-2.5V tube prep time by half. The rotary axis keeps bevels tight, so weld joints fit clean. The heat zone is small, leaving the tubes straight. Training two operators took one afternoon, and ongoing maintenance has been simple.
OliviaBicycle Frame Production Lead
We machine-grade 23 titanium brackets up to 10 mm thick. The laser pierces cleanly with oxygen assist, and the autofocus head tracks slight sheet warp. Pallet changer swaps sheets in twenty seconds, keeping the beam working. Edge quality lets us skip milling, cutting lead time significantly.
MarcusMotorsport Components Supervisor
We needed a machine to handle 15 mm titanium deck plates for submarine parts. This laser slices clean with minimal dross, and nitrogen keeps color bright. Nesting software improved sheet use by twelve percent. Remote monitoring sends gas level alerts, preventing costly downtime on night shifts.
DavidShipyard Fabrication Planner
Daily care is quick: wipe lens, test chiller, empty slag bin. The control screen shows diode hours and coolant temperature, helping schedule service. We replaced one nozzle after seven hundred hours; the swap took five minutes. Overall reliability means I spend less time firefighting compared to other lasers.
GeorgeMaintenance Technician
I use this titanium laser in lab classes. Students upload DXF files and watch 1 mm grade 2 sheets cut with mirror edges in minutes. The interface is intuitive for beginners, yet has deep settings for research. Quiet operation and clear enclosure make demonstrations safe and engaging.
EmilyAdvanced Manufacturing Lecturer

Comparison VS Other Cutting Technologies

Feature Laser Cutting Plasma Cutting Waterjet Cutting Flame Cutting
Cut Quality Excellent, burr-free Fair, dross likely Excellent, smooth Not suitable (combustion risk)
Cutting Precision Very high (±0.05 mm) Moderate High Very low
Heat-Affected Zone (HAZ) Minimal (<0.1 mm) Large None Extreme / unsafe
Edge Oxidation / Discoloration Low with argon/nitrogen assist Significant None Severe
Kerf Width Very narrow (0.1–0.3 mm) Wide (2–4 mm) ~1 mm Very wide
Reflectivity Handling Managed by fiber optics & coatings Inefficient energy transfer No issue N/A
Thickness Capability Foil to ~25 mm ~3–50 mm Foil to >100 mm Not recommended
Cutting Speed Fast Moderate Slow Very slow
Post-Processing Needs Minimal deburr Grinding often required Minimal Extensive (if possible)
Material Distortion Very low Moderate warping None Severe
Initial Equipment Cost High Moderate High Low
Operating Cost Moderate (inert gas) Low High (abrasive, water) Low
Environmental Impact Clean, few emissions Metal fumes Water & abrasive waste High smoke & sparks
Noise Level Low High Low Very high
Automation & CNC Compatibility Excellent Good Good Limited / impractical

Why Choose Us

AccTek Group is a leading laser cutting machine manufacturer, dedicated to delivering high-quality, precision-driven solutions for industries worldwide. With years of experience in laser technology, we design and produce laser cutting machines that enhance efficiency, reduce production costs, and improve overall productivity. Our machines are widely used in metal fabrication, automotive, aerospace, and other industries that require precise and efficient cutting. We prioritize technological innovation, strict quality control, and exceptional customer service to ensure that every machine meets international standards. Our goal is to provide durable, high-performance solutions that help businesses optimize their operations. Whether you need a standard machine or a customized cutting system, AccTek Group is your trusted partner for reliable laser cutting solutions.

Advanced Technology

Our laser cutting machines feature high-speed, precision cutting with the latest laser technology, ensuring smooth edges, minimal waste, and superior efficiency across various materials and thicknesses.

Reliable Quality

Each machine undergoes rigorous quality control and durability testing to ensure long-term stability, low maintenance, and consistent high performance, even under demanding industrial conditions.

Comprehensive Support

We provide full technical support, including installation guidance, operator training, and after-sales service, ensuring smooth machine operation and minimal downtime for your business.

Cost-Effective Solutions

Our machines offer high performance at competitive prices, with customizable options to fit different production needs, helping businesses maximize their investment without compromising on quality.

Related Resources

Laser Cutting VS Waterjet Cutting

Laser Cutting VS Waterjet Cutting

2025-07-01

This article compares laser cutting and waterjet cutting technologies, examining their principles, applications, costs, advantages, and key considerations for choosing between them.

Frequently Asked Questions

What Power Levels Are Available For Titanium Laser Cutting Machines?
Fiber laser-cutting machines are powerful tools capable of cutting aluminum, though the process presents more challenges than cutting carbon steel. Aluminum is a highly reflective, thermally conductive, and soft metal, which means special care must be taken to achieve clean, accurate cuts without damaging the equipment or compromising edge quality.
Fiber lasers are well-suited for cutting aluminum, especially compared to CO2 lasers. The shorter wavelength of fiber lasers (typically 1.06 µm) is better absorbed by metal surfaces, including aluminum, which helps reduce reflectivity and improves cutting efficiency. CO2 lasers can cut aluminum in limited cases—usually only if the aluminum is coated or anodized—but they’re generally not recommended due to the high risk of back-reflection damaging the optics.
With the right setup, fiber laser cutting machines can produce accurate, high-quality cuts in aluminum, making them suitable for aerospace, automotive, signage, and industrial applications.
Choosing the right power for cutting titanium depends on several key factors: material thickness, cut quality expectations, production speed, and budget. Fiber lasers are the standard for titanium due to their ability to handle reflective metals without damage. Here’s how to determine the right power level:

  • Thin Titanium Sheets (Under 2mm): Machines in the 1000W to 1500W range are capable of cutting thin titanium cleanly, with good edge quality and minimal thermal distortion. These are ideal for lightweight aerospace parts, medical components, and precision applications. However, cutting speeds will be relatively slow, so they are best suited for low-volume or prototype work.
  • Moderate Thickness (2mm to 5mm): For titanium in this range, 2000W to 3000W power levels offer a strong balance of speed and quality. They maintain smooth cuts while increasing throughput. These machines are common in job shops and industries that demand consistent performance across various metal gauges.
  • Thicker Titanium Plates (5mm to 8mm): 4000W and 6000W fiber lasers are capable of handling thicker titanium plates with precision and speed. These power levels also offer more flexibility with cutting speed adjustments and gas flow control, making them a good fit for industrial environments that require high-quality edges and consistent performance.
  • Heavy-Duty or High-Volume Cutting (Above 8mm): If you’re working with thicker titanium—10mm and beyond—or you need to maximize production speed, machines in the 12000W to 40000W range are the go-to. These high-power systems cut faster, reduce slag, and maintain stable beam quality even under continuous operation. They are essential for large-scale production in aerospace, defense, or high-performance automotive manufacturing.

In short, match your power level to the material thickness and production goals. Undershooting power will slow you down and affect quality; overshooting adds cost without benefit if your application doesn’t demand it.
Titanium laser-cutting machines vary widely in cost, with prices typically ranging from $15,000 to over $200,000, depending on their power, build quality, automation features, and brand reputation. These machines are built around fiber laser technology, which is especially suited for cutting reflective metals like titanium with precision and stability.

  • Entry-Level Models ($15,000–$40,000): These are usually compact systems with power ratings around 1000W to 1500W. They’re designed for light-duty operations—ideal for cutting thin titanium sheets in prototyping labs, R&D centers, or small manufacturing shops. While they’re cost-effective, they may have slower cutting speeds, smaller bed sizes, and fewer automated features.
  • Mid-Range Machines ($40,000–$100,000): This category includes fiber lasers in the 2000W to 6000W range. These machines handle moderate to thick titanium sheets with better cutting speed and edge quality. You’ll find better build quality, improved motion systems, and features like auto-focus, capacitive height control, and efficient dust extraction. They’re a solid choice for job shops, custom fabricators, and mid-scale manufacturers.
  • High-End Industrial Systems ($100,000–$200,000+): Machines in this tier offer 12kW, 20kW, or even higher laser power, designed for high-speed, continuous cutting of thick titanium up to 15mm or more. These systems come with full automation—loading/unloading arms, smart nesting software, enclosed safety chambers, and advanced cooling systems. They’re used in aerospace, shipbuilding, and defense sectors where precision and throughput are critical.

Beyond the base price, it’s important to consider additional costs like assist gas systems (nitrogen or argon), chillers, fume extractors, maintenance kits, and training. Service contracts and spare parts can also add to the long-term investment. Selecting the right machine isn’t just about the price tag—it’s about matching the system’s capabilities with your production goals and quality standards.
Laser cutting titanium requires careful control of oxidation, so inert auxiliary gases are essential for achieving clean, precise cuts without contaminating the material. The most commonly used gases are nitrogen and argon, each chosen based on the specific cutting goals and application.

  • Nitrogen: Nitrogen is the most widely used assist gas when cutting titanium. It acts as a shielding gas, displacing oxygen around the cut zone to prevent oxidation and discoloration. This results in a clean, silver-gray edge with no burnt or oxidized residue. Nitrogen is ideal when high-quality edge finish and corrosion resistance are important, such as in aerospace or medical parts. However, nitrogen requires high pressure—typically around 10–20 bar—for best performance, especially on thicker sheets.
  • Argon: Argon is another inert gas option, especially used when the highest level of chemical purity is required. It’s heavier than nitrogen and more expensive, but it offers superior protection against oxidation during cutting. Argon is often selected for cutting high-value titanium components where any trace of oxygen exposure could compromise strength or biocompatibility. It’s also a good alternative when nitrogen is unavailable or cost isn’t a major concern.
  • Compressed Air (Not Recommended): While compressed air is used in cutting other metals like steel or aluminum, it’s generally not suitable for titanium. The oxygen content in air can react with titanium, leading to burnt edges, oxidation, and a drop in mechanical integrity.

Using the right gas—at the right pressure and purity level—is key to preventing chemical reactions that could alter titanium’s surface properties. Clean, dry, high-purity gas delivery systems are just as important as the gas itself. Without proper gas shielding, titanium edges can turn blue, purple, or yellow, indicating contamination that might compromise the part’s function or weldability.
Titanium laser cutting produces emissions, but they are primarily fine metal particles and titanium oxide fumes rather than toxic gases. These emissions result from the intense heat of the fiber laser, which vaporizes a small amount of the metal along the cut path. While titanium does not contain harmful additives like chlorine or fluorine found in some plastics, the fumes it generates still require proper handling.

  • Metallic Fumes and Dust: When titanium is laser-cut, the beam melts and vaporizes the metal, releasing ultra-fine titanium oxide particles into the air. These particles are not inherently toxic, but they can irritate the lungs if inhaled over time. Prolonged exposure without proper ventilation can increase the risk of respiratory issues, especially in high-volume industrial environments.
  • Combustion Risk: Titanium is a reactive metal, and the fine dust it produces can be combustible under certain conditions. If particles accumulate near heat sources or in enclosed areas without adequate extraction, there is a low but real fire risk. This makes fume extraction and dust collection systems essential.
  • Inert Cutting Environment: Using nitrogen or argon as an assist gas helps minimize oxidation and reduces the volume of airborne byproducts. These gases also help push fumes away from the cut zone and improve overall cut quality.

Laser cutting titanium is much cleaner than cutting chlorinated plastics or synthetic rubbers, but it’s not emission-free. Proper fume extraction, good airflow, and filtered ventilation systems are necessary to maintain air quality and safety, especially in enclosed shop environments or where titanium is cut continuously at high volume.
Titanium laser-cutting machines, typically based on fiber laser technology, require consistent maintenance to ensure performance, precision, and safety. These machines operate under high power and are often used in demanding environments, so staying ahead of wear and contamination is critical for uptime and cut quality.

  • Optics and Lens Cleaning: The protective lens and focusing optics must be inspected and cleaned regularly. Titanium cutting generates fine oxide particles that can settle on the lens, degrading beam focus and cutting accuracy. Using lint-free wipes and lens-safe cleaning solution is essential—dirty optics can quickly lead to poor edge quality or even lens cracking under high-power beams.
  • Nozzle and Cutting Head Maintenance: The cutting nozzle is exposed to high temperatures and metal debris. It needs to be checked frequently for wear, slag buildup, or deformation. Even slight nozzle damage can cause gas flow inconsistencies, leading to burrs or incomplete cuts. Some setups include automatic nozzle cleaning systems, but manual inspection is still recommended.
  • Assist Gas System Checks: Because cutting titanium relies on high-purity nitrogen or argon, the gas lines, pressure regulators, and filters must be leak-free and clean. Moisture or contaminants in the assist gas can cause oxidation at the cut edge and compromise finish quality. Monitoring flow rates and tank pressures also helps avoid unplanned downtime.
  • Cooling System Servicing: Fiber lasers use closed-loop cooling systems to regulate temperature. These systems must be flushed and topped off periodically, and the chiller should be checked for dust and debris that could reduce efficiency. Overheating can reduce laser source lifespan and cause sudden failures.
  • Laser Source and Electrical Maintenance: While fiber lasers require less upkeep than CO2 sources, the laser generator, drive systems, and control boards still need periodic inspection. This includes checking cable integrity, grounding connections, and fan filters for dust buildup. Many high-end machines include diagnostics to simplify this task.
  • Fume Extraction and Filtration: Since cutting titanium produces fine metal particles, the fume extractor’s filters need regular replacement. Poor filtration not only impacts air quality but can also allow dust to settle inside the machine, increasing the risk of electrical shorts or internal fires.
  • Software and Calibration: Over time, motion systems and sensors can drift. Periodic recalibration ensures the cutting head aligns properly, and software updates can optimize cutting paths, minimize waste, and enhance performance. Some manufacturers provide auto-calibration routines, but they should be verified.

Routine maintenance isn’t just about avoiding breakdowns—it directly impacts cut consistency, part quality, and safety. A well-maintained titanium laser cutting machine delivers cleaner cuts, reduced downtime, and longer machine life, making preventative care a smart investment for any production workflow.
Laser cutting titanium is generally safe when the proper equipment, protocols, and environmental controls are in place. Fiber laser cutting systems used for titanium are engineered with safety features to handle the heat and energy levels required to process this reactive metal. That said, there are specific hazards and precautions to consider.

  • Fume and Particle Exposure: Cutting titanium produces fine metal dust and titanium oxide fumes. While not overtly toxic like those from PVC or certain rubbers, these particles can irritate the lungs and become dangerous with prolonged exposure. A high-efficiency fume extraction system with proper filtration is essential to maintain air quality and prevent inhalation risks.
  • Combustion Risk: Titanium is flammable in fine particulate form, and under high heat, it can ignite. The sparks and dust generated during cutting can pose a fire hazard if allowed to accumulate or contact other flammable materials. Machines must have built-in spark control, automatic fire suppression (in some cases), and operators should never bypass safety interlocks or leave systems unattended during cutting.
  • Laser Radiation: Fiber lasers operate at high power levels and use invisible infrared light. Direct or reflected laser radiation can cause serious eye and skin damage. Enclosed machines, interlocked access panels, and protective windows help prevent accidental exposure. Operators should follow laser class safety standards and use personal protective equipment (PPE) as needed.
  • Assist Gas Pressure: Inert gases like nitrogen or argon are used at high pressure to shield the cut. While these gases are safe and non-reactive, leaks or poor ventilation can displace oxygen in a confined space, creating an asphyxiation hazard. Regular leak checks and proper gas storage protocols reduce this risk.
  • Mechanical and Electrical Safety: As with any industrial CNC system, laser cutting machines include moving parts, high-voltage electronics, and thermal components. Maintenance personnel must be properly trained, and lockout/tagout procedures should be in place during service.

Laser cutting titanium is safe when handled correctly, but it demands attention to detail. With the right extraction, shielding, monitoring, and operator training, the process becomes a clean, controlled, and efficient way to fabricate titanium parts across aerospace, medical, and engineering applications.
Laser cutting titanium is highly effective, but it comes with its own set of challenges due to the metal’s physical and chemical properties. While fiber lasers handle titanium better than CO2 laser cutting systems, there are still common issues that can impact cut quality, consistency, and safety if not properly addressed.

  • Edge Oxidation and Discoloration: One of the most frequent problems is oxidation at the cut edge. Titanium reacts quickly with oxygen at high temperatures, leading to blue, purple, or yellow discoloration. This not only affects appearance but can also compromise weldability and corrosion resistance. Using high-purity nitrogen or argon as an assist gas helps prevent this, but improper gas pressure or contaminated gas lines can still cause oxidation.
  • Poor Cut Quality or Burr Formation: If the laser power, speed, or focus is not properly tuned, the cut edges may develop burrs, dross, or uneven surfaces. This can happen more easily with thicker titanium or worn-out nozzles. Maintaining optimal focus position and ensuring the beam path is clean are critical for smooth, slag-free edges.
  • Back Reflection Damage: Titanium’s high reflectivity can cause back reflections that damage the laser head if not managed correctly. Fiber lasers are less prone to this issue than CO2 lasers, but improper alignment or using lenses that aren’t suited for reflective metals can still pose a risk. Anti-reflective coatings and back-reflection protection systems help mitigate this.
  • Cutting Instability on Thick Sections: Titanium above 8–10mm thick is harder to cut consistently. The cut can taper, become rough, or even fail to complete due to poor gas flow or insufficient laser power. High-power lasers (12kW or more) and pressurized gas assist are usually required to maintain stability through thick material.
  • High Gas Consumption: Titanium cutting demands high-pressure inert gas to avoid oxidation, which can lead to high nitrogen or argon consumption. Leaks in the gas line or inefficient flow control can drive up operating costs significantly.
  • Heat-Affected Zones (HAZ): Excessive laser power or slow cutting speed can create a large heat-affected zone, where the surrounding metal changes microstructure. This can reduce fatigue strength or distort precision parts, especially in aerospace and medical applications.
  • Fume and Particle Accumulation: Titanium produces fine metal dust during cutting. If extraction systems are clogged or underperforming, these particles can accumulate, posing a fire risk and degrading air quality. Regular filter replacement and duct cleaning are essential to avoid this problem.
  • Nozzle Wear and Alignment Issues: Titanium particles are abrasive and can erode the nozzle tip over time, disrupting gas flow and causing poor cuts or blowouts. Regular nozzle inspection and replacement are key to consistent performance.

Despite these challenges, titanium remains a viable and valuable material for laser cutting, especially when proper machine settings, maintenance routines, and safety systems are in place. Addressing these common problems early ensures cleaner cuts, lower costs, and safer operation.

Get Titanium Cutting Solutions

Mastering titanium starts with the right machine—and the right partner. Our fiber-laser cutting machines are engineered specifically for titanium’s challenges, pairing high-power beams with argon or nitrogen shielding to deliver oxide-free edges, ±0.05 mm accuracy, and minimal heat distortion on sheet, plate, and foil. From lightweight aerospace brackets to medical implants and racing components, we match laser wattage, bed size, and automation level to your exact workflow.
Choose from compact 1kW units for prototyping up to 40kW gantry lines for 24/7 production. Every package includes CNC nesting software, capacitive height control, and integrated fume extraction, plus remote diagnostics to keep uptime above 95%. Our applications team provides cut-parameter libraries, sample trials, and operator training so you’re productive from day one. Ongoing service plans, spare parts stock, and process optimization audits ensure your investment keeps paying dividends.
Ready to elevate your titanium fabrication? Contact us now for a tailored consultation and a fast, competitive quote.
