Aluminum Laser Cutting Machines

AccTek aluminum laser cutting machines leverage up to 40 kW fiber power, CNC automation, and nitrogen assist to deliver fast, burr-free edges on all aluminum grades and thicknesses.
Home » Laser Cutting Machines » Aluminum Laser Cutting Machines
Whatsapp Envelope Phone-alt

Product Introduction

Aluminum laser cutting machines are high-performance systems designed to deliver fast, accurate, and clean cuts across a wide range of aluminum grades and thicknesses. Leveraging advanced fiber laser technology, these machines offer non-contact cutting with minimal thermal distortion, making them ideal for applications that require precise tolerances and smooth, burr-free edges. Whether you’re working with thin aluminum sheets or thicker plates, laser cutting ensures consistent quality with minimal waste and post-processing. Modern aluminum laser cutting machines feature CNC automation, high-speed servo motors, and intelligent software controls that optimize cutting paths and reduce production time. Assist gases like nitrogen or compressed air are often used to prevent oxidation and ensure a clean, bright finish, especially important for industries where aesthetics and corrosion resistance matter. Compared to traditional cutting methods like mechanical sawing, plasma, or waterjet, laser cutting offers superior speed, accuracy, and lower operating costs. Commonly used in aerospace, automotive, electronics, signage, and architectural fabrication, aluminum laser cutting machines provide unmatched flexibility and reliability for both custom jobs and large-scale manufacturing. With fast setup, high repeatability, and low maintenance, they are a smart investment for any operation working extensively with aluminum.

Types of Aluminum Laser Cutting Machines

Cutting Thickness Reference

Laser Power Material Thickness (mm) Cutting Speed (m/min) Actual Laser Power (W) Gas Pressure (bar) Nozzle Size (mm) Focus Position (mm) Cutting Height (mm)
1KW 1 10 1000 N2 12 1.5S 0 0.5
2 5 1000 N2 14 2.0S -1 0.5
1.5KW 1 18 1500 N2 12 1.5S 0 0.5
2 6 1500 N2 14 2.0S -1 0.5
3 2.5 1500 N2 14 2.5S -1.5 0.5
2KW 1 20 2000 N2 12 1.5S 0 0.8
2 10 2000 N2 12 2.0S -1 0.5
3 4 2000 N2 14 2.0S -1.5 0.5
4 1.5 2000 N2 14 2.5S -2 0.5
5 0.9 2000 N2 16 3.0S -2.5 0.5
3KW 1 25-30 3000 N2 12 1.5S 0 0.8
2 15-18 3000 N2 12 2.0S 0 0.5
3 7-8 3000 N2 14 2.0S -1 0.5
4 5-6 3000 N2 14 2.5S -2 0.5
5 2.5-3 3000 N2 16 3.0S -3 0.5
6 1.5-2 3000 N2 16 3.0S -3.5 0.5
4KW 1 25-30 4000 N2 12 1.5S 0 0.6
2 16-20 4000 N2 12 2.0S -1 0.5
3 10-13 4000 N2 14 2.0S -1.5 0.5
4 6-7 4000 N2 14 2.5S -2 0.5
5 4-5 4000 N2 14 2.5S -2.5 0.5
6 2.5-3 4000 N2 16 3.0S -3 0.5
8 1-1.3 4000 N2 16 3.0S -4 0.5
6KW 1 30-45 6000 N2 12 1.5S 0 1
2 20-25 6000 N2 12 2.0S -1 0.5
3 14-16 6000 N2 14 2.5S -1.5 0.5
4 8-10 6000 N2 14 2.5S -2 0.5
5 5-6 6000 N2 14 3.0S -3 0.5
6 3.5-4 6000 N2 16 3.0S -3 0.5
8 1.5-2 6000 N2 16 3.0S -4 0.5
10 1-1.2 6000 N2 18 3.5S -4.5 0.5
12 0.6-0.7 6000 N2 18 4.0S -5 0.5
14 0.4-0.6 6000 N2 18 4.0S -5 0.3
12KW 1 45-50 12000 N2 12 2.0S 0 0.8
2 30-35 12000 N2 12 2.0S -1 0.5
3 20-25 12000 N2 12 2.0S -1 0.5
4 18-20 12000 N2 12 2.0S -2 0.5
5 14-16 12000 N2 14 2.5S -3 0.5
6 10-12 12000 N2 14 2.5S -3 0.5
8 6-8 12000 N2 14 2.5S -4 0.5
10 4-6 12000 N2 14 5.0B -5 0.5
12 2-3 12000 N2 16 5.0B -5 0.5
14 1.5-2.5 12000 N2 16 5.0B -5 0.5
16 1.3-2 12000 N2 16 5.0B -5 0.5
18 1-1.6 12000 N2 16 5.0B -5 0.5
20 0.8-1.2 12000 N2 16 7.0B -5 0.3
25 0.5-0.7 12000 N2 16 7.0B -5 0.3
20KW 1 55-60 20000 N2 8 2.0S 0 0.8
2 40-45 20000 N2 8 2.0S -1 0.5
3 30-35 20000 N2 10 2.5S -1 0.5
4 25-30 20000 N2 12 2.5S -2 0.5
5 18-20 20000 N2 14 3.0S -3 0.5
6 16-18 20000 N2 14 3.0S -3 0.5
8 10-12 20000 N2 14 3.5S -4 0.5
10 9-10 20000 N2 14 3.5S -5 0.5
12 5-6 20000 N2 16 5.0B -6 0.3
14 4-5 20000 N2 16 5.0B -7 0.3
16 3-4 20000 N2 16 5.0B -7 0.3
18 2-3 20000 N2 16 5.0B -7 0.3
20 1.5-2 20000 N2 18 6.0B -7 0.3
25 1-1.2 20000 N2 18 6.0B -7.5 0.3
30 0.8-1 20000 N2 20 7.0B -7.5 0.3
30KW 1 55-60 12000 N2 8 2.0S 0 0.8
2 40-45 12000 N2 8 2.0S -1 0.5
3 30-35 30000 N2 10 2.5S -1 0.5
4 25-30 30000 N2 12 2.5S -2 0.5
5 18-25 30000 N2 14 3.0S -3 0.5
6 18-20 30000 N2 14 3.0S -3 0.5
8 15-18 30000 N2 14 3.5S -4 0.5
10 12-15 30000 N2 14 3.5S -5 0.5
12 10-12 30000 N2 16 5.0B -6 0.3
14 8-10 30000 N2 16 5.0B -7 0.3
16 6-8 30000 N2 16 5.0B -7 0.3
18 3-4 30000 N2 16 5.0B -7 0.3
20 2-3 30000 N2 18 6.0B -7 0.3
25 1.5-2 30000 N2 18 6.0B -7.5 0.3
30 0.8-1 30000 N2 20 7.0B -7.5 0.3
40KW 5 25-30 40000 N2 8 3.0S 0 0.3
6 20-25 40000 N2 8 3.5B 0 0.3
8 18-22 40000 N2 10 5.0B 0 0.3
10 14-17 40000 N2 12 5.0B 0 0.3
12 11-13 40000 N2 14 6.0B -1 0.3
14 9-11 40000 N2 14 6.0B -1 0.3
16 7-9 40000 N2 14 6.0B -2 0.3
18 5-7 40000 N2 14 6.0B -3 0.3
20 4-5 40000 N2 16 6.0B -5 0.3
25 3-3.5 40000 N2 16 7.0B -7 0.3
30 2-3 40000 N2 16 7.0B -9 0.3
40 1-1.5 40000 N2 16 7.0B -9 0.3
50 0.4-0.6 40000 N2 18 8.0B -11 0.3
60 0.2-0.3 40000 N2 18 8.0B -11 0.3
70 0.2-0.25 40000 N2 20 8.0B -11 0.3

Compatible Aluminum Grades

  • 1050
  • 1060
  • 1070
  • 1100
  • 1145
  • 1350
  • 2011
  • 2014
  • 2024
  • 2219
  • 3003
  • 3004
  • 3103
  • 3105
  • 5005
  • 5050
  • 5052
  • 5083
  • 5086
  • 5154
  • 5251
  • 5454
  • 5754
  • 6060
  • 6061
  • 6063
  • 6082
  • 6106
  • 6262
  • 6351
  • 6463
  • 6951
  • 7020
  • 7072
  • 7075
  • 7475
  • 8011
  • 8021
  • 8079
  • 8090 (Al-Li Alloy)

Application of Aluminum Laser Cutting Machines

Aluminum laser cutting machines are widely used in industries that demand precision, speed, and clean finishes when working with aluminum components. In the aerospace sector, they are used to cut lightweight structural parts, brackets, and panels with high dimensional accuracy. The automotive industry relies on them for chassis parts, trim components, and heat shields, where the strength-to-weight ratio is critical. In architecture and construction, laser-cut aluminum is used for decorative panels, cladding, signage, and ventilation grilles. Electronics manufacturers use laser cutting for enclosures, heat sinks, and intricate conductive components. Marine and transportation industries also benefit from the corrosion resistance of aluminum, using laser cutting for boat parts, trailers, and body panels. Additionally, custom fabrication shops use these machines for prototyping, signage, and precision parts across various applications. Whether it’s thin sheet metal or thick plate, aluminum laser cutting machines offer the flexibility and accuracy needed for consistent, high-quality production.

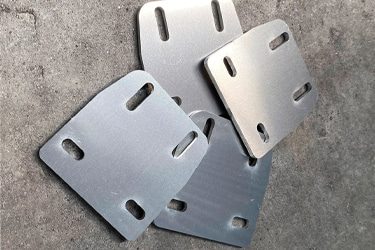

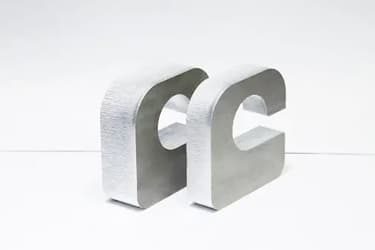

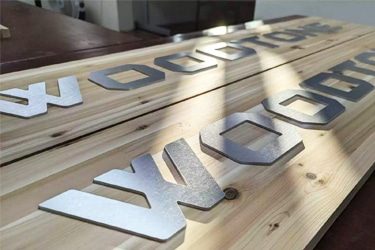

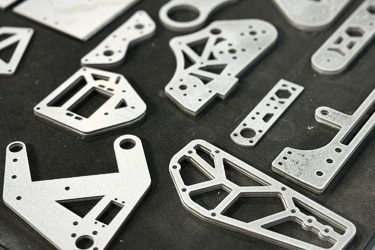

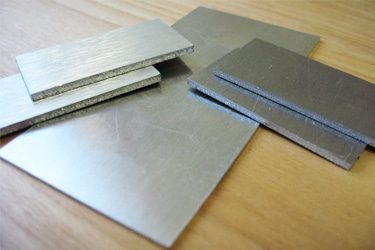

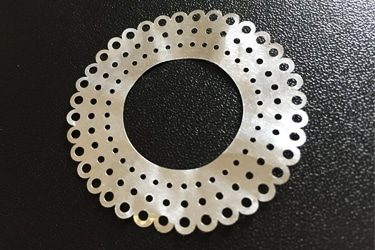

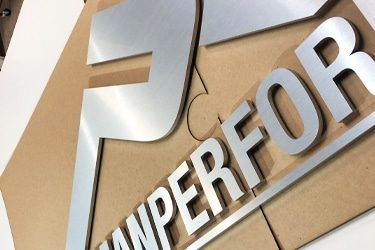

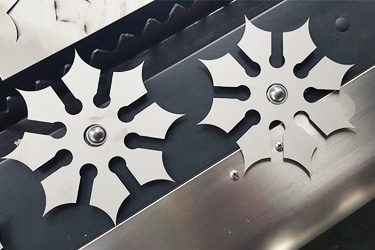

Aluminum Laser Cutting Samples
Aluminum Laser Cutting Samples
Aluminum Laser Cutting Samples
Aluminum Laser Cutting Samples
Aluminum Laser Cutting Samples
Aluminum Laser Cutting Samples
Aluminum Laser Cutting Samples
Aluminum Laser Cutting Samples

Customer Testimonials

Our shop cuts 2 mm to 8 mm 7075 plate daily. This aluminum laser cutter handles reflective surfaces with its anti-back-reflection head, leaving mirror-clean edges that go straight to assembly. Nitrogen assist keeps oxide lines away, and tight nesting trimmed sheet waste by fifteen percent. Uptime sits above ninety-seven percent.
PeterAerospace Fabrication Lead
I need precise cuts for drone frames. The fine beam keeps the kerf under 0.1 mm even on thin 5052, so parts snap together perfectly. Control presets for common alloys save setup time, and low noise lets us discuss tweaks right beside the machine. Maintenance is a ten-minute routine.
GracePrototype Lab Manager
Our previous waterjet left rough edges on 6 mm aluminum. Switching to this fiber unit tripled speed and removed abrasive costs. Edge quality now meets paint spec without sanding. Height sensor tracks warped sheet flawlessly, cutting scrap. Remote monitoring alerts me if gas pressure dips, avoiding late-night surprises.
RicardoMarine Equipment Supervisor
I create custom signage in brushed aluminum. The cutter follows intricate SVG paths without burning edges, so the finish stays pristine. Importing files straight from Illustrator is painless. Clients love seeing their logos cut live, and the clear enclosure keeps viewers safe. Lead times have halved since installation.
HannahIndustrial Designer
We run mixed batches from 1 mm covers to 12 mm brackets. Quick lens swaps and barcode loading make changeovers under two minutes. Pallet changer keeps the laser running while operators offload parts, boosting throughput by thirty percent. Energy draw is lower than our old CO2 machine.
SvenOperations Planner
Cutting thick 5083 plates used to warp from heat. The cutter’s high-pressure air assist and tight focus leave minimal heat-affected zones, so flatness is preserved. Programmable bevel cutting means the parts head directly to welding. Operators mastered the interface in one day thanks to the intuitive touchscreen.
MarcusProduction Supervisor

Comparison VS Other Cutting Technologies

Feature Laser Cutting Plasma Cutting Waterjet Cutting Flame Cutting
Cut Quality Excellent, clean edges Fair, may require finishing Excellent, smooth finish Not suitable
Cutting Precision Very High Moderate High Poor
Heat-Affected Zone (HAZ) Small Large None Very large
Minimum Kerf Width Very narrow (~0.1-0.3 mm) Wider (~1-3 mm) Moderate (~1 mm) Very wide (>3 mm)
Material Thickness Range Thin to medium Medium to thick Thin to thick Not recommended
Edge Oxidation Low (with nitrogen/air assist) Moderate None High
Suitability for Fine Detail Excellent Poor Good Not suitable
Cutting Speed (Thin Sheet) Very fast Fast Slow N/A
Post-Processing Needs Minimal Often required Minimal Heavy cleanup needed
Initial Investment High Moderate High Low
Operating Cost Moderate to low Low High (abrasive and water) Low
Noise Level Low High Low Very high
Automation & CNC Compatibility Full CNC support CNC capable CNC capable Limited
Material Waste Minimal Moderate Moderate High
Environmental Impact Low emissions, clean Fumes, dross Water and abrasive waste High smoke and emissions

Why Choose Us

AccTek Group is a leading laser cutting machine manufacturer, dedicated to delivering high-quality, precision-driven solutions for industries worldwide. With years of experience in laser technology, we design and produce laser cutting machines that enhance efficiency, reduce production costs, and improve overall productivity. Our machines are widely used in metal fabrication, automotive, aerospace, and other industries that require precise and efficient cutting. We prioritize technological innovation, strict quality control, and exceptional customer service to ensure that every machine meets international standards. Our goal is to provide durable, high-performance solutions that help businesses optimize their operations. Whether you need a standard machine or a customized cutting system, AccTek Group is your trusted partner for reliable laser cutting solutions.

Advanced Technology

Our laser cutting machines feature high-speed, precision cutting with the latest laser technology, ensuring smooth edges, minimal waste, and superior efficiency across various materials and thicknesses.

Reliable Quality

Each machine undergoes rigorous quality control and durability testing to ensure long-term stability, low maintenance, and consistent high performance, even under demanding industrial conditions.

Comprehensive Support

We provide full technical support, including installation guidance, operator training, and after-sales service, ensuring smooth machine operation and minimal downtime for your business.

Cost-Effective Solutions

Our machines offer high performance at competitive prices, with customizable options to fit different production needs, helping businesses maximize their investment without compromising on quality.

Related Resources

What Is Laser Cutting

What Is Laser Cutting?

2025-05-05

Discover the fundamentals of laser cutting, its process, types, applications, and benefits. Learn how this advanced technology is transforming modern manufacturing.

Frequently Asked Questions

Can Lasers Cut Aluminum?
Fiber laser-cutting machines are powerful tools capable of cutting aluminum, though the process presents more challenges than cutting carbon steel. Aluminum is a highly reflective, thermally conductive, and soft metal, which means special care must be taken to achieve clean, accurate cuts without damaging the equipment or compromising edge quality.
Fiber lasers are well-suited for cutting aluminum, especially compared to CO2 lasers. The shorter wavelength of fiber lasers (typically 1.06 µm) is better absorbed by metal surfaces, including aluminum, which helps reduce reflectivity and improves cutting efficiency. CO2 lasers can cut aluminum in limited cases—usually only if the aluminum is coated or anodized—but they’re generally not recommended due to the high risk of back-reflection damaging the optics.
With the right setup, fiber laser cutting machines can produce accurate, high-quality cuts in aluminum, making them suitable for aerospace, automotive, signage, and industrial applications.
Fiber laser-cutting machines are capable of processing aluminum at impressive speeds, but cutting speed depends heavily on laser power, material thickness, gas type, and cut quality requirements. Aluminum is reflective and conducts heat quickly, which makes it more challenging than steel, but with the right parameters, fiber lasers can cut it cleanly and efficiently. Typical cutting speeds for aluminum (using nitrogen assist gas):

  • 1 mm thick aluminum (1.5–2 kW laser): Speeds of up to 18,000–20,000 mm/min are common with good edge quality.
  • 3 mm thick aluminum (2–3 kW laser): Typical speeds range from 7,000–13,000 mm/min, depending on cut settings and grade.
  • 6 mm thick aluminum (3–4 kW laser): Cutting speeds drop to about 1,500–3,000 mm/min as thickness increases.
  • 10 mm thick aluminum (6-12 kW laser): Expect speeds of 1,000–6,000 mm/min, with slower rates delivering cleaner edges.
  • 12–25 mm thick aluminum (high-power laser 20–40 kW): Speeds range from 1,000–13,000 mm/min, depending on machine tuning and edge quality needs.

Laser cutting aluminum is fast and effective when done with the right combination of power, gas, and process control, making it ideal for industries like aerospace, signage, automotive, and electronics.
Fiber laser-cutting machines are effective for aluminum, but cutting this reflective, conductive metal involves notable operating costs. These costs go beyond just energy and include gas consumption, maintenance, wear parts, and waste management. While aluminum cuts cleanly with the right setup, its physical properties demand precision, which increases both machine demands and operational expenses.

  1. Assist Gas Consumption
  • Laser-cutting aluminum typically uses high-pressure nitrogen to prevent edge oxidation and produce clean cuts.
  • Nitrogen is used at 10-20 bar (145-290 psi) depending on thickness.
  • Nitrogen is consumed at high flow rates, especially when cutting thick or wide.
  • Often sourced from bulk tanks, liquid dewars, or on-site generators, with costs varying widely by supplier and usage scale.
  1. Electricity Use
  • Fiber lasers are energy-efficient compared to CO₂ machines, but power usage still matters.
  • A 3–6 kW fiber laser typically consumes 20–35 kWh per hour when active.
  • Higher-wattage systems (20–40 kW) will draw more, especially during thick-plate cutting.
  • Energy cost also includes chillers, air compressors, and ventilation systems running in parallel.
  1. Consumables and Maintenance
  • Regular maintenance is key to performance.
  • Nozzles, lenses, and protective windows wear faster when cutting aluminum due to back-reflection and oxide buildup.
  • Nozzle cleaning systems and auto-calibration routines can extend part life but add cost.
  • Budget around $0.50–$1.50/hour for consumables in continuous operation.
  1. Waste Management and Extraction
  • Aluminium cutting generates fine metal dust and fume particles, which require a high-quality fume extraction system.
  • Filter replacement and disposal costs should be factored into overhead, especially for shops processing large volumes.
  1. Labor and Downtime
  • Skilled operators are often needed to fine-tune cutting parameters for aluminum.
  • Improper settings can lead to excessive burrs, dross, or rejected parts, increasing waste and machine downtime.

While fiber lasers are efficient and fast, cutting aluminum requires consistent investment in gas, power, and upkeep, especially for shops aiming for high-quality, oxidation-free results.
Fiber laser-cutting machines are powerful and efficient for cutting aluminum, but this material still presents several risks that need to be managed for safe, consistent, and high-quality results. Aluminum’s physical properties—such as high reflectivity and thermal conductivity—make it more challenging to cut than steel or organic materials.

  1. Back-Reflection and Optic Wear
  • Although fiber lasers handle reflective materials better than CO2 laser cutting systems, aluminum still reflects a portion of the laser beam.
  • This reflection can scatter energy back into the cutting head, which may cause premature wear or damage to the protective lens.
  • High-power machines (12kW or more) are especially vulnerable without beam reflection protection systems or real-time monitoring.
  1. Heat Dissipation and Cut Instability
  • Aluminum conducts heat away from the cut zone faster than most metals.
  • This can result in incomplete cuts, wider kerfs, or edge burrs if laser speed and power aren’t optimized.
  • In thin aluminum sheets, poor thermal control may lead to edge warping or heat distortion.
  1. Oxide Layer Formation
  • At high cutting temperatures, aluminum naturally forms a dense oxide layer at the cut edge.
  • This layer reflects more energy and can interfere with consistent beam penetration, especially on thicker materials.
  • Cutting with high-pressure nitrogen minimizes oxidation but increases gas consumption and cost.
  1. Dust and Fume Hazards
  • Fiber laser-cutting of aluminum produces fine metallic dust and oxide fumes that can pose health and fire hazards.
  • Aluminum dust is combustible and, in high enough concentrations, may lead to explosion risks in unventilated or poorly filtered environments.
  • High-efficiency fume extraction systems and regular filter maintenance are critical for operator safety.
  1. Nozzle and Lens Contamination
  • Aluminum’s soft surface and oxide flakes can build up on the nozzle and contaminate the lens window.
  • This leads to decreased beam focus accuracy, irregular gas flow, and edge defects.
  • Frequent cleaning and part replacement are necessary to maintain cut quality.

Fiber lasers are well-suited for aluminum when equipped with the right safety systems, assist gas, and maintenance routines. Managing these risks ensures reliable performance and extends the life of both the machine and its components.
Fiber laser-cutting machines are well-suited for aluminum, especially when properly configured for metal processing. However, not all aluminum grades cut equally well. The effectiveness of laser cutting depends on the alloy composition, thickness, and thermal characteristics of the aluminum. Some grades offer clean, precise results, while others may require more careful tuning due to reflectivity or heat behavior.

  1. Pure Aluminum (1xxx Series)
  • Commercially pure aluminum (such as 1050, 1060, and 1100) has high thermal conductivity and reflectivity.
  • These grades are soft and ductile, which makes them more prone to edge burrs or warping during cutting.
  • Fiber lasers can still cut these successfully, but edge quality may suffer compared to harder alloys.
  1. Aluminum-Manganese (3xxx Series)
  • This includes popular grades like 3003 and 3105, which are widely used in roofing, cookware, and signage.
  • These alloys are more stable under heat, offering improved cut consistency over pure aluminum.
  • They are laser-compatible and deliver cleaner edges with less dross, especially in thinner gauges.
  1. Aluminum-Magnesium (5xxx Series)
  • Grades like 5052 and 5083 are commonly used in marine, automotive, and architectural applications.
  • These are among the best aluminum alloys for laser cutting, offering good strength and excellent corrosion resistance.
  • Fiber lasers handle the 5xxx series well, producing sharp, oxidation-free cuts when using nitrogen assist gas.
  1. Aluminum-Silicon (4xxx Series)
  • Often used in welding and automotive components, the 4xxx series (like 4045 or 4032) has good thermal control characteristics.
  • These alloys generally cut well but can leave a slightly darker edge due to silicon content.
  1. Aluminum-Copper (2xxx Series)
  • Grades like 2024 are strong but less ideal for laser cutting.
  • These alloys are more reflective and can form inconsistent cuts or heat cracks, especially in thicker sheets.
  • Laser cutting is possible but not recommended unless necessary.
  1. Aluminum-Zinc (7xxx Series)
  • High-strength grades such as 7075 are used in aerospace and performance equipment.
  • These are difficult to laser cut due to their hardness and potential for micro-fractures or oxidation at the edges.
  • If cut, it must be done with precise parameter control and post-cut inspection.

While fiber lasers can handle a wide range of aluminum alloys, the 5xxx and 3xxx series offer the best balance of cut quality, speed, and reliability. Always confirm alloy compatibility and fine-tune settings to match the specific grade and thickness for optimal results.
Fiber laser-cutting machines are engineered for high-performance cutting of metal, and aluminum is one of the more challenging metals due to its reflective surface and thermal conductivity. The choice of assist gas directly affects the quality, efficiency, and safety of the cut. Here’s how different gases compare:

  1. Nitrogen: Nitrogen is the preferred gas for laser cutting aluminum. As an inert gas, it prevents oxidation during cutting, resulting in clean, bright edges without any burnt or discolored zones. This is crucial for parts that will be painted, anodized, or welded.
  • Clean Cuts: Nitrogen ensures oxide-free edges, especially important for tight tolerances or cosmetic finishes.
  • High Pressure Required: Typically used at 10–20 bar to efficiently blow molten aluminum out of the kerf.
  • Best for Precision Parts: Ideal for aerospace, electronics, and architectural aluminum components.
  1. Compressed Air: Compressed air is an affordable option for cutting thin aluminum (usually under 3 mm). It consists mostly of nitrogen with about 21% oxygen, which can cause some light oxidation.
  • Lower Cost: Useful for non-cosmetic applications where surface finish isn’t critical.
  • Good for Prototypes or General Fabrication: Especially if speed and economy are more important than edge quality.
  1. Oxygen: Oxygen is commonly used for cutting carbon steel because it speeds up cutting through an exothermic reaction. However, for aluminum, it causes heavy oxidation and a rough, brittle edge.
  • Poor Cut Quality: Leads to burning, dross buildup, and edge discoloration.
  • Not Recommended: Should be avoided when processing aluminum with any type of laser.

For professional-grade aluminum cutting using a fiber laser, high-pressure nitrogen delivers the best balance of quality, performance, and downstream compatibility.
Aluminum is a widely used industrial metal, but its physical properties make it one of the more difficult materials to cut with lasers, especially with CO2 lasers. Here’s why aluminum poses unique challenges:

  • High Reflectivity: Aluminum has a naturally reflective surface, especially in its raw or polished form. This reflectivity causes a significant portion of the laser beam to bounce back instead of being absorbed by the metal. For CO2 lasers, this can damage optics and reduce cutting efficiency. Fiber lasers are better suited because their shorter wavelength is absorbed more effectively.
  • Thermal Conductivity: Aluminum conducts heat extremely well. As the laser heats the cutting zone, the surrounding metal quickly disperses that heat. This makes it harder to maintain the high localized temperatures needed to melt or vaporize the material, resulting in slower or less efficient cuts.
  • Low Melting Point, High Heat Dissipation: Although aluminum melts at a relatively low temperature (around 660℃), its high thermal conductivity can cause warping, inconsistent kerf widths, and recast layers if not precisely managed.
  • Melt Behavior: Unlike steel, aluminum doesn’t oxidize in a way that supports the cutting process. In carbon steel, oxygen assists cutting by generating additional heat through an exothermic reaction. Aluminum doesn’t react this way—it requires high-pressure inert gas (like nitrogen) to blow away molten metal. Without this, molten aluminum can cling to the cut edge, forming dross.
  • Risk to Equipment: The reflectivity of aluminum poses a real risk to laser components, especially in higher-power systems. Without proper design, reflected beams can degrade lenses or mirrors in CO2 lasers. This is why fiber lasers are now the industry standard for aluminum cutting.

In short, aluminum is difficult to cut because its physical properties demand higher precision, power, and support systems compared to other metals.
Fiber laser-cutting machines are highly effective for processing metal, including aluminum, but special care must be taken to ensure safety due to the unique risks involved. Here are the key factors that affect the safe cutting of aluminum with lasers:

  • Reflective Hazards: Aluminum has a highly reflective surface, especially when polished or untreated. This poses a risk of laser beam reflection, which can damage internal optics or, in worst-case scenarios, injure operators. Fiber lasers are safer than CO2 lasers in this regard because their beam is more readily absorbed by metals, but operators still need to use proper shielding and beam containment systems.
  • Fume Generation: Laser-cutting aluminum produces fine metal fumes and particulate matter, including aluminum oxide and other compounds. Without adequate ventilation or fume extraction, these emissions can be harmful if inhaled over time. Industrial setups should always include filtration systems and PPE for personnel.
  • Fire Risk: Although aluminum doesn’t ignite easily, accumulated aluminum dust is combustible and can explode in confined spaces. Keeping the workspace clean and ensuring no buildup of dust or dross is critical.
  • Gas Pressure Hazards: High-pressure nitrogen or argon is commonly used when laser cutting aluminum to prevent oxidation and blow away molten material. Improper handling or equipment failure can pose hazards from gas leaks or pressure release. Systems must be regularly maintained and pressure settings carefully monitored.
  • Electrical and Optical Safety: Laser cutting systems operate at high voltages and emit intense beams of coherent light. Appropriate laser safety goggles, interlock systems, and warning signage must always be in place when working with high-powered machines.

Fiber lasers make cutting aluminum efficient and practical, but safe operation depends on comprehensive protective systems and responsible handling of the material and equipment.

Get Aluminum Cutting Solutions

If your business relies on precise, high-speed aluminum fabrication, investing in an aluminum laser cutting machine is a smart, future-ready move. Our machines are engineered to handle a wide range of aluminum grades and thicknesses with clean, burr-free results and minimal heat distortion—perfect for industries where accuracy and finish matter.
Whether you’re in aerospace, automotive, signage, construction, or custom fabrication, we offer cutting solutions tailored to your needs. From compact models for smaller shops to high-power systems for industrial-scale production, our machines come equipped with CNC automation, intuitive software, and optimized gas controls for maximum efficiency.
We don’t just sell machines—we provide complete aluminum cutting solutions. Our team offers expert consultation, installation, training, and ongoing technical support to ensure you get the most out of your investment. Ready to boost your aluminum cutting capabilities? Contact us today for personalized guidance and a competitive quote.
* We value your privacy. AccTek Group is committed to protecting your personal information. Any details you provide when submitting the form will be kept strictly confidential and used only to assist with your inquiry. We do not share, sell, or disclose your information to third parties. Your data is securely stored and handled by our privacy policy.
Product
Services
Quick Links
Get In Touch With Us
  • [email protected]
  • +8618766185593
  • Headquarters: 3-1007, Minghu Plaza, Minghu West Street, Jinan City
  • Branch: A3-2-1206, Hanyu Jingu, High-tech Zone, Jinan City
  • Factory: No. 3, Zone A, Lunzhen Industrial Zone, Yucheng City, Dezhou City
Facebook X-twitter Facebook Linkedin Youtube Linkedin
Copyright © Jinan AccTek Machinery Co., Ltd
AccTek Logo
Powered by  GDPR Cookie Compliance
Privacy Overview

This website uses cookies so that we can provide you with the best user experience possible. Cookie information is stored in your browser and performs functions such as recognising you when you return to our website and helping our team to understand which sections of the website you find most interesting and useful.
