Product Introduction

Stainless steel laser cutting machines are precision tools engineered to cut stainless steel with high speed, accuracy, and minimal material waste. These machines use focused laser beams—typically fiber lasers—to melt, burn, or vaporize the material along exact paths, enabling complex cuts with smooth edges and tight tolerances. Ideal for both thin and thick stainless steel sheets, they support a wide range of industrial applications, from automotive and aerospace to kitchen equipment, medical devices, and custom fabrication. Modern stainless steel laser cutting machines are built for performance and efficiency. Many models feature CNC automation, intelligent software controls, and integrated safety systems to streamline production and reduce manual intervention. High-powered lasers, ranging from 1kW to over 40kW, offer fast processing speeds even on dense materials, while maintaining excellent cut quality and consistency. Compared to traditional methods like plasma or mechanical cutting, laser technology delivers superior edge quality and reduces the need for post-processing. It’s also cleaner, quieter, and more energy-efficient. Whether you’re running a high-volume fabrication line or a custom metalworking shop, stainless steel laser cutting machines are a smart investment for boosting productivity and precision while lowering operating costs.

Types of Stainless Steel Laser Cutting Machines

Cutting Thickness Reference

Laser Power Material Thickness (mm) Cutting Speed (m/min) Actual Laser Power (W) Gas Pressure (bar) Nozzle Size (mm) Focus Position (mm) Cutting Height (mm)
1KW 1 15-18 1000 N2 10 2.0S 0 0.8
2 4-4.5 1000 N2 12 2.0S 0 0.5
3 1.5-2 1000 N2 12 2.0S -1 0.5
4 1-1.3 1000 N2 15 2.5S -1.5 0.5
1 18-20 1000 Air 10 2.0S 0 0.8
2 5-6 1000 Air 10 2.0S 0 0.5
3 2-2.5 1000 Air 10 2.0S -1 0.5
4 1.5-1.7 1000 Air 10 2.5S -1.5 0.5
1.5KW 1 20 1500 N2 10 1.5S 0 0.8
2 7 1500 N2 12 2.0S -1 0.5
3 4.5 1500 N2 12 2.5S -1.5 0.5
5 1.5 1500 N2 14 3.0S -2.5 0.5
2KW 1 28 2000 N2 10 1.5S 0 0.8
2 10 2000 N2 12 2.0S -1 0.5
3 5 2000 N2 12 2.0S -1.5 0.5
4 3 2000 N2 14 2.5S -2 0.5
5 2 2000 N2 14 3.0S -2.5 0.5
6 1.5 2000 N2 14 3.0S -3 0.5
3KW 1 28-35 3000 N2 10 1.5S 0 0.8
2 18-24 3000 N2 12 2.0S 0 0.5
3 7-10 3000 N2 12 2.5S -0.5 0.5
4 5-6.5 3000 N2 14 2.5S -1.5 0.5
5 3-3.6 3000 N2 14 3.0S -2.5 0.5
6 2-2.7 3000 N2 14 3.0S -3 0.5
8 1-1.2 3000 N2 16 3.5S -4.5 0.5
4KW 1 30-40 4000 N2 10 1.5S 0 0.8
2 15-20 4000 N2 12 2.0S -1 0.5
3 10-12 4000 N2 12 2.0S -1.5 0.5
4 6-7 4000 N2 12 2.5S -2 0.5
5 4-4.5 4000 N2 14 2.5S -2.5 0.5
6 3-3.5 4000 N2 14 3.0S -3 0.5
8 1.5-1.8 4000 N2 14 3.0S -4 0.5
10 1-1.2 4000 N2 16 4.0S -5 0.5
6KW 1 40-50 6000 N2 10 1.5S 0 0.8
2 25-30 6000 N2 12 2.0S -1 0.5
3 15-18 6000 N2 12 2.5S -1.5 0.5
4 10-12 6000 N2 14 2.5S -2 0.5
5 7-8 6000 N2 14 3.0S -2.5 0.5
6 6-7 6000 N2 15 3.0S -3 0.5
8 3.5-3.8 6000 N2 15 3.0S -4 0.5
10 1.6-2 6000 N2 15 3.5S -6 0.5
12 1-1.2 6000 N2 16 3.5S -7.5 0.5
14 0.8-1 6000 N2 16 4.0S -9 0.5
16 0.5-0.6 6000 N2 18 4.0S -10.5 0.5
18 0.4-0.5 6000 N2 20 5.0S -11 0.3
12KW 1 50-60 12000 N2 10 2.0S 0 1
2 40-45 12000 N2 12 2.0S 0 0.5
3 30-35 12000 N2 13 2.0S 0 0.5
4 22-26 12000 N2 12 2.0S 0 0.5
5 15-18 12000 N2 15 2.5S 0 0.5
6 13-15 12000 N2 8 3.5B 0 0.5
8 8-10 12000 N2 7 5.0B 0 0.5
10 6.5-7.5 12000 N2 5 5.0B -1 0.5
12 5-5.5 12000 N2 6 6.0B -4 0.5
14 3-3.5 12000 N2 6 7.0B -6 0.3
16 2-2.3 12000 N2 6 7.0B -8 0.3
18 1.3-1.5 12000 N2 6 7.0B -9 0.5
20 1.2-1.4 12000 N2 6 7.0B -11 0.3
25 0.7-0.9 12000 N2 6 7.0B -13 0.3
1 50-60 12000 Air 10 2.0S 0 1
2 40-45 12000 Air 10 2.5S 0 0.5
3 30-35 12000 Air 10 2.5S 0 0.5
4 22-28 12000 Air 10 3.5B 0 0.5
5 16-19 12000 Air 10 3.5B 0 0.5
6 14-17 12000 Air 10 3.5B 0 0.5
8 9-11 12000 Air 10 3.5B 0 0.5
10 7-8 12000 Air 10 3.5B -1 0.5
12 5.5-6 12000 Air 10 5.0B -4 0.5
14 3.5-4 12000 Air 10 5.0B -6 0.5
16 2.2-2.4 12000 Air 10 5.0B -8 0.5
18 1.3-1.6 12000 Air 10 5.0B -9 0.5
20 1.2-1.5 12000 Air 10 5.0B -11 0.3
25 0.7-1 12000 Air 10 5.0B -13 0.3
20KW 1 50-60 12000 N2 8 2.0S 0 1
2 50-60 12000 N2 8 2.0S 0 0.5
3 40-45 20000 N2 8 2.5S 0 0.5
4 30-35 20000 N2 8 2.5S 0 0.5
5 22-24 20000 N2 8 3.0S 0 0.5
6 18-22 20000 N2 8 3.5B 0 0.5
8 13-16 20000 N2 8 5.0B -1 0.5
10 10-12 20000 N2 8 5.0B -1.5 0.3
12 8-10 20000 N2 8 6.0B -2 0.5
14 6-8 20000 N2 8 6.0B -4 0.3
16 5-6 20000 N2 8 6.0B -5 0.3
18 3.2-4 20000 N2 8 6.0B -6 0.3
20 3-3.2 20000 N2 12 6.0B -7.5 0.3
25 1.5-2 20000 N2 12 7.0B -12 0.3
30 1-1.2 20000 N2 12 7.0B -16 0.3
40 0.5-0.8 20000 N2 16 7.0B -16 0.3
1 50-60 12000 Air 8 2.0S 0 1
2 50-60 12000 Air 8 2.5S 0 0.5
3 40-45 20000 Air 8 2.5S 0 0.5
4 30-35 20000 Air 8 3.5B 0 0.5
5 22-24 20000 Air 8 3.5B 0 0.5
6 18-22 20000 Air 8 3.5B 0 0.5
8 13-16 20000 Air 10 3.5B 0 0.5
10 11-13 20000 Air 10 3.5B -1.5 0.3
12 9-11 20000 Air 10 5.0B -4 0.3
14 7-9 20000 Air 10 5.0B -6 0.3
16 6-7 20000 Air 10 5.0B -7 0.3
18 3.5-4.5 20000 Air 10 5.0B -8 0.3
20 3.5-4.5 20000 Air 10 5.0B -9 0.3
25 1.8-2.5 20000 Air 10 5.0B -13 0.3
30 1.4-1.6 20000 Air 10 5.0B -17 0.3
40 0.5-0.8 20000 Air 16 7.0B -16 0.3
30KW 1 50-60 12000 N2 8 2.0S 0 1
2 50-60 12000 N2 8 2.0S 0 0.5
3 40-50 30000 N2 8 2.5S 0 0.5
4 35-40 30000 N2 8 2.5S 0 0.5
5 25-30 30000 N2 8 3.0S 0 0.5
6 22-25 30000 N2 8 3.5B 0 0.5
8 18-22 30000 N2 8 5.0B -1 0.5
10 14-18 30000 N2 8 5.0B -1.5 0.3
12 12-14 30000 N2 8 6.0B -2 0.5
14 8-10 30000 N2 8 6.0B -4 0.3
16 7.5-8.5 30000 N2 8 6.0B -5 0.3
18 6-7 30000 N2 8 6.0B -6 0.3
20 5-6 30000 N2 12 6.0B -7.5 0.3
25   2-3 30000 N2 12 7.0B -12 0.3
30 1.5-2 30000 N2 12 7.0B -16 0.3
40 0.6-0.8 30000 N2 16 7.0B -16 0.3
50 0.4-0.6 30000 N2 16 8.0B -18 0.3
1 50-60 12000 Air 8 2.0S 0 1
2 50-60 12000 Air 8 2.5S 0 0.5
3 40-50 30000 Air 8 2.5S 0 0.5
4 35-40 30000 Air 8 3.5B 0 0.5
5 25-30 30000 Air 8 3.5B 0 0.5
6 22-25 30000 Air 8 3.5B 0 0.5
8 18-22 30000 Air 10 3.5B 0 0.5
10 14-18 30000 Air 10 3.5B -1.5 0.3
12 12-14 30000 Air 10 5.0B -4 0.3
14 10-12 30000 Air 10 5.0B -6 0.3
16 8-9 30000 Air 10 5.0B -7 0.3
18 6-7 30000 Air 10 5.0B -8 0.3
20 5-6 30000 Air 10 5.0B -9 0.3
25 2.5-3 30000 Air 10 5.0B -13 0.3
30 1.5-2 30000 Air 10 5.0B -17 0.3
40 0.8-1.2 30000 Air 16 7.0B -16 0.3
50 0.6-0.8 30000 Air 16 8.0B -18 0.3
40KW 5 25-30 40000 N2 8 3.0S 0 0.3
6 22-25 40000 N2 8 3.5B 0 0.3
8 20-23 40000 N2 8 5.0B -0.5 0.3
10 16-21 40000 N2 8 5.0B -0.5 0.3
12 12-14 40000 N2 8 6.0B -1 0.3
14 10-12 40000 N2 8 6.0B -1 0.3
16 9-11 40000 N2 8 6.0B -2 0.3
18 8-9.5 40000 N2 8 6.0B -3 0.3
20 7-8 40000 N2 8 6.0B -5 0.3
25   4.5-5.5 40000 N2 8 7.0B -7 0.3
30 3-4 40000 N2 8 7.0B -13 0.3
40 1.5-2 40000 N2 8 7.0B -20 0.3
50 0.5-0.8 40000 N2 6 8.0B -38 0.3
60 0.4-0.6 40000 N2 6 8.0B -38 0.3
70 0.2-0.3 40000 N2 6 8.0B -40 0.3
5 30-34 40000 Air 8 3.5B 0 0.5
6 25-30 40000 Air 8 3.5B 0 0.5
8 22-25 40000 Air 8 3.5B 0 0.5
10 17-23 40000 Air 8 3.5B -1.5 0.3
12 13-16 40000 Air 8 5.0B -4 0.3
14 12-14 40000 Air 8 5.0B -6 0.3
16 9-11.5 40000 Air 8 5.0B -7 0.3
18 8-10 40000 Air 8 5.0B -8 0.3
20 7-8.5 40000 Air 8 5.0B -9 0.3
25  5-5.5 40000 Air 8 5.0B -13 0.3
30 3.5-4.5 40000 Air 8 5.0B -15 0.3
40 1.7-2.2 40000 Air 6 7.0B -22 0.3
50 0.7-1 40000 Air 6 8.0B -38 0.3
60 0.4-0.6 40000 Air 5 8.0B -38 0.3
70 0.3-0.4 40000 Air 5 8.0B -44 0.3

Compatible Stainless Steel Grades

  • 304
  • 304L
  • 316
  • 316L
  • 301
  • 301L
  • 302
  • 303
  • 309
  • 310
  • 310S
  • 321
  • 347
  • 409
  • 410
  • 410S
  • 416
  • 420
  • 420J1
  • 420J2
  • 430
  • 434
  • 436
  • 439
  • 440A
  • 440B
  • 440C
  • 444
  • 446
  • 904L
  • 2205 (Duplex)
  • 2507 (Super Duplex)
  • 17-4PH
  • 15-5PH
  • 201
  • 202
  • 205
  • 254SMO
  • AISI 430F
  • AISI 431

Application of Stainless Steel Laser Cutting Machines

Stainless steel laser cutting machines are used across a wide range of industries that require precision, speed, and clean edge finishes. In manufacturing, they’re essential for producing brackets, panels, enclosures, and custom components. The automotive industry uses them for cutting exhaust systems, body parts, and trim with high accuracy. In aerospace, they handle complex stainless steel parts with minimal heat distortion, ensuring performance and safety. Medical equipment manufacturers rely on laser cutting for surgical instruments, housings, and implant components, where precision is critical. Food processing and kitchen equipment industries favor laser cutting for hygienic stainless steel surfaces like tables, sinks, and conveyors. In construction and architecture, laser-cut stainless steel is used for facades, decorative screens, signage, and structural parts. Custom fabricators also use these machines to produce detailed one-off parts or prototypes. From high-volume production to fine-detail work, these machines meet the demands of modern metalworking.

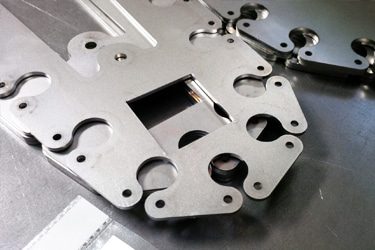

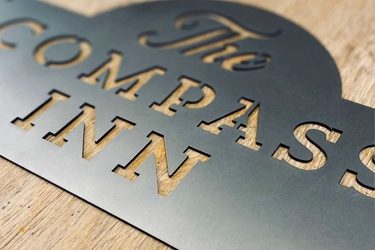

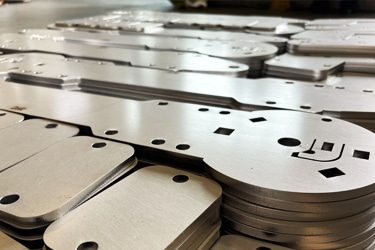

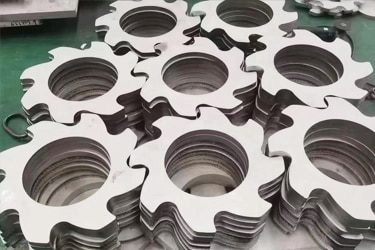

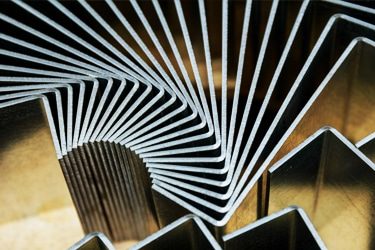

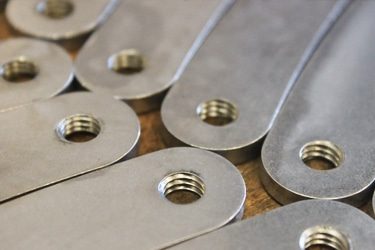

Stainless Steel Laser Cutting Samples
Stainless Steel Laser Cutting Samples
Stainless Steel Laser Cutting Samples
Stainless Steel Laser Cutting Samples
Stainless Steel Laser Cutting Samples
Stainless Steel Laser Cutting Samples
Stainless Steel Laser Cutting Samples
Stainless Steel Laser Cutting Samples

Customer Testimonials

Our metal shop cuts 304 stainless steel daily, and this laser has changed our workflow. Cuts are clean, no burr, and setup is quick. The touch screen is easy for new operators. Energy use dropped against our old CO2 cutting machine, saving on bills. Uptime has stayed at ninety-eight percent.
DanielShop Supervisor
We run two shifts, cutting 10 mm stainless plate for food equipment. The fiber source pierces fast and leaves edges ready for forming. Barcode loading means fewer programming mistakes. Remote monitoring alerts me if gas pressure dips, so downtime is low. Overall output rose by thirty percent.
IsabellaProduction Manager
My prototypes need sharp corners and tight slots. This stainless laser gives a fine beam that matches my CAD every time. Heat marks are barely visible, saving polishing work. Material presets for 316L are spot on, and I can tweak speed easily when testing new thicknesses.
HiroshiDesign Engineer
I look after five machines, and this one is the easiest. Daily checks are wiping the lens, checking the coolant, and emptying the dust drawer. Parts are modular and clearly labeled. The screen shows temperatures and hours, so I schedule service before issues appear. We haven’t replaced a single optic yet.
KevinMaintenance Technician
Edge roughness on our 2 mm stainless sheets now averages under one micron, meeting aerospace spec without extra work. The cutter logs every setting per part, giving solid tracking for audits. Vision camera checks pierce spots before cutting, and the scrap rate fell to almost zero after installation.
SofiaQuality Inspector
We switched from waterjet to this fiber unit for small stainless brackets. Speed tripled, and we save on abrasive media. Nitrogen assist keeps edges bright, which customers love. The enclosed frame keeps fumes down, so the shop feels cleaner. Training two new hires took just one day.
MarkMetal Fabricator

Comparison VS Other Cutting Technologies

Feature Laser Cutting Plasma Cutting Waterjet Cutting Flame Cutting
Cut Quality Excellent, smooth edges Moderate, may have dross Excellent, clean edges Poor, rough and oxidized
Precision Very high (tight tolerances) Moderate High Low
Minimum Kerf Width Very narrow (0.1-0.3 mm) Wider (1-3 mm) Medium (~1 mm) Very wide (>3 mm)
Heat-Affected Zone (HAZ) Very small Large None Very large
Thickness Capability Ideal for thin to medium sheets Good for medium to thick Excellent for all thicknesses Not recommended for stainless steel
Cutting Speed (Thin Sheet) Very fast Fast Slow Very slow
Material Waste Minimal Moderate Moderate High
Edge Oxidation Minimal with nitrogen assist gas Oxidized edges No oxidation Heavy oxidation
Post-Processing Needed Rarely needed Often needed Minimal Frequently needed
Setup & Operation Complexity Moderate Simple Complex Simple
Operating Cost Moderate to low Low High (abrasive cost) Low
Initial Investment High Low to moderate High Low
Noise Level Low High Low Very high
Suitability for Fine Detail Excellent Poor Good Not suitable
Environmental Impact Clean, low emissions Fumes and dross Water and abrasive disposal High emissions and smoke

Why Choose Us

AccTek Group is a leading laser cutting machine manufacturer, dedicated to delivering high-quality, precision-driven solutions for industries worldwide. With years of experience in laser technology, we design and produce laser cutting machines that enhance efficiency, reduce production costs, and improve overall productivity. Our machines are widely used in metal fabrication, automotive, aerospace, and other industries that require precise and efficient cutting. We prioritize technological innovation, strict quality control, and exceptional customer service to ensure that every machine meets international standards. Our goal is to provide durable, high-performance solutions that help businesses optimize their operations. Whether you need a standard machine or a customized cutting system, AccTek Group is your trusted partner for reliable laser cutting solutions.

Advanced Technology

Our laser cutting machines feature high-speed, precision cutting with the latest laser technology, ensuring smooth edges, minimal waste, and superior efficiency across various materials and thicknesses.

Reliable Quality

Each machine undergoes rigorous quality control and durability testing to ensure long-term stability, low maintenance, and consistent high performance, even under demanding industrial conditions.

Comprehensive Support

We provide full technical support, including installation guidance, operator training, and after-sales service, ensuring smooth machine operation and minimal downtime for your business.

Cost-Effective Solutions

Our machines offer high performance at competitive prices, with customizable options to fit different production needs, helping businesses maximize their investment without compromising on quality.

Related Resources

What Is Laser Cutting

What Is Laser Cutting?

2025-05-05

Discover the fundamentals of laser cutting, its process, types, applications, and benefits. Learn how this advanced technology is transforming modern manufacturing.

Frequently Asked Questions

How Much Is the Price of Stainless Steel Laser Cutting Machines?
Stainless steel laser cutting machines vary widely in price, typically ranging from $15,000 to $200,000. The cost depends on several key factors, including laser type, power output, machine size, precision, automation features, and brand reputation. Here’s a more detailed look at what drives the price across this spectrum:

  • Entry-Level to Mid-Range Machines ($15,000–$60,000): These machines often use lower-power fiber lasers (around 1kW to 3kW) and are suitable for small workshops or businesses cutting thinner stainless steel (up to ~6mm). They may have manual loading systems and basic control software. Ideal for prototyping or low-volume production.
  • Mid-Range to Industrial Grade ($60,000–$120,000): These systems feature more powerful lasers (6kW to 12kW), faster cutting speeds, larger working areas, and higher accuracy. They typically include semi-automated systems, improved software integration, and better dust/fume extraction. Suitable for medium-scale production and job shops.
  • High-End Industrial Systems ($120,000–$200,000): At this level, you’re getting machines with 20kW to 40kW+ fiber lasers, fully automated loading/unloading systems, real-time monitoring, and advanced cutting algorithms. These are designed for high-throughput manufacturing, including thick stainless steel plates (up to 25mm or more), with minimal waste and maximum efficiency.

If you’re cutting stainless steel regularly, especially in industrial settings, fiber laser cutting machines are a necessity, and the price range reflects the growing power, precision, and automation you’ll need. Always balance your budget with your workload, material thickness, and production goals.
Laser cutting technology has advanced rapidly, and fiber lasers are now capable of cutting stainless steel across a wide range of thicknesses, depending on the laser’s power output. The following lists the cutting thickness ranges for stainless steel at different power levels:

  • 1kW Fiber Laser: Cuts 1–4mm stainless steel. Suitable for light sheet metal and low-volume tasks. Slower speed and limited thickness.
  • 5kW: Handles 1–5mm cleanly. Often used in small fabrication shops needing slightly more range.
  • 2kW: Cuts up to 6mm efficiently. A balanced option for moderate production needs.
  • 3kW: Extends capability to 8mm. Faster cuts, better edge quality, and higher throughput.
  • 4kW: Manages up to 10mm. Ideal for mid-range industrial applications.
  • 6kW: Cuts stainless steel up to 18mm thick. Frequently found in heavy-duty job shops or production lines.
  • 12kW: Handles 1–25mm. High-speed precision cutting, minimal dross, even on thicker sheets.
  • 20kW: Cuts 1–40mm. Industrial-grade power for thick plate cutting at production scale.
  • 30kW: Reaches 1–50mm. Used in specialized manufacturing, particularly where high volume or unique geometries are required.
  • 40kW: Tops out around 1–70mm. Only necessary in highly specific industrial scenarios (e.g., shipbuilding, structural components).

Fiber lasers can cut stainless steel from 1mm up to 70mm, with the appropriate power level and setup. While 1–10mm is common in most operations, the rise of high-power lasers (20kW–40kW) has opened up new possibilities in heavy manufacturing. Choosing the right laser depends on your production needs, not just maximum thickness.
Stainless steel is a heat-sensitive alloy, and fiber laser cutting involves a high-temperature, focused beam that melts and vaporizes metal in a narrow zone. This intense heat input creates a Heat-Affected Zone (HAZ)—a thin band along the cut edge where the metal’s microstructure can change.

  • Martensitic Stainless Steel (e.g., 410, 420): These grades are more prone to hardening after laser cutting due to their high carbon content. The rapid heating and cooling can form martensite, a hard, brittle structure. This can make post-machining more difficult if not treated.
  • Austenitic Stainless Steel (e.g., 304, 316): These are the most commonly cut grades and are generally not hardened by laser cutting. The HAZ may exhibit some minor structural changes, but not to a degree that affects machinability or toughness.
  • Duplex or Precipitation-Hardened Grades: These may experience structural shifts, but edge hardening is minimal with correct cutting parameters.

Laser cutting stainless steel can cause mild edge hardening, mostly limited to specific alloys like martensitic stainless steel. For common grades like 304 or 316, hardening is typically negligible. Proper cutting parameters minimize any adverse effects on material properties or downstream processing.
Fiber laser-cutting machines are highly effective for stainless steel, and they can handle a wide range of stainless steel grades. Each type has its characteristics, but the most common grades used in industrial and fabrication settings are compatible with fiber laser technology. Here are the main types of stainless steel that can be effectively cut:

  1. Austenitic Stainless Steel (Most Common – Excellent for Laser Cutting)
  • Grades: 301, 304, 304L, 316, 316L
  • Description: These are the most widely used stainless steels, known for corrosion resistance and formability.
  • Laser Cutting Behavior: Cuts cleanly with minimal edge hardening. Nitrogen assist gas preserves the edge finish. 304 and 316 are industry standards for everything from kitchen equipment to marine applications.
  1. Ferritic Stainless Steel (Good for Cutting, Less Ductile)
  • Grades: 409, 430
  • Description: Magnetic and corrosion-resistant, often used in automotive and exhaust systems.
  • Laser Cutting Behavior: Cuts well with fiber lasers, though surface finish and edge quality may vary depending on thickness. Lower thermal conductivity than austenitic grades means less distortion.
  1. Martensitic Stainless Steel (Can Harden at Cut Edge)
  • Grades: 410, 420, 440C
  • Description: Harder and more brittle; used in knives, tools, and wear-resistant applications.
  • Laser Cutting Behavior: Edge hardening is likely due to rapid heating and cooling. Slower cutting speeds and post-processing may be needed to maintain quality.
  1. Duplex Stainless Steel (Higher Strength – More Challenging)
  • Grades: 2205, 2507
  • Description: Combines properties of austenitic and ferritic steels, offering high strength and corrosion resistance.
  • Laser Cutting Behavior: Can be cut effectively, but requires precision settings to minimize heat distortion and preserve mechanical properties. Typically used in chemical and offshore industries.
  1. Precipitation-Hardened Stainless Steel (Specialized – Cut with Caution)
  • Grades: 17-4 PH (Type 630)
  • Description: High strength and corrosion resistance, used in aerospace and defense.
  • Laser Cutting Behavior: Laser cutting is possible, but microstructure changes from heat may require post-treatment for structural integrity.

Fiber lasers can cut a wide variety of stainless steels, including austenitic, ferritic, martensitic, duplex, and precipitation-hardened grades. 304 and 316 are the most common and easiest to cut cleanly. Higher-strength or heat-sensitive grades require more precise control to avoid warping or hardening, but with the right settings, fiber lasers offer reliable, high-quality cuts across the stainless spectrum.
Laser cutting stainless steel involves more than just a powerful laser beam—it also relies heavily on assist gases to drive clean, precise results. Different gases produce different edge qualities, speeds, and costs depending on the application. Here’s how it works:

  • Oxygen: Oxygen is commonly used when cutting thicker stainless steel sheets, especially with CO2 laser systems. It reacts with the hot metal at the cutting point, producing an exothermic reaction that generates heat and enhances cutting efficiency. This enables faster cuts and deeper penetration, but leaves an oxidized, sometimes discolored edge that may require secondary processing, such as grinding or passivation.
  • Nitrogen: Nitrogen is the preferred gas when a clean, shiny, oxidation-free edge is essential. As an inert gas, nitrogen doesn’t chemically react with the molten steel—it simply blows it out of the kerf. This results in a smoother, burr-free edge, ideal for parts that will be painted, welded, or used without additional surface finishing. Nitrogen is commonly used in high-pressure fiber laser cutting and for thinner to medium-thickness sheets.
  • Compressed Air: Compressed air, a mix of mostly nitrogen and oxygen, is sometimes used for low-cost cutting of thin stainless steel. It provides a balance between cut quality and expense. While not as clean as nitrogen or as fast as oxygen, it works well for applications where a perfect edge finish isn’t critical. It’s especially popular for in-house prototyping or budget-sensitive production runs.

Oxygen is used for cutting thick stainless steel, cutting faster, but the edges tend to oxidize. Nitrogen is used for cutting clean, bright stainless steel, cutting slower, but it will not oxidize. Compressed air is an economical choice for thin stainless steel, with moderate speeds and good edge quality. Each gas serves a purpose depending on the project requirements. Cutting speed, edge cleanliness, post-processing needs, and cost all influence the choice of assist gas when laser-cutting stainless steel.
Laser cutting stainless steel does produce fumes, and those fumes can be hazardous depending on the specific alloy and conditions. Whenever metal is vaporized or melted by a high-energy laser beam, airborne particulates and gases are released. In the case of stainless steel, that includes potentially toxic elements that require strict ventilation and filtration.

  • Metal Fume Content: Stainless steel contains iron, chromium, nickel, and sometimes molybdenum—elements that, when vaporized, can form fine particulate fumes and metal oxides. Chromium, in particular, is a concern. When heated during cutting, it can convert to hexavalent chromium (Cr⁶⁺), a known carcinogen and respiratory hazard. Nickel compounds are also harmful with long-term exposure.
  • Assist Gas Impact: The choice of assist gas affects fume composition. For instance, oxygen-assisted cutting can intensify oxidation reactions, potentially increasing the amount of harmful metal oxides. Nitrogen, being inert, reduces oxidation and fume volume, but it doesn’t eliminate the risks.
  • Ventilation and Safety Measures: Proper fume extraction and air filtration systems—especially HEPA and activated carbon filters—are essential. These systems capture particulates and neutralize harmful gases before they enter the workspace atmosphere. Operators should never run a laser cutter without adequate exhaust and should consider personal protective equipment (PPE) in industrial settings.

Stainless steel can be laser cut safely, but only when proper fume management protocols are followed. Neglecting them puts both users and bystanders at serious risk.
The heat-affected zone (HAZ) is the area surrounding a laser cut where the base metal’s structure is altered by heat. In stainless steel, a wide HAZ can cause discoloration, warping, or even weakening of the material, especially in precision or aesthetic parts. Reducing it is key to preserving material integrity and minimizing post-processing.

  • Optimize Cutting Parameters: Minimizing the HAZ starts with precise control over cutting parameters. Lowering the laser power and increasing the cutting speed reduces the dwell time of heat on the material. The goal is to use just enough energy to make a clean cut without excessive thermal input. Too slow or too powerful, and the HAZ expands.
  • Use Nitrogen Assist Gas: Choosing nitrogen over oxygen as the assist gas can significantly reduce the HAZ. Nitrogen is inert, so it doesn’t contribute to additional oxidation or heat from chemical reactions. This leads to cleaner, cooler cuts with less thermal distortion and oxidation.
  • Focus and Beam Quality: A tightly focused laser beam results in a narrower kerf and more localized energy application, which directly limits heat spread. Maintaining proper nozzle distance and beam alignment ensures optimal energy density right at the cut point, not around it.
  • Use Pulsed Laser Modes (if available): For some systems, using a pulsed laser mode instead of continuous wave allows bursts of high-intensity energy followed by cooling periods. This technique is especially effective for delicate or thin stainless components where thermal buildup must be carefully managed.
  • Material Cooling and Fixturing: Some applications use backing plates or heat sinks to draw heat away during the cut. In high-precision manufacturing, a chilled or thermally conductive base can keep stainless steel cooler, limiting HAZ spread.

Minimizing the HAZ in stainless steel laser cutting requires dialing in settings for precision, not brute force. With the right setup, you get cleaner edges, fewer thermal effects, and better-looking, more reliable parts.
Stainless steel is durable and corrosion-resistant, but that also makes it challenging to laser cut cleanly without the right setup. Getting high-quality cuts means tuning your laser system with care. The key parameters—laser power, speed, focus, assist gas, and standoff distance—must work together to produce precise, burr-free edges with minimal waste or discoloration.

  • Laser Power and Speed Balance: Start with matching laser power to material thickness. Too much power can overheat the cut and cause a wide heat-affected zone (HAZ), while too little power can cause incomplete cuts. Higher power levels with faster speeds often yield better edge quality and reduce burn marks, especially on thicker stainless.
  • Cutting Speed: Too slow, and the metal overheats, oxidizes, or deforms. Too fast, and the cut may be incomplete or leave dross (molten metal remnants). The ideal speed provides a smooth kerf and minimal back-side burring, adjusted incrementally based on material grade and thickness.
  • Assist Gas Selection and Pressure: Nitrogen is best for cutting clean, oxide-free edges, while oxygen increases cutting speed through an exothermic reaction but leaves an oxidized edge. In addition, the gas pressure must be high enough to blow the molten metal out of the cut, but not so high that it interferes with the beam.
  • Focus and Nozzle Positioning: The focal point should be just below the surface of the stainless steel to concentrate heat precisely and reduce tapering of the cut. Keeping the nozzle at the correct height (typically 1–2 mm from the surface) ensures consistent gas flow and beam alignment.
  • Beam Mode and Frequency (for pulsed systems): Some lasers allow adjustments to pulse frequency and duration, which can fine-tune how energy is delivered. For thin stainless or delicate cuts, pulsed cutting can reduce thermal load and improve edge sharpness.
  • Material Preparation: Make sure the stainless surface is clean and free of oil, rust, or protective film, which can interfere with beam absorption or produce unwanted fumes.

Fine-tuning these parameters doesn’t just improve cut quality—it boosts efficiency, reduces rework, and extends machine life. Each job may require slight tweaks, but once dialed in, stainless steel can be cut with excellent precision and consistency.

Get Stainless Steel Cutting Solutions

Looking to upgrade your stainless steel cutting capabilities? Our stainless steel laser cutting machines deliver the speed, precision, and reliability modern fabrication demands. Whether you’re producing intricate components or handling high-volume production, our machines are built to perform with minimal waste and consistent quality.
We offer a range of fiber laser cutting machines tailored to various material thicknesses, production scales, and budget levels. Each machine is engineered for clean cuts, tight tolerances, and low maintenance, with advanced features like CNC automation, intelligent controls, and gas optimization for improved efficiency.
Our team is here to help you choose the right solution for your workflow. From consultation and installation to training and after-sales support, we ensure you get the most out of your investment. Ready to find the perfect stainless steel laser cutting machine for your operation? Contact us today for expert guidance and a custom quote.
* We value your privacy. AccTek Group is committed to protecting your personal information. Any details you provide when submitting the form will be kept strictly confidential and used only to assist with your inquiry. We do not share, sell, or disclose your information to third parties. Your data is securely stored and handled by our privacy policy.
Product
Services
Quick Links
Get In Touch With Us
  • [email protected]
  • +8618766185593
  • Headquarters: 3-1007, Minghu Plaza, Minghu West Street, Jinan City
  • Branch: A3-2-1206, Hanyu Jingu, High-tech Zone, Jinan City
  • Factory: No. 3, Zone A, Lunzhen Industrial Zone, Yucheng City, Dezhou City
Facebook X-twitter Facebook Linkedin Youtube Linkedin
Copyright © Jinan AccTek Machinery Co., Ltd
AccTek Logo
Powered by  GDPR Cookie Compliance
Privacy Overview

This website uses cookies so that we can provide you with the best user experience possible. Cookie information is stored in your browser and performs functions such as recognising you when you return to our website and helping our team to understand which sections of the website you find most interesting and useful.
