What Cutting Defects Might Occur With Laser Cutting
Laser cutting has become a cornerstone of modern manufacturing thanks to its precision, speed, and ability to handle a wide range of materials. From sheet metal fabrication to intricate designs in plastics and composites, the process is widely valued for producing clean edges and tight tolerances with minimal post-processing. However, despite its advantages, laser cutting is not immune to defects. Understanding these potential issues is essential for anyone involved in design, production, or quality control.
Cutting defects can arise from a variety of factors, including improper machine settings, material inconsistencies, or environmental conditions. Parameters such as laser power, cutting speed, focus position, and assist gas pressure must be carefully balanced. Even small deviations can lead to visible flaws or structural weaknesses in the final product. In high-precision industries, these defects are not just cosmetic concerns. They can affect performance, safety, and overall product reliability.
Common defects include rough or striated edges, excessive burr formation, incomplete cuts, burning or discoloration, and dimensional inaccuracies. Each of these issues has its own root causes and requires specific adjustments to correct. For example, excessive heat input may cause melting or warping, while insufficient power can result in uncut sections. Material properties, such as thickness, reflectivity, and thermal conductivity, also play a significant role in how defects develop.
This article explores the various cutting defects that can occur during laser cutting, along with their causes and practical solutions. By gaining a clear understanding of these challenges, manufacturers and engineers can optimize their processes, reduce waste, and achieve more consistent, high-quality results.
Table of Contents
Burr Formation (Dross or Slag)
Burr formation, commonly referred to as dross or slag, is a defect characterized by the adhesion of re-solidified molten material along the lower edge of a laser-cut part. During laser cutting, the focused beam melts or vaporizes material along a narrow kerf, while an assist gas jet is used to eject the molten material downward and out of the cut. When this expulsion process is incomplete, unstable, or inconsistent, the molten material cools and solidifies before it can fully separate, forming deposits along the edge.
These deposits can appear in several forms. Light burrs may present as thin, flaky residues that can be brushed off easily, while heavy dross forms thick, continuous ridges that are strongly bonded to the base material. In some cases, the burr structure may be granular or droplet-like, indicating fluctuations in melt flow during cutting. The severity and morphology of burrs often provide valuable diagnostic information about process conditions, making them an important indicator of cut quality and system performance.
Causes
Burr formation is fundamentally linked to the balance between energy input, melt generation, and melt removal. Any disruption in this balance can lead to incomplete ejection of molten material. One of the most critical factors is the assist gas behavior. If the gas pressure is too low, or if the flow becomes turbulent due to nozzle damage or incorrect stand-off distance, the molten material cannot be effectively blown out of the kerf. As a result, it accumulates and solidifies at the bottom edge.
Cutting speed must be carefully matched to laser power and material thickness. When the cutting speed is too slow, excessive heat input produces a large volume of molten material that exceeds the capacity of the gas jet to remove it. This often results in thick, sticky dross. Conversely, if the speed is too high, the laser may not fully penetrate the material, leading to partial melting and irregular slag attachment.
Laser power and focal position are equally influential. Insufficient power reduces cutting efficiency and leaves behind semi-molten material, while excessive power can destabilize the melt pool and increase spatter. Incorrect focal positioning reduces energy density at the cutting interface, weakening both melting and ejection efficiency.
Equipment-related issues also contribute to burr formation. Nozzle misalignment, worn tips, contaminated optics, and inconsistent beam quality can all disrupt the symmetry and intensity of the laser and gas flow. In addition, material-related factors such as surface oxidation, oil contamination, protective films, or variations in thickness can interfere with energy absorption and lead to uneven melting behavior.
Effects
The presence of burrs has wide-ranging implications for both product quality and manufacturing efficiency. From a dimensional and functional perspective, burrs compromise edge precision and may prevent proper fit in assemblies, especially in applications requiring tight tolerances. In mechanical components, rough edges can act as stress concentrators, potentially reducing fatigue life and structural integrity.
From a production standpoint, burr formation increases the need for secondary finishing operations such as grinding, sanding, tumbling, or chemical deburring. These additional steps not only raise labor and processing costs but also introduce variability and potential for further defects. In high-volume or automated manufacturing environments, excessive dross can interfere with robotic handling, fixture positioning, and downstream processes such as welding or coating.
There are also safety and aesthetic considerations. Sharp burrs pose handling risks to operators, increasing the likelihood of cuts or injuries. Visually, dross reduces the perceived quality of the product, which can be unacceptable in industries where surface finish is critical, such as electronics, medical devices, or architectural components.
Solutions
Minimizing burr formation requires a systematic and multi-faceted approach. First, assist gas parameters should be optimized. Increasing gas pressure and ensuring a stable, laminar flow improve the efficiency of molten material removal. The choice of gas is also important. Oxygen can enhance cutting speed through exothermic reactions but may increase oxidation, while nitrogen provides cleaner edges but demands higher pressure and precise control.
Cutting parameters must be carefully calibrated. Achieving the correct balance between laser power and cutting speed ensures consistent melting without excessive heat buildup. Fine-tuning the focal position so that maximum energy density is delivered at the optimal depth within the material can significantly improve cut quality.
Routine equipment maintenance is essential. Clean and properly aligned nozzles, well-maintained optics, and consistent beam quality all contribute to stable cutting conditions. Monitoring and adjusting the stand-off distance between the nozzle and workpiece can further enhance gas flow efficiency.
Material preparation also plays a key role. Using clean, uniform materials free from rust, oil, or coatings improves process consistency. For challenging materials or thicker sections, advanced techniques such as multi-stage cutting, pulse modulation, or adaptive control systems may be employed. When burrs cannot be fully eliminated, secondary processes such as mechanical deburring, brushing, or electrochemical finishing can be used, though these should be minimized through proper process control.
Burr formation, or dross, is a highly visible and technically significant defect in laser cutting that arises when molten material is not fully expelled from the kerf. Its occurrence reflects an imbalance in the interaction between laser energy, material response, and assist gas dynamics. While it may initially appear as a minor surface issue, burr formation has far-reaching consequences, affecting dimensional accuracy, product performance, safety, and overall manufacturing efficiency.
The root causes of dross are multifactorial, involving cutting parameters, equipment condition, gas flow characteristics, and material properties. Because of this complexity, effective control requires a holistic approach rather than isolated adjustments. By systematically optimizing process settings, maintaining equipment, and ensuring material quality, manufacturers can significantly reduce burr formation and improve consistency.
Ultimately, controlling burr formation is not only about achieving cleaner edges but also about enhancing the overall stability and reliability of the laser cutting process. A well-optimized system minimizes the need for rework, reduces production costs, and ensures that final components meet both functional and aesthetic requirements.
Rough or Striated Cut Edges
Rough or striated cut edges are among the most recognizable indicators of suboptimal laser cutting conditions. They appear as vertical lines, ripples, or groove-like patterns along the cut surface, typically aligned with the direction of the laser beam movement. These patterns are formed as a result of the cyclical melting and solidification of material during the cutting process. In a well-controlled cut, the striations are extremely fine, uniform, and closely spaced, giving the edge a relatively smooth and consistent appearance. However, when process stability deteriorates, the striations become deeper, more irregular, and more widely spaced, resulting in a visibly rough and sometimes jagged surface.
The morphology of striations can vary depending on cutting conditions. Fine, evenly spaced lines generally indicate stable melt flow, while coarse or wavy patterns suggest fluctuations in energy input or melt ejection. In many cases, the upper portion of the cut may appear smoother, while the lower portion exhibits more pronounced roughness due to a gradual loss of energy density and reduced effectiveness of assist gas as the beam penetrates deeper into the material. This gradient in edge quality is particularly evident in thicker sections.
Causes
The formation of rough or striated edges is primarily driven by instability in the interaction between laser energy, molten material, and assist gas flow. One of the most critical factors is cutting speed. If the speed is too high, the laser does not deliver sufficient energy to maintain a continuous and stable melt front, leading to intermittent cutting and pronounced drag lines. Conversely, if the speed is too low, excessive heat accumulates, causing the melt pool to become overly fluid and turbulent, which also results in irregular surface patterns.
Laser power must be carefully balanced with speed. Insufficient power leads to incomplete or inconsistent melting, while excessive power can create an unstable melt pool with splattering and chaotic flow behavior. The focal position of the laser beam is another key parameter. If the focus is not correctly positioned within the material thickness, the energy distribution becomes uneven, reducing cutting efficiency and promoting the formation of striations.
Assist gas dynamics significantly influence edge quality. The gas must provide sufficient pressure and a stable, coaxial flow to efficiently remove molten material from the kerf. Any disruption—such as low pressure, turbulent flow, nozzle wear, or misalignment—can result in uneven melt ejection and the formation of grooves.
Other contributing factors include beam quality degradation, optical contamination, and mechanical vibrations in the cutting system. Material-related issues also play a role. Variations in thickness, inconsistent alloy composition, surface oxidation, coatings, or contaminants can all affect how the material absorbs laser energy and melts. Highly reflective materials, such as aluminum or copper alloys, are particularly sensitive to parameter deviations and may exhibit more pronounced striation defects.
Effects
The impact of rough or striated edges extends across multiple aspects of manufacturing quality and performance. Mechanically, rough surfaces can act as stress concentration sites, increasing the likelihood of crack initiation and reducing fatigue life in components subjected to cyclic loading. This is especially critical in structural, aerospace, or automotive applications where reliability is essential.
From a dimensional perspective, excessive roughness can compromise edge accuracy and lead to deviations from design specifications. This may result in a poor fit during assembly or the need for rework. In precision applications, even minor irregularities can affect functionality.
Economically, rough edges increase the need for secondary finishing operations such as grinding, polishing, or machining. These processes add time, labor, and cost, and may introduce additional variability or risk of damage. In automated production environments, rough edges can interfere with robotic handling, part alignment, and downstream processes such as welding, coating, or sealing.
Aesthetically, visible striations reduce the perceived quality of the product. For industries where appearance is important, such as consumer goods or architectural components, poor edge finish can lead to rejection or the need for additional surface treatment.
Solutions
Addressing rough or striated edges requires a comprehensive and systematic approach to process optimization. The first step is to establish the correct balance between cutting speed and laser power. This balance ensures that sufficient energy is delivered to maintain a stable melt front without causing excessive heat buildup or turbulence. Fine adjustments, often based on empirical testing, are necessary to achieve optimal results for different materials and thicknesses.
Focal position should be precisely controlled to maximize energy density at the most effective point within the material. Advanced systems may allow dynamic focus adjustment to maintain optimal conditions throughout the cut depth.
Assist gas parameters must also be optimized. Increasing gas pressure and ensuring a stable, laminar flow can significantly improve melt removal and reduce striation formation. Proper nozzle alignment, correct stand-off distance, and regular inspection for wear or contamination are essential for maintaining consistent gas performance.
Equipment maintenance plays a crucial role. Clean optical components, stable beam quality, and accurate alignment help ensure consistent energy delivery. Reducing machine vibrations and maintaining structural rigidity can further enhance process stability.
Material preparation is equally important. Using clean, high-quality materials with consistent thickness and minimal surface contamination improves process predictability. For challenging applications, advanced techniques such as adaptive control systems, real-time monitoring, or parameter modulation can be used to maintain optimal cutting conditions and minimize defects.
Rough or striated cut edges are a clear manifestation of instability in the laser cutting process, arising from imbalances in energy input, melt dynamics, and gas-assisted material removal. These defects appear as grooves or drag lines that not only affect the visual quality of the cut but also have significant implications for mechanical performance, dimensional accuracy, and production efficiency.
Although some level of striation is inherent to laser cutting, excessive roughness indicates that the process parameters are not properly optimized. The causes are often multifactorial, involving cutting speed, laser power, focus position, gas flow, equipment condition, and material characteristics. Because of this complexity, effective control requires a holistic approach that considers the entire cutting system rather than isolated variables.
By carefully optimizing parameters, maintaining equipment, and ensuring consistent material quality, manufacturers can significantly reduce the occurrence of striated edges. Achieving smooth, uniform cut surfaces not only enhances product quality but also reduces the need for secondary processing, lowers production costs, and improves overall process reliability.
Incomplete Cutting (Uncut Areas)
Incomplete cutting, also known as uncut areas or partial penetration, is one of the most critical defects in laser cutting because it represents a direct failure to separate the material along the intended cutting path fully. In a properly executed process, the laser beam should generate a continuous kerf that cleanly divides the workpiece. However, when cutting is incomplete, portions of the material remain connected, forming thin bridges, small tabs, or uncut sections.
This defect can manifest in several ways. In mild cases, only small points of attachment remain, often at corners or along complex contours where cutting conditions fluctuate. In more severe cases, long segments of the cut path remain unpenetrated, or the cut becomes intermittent and discontinuous. A particularly deceptive form occurs when the top surface appears fully cut while the underside remains partially fused. This indicates that the laser energy was sufficient to initiate the cut but insufficient to sustain full penetration through the material thickness.
Incomplete cutting is fundamentally linked to the inability of the process to maintain a stable balance between energy input, material melting, and molten material removal. It is often a sign that the cutting system is operating at or beyond its capability limits for a given material or thickness.
Causes
The causes of incomplete cutting are typically multifactorial and often involve a combination of insufficient energy delivery and poor process stability. One of the most direct causes is inadequate laser power. If the power level is too low relative to the material thickness, density, or reflectivity, the laser cannot generate enough energy to fully melt or vaporize the material throughout the entire cut depth. This is especially problematic when working with thick plates or highly reflective metals such as aluminum and copper alloys.
Cutting speed is another dominant factor. When the speed is too high, the interaction time between the laser beam and the material is reduced, preventing sufficient energy transfer for full penetration. This often leads to intermittent cutting or continuous uncut regions. On the other hand, excessively slow speeds can create excessive molten material and dross accumulation, which may re-solidify and block the kerf, indirectly contributing to incomplete separation.
Focal position plays a crucial role in determining energy distribution within the material. If the focal point is not correctly positioned, the energy density at the cutting front decreases significantly. In thick materials, improper focus can result in a situation where the upper layers are fully cut while the lower layers remain intact.
Assist gas performance is equally critical. The gas is responsible not only for ejecting molten material but also for supporting the cutting process. Low gas pressure, unstable flow, or improper nozzle alignment can prevent efficient removal of molten material, causing it to accumulate and obstruct the kerf. This obstruction limits the laser’s ability to penetrate deeper into the material.
Additional causes include contamination of optical components, degraded beam quality, and mechanical misalignment within the system. Machine vibrations and inconsistent motion control can also lead to uneven energy delivery. Material-related factors, such as inconsistent thickness, surface contamination, coatings, rust, or protective films, further complicate the process by affecting energy absorption and melting behavior.
Effects
The effects of incomplete cutting are immediate and often severe, impacting both product quality and production efficiency. The most obvious consequence is that parts cannot be fully separated from the parent sheet, rendering them unusable without additional intervention. Operators may need to manually break remaining connections, re-cut sections, or perform secondary machining operations, all of which increase labor time and operational costs.
From a quality perspective, forced separation of partially cut parts can lead to edge deformation, burr formation, and microstructural damage. These issues compromise dimensional accuracy and may introduce residual stresses that affect long-term performance. In precision industries, even minor uncut sections can result in part rejection.
Incomplete cutting also disrupts automated manufacturing processes. In systems designed for continuous production, parts are expected to fall free once cutting is complete. When they remain attached, it can interfere with automated unloading, stacking, and transfer operations. This may lead to production delays, machine stoppages, or even equipment damage.
Economically, the defect contributes to higher scrap rates, increased rework, and reduced throughput. The cumulative effect is a significant rise in production costs and a decrease in overall process efficiency. In high-volume manufacturing, even a small percentage of incomplete cuts can have a substantial impact on profitability and delivery timelines.
Solutions
Addressing incomplete cutting requires a comprehensive approach focused on ensuring consistent and sufficient energy delivery, as well as effective removal of molten material. Increasing laser power is often necessary, particularly for thicker or more challenging materials. However, this adjustment must be carefully balanced with other parameters to avoid introducing additional defects such as excessive dross or edge roughness.
Optimizing cutting speed is equally important. Reducing speed increases the interaction time between the laser and the material, allowing for deeper penetration and more stable cutting. The optimal speed must be determined based on material properties, thickness, and machine capability.
Precise control of focal position is critical. Positioning the focus at the optimal depth within the material maximizes energy density and improves penetration efficiency. For thicker materials, focusing slightly below the surface often yields better results. Advanced laser cutting systems may incorporate dynamic focusing to maintain optimal conditions throughout the cut.
Assist gas parameters should be carefully optimized. Increasing gas pressure, ensuring proper flow characteristics, and maintaining correct nozzle alignment all contribute to effective molten material removal. Regular inspection of nozzles and maintaining the correct stand-off distance are essential for consistent performance.
Routine maintenance of the laser cutting system is vital. Clean optics, stable beam quality, and accurate alignment ensure that maximum energy reaches the cutting zone. Monitoring system performance and recalibrating as needed can prevent gradual degradation that leads to defects.
Material preparation also plays a key role. Using clean, high-quality materials with uniform thickness and minimal surface contamination improves cutting reliability. For particularly demanding applications, advanced strategies such as multi-pass cutting, parameter ramping, or adaptive control systems can be employed to ensure complete separation.
Incomplete cutting, or uncut areas, is a critical defect that directly undermines the effectiveness of the laser cutting process. It occurs when the system fails to deliver sufficient energy or when molten material is not efficiently removed, resulting in partial penetration and connected sections along the intended cut path. Unlike many other defects, incomplete cutting prevents the fundamental objective of the process from being achieved.
The causes of this defect are complex and often interconnected, involving laser power, cutting speed, focal position, assist gas dynamics, equipment condition, and material characteristics. Because of this, resolving the issue requires a holistic and systematic approach rather than isolated parameter adjustments.
The impact of incomplete cutting is significant, affecting part quality, production efficiency, and overall cost. It leads to rework, increased labor, potential equipment disruption, and higher scrap rates. In precision manufacturing environments, it can also result in strict quality failures.
By carefully optimizing process parameters, maintaining equipment, and ensuring consistent material quality, manufacturers can effectively eliminate incomplete cutting defects. Achieving reliable, full-depth penetration is essential for ensuring consistent product quality, maximizing productivity, and maintaining the overall efficiency of laser cutting operations.
Excessive Kerf Width
Excessive kerf width refers to a condition in laser cutting where the width of the cut slot is significantly larger than the intended or optimal value. In a well-controlled process, the kerf should be narrow, uniform, and consistent along the entire cutting path, allowing for high dimensional accuracy and efficient material utilization. However, when the kerf becomes too wide, it indicates that the cutting process is removing more material than necessary, usually due to excessive heat input or loss of precision in energy delivery.
This defect can manifest in both uniform and non-uniform forms. A consistently wide kerf across the entire cut typically points to incorrect global parameters, such as excessive laser power or improper focus. In contrast, localized widening—often observed near corners, pierce points, or areas where cutting speed changes—suggests dynamic instability in the process. In severe cases, the edges of the kerf may appear rounded, melted, or even slightly recast, rather than sharp and well-defined.
Excessive kerf width is not just a dimensional issue; it is also an indicator of inefficient process control. It often reflects an imbalance between energy input, material melting, and heat dissipation. This makes it an important diagnostic feature for evaluating the overall performance of laser cutting systems.
Causes
The formation of excessive kerf width is primarily linked to excessive or poorly controlled energy input. One of the most common causes is overly high laser power. When the power exceeds what is required for effective cutting, it generates an enlarged molten zone, causing material to be removed beyond the intended cut path.
Cutting speed plays an equally important role. If the speed is too slow, the laser remains in contact with the material for a longer period, increasing the heat input per unit length. This allows heat to spread laterally into the surrounding material, widening the kerf and potentially causing thermal damage to adjacent areas.
Focal position is a critical parameter that directly affects the laser beam spot size. If the focus is set too high above the material surface or too deep within the material, the beam diverges at the cutting interface, increasing the spot diameter. A larger spot size reduces energy density while increasing the area affected by the laser, resulting in a wider cut.
Beam quality and optical condition also have a significant impact. A degraded beam, misaligned optics, or contaminated lenses can cause the laser to lose focus and coherence, effectively enlarging the cutting zone. Even minor contamination or misalignment can lead to noticeable increases in kerf width.
Assist gas behavior can further influence the defect. Excessive gas pressure may create turbulence that disturbs the molten material and spreads it sideways, while insufficient pressure can allow molten material to linger and reflow along the cut edges, effectively altering the kerf geometry.
Material properties must also be considered. Materials with low melting temperatures, high thermal conductivity, or surface coatings can distribute heat more widely, increasing the likelihood of a broader kerf. Thin materials are particularly sensitive, as they can quickly overheat and exhibit exaggerated responses to parameter deviations.
Effects
Excessive kerf width has a direct and measurable impact on dimensional accuracy. Because more material is removed than intended, the final dimensions of the part are reduced, which can lead to poor fit, misalignment, or failure to meet design tolerances. In precision applications, even a small increase in kerf width can result in unacceptable deviations.
Material efficiency is also significantly affected. A wider kerf means that more material is lost during each cut, which accumulates over multiple parts and increases raw material consumption. This is particularly important in industries where material costs are high or where optimization of sheet utilization is critical.
From a quality standpoint, excessive kerf width often correlates with degraded edge quality. Edges may appear rough, rounded, or thermally affected, which can impact both functionality and appearance. In some cases, excessive heat input may also lead to warping, distortion, or the formation of a heat-affected zone that alters material properties.
Operationally, this defect can complicate process control and programming. Operators may attempt to compensate by adjusting toolpath offsets, but this adds complexity and does not address the root cause of the problem. Additional finishing operations may be required to restore dimensional accuracy, increasing production time and cost.
Solutions
Minimizing excessive kerf width requires precise control over multiple aspects of the laser cutting process. The first and most important step is to optimize laser power. Power should be set to the minimum level required to achieve consistent, full-depth cutting without excessive material removal.
Cutting speed should be adjusted to reduce heat input while maintaining stable cutting. Increasing speed within the appropriate range helps limit lateral heat spread and keeps the kerf narrow. However, this must be carefully balanced to avoid incomplete cutting.
Focal position must be accurately calibrated. Ensuring that the laser beam is tightly focused at the correct depth within the material minimizes spot size and maximizes energy density, leading to a more precise cut. Regular verification of focus settings is essential, especially when processing different material thicknesses.
Maintaining high beam quality is critical. Optical components should be regularly cleaned, inspected, and aligned to ensure consistent performance. Monitoring beam characteristics can help detect issues before they lead to quality defects.
Assist gas parameters should be carefully controlled. Selecting the appropriate gas type and optimizing pressure ensures efficient removal of molten material without causing turbulence or spreading. Stable, laminar gas flow is essential for maintaining a clean and consistent kerf.
Material preparation also plays a role. Using clean, uniform materials with consistent thickness reduces variability and improves process stability. For thin or heat-sensitive materials, careful parameter tuning is required to prevent overheating.
Advanced process control techniques, such as real-time monitoring, adaptive parameter adjustment, and closed-loop feedback systems, can further enhance consistency and help maintain optimal kerf width throughout complex cutting paths.
Excessive kerf width is a critical defect that directly impacts the precision, efficiency, and cost-effectiveness of laser cutting operations. It occurs when more material than intended is removed during the cutting process, typically due to excessive laser power, slow cutting speeds, improper focus, or degraded beam quality. The result is a widened cut that compromises dimensional accuracy and increases material waste.
The causes of excessive kerf width are often interconnected, involving process parameters, equipment condition, assist gas dynamics, and material properties. Because of this complexity, effective control requires a comprehensive and balanced approach to process optimization.
The consequences extend beyond dimensional inaccuracies. Excessive kerf width can lead to poor edge quality, thermal distortion, increased production costs, and the need for additional finishing operations. In high-precision applications, it may result in part rejection or failure to meet strict specifications.
By carefully optimizing cutting parameters, maintaining equipment, and ensuring consistent material quality, manufacturers can effectively control kerf width and achieve more accurate, efficient cutting results. Ultimately, maintaining a narrow and stable kerf is essential for maximizing material utilization, ensuring product quality, and achieving reliable performance in laser cutting processes.
Edge Melting and Rounding
Edge melting and rounding is a heat-related defect in laser cutting where the edges of a cut lose their sharp, angular definition and instead appear smooth, curved, or slightly swollen. In an ideal laser cutting process, the energy from the laser beam is tightly concentrated, producing a narrow kerf and clean, crisp edges with minimal impact on surrounding material. However, when excessive heat is introduced or not properly controlled, the material adjacent to the cut begins to melt beyond the intended boundary.
As this molten material flows and subsequently cools, it solidifies into a rounded profile rather than a sharp edge. In many cases, a thin re-solidified (re-cast) layer forms along the edge, giving it a glossy or glass-like appearance. This layer may differ in microstructure from the base material and can mask underlying irregularities.
The severity of edge melting and rounding can vary. In mild cases, edges may simply appear slightly softened, with a loss of sharpness that is only noticeable upon close inspection. In more severe cases, especially when cutting thin sheets or fine geometries, entire edges may appear visibly deformed, and small features such as holes or narrow slots may lose their intended shape entirely. Corners are particularly vulnerable, as heat tends to accumulate when the laser slows down or changes direction.
This defect is a clear indication of poor thermal balance in the cutting process. It suggests that the energy input exceeds what is necessary for controlled material removal and that excess heat is spreading into areas that should remain unaffected.
Causes
The primary cause of edge melting and rounding is excessive or poorly managed heat input. One of the most common contributing factors is overly high laser power. When the power exceeds the level required for efficient cutting, it generates a larger molten pool that extends beyond the cut path, affecting adjacent material and causing edge deformation.
Cutting speed is another critical factor. If the speed is too slow, the laser remains focused on a given area for a longer time, allowing heat to accumulate and diffuse laterally. This prolonged exposure increases the size of the heat-affected zone and promotes melting beyond the intended boundary.
Improper focal position can significantly worsen the issue. If the laser beam is not focused correctly, the energy is distributed over a larger area, reducing precision while increasing unintended heating. A defocused beam effectively widens the zone of thermal impact, leading to more pronounced edge rounding.
Assist gas performance also plays an important role. Insufficient gas pressure or unstable flow reduces the efficiency of molten material removal, allowing heat to remain concentrated near the edge. Additionally, reactive gases such as oxygen can introduce extra heat through chemical reactions, further intensifying the melting effect.
Other factors include degraded beam quality, contamination of optical components, and misalignment of the nozzle or beam path. These issues can distort the energy profile of the laser, making it less precise and more prone to causing thermal damage.
Material characteristics must also be considered. Materials with low melting points or high thermal conductivity tend to spread heat more easily, increasing susceptibility to edge rounding. Surface conditions, such as coatings, oxidation, or contamination, can further alter heat absorption and lead to uneven thermal distribution.
Effects
Edge melting and rounding can have significant consequences for both functionality and production efficiency. From a dimensional standpoint, the loss of sharp edges alters the intended geometry of the part. This is particularly problematic in components that rely on precise fit, tight tolerances, or well-defined corners. Even small deviations can affect assembly performance or lead to misalignment.
From a mechanical perspective, the formation of a re-cast layer and the presence of excessive heat can alter the microstructure of the material near the edge. This may introduce residual stresses, reduce hardness, or create localized weak points that affect fatigue resistance and long-term durability.
In terms of manufacturing, this defect often necessitates additional finishing operations. Processes such as grinding, milling, or polishing may be required to restore edge sharpness and remove the re-cast layer. These steps increase production time, labor costs, and the risk of introducing further dimensional variation.
Aesthetically, rounded and melted edges are generally undesirable. They reduce the perceived quality of the product and may lead to rejection in industries where appearance is critical. In decorative or consumer-facing applications, this defect can significantly impact customer satisfaction.
Solutions
Preventing edge melting and rounding requires precise control over heat input and process stability. The first step is to optimize laser power. Power should be reduced to the minimum level necessary to achieve consistent cutting, thereby limiting excess heat generation.
Cutting speed should be increased appropriately to reduce the time the laser interacts with the material. A faster cutting process helps minimize heat accumulation and maintain sharper edges. However, this must be balanced carefully to avoid incomplete cutting.
Focal position must be accurately set to ensure that the laser energy is concentrated at the optimal depth within the material. A well-focused beam improves cutting efficiency and reduces unintended heat spread.
Assist gas parameters should be optimized to enhance cooling and molten material removal. Increasing gas pressure and ensuring stable, directed flow help prevent heat buildup along the edges. Selecting a non-reactive gas, such as nitrogen, can further reduce additional heat generation.
Regular maintenance of the laser cutting system is essential. Clean optics, proper alignment, and consistent beam quality ensure precise energy delivery and stable cutting conditions.
Material preparation is also important. Using clean, uniform materials with minimal surface contamination improves process consistency and reduces irregular heat absorption. For thin or heat-sensitive materials, special attention should be given to parameter tuning to prevent overheating.
Advanced techniques, such as pulsed laser operation, adaptive parameter control, and real-time monitoring, can further improve thermal management and help maintain sharp, well-defined edges.
Edge melting and rounding is a thermally driven defect that occurs when excessive heat causes the edges of a laser-cut part to lose their sharp definition and become smooth or curved. It is typically associated with excessive laser power, slow cutting speeds, improper focus, and inefficient heat removal.
The effects of this defect extend beyond surface appearance. It impacts dimensional accuracy, alters material properties, and often requires additional finishing operations, increasing both time and cost. In high-precision or high-performance applications, it can lead to part rejection or reduced reliability.
The causes of edge melting and rounding are closely interconnected, involving process parameters, equipment condition, assist gas behavior, and material characteristics. As a result, effective control requires a comprehensive and balanced approach to process optimization.
By carefully managing energy input, optimizing cutting conditions, and maintaining equipment performance, manufacturers can significantly reduce edge melting and rounding. Achieving sharp, well-defined edges not only improves product quality but also enhances efficiency, reduces waste, and ensures more consistent and reliable laser cutting outcomes.
Thermal Distortion and Warping
Thermal distortion and warping are deformation-related defects caused by uneven heating and cooling during the laser cutting process. When a laser beam interacts with a material, it introduces a highly concentrated heat source that melts or vaporizes material along the cutting path. Ideally, this heat is localized and dissipates quickly, allowing the surrounding material to remain stable. However, when heat input is excessive or unevenly distributed, different regions of the workpiece expand and contract at different rates. This imbalance generates internal stresses that ultimately cause the material to deform.
Warping can take several forms depending on the material, thickness, and cutting conditions. Common manifestations include edge lifting, overall bowing of flat sheets, twisting along the length of a part, or localized distortion near heavily cut areas. In thin materials, even minor thermal imbalances can result in significant deformation due to low stiffness and limited resistance to stress. In thicker materials, distortion may be less visually obvious but can still affect dimensional accuracy and flatness.
Another important characteristic of this defect is that it often becomes more pronounced after the cutting process is complete. While the part may appear stable during cutting due to clamping or support, residual stresses are released as the material cools or is removed from the cutting table, revealing the full extent of deformation. This delayed manifestation makes thermal distortion particularly challenging to detect and control.
Causes
The root cause of thermal distortion and warping is uneven temperature distribution within the material, which leads to non-uniform expansion and contraction. One of the most significant contributing factors is excessive laser power. High power levels introduce more heat than necessary, increasing the temperature gradient between the cut zone and the surrounding material. This gradient creates stress differences that drive deformation.
Cutting speed is equally important. When the speed is too slow, the laser dwells longer on the material, allowing heat to accumulate and spread beyond the immediate cutting area. This extended exposure increases the size of the heat-affected zone and amplifies thermal stress.
Cutting sequence and toolpath strategy have a major influence on heat distribution. Continuous cutting in one direction or concentrating cuts in a specific area can lead to localized heat buildup. Without sufficient cooling intervals, this accumulated heat creates stress concentrations that result in warping. Complex geometries with dense features are especially vulnerable because heat cannot dissipate evenly.
Improper fixturing or inadequate support during cutting can exacerbate distortion. If the material is not securely held in place, it is free to move as stresses develop, leading to permanent deformation. Even slight movement during cutting can significantly affect the final shape.
Material properties also play a critical role. Thin sheets, materials with high thermal expansion coefficients, and high-strength alloys are more prone to distortion. Additionally, residual stresses introduced during prior manufacturing processes, such as rolling or forming, can be released during laser cutting, contributing to deformation. Surface conditions, including coatings, oxidation, or contamination, may further influence heat absorption and distribution.
External factors, such as inefficient heat dissipation from the cutting table or inadequate cooling conditions, can also increase the likelihood of uneven temperature distribution.
Effects
Thermal distortion and warping can have far-reaching consequences for both product quality and manufacturing efficiency. The most immediate effect is a loss of dimensional accuracy. Parts that are intended to be flat or precisely shaped may become curved, twisted, or otherwise deformed, making them unsuitable for their intended application.
In assembly processes, warped components can lead to misalignment, poor fit, or the need for forceful correction, which may introduce additional stresses or damage. In high-precision industries, even slight deviations from flatness or geometry can result in part rejection.
From a functional perspective, distortion can affect the performance of the final product. Components that rely on flat contact surfaces or precise alignment may not function correctly if deformation is present. In structural applications, residual stresses caused by uneven cooling can reduce fatigue life and increase susceptibility to cracking.
In manufacturing workflows, warped parts can disrupt automated processes such as robotic handling, stacking, or transfer to subsequent operations. Distortion may also complicate downstream operations such as bending, welding, or machining, reducing overall efficiency.
Economically, thermal distortion increases production costs through higher scrap rates, additional rework, and longer processing times. Corrective measures such as straightening, heat treatment, or machining may be required, further adding to cost and complexity.
Solutions
Mitigating thermal distortion and warping requires a comprehensive approach focused on controlling heat input, improving heat distribution, and managing residual stresses. The first step is to optimize laser parameters. Reducing laser power and increasing cutting speed within appropriate limits helps minimize heat accumulation and reduce temperature gradients.
Cutting strategy is one of the most effective tools for controlling distortion. Techniques such as segmenting the cutting path, alternating cutting directions, and distributing cuts evenly across the workpiece can help balance heat input. Introducing pauses or sequencing cuts to allow cooling between operations further reduces stress buildup.
Proper fixturing and support are essential. Securing the material firmly to the cutting table ensures stability and prevents movement during cutting. Ensuring uniform contact between the material and the table also improves heat dissipation.
Assist gas and cooling conditions should be optimized to enhance heat removal. Efficient gas flow helps carry heat away from the cut zone, while well-designed cutting tables or support systems improve thermal conduction and cooling.
Material selection and preparation also play a role. Choosing materials with lower thermal expansion or reduced residual stress can help minimize distortion. Ensuring that the material is flat, clean, and stress-free before cutting improves consistency and reduces variability.
Advanced techniques such as pulsed laser operation, adaptive parameter control, and real-time monitoring can further improve thermal management. In some cases, preheating the material or applying controlled cooling strategies can help reduce temperature gradients and prevent stress concentration.
Thermal distortion and warping are critical defects that arise from uneven heating and cooling during the laser cutting process. They result from imbalances in thermal expansion and contraction, leading to internal stresses that deform the material. These defects are particularly common in thin materials and complex geometries where heat distribution is difficult to control.
The causes are complex and interconnected, involving laser parameters, cutting strategy, material properties, fixturing, and environmental conditions. Because of this, effective prevention requires a holistic and carefully managed approach.
The impact of thermal distortion extends beyond simple shape changes. It affects dimensional accuracy, assembly performance, mechanical properties, and overall production efficiency. In many cases, it leads to increased rework, higher costs, and reduced product reliability.
By optimizing cutting parameters, improving heat distribution strategies, and ensuring proper material support and preparation, manufacturers can significantly reduce the occurrence of warping. Maintaining stable and controlled thermal conditions is essential for producing high-quality, dimensionally accurate parts and achieving consistent, efficient laser cutting performance.
Discoloration and Oxidation
Discoloration and oxidation are surface defects that occur when laser-cut materials chemically react with oxygen at elevated temperatures, resulting in visible color changes and the formation of oxide layers. These effects are most commonly observed along the cut edge and within the surrounding heat-affected zone. The resulting colors can range from pale yellow and straw tones to deep blue, purple, and black, depending on the thickness and composition of the oxide layer. In stainless steels, this phenomenon is widely known as heat tint and is often used as an indicator of thermal exposure during processing.
During laser cutting, a highly concentrated beam rapidly heats the material to its melting or vaporization point. If oxygen is present—either intentionally through the assist gas or unintentionally from ambient air—the heated surface reacts with it. This reaction forms oxides that adhere to the surface. The interference of light with these oxide films produces the characteristic color variations.
The severity of discoloration can vary from a thin, uniform band near the cut edge to thick, uneven oxide scales covering a larger area. In severe cases, the surface may appear dark, rough, or flaky, indicating significant oxidation and thermal exposure. While discoloration is often considered a visual issue, it also reflects deeper changes in surface chemistry and process conditions.
Causes
The root cause of discoloration and oxidation is the exposure of high-temperature material to oxygen during the cutting process. One of the most influential factors is the choice of assist gas. When oxygen is used, it actively participates in the cutting process by generating additional heat through exothermic reactions. While this can improve cutting efficiency, it also significantly increases oxidation along the cut edge.
Even when inert gases are used, insufficient shielding can allow ambient air to enter the cutting zone. Low gas pressure, improper nozzle alignment, excessive stand-off distance, or turbulent gas flow can all reduce the effectiveness of the protective gas layer. As a result, oxygen can still come into contact with the heated material and cause oxidation.
Excessive heat input is another major contributor. High laser power or slow cutting speeds increase the duration and intensity of thermal exposure, promoting oxidation reactions. Improper focal positioning can further spread heat beyond the intended cutting zone, enlarging the affected area.
Material composition also plays a significant role. Elements such as chromium, aluminum, and titanium readily form oxides at high temperatures, making certain alloys more prone to visible discoloration. Surface conditions, including oil, coatings, rust, or pre-existing oxide layers, can further accelerate or intensify oxidation by altering heat absorption and reaction kinetics.
Environmental conditions, such as humidity or airborne contaminants, may also contribute to oxidation, particularly in less-controlled production environments.
Effects
Discoloration and oxidation have both aesthetic and functional consequences. Visually, they reduce the surface quality of laser-cut parts. In industries where appearance is critical, such as consumer products, decorative fabrication, or architectural components, visible oxidation is often unacceptable and may lead to rejection.
Functionally, oxide layers can interfere with downstream manufacturing processes. For example, oxidation can hinder welding by preventing proper fusion or introducing weak interfaces. Similarly, coatings such as paint or powder coating may not adhere properly to oxidized surfaces, leading to peeling, blistering, or reduced durability.
In some materials, particularly stainless steel, excessive oxidation can compromise corrosion resistance. Thick oxide layers may disrupt the natural protective film, making the material more vulnerable to corrosion if not properly treated.
From a production perspective, removing discoloration typically requires additional processing steps such as chemical cleaning, pickling, passivation, or mechanical polishing. These operations increase production time, labor costs, and overall process complexity.
Although discoloration does not always affect structural integrity, it often indicates suboptimal cutting conditions, which may also contribute to other defects such as rough edges, excessive heat-affected zones, or dimensional inaccuracies.
Solutions
Minimizing discoloration and oxidation requires controlling both the thermal environment and exposure to oxygen. One of the most effective strategies is to use inert assist gases such as nitrogen or argon. These gases do not react with the material and create a protective barrier that prevents oxygen from reaching the cut surface.
Optimizing assist gas delivery is equally important. Increasing gas pressure, ensuring proper nozzle alignment, and maintaining an appropriate stand-off distance help establish a stable, laminar flow that effectively shields the cutting zone.
Laser parameters should also be carefully adjusted. Reducing laser power and increasing cutting speed within optimal limits can decrease heat input and shorten the duration of high-temperature exposure. Proper focal positioning ensures efficient energy concentration and minimizes the size of the heat-affected zone.
Maintaining clean equipment and materials is essential. Contaminated optics, worn nozzles, or dirty material surfaces can lead to uneven heating and increased oxidation. Using clean, high-quality materials with consistent surface conditions improves process stability and reduces variability.
When oxidation cannot be fully avoided, post-processing techniques can be applied. Chemical treatments such as pickling and passivation can remove oxide layers and restore corrosion resistance, while mechanical polishing can improve surface appearance.
For advanced applications, controlled-atmosphere cutting systems or enclosed processing environments may be used to eliminate exposure to oxygen, ensuring the highest level of surface quality.
Discoloration and oxidation are common surface defects in laser cutting caused by chemical reactions between heated material and oxygen. They manifest as color changes or oxide layers along the cut edge and are strongly influenced by assist gas selection, heat input, and process control.
Although often considered cosmetic, these defects can have significant functional implications. They can interfere with welding, coating adhesion, and corrosion resistance, and frequently require additional finishing processes to correct.
The causes of discoloration are closely linked to both thermal and environmental factors, including laser parameters, gas shielding effectiveness, material composition, and surface cleanliness. Because these factors are interconnected, effective prevention requires a comprehensive and well-controlled approach.
By selecting appropriate assist gases, optimizing cutting conditions, and maintaining clean and stable operating environments, manufacturers can significantly reduce discoloration and oxidation. Controlling these defects not only improves the visual quality of the product but also enhances its performance, durability, and compatibility with subsequent manufacturing processes.
Microcracks and Heat-Affected Zone (HAZ)
Microcracks and the heat-affected zone (HAZ) are among the most critical and technically significant defects associated with laser cutting. The HAZ refers to the region of material adjacent to the cut edge that has not melted but has experienced substantial thermal exposure. This exposure alters the material’s microstructure, phase composition, hardness, and residual stress distribution. Microcracks are extremely small fractures that can form within or near this region as a result of these thermal and mechanical changes. Although often invisible without magnification, they can have serious consequences for part performance and reliability.
During laser cutting, the material undergoes rapid and localized heating followed by equally rapid cooling. This creates steep temperature gradients between the cut zone and the surrounding material. As different regions expand and contract at different rates, internal stresses are generated. If these stresses exceed the material’s ability to deform plastically, microscopic cracks can initiate. These cracks often form along grain boundaries, in brittle phases, or at points of stress concentration.
The size and characteristics of the HAZ vary depending on process conditions. In optimized cutting, the HAZ is narrow and controlled, with minimal changes to material properties. However, when heat input is excessive or poorly managed, the HAZ becomes wider and more pronounced, increasing the likelihood of microstructural changes and crack formation. In such cases, the material near the cut edge may become either brittle or softened, both of which can negatively impact performance.
Causes
The formation of microcracks and an excessive HAZ is primarily driven by thermal imbalance and rapid temperature cycling. One of the most significant factors is excessive laser power. High power levels introduce more thermal energy than necessary, increasing the temperature gradient between the cut region and the surrounding material. This amplifies thermal stresses and promotes the formation of cracks.
Cutting speed is another critical parameter. When the cutting speed is too slow, the material is exposed to heat for a longer period, allowing heat to penetrate deeper and expand the HAZ. This prolonged exposure can also lead to undesirable phase transformations, particularly in sensitive alloys, resulting in brittle microstructures.
Rapid cooling is a key contributor to microcrack formation. When the heated material cools too quickly, it can undergo phase changes that produce hard and brittle structures. These structures are less capable of accommodating stress, making them more prone to cracking.
Improper focal position can cause inefficient energy distribution, leading to excessive heating of the surrounding material rather than a concentrated cut. Similarly, degraded beam quality, optical contamination, or misalignment can create uneven heating and localized hotspots, which act as initiation sites for cracks.
Assist gas selection and performance also influence the defect. Reactive gases such as oxygen can increase heat through exothermic reactions, enlarging the HAZ. Inadequate gas flow may fail to remove heat effectively, allowing it to accumulate.
Material properties are equally important. High-carbon steels, hardened materials, and alloys with low ductility are particularly susceptible to microcracking. Pre-existing residual stresses from prior processing, such as rolling or heat treatment, can combine with thermal stresses during cutting, further increasing the risk. Surface contamination or compositional inconsistencies can also act as stress concentrators.
Effects
Microcracks and an enlarged HAZ can significantly compromise both the mechanical performance and reliability of laser-cut components. Microcracks serve as stress concentrators and can act as initiation points for crack propagation under loading conditions. Even very small cracks can grow over time, especially under cyclic or fatigue loading, leading to premature failure.
Changes within the HAZ can alter key material properties such as hardness, strength, ductility, and toughness. In some cases, the HAZ may become brittle, increasing the likelihood of fracture. In other cases, softening may occur, reducing wear resistance and load-bearing capability.
From a manufacturing perspective, these defects can negatively affect downstream processes. For example, altered microstructure in the HAZ can influence weldability, machinability, and formability. Microcracks may propagate during bending or welding, worsening the defect and leading to failure.
Detection of microcracks is often challenging and may require advanced inspection techniques such as microscopy, ultrasonic testing, or dye penetrant inspection. This increases inspection time and cost. In critical applications such as aerospace, automotive safety components, or medical devices, the presence of microcracks is unacceptable and often leads to part rejection.
Economically, these defects increase scrap rates, reduce yield, and raise production costs. They also introduce potential risks of in-service failure, which can have serious safety and liability implications.
Solutions
Minimizing microcracks and controlling the HAZ requires precise control over thermal input and cooling behavior. The first step is to optimize laser parameters. Reducing laser power and increasing cutting speed within appropriate limits helps minimize heat input and reduce the size of the HAZ.
Controlling cooling rates is also essential. Adjusting assist gas type and flow can help regulate cooling and reduce thermal shock. Using inert gases such as nitrogen can limit additional heat generation and improve process stability.
Accurate focal positioning ensures that laser energy is concentrated at the correct depth, reducing unnecessary heating of surrounding material. Maintaining high beam quality, proper alignment, and clean optics further enhances process consistency.
Material selection and preparation play a crucial role. Choosing materials with higher ductility and lower sensitivity to thermal cracking can reduce risk. Preheating the material in certain cases can help reduce temperature gradients and minimize stress development.
Post-processing treatments such as stress-relief heat treatment can reduce residual stresses and improve material stability. In critical applications, additional surface finishing or crack removal processes may be required.
Regular maintenance of the laser cutting system and the use of advanced monitoring or adaptive control systems can further improve process stability and reduce the likelihood of defect formation.
Microcracks and the heat-affected zone are critical defects that directly impact the structural integrity and long-term reliability of laser-cut components. The HAZ represents a region where the material has undergone thermal and microstructural changes, while microcracks are small but potentially dangerous flaws that can develop within this zone due to thermal stresses.
These defects are primarily caused by excessive heat input, rapid cooling, improper parameter settings, and material susceptibility. Their effects extend beyond surface quality, influencing mechanical properties, fatigue life, and overall performance.
Because microcracks are often not visible, they pose a hidden risk that can lead to unexpected failure during service. Controlling the size and characteristics of the HAZ is therefore essential for ensuring product reliability.
By optimizing cutting parameters, managing heat input and cooling rates, selecting appropriate materials, and maintaining stable operating conditions, manufacturers can significantly reduce the occurrence of microcracks and minimize the HAZ. Achieving a controlled and balanced thermal process is key to producing high-quality, durable, and reliable laser-cut components.
Material Warping and Distortion
Material warping and distortion are deformation defects that occur when a workpiece deviates from its intended shape due to uneven thermal stresses generated during laser cutting. Although laser cutting is known for its precision and localized heat input, the process still introduces significant thermal energy into a confined region. When this energy is not evenly distributed or effectively dissipated, different parts of the material expand and contract at different rates, leading to internal stress imbalances. These stresses are ultimately relieved through deformation, resulting in warping or distortion of the final part.
Distortion can appear in several forms depending on the geometry, thickness, and process parameters. Flat sheets may exhibit bowing or curvature across their surface, edges may lift or curl upward, and elongated components may twist along their length. In parts with intricate designs, distortion may be localized around areas with dense cut features, where heat accumulates more intensely. Thin materials are especially vulnerable because they lack the structural rigidity to resist thermal stress, while larger components may experience uneven deformation due to variations in heat distribution along the cutting path.
A key characteristic of this defect is that it often becomes fully apparent only after the cutting process is complete. While the material may appear stable during cutting due to clamping or support, residual stresses remain locked within the structure. As the part cools and is removed from the cutting table, these stresses are released, revealing the final distorted shape. This delayed manifestation makes warping particularly challenging to predict and control without careful process optimization.
Causes
The primary cause of material warping and distortion is uneven heat distribution within the workpiece. When certain regions are exposed to higher temperatures than others, they expand more significantly. Upon cooling, these regions contract unevenly, generating residual stresses that drive deformation.
Excessive laser power is one of the most influential factors. High power levels introduce more heat than necessary, increasing the temperature gradient between the cut zone and the surrounding material. This gradient intensifies thermal stress and promotes distortion.
Cutting speed also plays a critical role. Slow cutting speeds increase the duration of heat exposure, allowing heat to spread further into the material and enlarging the heat-affected zone. This leads to greater thermal imbalance and higher stress accumulation.
Cutting strategy and path planning are equally important. Continuous cutting in one direction, cutting large sections sequentially without interruption, or focusing cuts in a single area can result in localized heat buildup. Without sufficient cooling intervals, these areas accumulate heat and develop significant stress concentrations.
Improper fixturing or insufficient support can exacerbate distortion. If the material is not securely held, it may shift or deform as stresses develop. Even minor movement during cutting can significantly affect the final geometry.
Material properties also have a strong influence. Thin sheets, materials with high thermal expansion coefficients, and materials containing residual stresses from prior processing are more prone to warping. Surface conditions such as contamination, coatings, or uneven thickness can further affect heat absorption and distribution.
External factors, including inefficient heat dissipation from the cutting table or inadequate cooling conditions, can further contribute to uneven temperature distribution.
Effects
Material warping and distortion have a direct and often severe impact on part quality, functionality, and manufacturability. The most immediate effect is the loss of dimensional accuracy. Parts that are intended to be flat or precisely shaped may become curved, twisted, or uneven, making them unsuitable for their intended application.
In assembly processes, distorted parts can cause misalignment, poor fit, and increased assembly forces. This can introduce additional stresses into the system, potentially reducing the performance and reliability of the final product. In precision engineering applications, even slight deformation can result in part rejection.
From a production perspective, warped components can disrupt automated workflows. They may not sit correctly on fixtures, may interfere with robotic handling systems, or may cause issues in downstream processes such as bending, welding, or machining. Distortion can also reduce process repeatability and consistency.
Thermal stresses associated with distortion may also affect material properties. Residual stresses can reduce fatigue life and increase susceptibility to cracking under cyclic loading. In extreme cases, severe distortion may lead to permanent structural damage.
Economically, this defect increases production costs through higher scrap rates, additional rework, and longer processing times. Corrective measures such as mechanical straightening, heat treatment, or secondary machining add complexity and reduce overall efficiency.
Solutions
Minimizing material warping and distortion requires a comprehensive approach that focuses on controlling heat input and ensuring uniform thermal distribution. The first step is to optimize laser parameters. Reducing laser power and increasing cutting speed within optimal limits helps minimize heat accumulation and reduce temperature gradients.
Cutting strategy is one of the most effective tools for managing distortion. Techniques such as segmenting the cutting path, alternating cutting directions, and distributing cuts evenly across the workpiece help balance heat input. Introducing controlled pauses between cuts allows heat to dissipate and prevents localized buildup.
Proper fixturing and support are essential for maintaining stability. Securing the material firmly to the cutting table and ensuring full contact improves resistance to deformation and enhances heat dissipation. Advanced fixturing systems, such as vacuum tables or magnetic clamps, can further improve stability.
Assist gas and cooling conditions should be optimized to improve heat removal. Efficient gas flow helps carry heat away from the cut zone, while well-designed cutting tables enhance thermal conduction and cooling.
Material selection and preparation also play a critical role. Using materials with lower thermal expansion and minimal residual stress reduces susceptibility to distortion. Ensuring that the material is flat, clean, and uniform improves process consistency.
Advanced process control techniques, such as pulsed laser operation, adaptive parameter adjustment, and real-time monitoring, can further enhance thermal management. In some cases, preheating or controlled cooling strategies may be used to reduce temperature gradients and manage stress development more effectively.
Material warping and distortion are significant defects in laser cutting that arise from uneven heating and cooling, resulting in internal stresses and deformation of the workpiece. These defects are especially prevalent in thin materials and complex geometries where heat distribution is difficult to control.
The causes are multifaceted, involving laser parameters, cutting strategy, material properties, fixturing, and environmental conditions. Because these factors are closely interconnected, effective prevention requires a holistic and carefully managed approach.
The impact of distortion extends beyond simple shape deviations. It affects dimensional accuracy, assembly performance, material properties, and overall production efficiency. In many cases, it leads to increased costs due to rework, scrap, and reduced throughput.
By optimizing process parameters, improving cutting strategies, and ensuring proper material support and preparation, manufacturers can significantly reduce distortion. Maintaining controlled and uniform thermal conditions is essential for achieving high-quality, dimensionally accurate parts and ensuring consistent, reliable laser cutting performance.
Microcracks and Thermal Cracking
Microcracks and thermal cracking are among the most severe and reliability-critical defects in laser cutting, as they directly compromise the internal integrity of the material rather than just its surface appearance. Microcracks are extremely fine fractures that typically form within or adjacent to the cut edge, often inside the heat-affected zone (HAZ). Thermal cracking refers to the development of larger, more pronounced cracks that originate from the same thermal mechanisms but extend further into the material. Both types of defects are rooted in the rapid thermal cycling inherent to laser processing.
During laser cutting, the material is exposed to intense, localized heating that can reach melting or near-melting temperatures within milliseconds. Immediately after the laser beam passes, the area cools rapidly due to heat conduction into the surrounding material and interaction with the assist gas. This rapid heating–cooling cycle creates steep temperature gradients and induces significant thermal strain. Because different regions of the material expand and contract at different rates, internal stresses develop. When these stresses exceed the material’s yield strength or fracture toughness, cracking occurs.
Microcracks often initiate at microstructural discontinuities such as grain boundaries, inclusions, or phase interfaces. In some cases, they remain confined to a very small region and are only detectable through microscopic examination. However, under continued stress or unfavorable conditions, these cracks can grow, coalesce, and evolve into visible thermal cracks. The risk lies in the fact that even the smallest microcracks can act as initiation sites for larger failures during service, especially under cyclic loading.
The size and severity of cracking depend heavily on the balance between heat input, cooling rate, and material properties. A narrow, well-controlled HAZ reduces the likelihood of crack formation, while excessive heat or rapid quenching increases susceptibility.
Causes
The formation of microcracks and thermal cracking is primarily driven by excessive thermal gradients and the resulting internal stresses. One of the most dominant factors is excessive laser power. When the input energy is too high, it creates a large temperature difference between the cut zone and the surrounding material, significantly increasing thermal stress during cooling.
Cutting speed is another critical parameter. If the speed is too slow, the material is exposed to heat for a longer period, allowing thermal energy to penetrate deeper and expand the HAZ. This not only increases stress accumulation but also promotes undesirable phase transformations.
Rapid cooling is a key mechanism behind crack formation. When the material cools too quickly, especially in alloys prone to phase changes, hard and brittle microstructures can form. These structures have limited ability to accommodate strain, making them highly susceptible to cracking.
Improper focal position can lead to inefficient energy concentration, causing excessive heating of surrounding areas instead of a precise cut. Similarly, degraded beam quality, optical contamination, or misalignment can produce uneven heating and localized hotspots that act as crack initiation sites.
Assisting gas selection also plays an important role. Reactive gases such as oxygen can increase heat through exothermic reactions, intensifying thermal stress. Inadequate gas flow may fail to remove heat effectively, allowing it to accumulate in the cut zone.
Material-related factors are equally important. High-carbon steels, hardened materials, and alloys with low ductility are particularly prone to cracking. Residual stresses from prior manufacturing processes, such as forming or heat treatment, can combine with cutting-induced stresses to trigger crack formation. Surface contamination or inclusions can further act as stress concentrators.
Effects
The presence of microcracks and thermal cracks has serious implications for both performance and safety. Microcracks, although extremely small, act as stress concentrators that amplify local stresses under mechanical loading. Over time, particularly under cyclic or fatigue conditions, these cracks can propagate and lead to sudden and unexpected failure.
Thermal cracks that are visible on the surface are even more critical, as they represent structural discontinuities that directly reduce the load-bearing capacity of the component. In high-stress or safety-critical applications, such as aerospace or automotive structures, these defects are unacceptable.
The surrounding HAZ often exhibits altered mechanical properties, including increased brittleness or reduced toughness. These changes further facilitate crack initiation and growth. Residual stresses within the material can also drive crack propagation even in the absence of external loads, making the defect particularly dangerous.
From a manufacturing perspective, cracks can severely impact downstream processes. During bending, welding, or machining, existing cracks may grow or cause complete failure of the part. This reduces process reliability and increases rejection rates.
Detection of microcracks typically requires advanced inspection techniques such as scanning microscopy, ultrasonic testing, or dye penetrant inspection. These additional quality control measures increase production time and cost. Economically, cracking leads to higher scrap rates, increased inspection requirements, and potential liability risks if defective parts are used in service.
Solutions
Preventing microcracks and thermal cracking requires precise control over heat input, thermal gradients, and material response. The first step is to optimize laser parameters. Reducing laser power and increasing cutting speed within appropriate limits helps minimize heat input and reduce temperature differences across the material.
Controlling cooling rates is equally important. Avoiding excessively rapid cooling helps prevent the formation of brittle microstructures. Adjusting the assist gas type and flow can regulate cooling and improve heat removal. Inert gases such as nitrogen are often preferred because they do not introduce additional heat through chemical reactions.
Accurate focal positioning ensures that the laser energy is concentrated at the cutting point, minimizing unnecessary heating of surrounding material. Maintaining high beam quality, proper alignment, and clean optics further improves consistency and reduces localized overheating.
Material selection and preparation are critical. Choosing materials with higher ductility and lower sensitivity to thermal cracking reduces risk. In some applications, preheating the material can reduce temperature gradients and thermal stress.
Post-processing techniques such as stress-relief heat treatment can help reduce residual stresses and improve material stability. For critical components, additional inspection and crack removal processes may be necessary to ensure quality.
Advanced process control methods, including real-time monitoring and adaptive parameter adjustment, can further enhance stability and prevent defect formation.
Microcracks and thermal cracking are among the most serious defects in laser cutting because they directly affect the structural integrity and long-term reliability of the material. They result from excessive thermal stress caused by rapid heating and cooling, combined with material susceptibility and process conditions.
Although microcracks may be invisible, they represent hidden weaknesses that can grow under service conditions and lead to failure. Thermal cracks, when visible, indicate severe process imbalance and often require immediate rejection of the part.
The causes of these defects are complex and interconnected, involving laser parameters, cooling behavior, material properties, and equipment condition. Effective prevention, therefore, requires a comprehensive and carefully controlled approach.
By optimizing cutting parameters, managing heat input and cooling rates, selecting suitable materials, and maintaining stable operating conditions, manufacturers can significantly reduce the occurrence of microcracks and thermal cracking. A well-controlled thermal process is essential for producing high-quality, reliable, and safe laser-cut components.
Tapered Cuts (Non-Vertical Edges)
Tapered cuts, also known as non-vertical edges, are a common geometric defect in laser cutting where the cut edge is not perfectly perpendicular to the material surface. Instead of forming a straight, parallel wall through the thickness, the kerf exhibits an angular profile, typically wider at the top surface and progressively narrower toward the bottom. This results in a conical or wedge-shaped cross-section that deviates from the intended design geometry.
In an ideal laser cutting process, the beam maintains a consistent energy density throughout the full thickness of the material, ensuring uniform material removal and vertical edges. However, in practice, several physical limitations and process variables interfere with this ideal condition. As the laser beam penetrates the material, it naturally diverges and loses energy density, especially in deeper regions. This leads to uneven distribution of energy, with the upper portion of the material receiving more concentrated heat than the lower portion.
The severity of taper depends on factors such as material thickness, beam quality, cutting parameters, and machine condition. In thin sheets, taper may be minimal and within acceptable tolerances. However, as material thickness increases, the difference in energy distribution becomes more pronounced, making the taper more noticeable and more difficult to control. This defect is particularly critical in high-precision industries, where even small deviations from perpendicularity can lead to functional or assembly issues.
Causes
The primary cause of tapered cuts is the natural divergence of the laser beam as it travels through the material. As the beam moves away from its focal point, its diameter increases and its energy density decreases. This results in more efficient cutting at the top surface and reduced cutting capability at the bottom, producing a tapered profile.
Focal position is one of the most critical parameters influencing taper. If the focal point is not correctly positioned within the material thickness, the beam cannot maintain consistent energy concentration throughout the entire cut. A focus set too high concentrates energy at the top, increasing kerf width, while a focus set too low reduces cutting efficiency at the top without fully compensating at the bottom.
Laser power and cutting speed must be carefully balanced. Insufficient power may fail to deliver enough energy to the lower portion of the material, while excessive power can cause overmelting at the top surface, exaggerating the taper. Similarly, inappropriate cutting speeds can disrupt the balance between heat input and material removal, further increasing taper.
Beam quality is another major factor. A beam with poor quality or high divergence will inherently produce greater taper. Optical issues such as contaminated lenses, misalignment, or worn components can degrade beam performance and increase variability.
Assist gas dynamics also play a role. If gas pressure is too low or nozzle alignment is incorrect, molten material may not be efficiently removed from the lower portion of the cut. This can lead to partial blockage and uneven kerf formation.
Material properties must also be considered. Thicker materials amplify the effects of beam divergence, while materials with high thermal conductivity or reflectivity can alter energy absorption and distribution, contributing to taper formation.
Effects
Tapered cuts have a significant impact on dimensional accuracy and overall part quality. The most immediate effect is deviation from the intended geometry. Parts that require vertical edges for proper function or assembly may not meet specifications, especially when tight tolerances are involved.
In assembly applications, tapered edges can lead to poor fit, gaps, or uneven contact between components. This can compromise structural integrity and reduce the reliability of the final product. For example, fasteners may not seat properly in tapered holes, and interlocking parts may fail to align correctly.
From a mechanical perspective, non-vertical edges can affect load distribution. Uneven contact surfaces may create localized stress concentrations, which can reduce strength and increase the risk of failure under load.
Aesthetically, tapered edges may appear inconsistent or poorly finished, which can be unacceptable in products where visual quality is important.
In manufacturing processes, taper often necessitates compensation or correction. This may involve adjusting toolpaths, applying kerf offsets, or performing secondary machining operations such as reaming or milling. These additional steps increase production time, cost, and process complexity.
Solutions
Minimizing tapered cuts requires a comprehensive approach that focuses on beam control, parameter optimization, and process stability. One of the most effective methods is to optimize the focal position. Placing the focal point near the center of the material thickness helps maintain a more uniform energy distribution throughout the cut.
Laser power and cutting speed should be carefully adjusted to ensure consistent material removal through the full thickness. The goal is to provide sufficient energy at deeper levels without causing excessive heating at the top surface.
Maintaining high beam quality is essential. Regular maintenance of optical components, including cleaning, alignment, and replacement when necessary, ensures that the beam remains well-focused and stable. Using advanced laser cutting systems with low divergence and high beam quality can significantly reduce taper.
Assist gas parameters should also be optimized. Proper gas pressure, flow stability, and nozzle alignment improve the removal of molten material, particularly at deeper levels, helping to maintain a consistent kerf throughout the thickness.
For thicker materials or precision applications, advanced techniques such as dynamic focus control, beam shaping, or multi-pass cutting can be used to improve energy distribution and reduce taper.
Material preparation is also important. Using materials with consistent thickness and clean surfaces enhances process stability and reduces variability.
When extremely tight tolerances are required, secondary finishing processes such as machining, grinding, or reaming may be used to achieve full perpendicularity.
Tapered cuts, or non-vertical edges, are a common geometric defect in laser cutting caused by uneven energy distribution through the material thickness. This results in a wider kerf at the top and a narrower kerf at the bottom, producing an angled edge that deviates from the desired vertical profile.
The causes of taper are multifaceted, involving beam divergence, focal position, laser parameters, assist gas behavior, and material characteristics. Because these factors are closely interconnected, effective control requires a balanced and well-optimized process.
The effects of tapered cuts extend beyond dimensional inaccuracies. They can affect assembly fit, mechanical performance, load distribution, and overall product quality, often leading to additional processing requirements.
By optimizing laser settings, maintaining high beam quality, and implementing advanced process control techniques, manufacturers can significantly reduce taper and achieve more precise, vertical edges. Controlling this defect is essential for maintaining tight tolerances, improving efficiency, and ensuring consistent, high-quality results in laser cutting operations.
Spatter and Recast Layer
Spatter and recast layers are two closely related defects that originate from the behavior of molten material during laser cutting. They are not independent phenomena but rather different outcomes of the same fundamental issue: incomplete, unstable, or inefficient expulsion of molten material from the cutting zone. While spatter mainly affects the external surface, the recast layer is more closely associated with subsurface changes along the cut edge, making it particularly important in applications where material integrity is critical.
Spatter consists of small droplets or particles of molten material that are ejected from the kerf but fail to fully detach from the workpiece. These droplets may redeposit on the top surface, adhere to the edge, or scatter around the surrounding area. Once solidified, they form rough, irregular deposits that degrade surface finish and can vary in size depending on process conditions. In severe cases, spatter accumulation can become significant enough to interfere with part geometry or subsequent processing.
The recast layer, by contrast, forms when molten material does not completely leave the kerf and instead resolidifies along the cut edge. This layer is typically thin but can be dense, uneven, and metallurgically different from the base material. Due to rapid solidification, it often exhibits a refined but brittle microstructure, sometimes containing microvoids, inclusions, or trapped gas. The presence of this layer indicates that the melt flow was not sufficiently stable or energetic to fully evacuate the material during cutting.
Together, these defects serve as indicators of process inefficiency. Their presence suggests that the balance between energy input, melt formation, and melt removal is not properly optimized. In high-precision or high-reliability applications, even a thin recast layer or minor spatter can be unacceptable.
Causes
The formation of the spatter and recast layer is primarily governed by the dynamics of molten material flow and the effectiveness of assist gas in removing that material. One of the most critical factors is insufficient or unstable assist gas performance. If gas pressure is too low, the flow is turbulent, or the nozzle is misaligned, the gas cannot generate enough force to expel molten material efficiently. As a result, molten droplets may adhere to the surface as spatter or remain in the kerf and solidify as a recast layer.
Laser power and cutting speed must be carefully balanced to maintain a stable melt pool. Excessive laser power produces a large volume of molten material, increasing the likelihood of spatter and making it more difficult for the assist gas to remove the material. Conversely, insufficient power can lead to incomplete melting and unstable cutting conditions, which also promote recast layer formation.
Cutting speed has a strong influence on melt behavior. Slow speeds allow molten material to accumulate, increasing the risk of resolidification along the cut edge. Extremely high speeds, on the other hand, may destabilize the melt flow and reduce the effectiveness of material ejection.
Focal position is another key parameter. If the laser focus is not correctly positioned, energy distribution becomes uneven, leading to inefficient melting and poor melt flow control. Beam quality also plays a major role. Poor beam quality, optical contamination, or misalignment can result in energy fluctuations, which disrupt melt stability.
Material characteristics contribute significantly. Materials with high molten viscosity, high surface tension, or strong oxidation tendencies are more difficult to expel cleanly from the kerf. Surface contamination, such as oil, rust, or coatings, can further disrupt heat transfer and gas interaction.
Nozzle condition and gas delivery system are also critical. A worn or damaged nozzle, incorrect stand-off distance, or inconsistent gas supply can reduce the effectiveness of melt removal and increase defect formation.
Effects
The spatter and recast layer has both surface-level and structural consequences. The most immediate and visible effect is a degradation of surface quality. Spatter creates rough surface deposits that can interfere with dimensional accuracy and visual appearance, while the recast layer alters the smoothness and uniformity of the cut edge.
From a metallurgical perspective, the recast layer can significantly affect material properties. Due to rapid cooling, it often becomes harder and more brittle than the base material. This can introduce residual stresses and reduce fatigue resistance, making the material more susceptible to crack initiation and propagation under cyclic loading.
These defects can also negatively impact downstream processes. Spatter and recast layers may interfere with welding by introducing impurities or preventing proper fusion. They can reduce coating adhesion, leading to poor surface finishing results such as peeling or delamination. In precision applications, they may prevent parts from meeting strict surface roughness or cleanliness requirements.
In addition, the presence of these defects often necessitates additional finishing operations such as grinding, polishing, or chemical cleaning. These processes increase production time, labor costs, and overall manufacturing complexity.
In critical industries, where component reliability is essential, the presence of a recast layer or embedded spatter may require additional inspection or complete part rejection.
Solutions
Reducing spatter and recast layer requires optimizing the balance between heat input, melt formation, and melt removal. One of the most important steps is improving the assist gas performance. Increasing gas pressure, ensuring proper nozzle alignment, and maintaining a stable, laminar flow significantly enhance the ability to expel molten material from the kerf.
Selecting the appropriate assist gas is also crucial. Inert gases such as nitrogen or argon can reduce oxidation and improve surface quality, while oxygen may increase spatter due to additional heat generation.
Laser parameters must be carefully controlled. Balancing laser power and cutting speed ensures that the melt pool remains stable and manageable. Avoiding excessive heat input reduces the volume of molten material and improves ejection efficiency.
Precise focal positioning ensures optimal energy concentration at the cutting interface, improving both cutting efficiency and melt flow behavior. Maintaining high beam quality through regular maintenance of optical components further enhances stability.
Material preparation is another important factor. Clean, uniform surfaces free from contamination improve heat absorption and gas interaction, facilitating smoother melt flow.
Proper maintenance of the nozzle and gas delivery system ensures consistent and effective gas flow.
For applications requiring high surface quality, post-processing techniques such as polishing, chemical cleaning, or surface treatment can be used to remove residual spatter and recast layers.
Spatter and recast layers are significant defects in laser cutting that arise from inefficient or unstable removal of molten material. Spatter appears as solidified droplets on the surface, while the recast layer forms as a resolidified layer along the cut edge with altered microstructure and properties.
These defects are caused by a combination of factors, including insufficient assist gas performance, unbalanced laser parameters, poor beam quality, and material characteristics. Because these factors are interconnected, effective prevention requires a comprehensive and well-controlled cutting process.
The impact of these defects extends beyond surface appearance. They can affect mechanical properties, reduce fatigue life, interfere with downstream processes, and increase production costs due to additional finishing requirements.
By optimizing gas flow, refining cutting parameters, maintaining equipment condition, and ensuring proper material preparation, manufacturers can significantly reduce spatter and recast layer formation. Achieving stable and efficient melt ejection is essential for producing clean, high-quality edges and ensuring consistent, reliable laser cutting performance.
Nozzle Collision and Mechanical Damage
Nozzle collision and mechanical damage are critical non-thermal defects that occur when the laser cutting head, particularly the nozzle, makes unintended physical contact with the workpiece, scrap material, or machine fixtures. Unlike thermal defects that arise from heat input and material behavior, these defects are caused by mechanical interference and can result in immediate, visible damage as well as hidden process instability.
The nozzle is a precision component that performs several essential functions. It directs assist gas into the cutting zone, stabilizes the molten material removal process, and maintains a controlled stand-off distance between the laser head and the material surface. This distance is typically very small, often within fractions of a millimeter, and must be precisely maintained throughout the cutting process. Any disruption to this distance can compromise both cutting quality and equipment safety.
When a collision occurs, the results can range from minor surface scratches to severe deformation of the workpiece or damage to the nozzle and cutting head. Mechanical damage on the part may appear as gouges, dents, drag marks, or distorted edges. On the equipment side, the nozzle may become bent, cracked, or clogged, and in severe cases, the impact may affect sensitive components such as the focusing optics, capacitive sensors, or motion system.
An important characteristic of this defect is that it often occurs suddenly and without warning, especially during high-speed movement or rapid repositioning. Even a brief contact event can disrupt gas flow, alter focal conditions, and introduce secondary defects. Therefore, nozzle collision is not only a quality issue but also a reliability and maintenance concern in laser cutting operations.
Causes
The causes of nozzle collision and mechanical damage are typically related to inaccuracies in height control, instability of the workpiece, or errors in machine operation. One of the most common causes is improper height sensing. Laser cutting systems rely on capacitive or similar sensors to maintain a constant distance between the nozzle and the material. If these sensors are miscalibrated, contaminated, or malfunctioning, the nozzle may be positioned too close to the surface, increasing the risk of contact.
Material condition is another major contributing factor. Warped, bowed, or uneven sheets can create unexpected height variations that interfere with the path of the cutting head. Thin materials are particularly susceptible to thermal deformation, which can cause them to lift during cutting and collide with the nozzle.
Loose or poorly secured materials can shift during processing, especially under the influence of gas pressure or thermal stresses. In addition, small cut pieces or scraps may tilt, flip, or rise after being separated, creating sudden obstacles in the cutting path.
Programming and toolpath planning errors are also significant causes. Incorrect movement commands, insufficient clearance during rapid travel, or poorly sequenced cutting operations can bring the nozzle into contact with the material or fixtures.
Machine-related issues further contribute to the problem. Wear in motion components, delayed response in servo systems, or inaccuracies in positioning can lead to unintended nozzle movement. Damaged or improperly installed nozzles can also increase the likelihood of collision.
Operator factors should not be overlooked. Inadequate inspection of the material, incorrect setup, or failure to monitor the process can increase the risk of mechanical interference.
Effects
The effects of nozzle collision and mechanical damage can be immediate, cumulative, and far-reaching. The most obvious consequence is physical damage to the workpiece. Surface scratches, dents, and gouges can compromise both the appearance and dimensional accuracy of the part. In high-precision or visible applications, even minor defects may lead to rejection.
Damage to the nozzle itself can significantly degrade cutting performance. A bent or partially blocked nozzle disrupts assist gas flow, which can lead to secondary defects such as poor edge quality, excessive dross, incomplete cutting, or increased spatter. These secondary issues may persist even after the initial collision if the nozzle is not replaced.
In more severe cases, collisions can affect the alignment of the laser head or damage internal components such as lenses, sensors, or motion systems. This can result in reduced cutting accuracy, process instability, and increased downtime for repair and recalibration.
From a production standpoint, collisions interrupt workflow and reduce efficiency. Machines may need to be stopped for inspection, parts may require rework or replacement, and production schedules may be affected. Repeated collisions can accelerate wear on machine components, increasing maintenance costs and reducing equipment lifespan.
In automated manufacturing environments, these disruptions can propagate through the entire production line, affecting throughput and reliability. In extreme cases, severe mechanical damage may pose safety risks or require a complete system shutdown.
Solutions
Preventing nozzle collision and mechanical damage requires a systematic approach that combines accurate control, proper setup, and ongoing maintenance. One of the most important measures is ensuring precise height sensing and calibration. Regular calibration of capacitive sensors and verification of stand-off distance help maintain safe and consistent operation.
Material preparation is equally important. Ensuring that the workpiece is flat, clean, and free from deformation reduces the likelihood of unexpected height variations. Removing loose scrap and ensuring that cut parts do not interfere with the cutting path are also essential practices.
Proper fixturing and support improve material stability. Clamping systems, vacuum tables, or magnetic fixtures can be used to hold the material securely in place and prevent movement during cutting.
Careful programming and toolpath planning are critical. Providing sufficient clearance during rapid movements, optimizing cutting sequences, and avoiding unnecessary repositioning reduces the risk of collision. Simulation or dry-run verification can further improve safety.
Regular maintenance of the nozzle and cutting head ensures reliable performance. Cleaning, inspection, and timely replacement of worn components help maintain proper gas flow and positioning accuracy.
Operator training is another key factor. Well-trained operators can identify potential risks, perform correct setup procedures, and respond quickly to abnormal conditions.
Advanced technologies can further enhance safety. Collision detection systems, automatic height adjustment, and real-time monitoring can detect contact events and stop the machine before significant damage occurs.
Nozzle collision and mechanical damage are critical defects in laser cutting that result from unintended physical contact between the cutting head and the workpiece or surrounding elements. These defects are mechanical in nature and can cause immediate damage to both the material and the equipment, as well as introduce secondary process issues.
The causes are diverse, including inaccurate height control, uneven or unstable material conditions, programming errors, and machine performance issues. Because these factors are often interconnected, preventing collisions requires a comprehensive and disciplined approach.
The effects extend beyond visible surface damage. Collisions can degrade cutting quality, damage expensive equipment, increase downtime, and reduce overall production efficiency. In severe cases, they may also pose safety risks.
By maintaining accurate height control, ensuring proper material handling, optimizing programming, and performing regular maintenance, manufacturers can significantly reduce the risk of nozzle collisions. A stable, well-controlled cutting environment is essential for protecting equipment, maintaining productivity, and achieving consistent, high-quality laser cutting results.
Poor Hole Quality
Poor hole quality is a complex and highly impactful defect in laser cutting that affects not only the appearance of holes but also their dimensional accuracy, internal surface integrity, and functional performance. Compared with straight-line cutting, producing high-quality holes is significantly more challenging because the laser must continuously follow a circular path while maintaining consistent energy input, precise positioning, and efficient molten material removal within a confined space. Any instability in these factors can quickly degrade the final result.
Typical manifestations of poor hole quality include out-of-round or elliptical shapes, inconsistent diameters, excessive taper between the entry and exit sides, rough or striated inner walls, and the presence of dross, spatter, or recast material inside the hole. In more severe cases, holes may exhibit incomplete penetration, partially blocked openings, or irregular edges caused by unstable piercing or cutting processes.
Small-diameter holes are particularly sensitive to process variations. Because the available space for molten material ejection is limited, even minor fluctuations in gas flow, laser energy, or motion control can result in significant defects. Additionally, the laser beam may overlap itself repeatedly in a small circular path, increasing local heat accumulation and making thermal control more difficult.
Another important characteristic is that hole quality often serves as a benchmark for overall process capability. If holes are poorly formed, it usually indicates that the cutting parameters, machine dynamics, or thermal management are not fully optimized.
Causes
The causes of poor hole quality are multifactorial and involve the interaction of laser energy, material properties, and machine performance. One of the most critical factors is improper parameter selection. Excessive laser power can lead to overmelting, distortion, and enlarged holes, while insufficient power may result in incomplete cutting or unstable melt formation. Cutting speed must also be carefully controlled; too slow leads to heat buildup, while too fast reduces cutting efficiency and stability.
Piercing processes play a foundational role in hole quality. Since every hole begins with a piercing step, any issue during this phase—such as excessive molten material, spatter, or uneven penetration—can negatively affect the subsequent cutting process. Poor piercing often leaves irregular starting points and contaminates the hole’s interior.
Focal position and beam quality are equally important. An incorrect focal point leads to uneven energy distribution through the thickness, resulting in taper, rough surfaces, and inconsistent diameters. Poor beam quality, optical contamination, or misalignment can further reduce precision and stability, especially when cutting small or closely spaced holes.
Assist gas behavior is particularly critical in hole cutting. Because the molten material must be expelled from a confined space, insufficient gas pressure, inappropriate gas type, or improper nozzle alignment can lead to dross accumulation, recast layer formation, and spatter adhesion inside the hole.
Thermal effects also play a major role. As the laser repeatedly traces a circular path, heat can accumulate in the surrounding material, causing localized overheating, changes in material properties, and distortion. This is especially problematic in thin sheets or when multiple holes are cut close together.
Machine dynamics are another contributing factor. Inaccurate motion control, limited acceleration capability, or mechanical backlash can result in uneven circular motion, leading to deviations from true roundness.
Material characteristics, such as thickness, reflectivity, thermal conductivity, and surface condition, further influence how the laser interacts with the material and how effectively molten material is removed.
Effects
Poor hole quality can significantly impact both the functionality of the part and the efficiency of the manufacturing process. The most immediate consequence is dimensional inaccuracy. Holes that are out-of-round, oversized, undersized, or tapered may not meet design specifications, leading to assembly difficulties.
In applications involving fasteners, pins, or precision-fit components, poor hole quality can result in misalignment, loose connections, or excessive interference. This can reduce load-bearing capability and compromise the structural integrity of the final product.
The internal surface condition of the hole is also critical. Rough or irregular surfaces can increase friction, accelerate wear, and act as initiation points for crack formation under cyclic loading. The presence of dross, spatter, or recast material can further degrade performance and reliability.
From a manufacturing perspective, poor hole quality often necessitates secondary operations such as drilling, reaming, or boring to achieve the required tolerances and surface finish. These additional processes increase production time, cost, and complexity.
In high-precision industries such as aerospace, medical device manufacturing, or electronics, poor hole quality can lead to part rejection and reduced yield.
Additionally, defects inside the hole can interfere with subsequent processes such as threading, coating, or assembly, creating further complications in production.
Solutions
Improving hole quality requires a comprehensive and carefully controlled approach that addresses all aspects of the cutting process. One of the most important steps is optimizing laser parameters specifically for hole cutting. This may involve reducing cutting speed, fine-tuning laser power, and using pulsed or modulated laser modes to achieve better control over energy input and melt behavior.
Piercing optimization is essential. Techniques such as multi-stage piercing, gradual power ramp-up, or controlled piercing sequences can reduce spatter and create a clean, stable starting point for hole cutting.
Accurate focal positioning ensures uniform energy distribution throughout the material thickness, reducing taper and improving surface quality. Maintaining high beam quality through regular cleaning, alignment, and maintenance of optical components is also critical.
Assist gas parameters should be carefully optimized. Increasing gas pressure, selecting the appropriate gas type, and ensuring proper nozzle alignment improve the removal of molten material from the confined hole area, reducing dross and recast layer formation.
Thermal management strategies can further enhance hole quality. Adjusting cutting sequences, increasing spacing between holes, or introducing cooling intervals can help prevent heat buildup and distortion.
Improving machine motion control is also essential. High-precision servo systems, proper acceleration settings, and regular maintenance of mechanical components ensure smooth and accurate circular motion.
Material preparation, including cleaning the surface and ensuring uniform thickness, improves process stability and consistency.
For applications requiring extremely tight tolerances, secondary finishing processes such as reaming, drilling, or precision machining may be employed to achieve the final dimensions and surface finish.
Poor hole quality is a challenging and multifaceted defect in laser cutting that affects the geometry, surface condition, and functional performance of holes. It arises from the complex interaction of laser parameters, material behavior, thermal effects, and machine dynamics during circular cutting operations.
The causes are diverse and interconnected, including improper parameter selection, inefficient piercing, inadequate gas flow, thermal accumulation, and motion control limitations. As a result, achieving high-quality holes requires a holistic approach to process optimization.
The effects extend beyond dimensional inaccuracies. Poor hole quality can compromise assembly, reduce mechanical performance, interfere with downstream processes, and increase production costs due to additional finishing requirements.
By carefully optimizing cutting parameters, improving piercing techniques, enhancing gas flow, and ensuring precise motion control, manufacturers can significantly improve hole quality. Maintaining a stable and well-controlled cutting environment is essential for producing accurate, clean, and reliable holes in laser-cut components.
Overmelting and Edge Rounding
Overmelting and edge rounding are advanced thermal defects in laser cutting that occur when the heat input exceeds the optimal level required for precise material removal. Instead of producing a sharp, clean edge with well-defined geometry, excessive thermal energy enlarges the molten zone and alters how the material flows and solidifies. As a result, edges lose their crisp definition and become rounded, softened, or even slightly swollen.
Under ideal conditions, laser cutting maintains a narrow kerf with controlled melting and rapid ejection of molten material by assist gas. However, when too much heat is introduced or not removed efficiently, the molten material remains in a semi-fluid state for longer. During this time, surface tension forces naturally pull the material into smoother, rounded shapes, while gravity and gas flow can further redistribute it along the cut edge. This leads to the characteristic loss of sharp corners and edge definition.
Edge rounding is particularly noticeable in fine features, small geometries, and sharp internal or external corners, where precision is essential. It is also common in thin materials, which heat up quickly and lack sufficient thermal mass to dissipate excess heat. In thicker materials, the defect may appear as localized rounding or softening along specific sections of the edge, especially where heat accumulates.
This defect is often accompanied by other thermal indicators such as a widened kerf, discoloration, an expanded heat-affected zone (HAZ), or minor recast material. These associated features suggest that the process is operating outside its optimal thermal balance. Importantly, overmelting is not just a visual issue; it reflects deeper inefficiencies in heat control and process stability.
Causes
The root cause of overmelting and edge rounding is excessive or poorly controlled heat input combined with inefficient heat dissipation. One of the most common causes is excessive laser power. When the power level is too high for the material thickness and cutting speed, it generates more heat than necessary, enlarging the molten pool and increasing the likelihood of uncontrolled material flow.
Cutting speed is equally important. Slow cutting speeds increase the interaction time between the laser and the material, allowing heat to accumulate and spread into surrounding regions. This extended exposure leads to a broader melt zone and promotes edge softening. Conversely, unstable or inconsistent speed can also cause localized overheating.
Improper focal position significantly affects energy distribution. If the focal point is not correctly aligned with the material thickness, the laser energy spreads over a larger area rather than being concentrated at the cutting interface. This reduces cutting efficiency and increases unintended heating of adjacent material.
Assist gas performance plays a crucial role in controlling both heat and molten material. Insufficient gas pressure, incorrect gas type, or poor nozzle alignment reduces the efficiency of melt ejection. When molten material is not removed quickly, it remains in the cutting zone longer, allowing heat to build up and material to reflow along the edges.
Material properties also influence susceptibility. Materials with lower melting temperatures or higher thermal conductivity may experience rapid heat transfer, leading to uneven temperature distribution. Thin sheets are particularly vulnerable because they cannot dissipate heat effectively and are more easily affected by thermal accumulation.
Cutting strategy can further contribute to the problem. Continuous cutting in a localized area, improper sequencing of features, or lack of cooling intervals can lead to heat buildup and increased risk of overmelting.
Finally, machine-related factors such as poor beam quality, contaminated optics, or inconsistent power delivery can create uneven heating patterns, leading to localized overmelting and irregular edge rounding.
Effects
Overmelting and edge rounding can significantly impact both the functional performance and aesthetic quality of laser-cut parts. The most immediate effect is the loss of geometric precision. Rounded edges deviate from the intended design, reducing dimensional accuracy and potentially affecting the fit of components in assemblies.
In precision applications, such as interlocking parts or tight-tolerance assemblies, edge rounding can create gaps, reduce contact area, or cause misalignment. This can compromise structural integrity and reduce the effectiveness of load transfer between components.
From a mechanical standpoint, excessive heat input can alter material properties near the edge. The enlarged heat-affected zone may exhibit reduced hardness, increased residual stress, or microstructural changes, which can negatively affect fatigue resistance and long-term durability.
Aesthetically, overmelted edges appear less sharp and may have a glossy, uneven, or slightly distorted surface. This can be unacceptable in products where visual quality is important.
In manufacturing, the presence of edge rounding often necessitates secondary finishing operations such as grinding, milling, or polishing to restore the desired edge profile. These additional processes increase production time, cost, and complexity.
In severe cases, parts may not meet quality standards and must be scrapped, leading to material waste and reduced production efficiency.
Solutions
Preventing overmelting and edge rounding requires careful control of heat input, efficient melt removal, and consistent process stability. One of the most effective measures is optimizing laser parameters. Reducing laser power to an appropriate level and increasing cutting speed within safe limits helps minimize heat accumulation and maintain a narrow melt zone.
Accurate focal positioning is essential to ensure that laser energy is concentrated precisely at the cutting interface. Proper focus improves cutting efficiency and reduces unnecessary heating of the surrounding material.
Assist gas performance should be optimized to enhance both cooling and melt ejection. Increasing gas pressure, ensuring proper nozzle alignment, and maintaining a stable flow help remove molten material quickly and prevent it from spreading along the edges.
Improving the cutting strategy can significantly reduce thermal buildup. Distributing cuts evenly across the workpiece, avoiding prolonged exposure in one area, and introducing cooling intervals help maintain a balanced temperature distribution.
Maintaining high beam quality is also critical. Regular cleaning and alignment of optical components ensure consistent energy delivery and reduce the risk of localized overheating.
Material preparation contributes to process stability. Clean, uniform surfaces improve energy absorption and reduce variability in cutting performance.
For applications requiring very sharp edges and tight tolerances, secondary finishing processes may still be necessary, but their extent can be minimized through proper process optimization.
Overmelting and edge rounding are important thermal defects in laser cutting that result from excessive or poorly controlled heat input. They lead to softened, rounded edges that deviate from the intended sharp geometry and indicate an imbalance in thermal management.
The causes are interconnected and include excessive laser power, slow cutting speed, improper focal position, inefficient assist gas performance, material characteristics, and cutting strategy. Because these factors influence each other, effective prevention requires a comprehensive and well-balanced approach.
The effects extend beyond visual appearance, affecting dimensional accuracy, assembly performance, mechanical properties, and manufacturing efficiency. In many cases, additional finishing operations are required, increasing production cost and complexity.
By optimizing process parameters, improving heat control, and ensuring efficient melt removal, manufacturers can significantly reduce overmelting and maintain sharp, precise edges. Proper thermal management is essential for achieving consistent, high-quality results in laser cutting applications.
Surface Contamination and Staining
Surface contamination and staining are critical quality defects in laser cutting that affect not only the visual appearance of the workpiece but also its surface chemistry, cleanliness, and readiness for subsequent manufacturing processes. These defects arise when foreign substances, thermal byproducts, or chemical reactions alter the surface condition during or after cutting. While often perceived as cosmetic issues, they frequently signal deeper problems in process control, environmental management, or material preparation.
Contamination refers to the physical presence of unwanted substances on the material surface. These may include oil residues, dust, spatter particles, vaporized material that has recondensed, or burnt organic compounds. Such contaminants can form thin films, sticky layers, or localized deposits, particularly near the cut edge where heat and material ejection are most intense.
Staining, in contrast, is primarily a chemical or thermal phenomenon. It manifests as discoloration caused by oxidation, heat tint, or chemical reactions between the material and its environment. Common colors include yellow, brown, blue, or black, depending on the material type and temperature exposure. For example, stainless steel often develops blue or straw-colored heat tint due to oxide layer growth at elevated temperatures.
The extent of contamination and staining can vary widely. In mild cases, the surface may show slight discoloration or light residue that is easily removed. In more severe cases, thick oxide layers or persistent contamination may form, requiring intensive cleaning or surface treatment. Additionally, these defects may not always be immediately visible but can become apparent during later processes such as coating, welding, or inspection.
Causes
The causes of surface contamination and staining are complex and involve interactions between the laser process, the material, and the surrounding environment. One of the primary causes is oxidation during cutting. When oxygen is used as an assist gas, or when inert gas shielding is insufficient, the heated material reacts with atmospheric oxygen, forming oxide layers that appear as discoloration or staining.
Excessive heat input is another major contributor. High laser power or slow cutting speeds increase the thermal load on the material, enlarging the heat-affected zone and promoting chemical reactions on the surface. This can intensify oxidation and cause existing contaminants to burn and adhere more strongly.
The initial condition of the material surface is also critical. Oils, greases, protective films, dust, or fingerprints can decompose under laser heating, producing carbonized residues or other byproducts that contaminate the surface. These substances may also interfere with heat absorption and gas flow, exacerbating the problem.
Assist gas quality and delivery significantly influence the outcome. Impurities in the gas supply, insufficient pressure, or improper nozzle alignment can reduce shielding effectiveness and allow contamination or oxidation to occur. Turbulent gas flow can also lead to uneven surface conditions.
Environmental factors such as airborne particles, humidity, and general cleanliness of the workspace can introduce additional contaminants. High humidity, for instance, may promote surface reactions or corrosion after cutting.
Machine condition is another important factor. Contaminated optics, worn nozzles, or poorly maintained equipment can introduce particles or inconsistencies into the process, affecting surface quality.
Finally, improper post-cut handling can lead to secondary contamination. Contact with dirty tools, wet gloves, or contaminated storage environments can result in staining or corrosion that was not present immediately after cutting.
Effects
Surface contamination and staining can have a wide range of effects on both product quality and manufacturing efficiency. The most immediate impact is a reduction in visual quality. Discolored or contaminated surfaces appear unclean, uneven, or burned, which is unacceptable in applications where appearance is critical, such as consumer products or decorative components.
Functionally, contamination can interfere with downstream processes. Residues and oxide layers can reduce the adhesion of coatings such as paint, powder coating, or electroplating. This can lead to defects like peeling, blistering, or uneven coverage, compromising both appearance and durability.
In welding applications, contaminated surfaces can prevent proper fusion, introduce gas inclusions, and weaken the joint. This reduces structural integrity and increases the risk of failure.
Staining, especially in the form of oxidation, can also affect corrosion resistance. For example, heat tint on stainless steel can degrade the protective oxide layer, making the material more susceptible to corrosion if not properly treated.
In precision assemblies, surface contamination may interfere with fit or introduce particles that affect performance.
From a production standpoint, these defects often require additional cleaning, polishing, or chemical treatment processes. These extra steps increase production time, labor costs, and operational complexity.
In severe cases, parts may fail quality inspections and need to be reworked or scrapped, leading to material waste and reduced productivity.
Solutions
Preventing surface contamination and staining requires a comprehensive and proactive approach that addresses process parameters, material preparation, and environmental control. One of the most effective measures is the use of appropriate assist gases. Inert gases such as nitrogen or argon help minimize oxidation and reduce discoloration, particularly for oxidation-sensitive materials.
Optimizing laser parameters is essential for controlling heat input. Adjusting laser power and cutting speed to appropriate levels helps minimize the heat-affected zone and reduce the likelihood of surface reactions.
Proper material preparation is critical. Cleaning the workpiece before cutting to remove oil, grease, dust, and other contaminants ensures that no unwanted substances are present to burn or redeposit during the process.
Maintaining high-quality gas delivery systems improves shielding effectiveness. This includes using clean gas supplies, ensuring correct pressure settings, and maintaining proper nozzle alignment and condition.
Regular machine maintenance is necessary to prevent contamination from equipment. Cleaning optical components, replacing worn nozzles, and ensuring overall system cleanliness help maintain stable and consistent performance.
Environmental control also plays a significant role. Keeping the workspace clean, minimizing airborne dust, and controlling humidity levels can reduce the risk of contamination.
Proper handling after cutting is equally important. Using clean gloves, avoiding contact with contaminated surfaces, and storing parts in controlled environments help preserve surface quality.
When contamination or staining does occur, post-processing methods such as chemical cleaning, pickling, passivation, or mechanical polishing can be used to restore the desired surface condition.
Surface contamination and staining are important defects in laser cutting that affect both the appearance and functional performance of the final product. They result from oxidation, residual contaminants, environmental influences, and process inefficiencies during or after cutting.
The causes are diverse and interconnected, involving laser parameters, assist gas performance, material condition, equipment maintenance, and environmental cleanliness. Effective prevention, therefore, requires a holistic approach that addresses all aspects of the cutting process.
The effects extend beyond visual defects, impacting coating adhesion, welding quality, corrosion resistance, and assembly performance. In many cases, additional cleaning or finishing operations are required, increasing production cost and complexity.
By optimizing cutting conditions, ensuring proper material preparation, maintaining equipment and environmental cleanliness, and using suitable assist gases, manufacturers can significantly reduce contamination and staining. Achieving clean, stable surfaces is essential for ensuring high-quality laser-cut components and reliable downstream processing.
Piercing Defects
Piercing defects are among the most critical and technically challenging defects in laser cutting because they occur at the very beginning of the process and strongly influence the quality and stability of all subsequent cutting operations. Piercing is the initial stage in which the laser beam focuses a high energy density onto a stationary point of the material to create a through-hole that serves as the starting point for the cut path. Ideally, this process should produce a clean, circular, and well-defined hole with minimal surrounding thermal damage and no residual material buildup.
In practice, however, the piercing stage involves extreme localized heating, rapid phase changes, and complex fluid dynamics of molten material. Because the laser remains stationary during piercing, heat accumulates quickly in a confined region, making it difficult to control temperature distribution and melt behavior. As a result, several types of defects can occur, including excessive spatter ejection, irregular or oversized holes, recast layer formation, dross accumulation, microcracking, and localized surface deformation.
The area surrounding the pierce point often exhibits visible signs of overheating, such as discoloration, oxidation, surface roughness, or even small crater-like depressions. In some cases, the piercing process may fail to fully penetrate the material, leaving partially fused regions that disrupt the initiation of the cutting path. In other cases, excessive energy input can create an enlarged entry hole that exceeds design tolerances.
Because piercing sets the initial conditions for the entire cutting process, any defect generated at this stage can propagate along the cut path. Therefore, achieving a stable, controlled, and precise piercing operation is essential for maintaining overall cut quality.
Causes
The causes of piercing defects are closely related to excessive energy concentration, thermal accumulation, and inefficient removal of molten material during the penetration process. One of the most common causes is excessive laser power. When the power level is too high, it generates a large volume of molten and vaporized material in a short period, leading to violent expulsion, uncontrolled spatter, and enlargement of the piercing hole.
Piercing time is another key parameter. Excessively long dwell times allow heat to accumulate beyond the necessary level, resulting in overheating, enlarged heat-affected zones, and potential material evaporation. This can create crater formation and distort the surrounding surface. On the other hand, insufficient piercing time may result in incomplete penetration, preventing stable cut initiation.
Assist gas performance is critical during piercing. Inadequate gas pressure, unstable flow, or improper nozzle alignment can reduce the efficiency of molten material removal. As a result, molten material may accumulate around the pierce point, forming dross, recast layers, or surface contamination.
Focal position plays a vital role in determining how effectively energy is delivered into the material. If the focal point is incorrectly positioned, the laser energy is not concentrated at the optimal depth, leading to inefficient penetration and increased thermal impact on surrounding material.
Material properties significantly influence piercing behavior. Thicker materials require higher energy input and longer piercing times, increasing the risk of heat accumulation and defect formation. Materials with high reflectivity or thermal conductivity may resist efficient energy absorption, resulting in unstable or inconsistent piercing.
Surface condition is another important factor. Contaminants such as oil, coatings, or dust can interfere with energy absorption and generate additional residues during heating, worsening the defect.
Machine-related factors, including poor beam quality, contaminated optics, unstable power output, or inaccurate motion control, can further contribute to inconsistent energy delivery and irregular piercing results.
Effects
Piercing defects can have far-reaching effects on both the immediate quality of the workpiece and the overall efficiency of the cutting process. The most immediate effect is poor quality at the starting point of the cut. Excessive spatter, irregular hole geometry, and recast material can create rough, uneven surfaces that do not meet quality requirements.
These initial defects can propagate into the subsequent cutting stage. For example, an irregular or oversized pierce hole can destabilize the start of the cut, causing deviations in the cutting path, uneven kerf formation, or inconsistent edge quality along the entire contour.
Thermal damage around the piercing point can also alter the material’s microstructure, creating hardened or brittle zones that are more susceptible to cracking or failure under stress.
From a functional perspective, if the pierce location is part of a critical feature, such as a hole or interface surface, defects can directly affect assembly fit, sealing performance, or load-bearing capability.
In manufacturing, piercing defects often necessitate additional post-processing operations, such as grinding, polishing, or cleaning, to remove spatter and restore surface quality. These additional steps increase production time, labor costs, and process complexity.
In high-precision or high-reliability industries, severe piercing defects may result in part rejection, reducing yield and overall productivity.
Additionally, repeated piercing defects can indicate underlying process instability, which may affect consistency across large production batches.
Solutions
Reducing piercing defects requires a comprehensive approach that focuses on controlling energy input, improving melt ejection, and stabilizing process conditions. One of the most effective measures is optimizing piercing parameters. This includes carefully selecting laser power, piercing time, and pulse mode to achieve complete penetration without excessive overheating.
Advanced piercing strategies can significantly improve quality. Ramped power piercing gradually increases laser energy, allowing controlled melting and reducing spatter. Multi-stage or pulsed piercing techniques divide the process into smaller steps, improving stability and minimizing thermal stress.
Assist gas optimization is essential for effective melt removal. Increasing gas pressure, ensuring precise nozzle alignment, and maintaining stable gas flow help expel molten material efficiently and prevent accumulation around the pierce point.
Accurate focal positioning ensures that energy is concentrated at the optimal depth, improving penetration efficiency and reducing surrounding thermal damage.
Material preparation also plays an important role. Cleaning the surface before cutting removes contaminants that could interfere with the piercing process.
Regular maintenance of the laser cutting system, including cleaning optics, checking alignment, and ensuring consistent beam quality, helps maintain stable and predictable performance.
Process monitoring and adaptive control systems can further enhance consistency by adjusting parameters in real time based on feedback from the piercing process.
In some cases, optimizing the sequence and location of piercing points, such as placing them in non-critical areas or using lead-in strategies, can minimize the impact of defects on the final part.
Piercing defects are critical issues in laser cutting that originate during the initial penetration stage and have a strong influence on the entire cutting process. They include excessive spatter, irregular or oversized holes, recast material buildup, and localized thermal damage.
These defects are caused by a combination of excessive energy input, prolonged heat exposure, inefficient melt removal, improper parameter settings, and material-related factors. Because piercing is a highly concentrated and thermally intense operation, it is especially sensitive to variations in process conditions.
The effects of piercing defects extend beyond the immediate area, affecting cut initiation, edge quality, dimensional accuracy, and overall part performance. They also increase production costs due to additional finishing operations and potential part rejection.
By carefully optimizing piercing parameters, improving assist gas performance, ensuring accurate focal positioning, and maintaining stable process conditions, manufacturers can significantly reduce piercing defects. Effective control of the piercing stage is essential for achieving consistent, high-quality laser cutting results and reliable manufacturing performance.
Beam Quality and Optical Defects
Beam quality and optical defects represent one of the most fundamental categories of problems in laser cutting because they directly determine how laser energy is generated, transmitted, and focused onto the material. Unlike many other defects that arise from incorrect parameters or material behavior, these issues originate at the source of the process itself. As a result, they can influence every stage of cutting, from piercing and kerf formation to final edge quality and dimensional accuracy.
Beam quality refers to the spatial and energy characteristics of the laser beam, including its focusability, stability, intensity distribution, and divergence. A high-quality beam produces a small, well-defined focal spot with uniform energy density, enabling efficient melting and precise material removal. In contrast, a degraded beam may have an irregular shape, enlarged diameter, or uneven energy distribution, which reduces cutting efficiency and accuracy.
Optical defects arise when components in the beam delivery system—such as lenses, mirrors, fiber optics, or protective windows—are contaminated, damaged, misaligned, or degraded. These components are responsible for guiding and focusing the beam, and even minor imperfections can distort the beam profile or reduce energy transmission. For example, a thin layer of contamination on a lens can scatter part of the beam, while a damaged coating can absorb energy and create localized heating.
Because laser cutting relies on precise energy concentration, any deterioration in beam quality can lead to a cascade of defects. These may include wider kerf widths, unstable cutting behavior, inconsistent penetration, and variations in surface finish. In severe cases, the beam may lose sufficient energy density to cut effectively, particularly in thick or reflective materials.
An important characteristic of beam-related defects is that they often develop gradually. Early signs may include slight reductions in cut quality or speed, but if left unaddressed, they can lead to significant process instability and equipment damage. Therefore, maintaining high beam quality is essential for ensuring consistent and reliable laser cutting performance.
Causes
The causes of beam quality degradation and optical defects are diverse and often interrelated, involving contamination, thermal effects, mechanical misalignment, and system wear. One of the most common causes is contamination of optical components. During cutting, vaporized material, smoke, and fine particles can deposit on lenses and protective windows, forming thin films that reduce transparency and distort the beam. Even minimal contamination can significantly alter the intensity distribution at the focal point.
Thermal damage is another major factor. Optical components are exposed to high energy densities and may develop burn marks, microcracks, or degradation of anti-reflective coatings over time. These defects can scatter, absorb, or refract the beam in unintended ways, reducing efficiency and causing uneven heating at the cut interface.
Misalignment of optical elements is also a critical cause. If mirrors, lenses, or fiber delivery systems are not precisely aligned, the beam may deviate from its intended path or fail to converge properly at the focal point. This results in reduced energy concentration and poor cutting performance.
Aging and wear of components contribute to gradual degradation. Protective coatings can deteriorate, mechanical mounts can lose stability, and optical surfaces can become more susceptible to contamination and damage.
Instability in the laser source itself can also affect beam quality. Variations in power output, fluctuations in beam mode, or inconsistencies in pulse characteristics can lead to unstable energy delivery and inconsistent cutting results.
Improper maintenance practices further accelerate these issues. Infrequent cleaning, incorrect handling of optical components, or delayed replacement of worn parts can allow defects to accumulate and worsen over time.
Environmental conditions, such as dust, humidity, and temperature fluctuations, can also influence optical performance. Dust particles can settle on optical surfaces, while temperature changes can cause expansion or misalignment of components.
Effects
Beam quality and optical defects can have extensive and compounding effects on laser cutting performance. One of the most immediate consequences is reduced cutting precision. A distorted or enlarged beam produces a wider kerf and less defined edges, leading to dimensional inaccuracies and loss of fine details.
Uneven energy distribution can result in inconsistent melting and material removal. This often manifests as rough or striated edges, increased dross formation, and irregular cut surfaces. In some cases, the beam may not provide sufficient energy density to fully penetrate the material, resulting in incomplete cuts or process interruptions.
Cutting efficiency is also negatively affected. Poor beam quality often requires higher power levels or slower cutting speeds to achieve acceptable results, which increases heat input and raises the risk of additional thermal defects such as edge rounding, discoloration, or warping.
Process stability becomes more difficult to maintain, leading to variability in cut quality across different parts or production runs. This inconsistency is particularly problematic in high-volume manufacturing, where repeatability is essential.
From an operational perspective, degraded beam quality increases energy consumption, reduces throughput, and raises scrap rates. It may also lead to more frequent maintenance and replacement of components, increasing overall operating costs.
In severe cases, optical defects can cause secondary damage within the system. For example, contaminated optics may absorb excess energy, leading to overheating and accelerated degradation of components. This can eventually result in system downtime or failure.
Solutions
Maintaining high beam quality and preventing optical defects requires a disciplined and proactive approach to system maintenance, monitoring, and environmental control. One of the most important measures is regular cleaning of optical components. Lenses, mirrors, and protective windows should be cleaned using appropriate methods and materials to remove dust, spatter, and other contaminants without causing damage.
Routine inspection is essential for early detection of defects. Optical components should be checked for signs of burns, cracks, coating degradation, or contamination, and replaced promptly when necessary.
Precise alignment of the optical system is critical. Regular calibration ensures that the beam path is correct and that the focal point is accurately positioned on the material surface.
Maintaining a clean and controlled environment helps reduce contamination. Proper ventilation, filtration systems, and enclosure of the cutting area can minimize the presence of airborne particles.
Monitoring laser performance, including beam profile and power stability, allows operators to detect changes in beam quality before they lead to significant defects.
Operator training is also important. Proper handling of optical components, adherence to maintenance procedures, and awareness of early warning signs help maintain system integrity.
Using high-quality optical components and following manufacturer-recommended maintenance schedules can further improve reliability and performance.
Advanced systems may incorporate automated diagnostics and sensors that continuously monitor beam quality and provide real-time feedback or alerts.
Beam quality and optical defects are fundamental factors that influence the accuracy, efficiency, and reliability of laser cutting. They originate from contamination, thermal damage, misalignment, aging of components, and instability in the laser source.
These defects can lead to reduced precision, inconsistent cutting quality, lower efficiency, and increased production costs. Because the laser beam is the core of the cutting process, even minor degradation can have significant and widespread effects.
The causes are often cumulative and interconnected, requiring continuous attention to maintenance, alignment, and environmental conditions.
By implementing regular cleaning, inspection, alignment, and performance monitoring, manufacturers can maintain high beam quality and minimize optical defects. Ensuring the integrity of the optical system is essential for achieving consistent, high-quality laser cutting results and maximizing the performance and lifespan of the equipment.
Environmental and External Factors
Environmental and external factors encompass all conditions outside the laser cutting system that influence process stability, cutting quality, and repeatability. Although they do not originate within the laser source, optics, or motion system, these factors can significantly alter how the process behaves in practice. They include ambient temperature, humidity, airborne contamination, airflow and ventilation, mechanical vibration, electrical supply stability, and human handling conditions.
What makes these factors particularly challenging is their indirect and often cumulative nature. Unlike parameter-related defects, which typically produce immediate and visible results, environmental influences tend to act gradually. Small variations—such as a few degrees of temperature change or slight increases in airborne particles—can subtly shift process conditions. Over time, these shifts can lead to inconsistent kerf width, unstable cutting, or fluctuating surface quality.
Environmental effects are especially critical in precision applications and high-volume production. When tolerances are tight and consistency is required across large batches, even minor environmental instability can result in measurable deviations. For example, thermal expansion of machine components can affect positioning accuracy, while airborne particles can contaminate optics or settle on the workpiece surface.
Another important aspect is the interaction between environmental conditions and process parameters. A parameter set that performs well under controlled conditions may produce defects when environmental variables change. Therefore, environmental control must be considered an integral part of the overall laser cutting system rather than an external concern.
Causes
The causes of defects related to environmental and external factors are diverse and often interconnected. One of the most influential is ambient temperature variation. Temperature changes can cause expansion or contraction of machine structures, guide rails, and optical mounts. This can shift alignment, alter focal position, and reduce positioning accuracy. Temperature also affects material behavior, including thermal conductivity and expansion, which can influence how heat is distributed during cutting.
Humidity is another major factor. High humidity can lead to condensation forming on material surfaces or optical components, particularly when there are temperature differences between the environment and the material. This moisture can interfere with laser energy transmission, promote oxidation, and introduce surface contamination. Over time, humidity can also contribute to corrosion of both materials and machine components.
Airborne contaminants such as dust, smoke, and fine metal particles are common in industrial environments. These particles can settle on the workpiece, causing contamination and staining, or accumulate on lenses and mirrors, degrading beam quality. Smoke and vapor generated during cutting can further increase contamination if not effectively removed.
Ventilation and airflow conditions also play a critical role. Inadequate ventilation allows fumes and heat to accumulate in the cutting area, affecting both the process and operator safety. Poorly controlled airflow can disturb the assist gas stream, reducing its effectiveness in removing molten material and protecting the cut zone.
Mechanical vibration is another external cause. Vibrations from nearby equipment, building movement, or improper machine installation can affect the precision of the laser head movement. This can lead to irregular cutting paths, reduced edge quality, and dimensional inaccuracies.
Electrical supply instability is also important. Fluctuations in voltage or power interruptions can cause variations in laser output, leading to inconsistent energy delivery and unstable cutting performance.
Human factors, including improper material handling, inconsistent setup procedures, or a lack of cleanliness, can introduce additional variability and contamination into the process.
Effects
Environmental and external factors can produce a wide range of effects, often interacting with other process variables and amplifying existing issues. One of the most significant impacts is reduced process consistency. Variations in environmental conditions can cause fluctuations in cutting performance, leading to differences in edge quality, kerf width, and penetration depth between parts.
Surface quality is highly sensitive to environmental conditions. Dust, moisture, and airborne contaminants can result in staining, oxidation, or rough surfaces. These defects may affect not only appearance but also the performance of subsequent processes such as coating, welding, or assembly.
Beam quality can be indirectly affected through contamination of optical components. Deposits on lenses or mirrors reduce energy transmission and distort the beam, leading to defects such as rough edges, dross formation, or incomplete cutting.
Dimensional accuracy may also be compromised. Thermal expansion of machine components and materials, combined with vibration, can lead to deviations from design specifications.
Cutting efficiency can decrease as well. Poor environmental conditions may require slower cutting speeds, higher energy input, or more frequent maintenance, reducing overall productivity.
In more severe cases, environmental instability can contribute to major defects such as incomplete cutting, excessive kerf variation, thermal distortion, and unstable process behavior.
From a manufacturing standpoint, these effects lead to increased rework, higher scrap rates, longer production cycles, and increased operational costs.
Solutions
Managing environmental and external factors requires a systematic and integrated approach that combines environmental control with process optimization. One of the most important measures is maintaining a stable ambient temperature. Climate-controlled environments help ensure consistent machine geometry, accurate alignment, and predictable material behavior.
Humidity control is equally essential. Dehumidification systems or controlled environments can prevent condensation, reduce oxidation, and protect both materials and equipment.
Effective ventilation and fume extraction systems are critical for maintaining air quality. Proper airflow design ensures that smoke, vapor, and airborne particles are efficiently removed without disturbing the assist gas stream.
Maintaining a clean working environment is fundamental. Regular cleaning of the cutting area, equipment, and surrounding space minimizes the accumulation of dust and debris.
Vibration control is another key factor. Installing the laser cutting system on a stable foundation, isolating it from vibration sources, and ensuring proper leveling improves motion accuracy and cutting precision.
Ensuring a stable electrical supply through voltage regulation or backup systems helps maintain consistent laser output and prevents interruptions.
Standardizing operating procedures and providing proper operator training improve consistency and reduce human-related variability.
Monitoring environmental conditions using sensors for temperature, humidity, and air quality allows early detection of deviations and timely corrective action.
In advanced systems, integrated monitoring and control solutions can automatically adjust process parameters in response to environmental changes, further enhancing stability and performance.
Environmental and external factors play a critical and often underrecognized role in determining laser cutting quality and consistency. These factors include temperature, humidity, airborne contamination, airflow, vibration, electrical stability, and operator practices, all of which can influence the process in subtle but significant ways.
The causes of environmentally induced defects are complex and interconnected, often interacting with machine performance and process parameters. Even small variations in environmental conditions can lead to noticeable differences in cutting results.
The effects are wide-ranging, impacting surface quality, dimensional accuracy, beam performance, and overall production efficiency. Poor environmental control can lead to increased defects, higher costs, and reduced reliability.
By maintaining stable environmental conditions, ensuring effective ventilation, controlling contamination, minimizing vibration, stabilizing power supply, and implementing consistent operating practices, manufacturers can significantly reduce the impact of external factors. A well-controlled environment is essential for achieving consistent, high-quality laser cutting results and ensuring long-term process reliability.
Summary
Laser cutting is a highly precise and efficient manufacturing process, but its quality is influenced by a wide range of interacting factors. Throughout this article, we have examined the most common cutting defects that can occur, including burr formation, rough or striated edges, incomplete cutting, excessive kerf width, edge melting, thermal distortion, discoloration, microcracks, poor hole quality, overmelting, piercing defects, beam quality issues, and environmental influences. Each of these defects originates from imbalances in energy input, material response, machine condition, or external conditions.
A key takeaway is that most laser cutting defects are not caused by a single factor but by a combination of variables. Laser parameters such as power, speed, focus position, and assist gas settings must be carefully balanced to achieve stable cutting conditions. At the same time, material properties—including thickness, composition, and surface condition—play a critical role in how the material reacts to laser energy. Machine-related factors, such as beam quality, optical condition, and motion accuracy, further influence the consistency and precision of the process.
In addition, environmental and operational conditions—such as temperature, humidity, cleanliness, and operator practices—can significantly affect performance, often in subtle but cumulative ways. Even when parameters are correctly set, poor environmental control or inadequate maintenance can lead to variability and defects.
To minimize cutting defects, a holistic approach is essential. This includes optimizing process parameters, maintaining equipment and optics, preparing materials properly, and ensuring a stable working environment. Regular monitoring, preventive maintenance, and operator training are also critical for sustaining consistent quality.
Ultimately, achieving high-quality laser cutting results depends on understanding the relationships between these factors and maintaining control over the entire process. By addressing both technical and environmental aspects, manufacturers can reduce defects, improve efficiency, and ensure reliable, high-precision production.
Get Laser Cutting Solutions

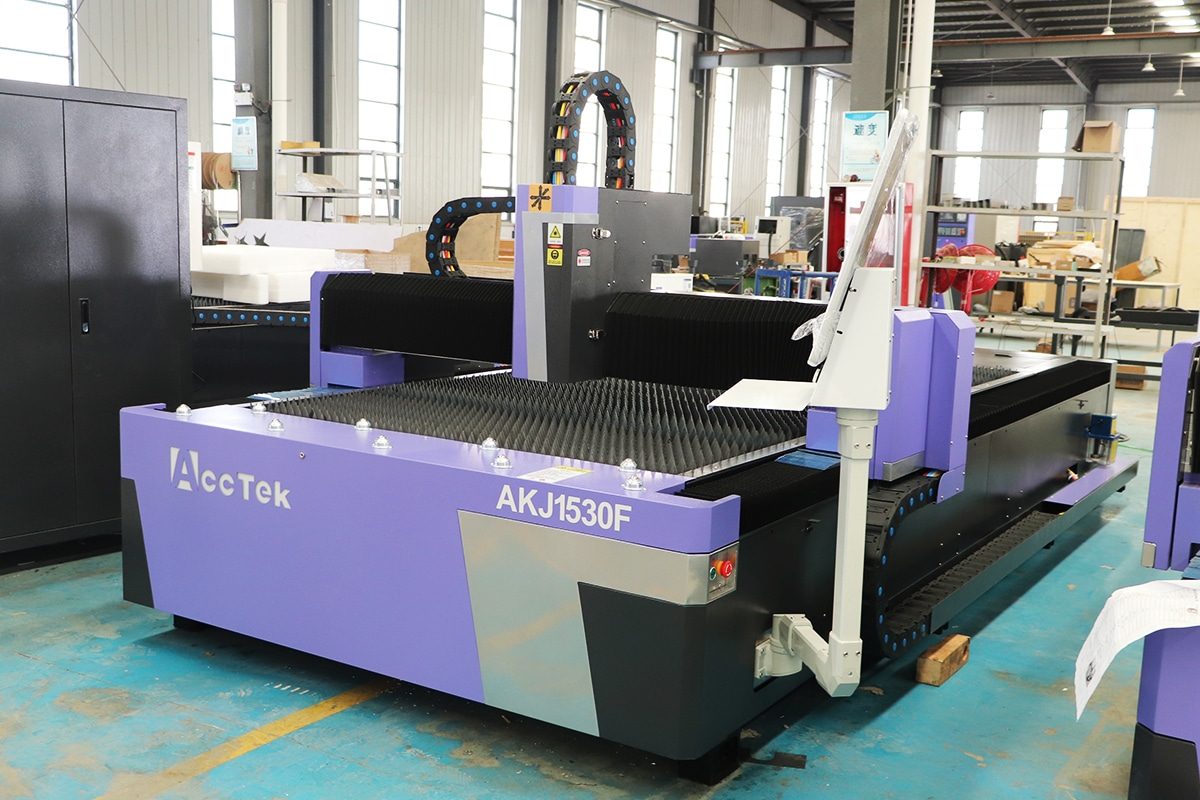

When dealing with laser cutting defects, the most effective approach is not just troubleshooting individual issues, but implementing a comprehensive and intelligent solution tailored to your specific production needs. As a professional manufacturer of intelligent laser equipment, AccTek Group provides integrated solutions that address the root causes of cutting defects while improving overall efficiency, consistency, and product quality.
AccTek Group combines advanced laser technology with smart control systems to optimize every stage of the cutting process. From precise beam delivery and stable motion systems to intelligent parameter adjustment, these technologies help minimize common defects such as burr formation, rough edges, incomplete cutting, and thermal distortion. By ensuring accurate energy control and efficient material interaction, users can achieve cleaner cuts and tighter tolerances across a wide range of materials and thicknesses.
In addition to equipment performance, AccTek Group emphasizes process optimization. This includes selecting the appropriate laser power, cutting speed, focus position, and assist gas configuration for each application. Intelligent monitoring systems can track cutting conditions in real time, allowing operators to detect deviations early and make immediate adjustments. This reduces downtime, prevents defect accumulation, and improves production reliability.
AccTek Group also supports customers with professional technical guidance and after-sales service. From installation and training to maintenance and troubleshooting, users receive continuous support to ensure their systems operate at peak performance. Regular maintenance of optical components, calibration of motion systems, and environmental control recommendations further help maintain consistent cutting quality.
Whether you are working in metal fabrication, precision engineering, or high-volume manufacturing, AccTek Group offers scalable solutions that adapt to your requirements. By combining advanced equipment, intelligent control, and expert support, manufacturers can effectively reduce cutting defects, enhance productivity, and achieve high-quality, repeatable laser cutting results.
