Product Introduction
Stainless steel laser welding machines are engineered for high-precision, high-strength welding of stainless steel components across a wide range of industries. These machines use concentrated laser energy to create deep, narrow welds with minimal heat-affected zones, preserving the corrosion resistance and aesthetic finish of stainless steel. Ideal for sectors like food processing, medical equipment, electronics, automotive, and aerospace, laser welding delivers clean seams without discoloration or distortion. It allows for intricate work on thin-gauge stainless steel as well as strong joints in thicker sections, without the need for filler material in many cases. Modern stainless steel laser welding machines offer advanced control interfaces, automation compatibility, and real-time quality monitoring, making them perfect for both custom fabrication and high-volume production. They minimize post-weld finishing, reduce material waste, and increase overall efficiency. Whether you’re building sanitary piping, structural frames, or precision enclosures, stainless steel laser welding machines provide the accuracy, speed, and reliability needed for consistent, high-quality results in demanding environments.
Types of Stainless Steel Laser Welding Machines
-
Standard Handheld Laser Welding Machine
Price range: $3,400.00 through $16,000.00 This product has multiple variants. The options may be chosen on the product page -
Portable Handheld Laser Welding Machine
Price range: $3,700.00 through $15,500.00 This product has multiple variants. The options may be chosen on the product page -
3 in 1 Handheld Laser Welding Machine
Price range: $4,000.00 through $15,700.00 This product has multiple variants. The options may be chosen on the product page -
Double Wobble Handheld Laser Welding Machine
Price range: $3,900.00 through $16,500.00 This product has multiple variants. The options may be chosen on the product page -
Double Wire Feed Handheld Laser Welding Machine
Price range: $6,800.00 through $15,800.00 This product has multiple variants. The options may be chosen on the product page -
Air-Cooled Handheld Laser Welding Machine
Price range: $4,900.00 through $6,900.00 This product has multiple variants. The options may be chosen on the product page -
3 in 1 Air-Cooled Handheld Laser Welding Machine
Price range: $5,100.00 through $7,100.00 This product has multiple variants. The options may be chosen on the product page -
Automatic Laser Welding Platform
Price range: $9,800.00 through $21,500.00 This product has multiple variants. The options may be chosen on the product page
Welding Thickness Reference
| Laser Power | Welding Form | Thickness | Welding Speed | Defocus Amount | Protective Gas | Blowing Method | Flow | Welding Effect |
|---|---|---|---|---|---|---|---|---|
| 1000W | Butt Welding | 0.5mm | 80~90 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely |
| Butt Welding | 1mm | 60~70 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 1.5mm | 40~50 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 2mm | 30~40 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| 1500W | Butt Welding | 0.5mm | 90~100 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely |
| Butt Welding | 1mm | 80~90 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 1.5mm | 60~70 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 2mm | 40~50 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 3mm | 30~40 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 4mm | 20~30 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| 2000W | Butt Welding | 0.5mm | 100~110 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely |
| Butt Welding | 1mm | 90~100 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 1.5mm | 70~80 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 2mm | 50~60 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 3mm | 40~50 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 4mm | 30~40 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| 3000W | Butt Welding | 0.5mm | 110~120 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely |
| Butt Welding | 1mm | 100~110 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 1.5mm | 90~100 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 2mm | 80~90 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 3mm | 70~80 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 4mm | 60~70 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 5mm | 40~50 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 6mm | 30~40 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| 6000W | Butt Welding | 0.5mm | 110~120 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely |
| Butt Welding | 1mm | 100~110 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 1.5mm | 90~100 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 2mm | 80~90 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 3mm | 70~80 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 4mm | 60~70 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 5mm | 50~60 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 6mm | 40~50 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely | |
| Butt Welding | 7mm | 30~40 mm/s | -1~1 | Ar | Coaxial/Paraaxial | 5~10 L/min | Welded Completely |
Compatible Stainless Steel Grades
- 201
- 202
- 301
- 302
- 303
- 304
- 304L
- 305
- 308
- 309
- 309S
- 309S
- 309S
- 309S
- 309S
- 316Ti
- 317
- 317
- 321
- 321H
- 347
- 347H
- 409
- 410
- 410S
- 416
- 420
- 420J2
- 430
- 434
- 436
- 439
- 440A
- 440B
- 440C
- 440C
- 446
- S31803 (Duplex 2205)
- S32750 (Super Duplex 2507)
- S904L (High Alloy Austenitic)

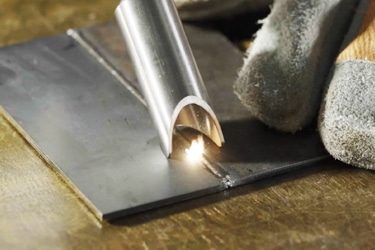

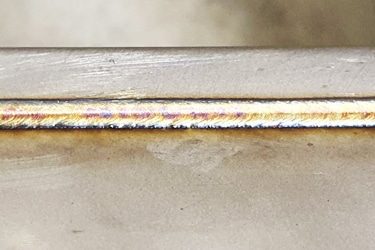

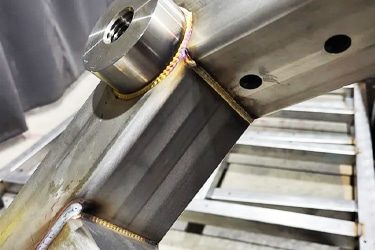

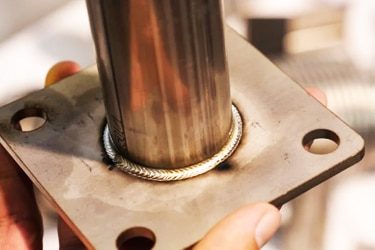

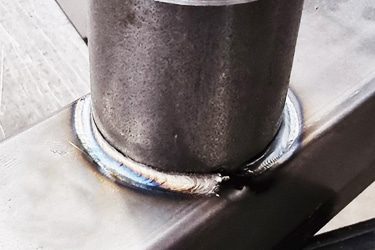

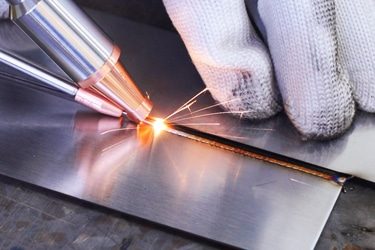

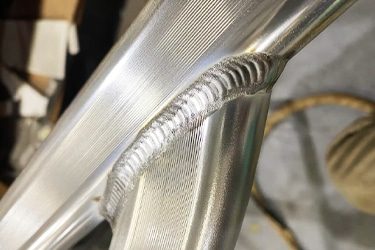

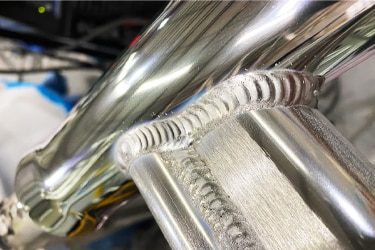

Application of Stainless Steel Laser Welding Machines
Stainless steel laser welding machines are widely used across industries where strength, cleanliness, and precision are critical. In the food and beverage industry, they are ideal for producing sanitary-grade piping, tanks, and equipment with smooth, crevice-free welds. In medical manufacturing, they enable the precise welding of surgical instruments, implants, and devices with minimal thermal distortion. The automotive and aerospace sectors use laser welding for stainless steel exhaust components, structural supports, and high-performance parts requiring lightweight durability and corrosion resistance. Electronics and appliance manufacturers benefit from the ability to weld thin stainless sheets and enclosures with high accuracy and a clean finish. These machines are also used in architectural fabrication, chemical processing, and marine applications where aesthetic appeal and resistance to harsh environments are essential. With compatibility for automation and robotic systems, stainless steel laser welding machines support both high-volume production and custom fabrication with consistent, high-quality results.
Customer Testimonials
Comparison VS Other Welding Technologies
| Comparison Item | Laser Welding | MIG Welding | TIG Welding | Stick Welding |
|---|---|---|---|---|
| Heat Affected Zone (HAZ) | Very Small | Moderate | Small | Large |
| Weld Speed | Very High | High | Low | Moderate |
| Weld Quality | Excellent (clean, smooth, no spatter) | Good (some spatter, possible discoloration) | Excellent (very clean) | Fair (rough finish) |
| Precision | Very High | Moderate | High | Low |
| Material Thickness Range | Thin to Medium | Medium to Thick | Very Thin to Medium | Medium to Thick |
| Post-Weld Cleaning Required | Minimal | Moderate | Low | High |
| Filler Material Requirement | Often not required | Required | Often required | Required |
| Automation Compatibility | Excellent (ideal for CNC/robotic systems) | Good | Moderate | Poor |
| Operator Skill Requirement | Moderate | Moderate | High | Low to Moderate |
| Welding on Thin Stainless Steel | Excellent | Poor (burn-through risk) | Excellent | Poor |
| Suitability for Complex Geometries | Excellent | Moderate | Good | Poor |
| Energy Efficiency | High | Moderate | Low | Low |
| Portability | Low (stationary systems) | Moderate | Moderate | High |
| Initial Equipment Cost | High | Moderate | Moderate | Low |
| Production Throughput | Very High | High | Low | Moderate |
Why Choose Us
AccTek Group is a professional manufacturer of laser welding machines, delivering precise, efficient, and reliable welding solutions for a wide range of industries. Our machines are designed to meet the growing demand for high-strength, low-distortion welding in applications such as sheet metal processing, automotive manufacturing, electronics, and aerospace. We combine advanced laser technology with user-friendly design to help businesses improve welding quality, reduce labor costs, and boost production efficiency. Whether you’re handling fine parts or large-scale components, our systems offer the flexibility and performance needed to meet modern manufacturing standards. With a strong focus on quality, innovation, and customer support, AccTek Group is your trusted partner for laser welding solutions.
High Precision
Our machines deliver accurate, clean welds with minimal heat input, reducing distortion and ensuring strong, consistent joints across a wide range of materials and thicknesses.
Easy Operation
Designed with intuitive controls and user-friendly interfaces, our systems allow both experienced operators and new users to achieve professional results with minimal training.
Durable & Reliable
Built with high-quality components and strict quality standards, our welding machines provide stable performance, long service life, and low maintenance requirements.
Custom Options
We offer a variety of models and customizable features to match specific production needs, helping businesses improve workflow and adapt to changing manufacturing demands.
Related Resources
What Materials Can Be Welded With Lasers?
2025-07-07
This article explores the wide range of materials that can be welded using lasers, covering metals, non-metals, composites, and key factors that affect weldability.
Laser Welding VS TIG Welding
2025-06-19
This article compares laser welding and TIG welding across key factors, including process, equipment, applications, costs, and suitability for various industries.
Laser Welding VS MIG Welding
2025-06-01
This article compares laser welding and MIG welding in terms of process, applications, cost, quality, and efficiency to help readers understand their key differences.
What Is Laser Welding?
2025-05-08
Explore the principles of laser welding, its benefits, applications, and how it compares to traditional welding methods. Learn how this advanced technology enhances precision and efficiency.
Frequently Asked Questions
What Are The Optional Powers Of Stainless Steel Laser Welding Machines?
Stainless steel laser welding machines are available in a range of power options to suit different material thicknesses, welding speeds, and production needs. Each power level offers specific advantages depending on the application, from fine sheet metal work to thick structural welds. Here are the most common power configurations:
- 1000W: Entry-level laser welding machines with 1000 watts of power are best suited for thin stainless steel, typically up to 2 mm in thickness.
- Ideal for sheet metal fabrication, kitchenware, and electronic enclosures
- Delivers precise, low-distortion welds
- Common in handheld systems and compact workshop units
- 1500W: A versatile power level for welding stainless steel up to about 3-4 mm thick.
- Balances penetration depth and speed
- Used in the manufacturing of appliance parts, sinks, cabinets, and automotive panels
- Suitable for both handheld and semi-automated laser welding systems
- 2000W: With improved penetration and faster travel speeds, 2000W lasers handle thicker stainless steel up to 4-5 mm.
- Ideal for more demanding industrial applications
- Delivers consistent welds on structural components and mid-gauge assemblies
- Performs well on both continuous and pulsed modes
- 3000W: Designed for heavy-duty welding tasks involving stainless steel up to 6 mm thick or more, depending on joint design.
- Enables deeper keyhole welds with fewer passes
- Suitable for automation, robotic arms, and high-speed production lines
- Common in machinery, construction equipment, and large-scale stainless steel structures
- 6000W: High-power systems capable of welding stainless steel beyond 6 mm in a single pass.
- Used in aerospace, marine, energy, and heavy fabrication industries
- Offers deep penetration, high stability, and fast cycle times
- Requires precise control to avoid overheating or distortion in thin sections
What Gases Are Used For Stainless Steel Laser Welding?
Laser welding stainless steel requires precise shielding to protect the weld pool from oxidation, contamination, and porosity. The choice of shielding gas directly affects weld quality, bead appearance, and penetration depth. Different gases are used depending on the welding method, material thickness, and desired finish. Here are the most commonly used gases for stainless steel laser welding:
- Argon: Argon is the most widely used shielding gas for stainless steel due to its inert nature and cost-effectiveness.
- Produces smooth, clean welds with minimal oxidation
- Suitable for both thin and medium-thickness stainless steel
- Helps maintain arc stability and prevents chromium loss from the weld zone
- Often used at flow rates between 10–20 L/min in handheld or automated systems
- Helium: Helium offers better thermal conductivity and deeper penetration than argon but comes at a higher cost.
- Ideal for thicker stainless steel sections or high-speed welding
- Provides a hotter arc and narrower weld bead
- Often mixed with argon (e.g., 75% Ar / 25% He) for balanced performance
- Useful for applications requiring deeper keyhole welds without filler
- Argon-Helium Mixtures: Gas mixtures combine the benefits of both argon and helium.
- Improves heat transfer and penetration while keeping costs manageable
- Commonly used in automated and robotic stainless steel welding setups
- Helps reduce undercutting and improves wetting in high-strength joints
- Nitrogen (Selective Use): Nitrogen can be used in some stainless steel grades, particularly austenitic types, to improve corrosion resistance.
- Helps retain nitrogen in the weld metal for better pitting resistance
- May not be suitable for all stainless types (e.g., martensitic or ferritic)
- Sometimes used in combination with argon for gas shielding or backing
- Forming or Backing Gas (Optional): For applications where both sides of the weld must remain clean, such as sanitary or food-grade stainless steel, backing gas is used.
- Typically, argon or nitrogen is supplied to the backside of the weld seam
- Prevents oxidation and discoloration on the root side of the joint
- Critical for applications requiring high visual or corrosion resistance standards
How Thick Can Stainless Steel Be Laser-Welded?
Stainless steel can be laser-welded across a range of thicknesses, depending on the power of the laser being used. Laser welding offers strong, clean, and precise joints, but achieving full penetration in thicker sections requires matching the right power level to the material.
- At 1000 watts, laser welding is best suited for stainless steel up to 2 mm thick. This low-power range is ideal for fine sheet metal work, such as kitchenware, enclosures, and precision components, where minimal distortion is critical.
- 1500-watt machines increase the welding capacity to about 4 mm, making them more suitable for medium-gauge stainless steel used in sinks, appliances, and structural brackets. The added power allows for faster travel speeds and stronger welds.
- 2000-watt lasers also handle stainless steel up to 4 mm, but with more consistent penetration and deeper fusion zones—especially beneficial in automated or high-speed production environments. They offer a wider process window for complex joints or varying part geometries.
- At 3000 watts, stainless steel up to 6 mm thick can be reliably welded in a single pass. This power level is commonly used in industrial fabrication, pressure vessels, and machine frames where joint integrity and throughput are both critical.
- 6000-watt systems are capable of welding stainless steel up to 7 mm thick, depending on joint design and beam focus. These high-power units are used for heavy-duty manufacturing, structural applications, and components that demand full-penetration welds with minimal post-processing.
What Are The Disadvantages Of Laser Welding Stainless Steel?
Laser welding is an efficient and precise method for joining stainless steel, but it comes with certain limitations that must be considered depending on the application. These disadvantages often arise from the focused heat source, the metallurgical behavior of stainless steel, and the equipment involved.
- High Equipment Cost: Laser welding systems—especially fiber lasers—are expensive to purchase, maintain, and operate.
- Initial setup costs are significantly higher than MIG or TIG systems
- Additional expenses include shielding gas, cooling units, and precision fixturing
- Typically justified only for high-volume or high-precision production environments
- Sensitive to Joint Fit-Up: Because laser beams are extremely narrow and focused, they require near-perfect alignment between welded parts.
- Loose or misaligned joints can lead to incomplete fusion or defects
- Precision machining or fixturing is needed to maintain tight tolerances
- Not ideal for parts with variable gaps or inconsistent edge quality
- Risk of Cracking or Distortion: While laser welding offers a low heat-affected zone, the rapid heating and cooling can still cause metallurgical issues in stainless steel.
- Thin stainless steel can warp if welding parameters are too aggressive
- Austenitic stainless steels may suffer from solidification cracking if the weld geometry is poorly managed
- Residual stress and hardening in the heat-affected zone may require post-weld stress relief
- Surface Reflectivity Challenges: Highly polished or reflective stainless steel surfaces can reflect the laser beam, especially at lower power levels or with poor focus.
- Reflection can reduce energy absorption, leading to inconsistent penetration
- May cause beam back-reflection that can damage optical components
- Surface preparation or coatings are sometimes needed to improve absorption
- Oxidation and Coloration: Without adequate shielding gas coverage, stainless steel welds are prone to oxidation and discoloration.
- Poor gas coverage can result in weld spatter, porosity, and compromised corrosion resistance
- Weld appearance may be affected, especially in decorative or sanitary applications
- In some cases, trailing gas or back shielding is required to maintain weld quality
What Are The Risks Of Laser Welding Stainless Steel?
Laser welding is a precise and efficient method for joining stainless steel, but it comes with several technical and safety risks that must be carefully managed. These risks stem from the high energy of the laser, the metallurgical properties of stainless steel, and the process environment.
- Thermal Distortion and Warping: Even though laser welding has a narrow heat-affected zone, stainless steel is sensitive to rapid heating and cooling.
- Thin sheets are especially prone to warping or bending
- Uneven cooling can lead to dimensional inaccuracies
- Distortion control requires optimized parameters and sometimes fixturing
- Cracking in Heat-Affected Zones: Certain stainless steel grades, particularly austenitic and martensitic types, can crack during or after welding.
- Hot cracking can occur due to high thermal stress or poor weld geometry
- Cold cracking may result from hardened structures forming during cooling
- Pre-weld and post-weld treatments may be needed for crack-prone alloys
- Surface Oxidation and Discoloration: Without sufficient shielding gas, laser-welded stainless steel can oxidize at the weld surface or root.
- Oxidation reduces corrosion resistance and weakens the protective chromium oxide layer
- Discoloration is a concern for visible or sanitary welds
- Inert gases like argon or helium must be applied consistently, and sometimes, back shielding is required
- Reflectivity Hazards: Stainless steel’s polished surface can reflect the laser beam, especially in fiber laser applications.
- Reflected energy may damage optics or pose eye hazards to operators
- Surface preparation or blackening may be needed to reduce reflection
- Proper machine shielding and safety interlocks are essential
- Fume and Particle Emissions: Laser welding stainless steel generates fine metal fumes and vaporized particles, some of which are hazardous.
- Hexavalent chromium (Cr⁶⁺), a byproduct of welding stainless steel, is toxic and carcinogenic
- Adequate fume extraction and operator protection are mandatory
- Personal protective equipment (PPE) and well-ventilated environments are critical
- Equipment Complexity and Safety Risks: Laser welding systems involve high-voltage components, powerful beams, and precision optics.
- Improper operation can lead to serious injury, eye damage, or fire
- Systems require trained personnel and strict safety protocols
- Maintenance must be handled with care to avoid misalignment or exposure to the beam
How To Deal With The Smoke Generated By Laser Welding Stainless Steel?
Laser welding stainless steel generates smoke, fumes, and vaporized metal particles, including potentially hazardous substances like chromium and nickel oxides. Proper smoke management is essential not only for operator safety but also to maintain weld quality and protect sensitive equipment like optics and sensors.
- Fume Extraction Systems: Installing a dedicated fume extraction system is the most effective way to remove smoke at the source.
- High-efficiency extraction hoods or arms should be placed near the weld zone
- Systems should include HEPA and activated carbon filters to capture fine particles and neutralize harmful gases
- Mobile or built-in extractors are available for both handheld and automated welding setups
- Local Ventilation and Airflow Control: Good airflow design prevents smoke buildup and keeps the work area clear.
- Use localized exhaust vents to pull fumes away from the operator and beam path
- Ensure the airflow direction does not disrupt the shielding gas coverage
- Avoid placing weld stations in dead air zones where fumes can accumulate
- Enclosed Welding Chambers: For automated or robotic laser welding, enclosed chambers with built-in ventilation provide controlled environments.
- Prevents the spread of fumes across the workspace
- Protects laser optics from contamination
- Allows safe recycling or filtering of extracted air
- Personal Protective Equipment (PPE): Operators must wear proper safety gear, especially when working near open laser welding stations.
- Use welding helmets with fume-rated respirators or air-fed systems
- Gloves, goggles, and flame-resistant clothing help protect against particle exposure
- Ensure all PPE complies with industrial safety standards (e.g., OSHA, EN, ISO)
- Routine Maintenance and Filter Replacement: Filters in extraction units lose effectiveness over time and must be maintained.
- Monitor airflow levels and pressure drop across filters
- Replace filters based on usage time or sensor alerts
- Clean or service ducts and extraction ports regularly to avoid clogs
How To Control The Heat Input Of Laser Welding Stainless Steel?
Laser welding stainless steel requires precise heat control to maintain strength, avoid warping, and preserve corrosion resistance. Stainless steel is sensitive to thermal damage, so regulating the heat input is essential to ensure a clean, strong weld. Here are the main ways to control heat during the welding process:
- Laser Power Settings: Laser power determines how much energy is delivered into the material. For stainless steel:
- 1000W-1500W is typically used for thin sheets up to 2-3 mm
- 2000W-6000W is suitable for thicker sections but requires careful tuning
- Excessive power can lead to overheating, discoloration, or burn-through
- Lowering power when possible minimizes the size of the heat-affected zone (HAZ)
- Welding Speed: Travel speed directly influences how much heat accumulates in one spot.
- Faster welding speeds reduce heat input and help prevent distortion
- Slower speeds increase penetration but risk overheating or warping
- The optimal speed balances weld depth with minimal thermal damage
- Focus Position and Beam Size: The focus point and spot diameter shape how concentrated the heat is on the workpiece.
- A sharp focus produces deeper welds but increases peak temperatures
- Slight defocusing spreads the heat and reduces intensity, ideal for thinner steel
- Adjusting focus depth can improve quality on multi-layer or uneven joints
- Pulse Settings (for Pulsed Lasers): Pulse control offers fine-grained control over energy delivery.
- Shorter pulses reduce total heat input while still achieving fusion
- Higher frequencies allow smoother welds without excess heat buildup
- Pulsed mode is effective for thin stainless parts or detailed work
- Shielding Gas Flow: Shielding gas affects both weld protection and thermal dynamics.
- Use argon or helium to prevent oxidation and manage heat dispersion
- Proper flow rates avoid cooling the weld zone too rapidly
- Turbulent or poorly directed gas can cause uneven cooling or weld defects
- Joint Design and Fit-Up: Good joint preparation minimizes unnecessary heat.
- Tightly fitted joints reduce energy loss and concentrate heat where needed
- Avoid large gaps or irregular edges that require excess energy to bridge
- Proper joint design helps maintain consistent weld quality and reduces HAZ size
What Shapes Of Stainless Steel Joints Can Be Welded by Laser?
Laser welding is highly effective for joining stainless steel and supports a range of joint shapes, each suited to different applications, material thicknesses, and design needs. The precision and narrow focus of the laser beam make it ideal for clean, consistent welds, but joint preparation and fit-up are critical to success. Here are the main types of joints that can be laser welded in stainless steel:
- Butt Joints: A common and efficient joint type where two flat pieces are aligned edge-to-edge.
- Ideal for thin to medium-thickness stainless steel
- Requires a tight fit-up with minimal gap
- Used in sheet metal fabrication, pipelines, and structural components
- Lap Joints: One workpiece overlaps the other, and the laser welds through the top layer into the bottom.
- Suitable for thin-gauge stainless steel
- Allows for slight misalignment without compromising weld quality
- Often used in enclosures, battery cells, and food-grade assemblies
- T-Joints: One piece is positioned perpendicular to another, forming a “T”
- Can be welded on one or both sides, depending on access and strength needs
- Used in frames, supports, and mechanical assemblies
- May require beam tilting or oscillation to ensure deep penetration
- Corner Joints: Two sheets meet at an external angle, typically forming the outer edge of a box or frame.
- Common in stainless steel cabinetry, boxes, and ducts
- Often welded from the outside to create a clean, continuous seam
- The beam angle and focus must be adjusted for full fusion
- Edge Joints: The edges of two pieces are aligned side by side and joined with a weld along their shared edge.
- Mainly used for very thin stainless steel sheets
- Requires careful alignment and usually full penetration welds
- Less common in structural applications, more suited for lightweight assemblies
- Flange and Seam Joints: These involve narrow, formed sections joined continuously along a seam.
- Used in round or tubular components like exhaust systems and tanks
- Continuous or stitch welding patterns may be used
- Best handled with automated or robotic laser systems for consistent tracking
Get Stainless Steel Welding Solutions
Achieve superior results with our stainless steel laser welding machines, engineered to deliver unmatched precision and quality. Designed for high-performance applications, these machines are perfect for welding stainless steel in industries such as aerospace, automotive, and medical device manufacturing. With advanced laser technology, they offer precise, clean welds with minimal heat distortion, ensuring a smooth, aesthetically pleasing finish.
Our machines are built to handle both thin and thick stainless steel materials, offering excellent control over heat input and weld depth. This makes them ideal for complex and delicate projects where consistency is critical. The laser welding process reduces the need for post-weld finishing, saving time and cutting costs on production.
With customizable settings and automated options, our stainless steel laser welding machines offer flexibility for various production needs. Whether you’re tackling small-scale prototypes or large-scale production runs, our solutions guarantee efficiency, reliability, and long-term durability for all your stainless steel welding projects.
* We value your privacy. AccTek Group is committed to protecting your personal information. Any details you provide when submitting the form will be kept strictly confidential and used only to assist with your inquiry. We do not share, sell, or disclose your information to third parties. Your data is securely stored and handled by our privacy policy.
