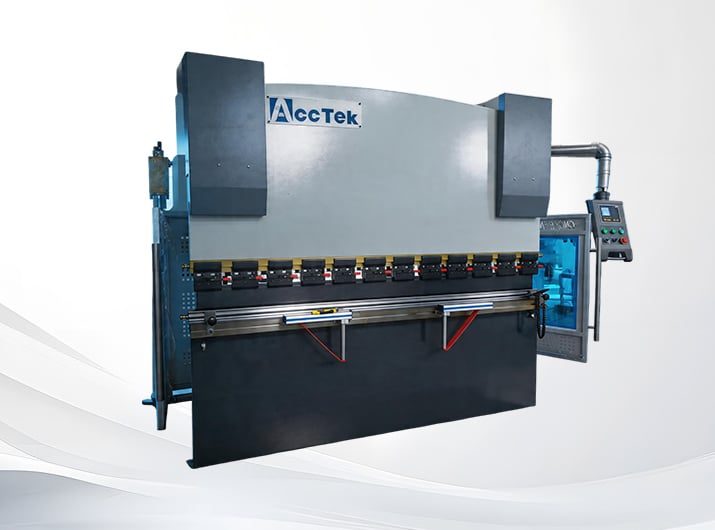

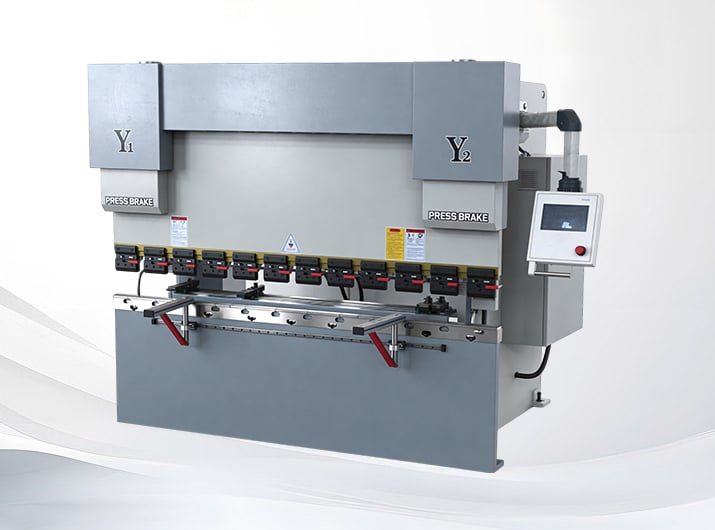

The machine is built with a robust, high-strength steel frame designed to withstand heavy loads and ensure stability during operation. The frame is engineered to minimize deflection under load, providing a solid base for the bending process.

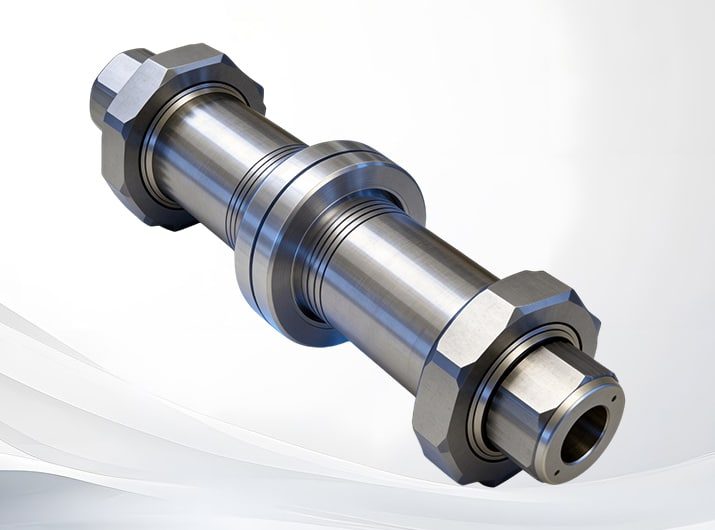

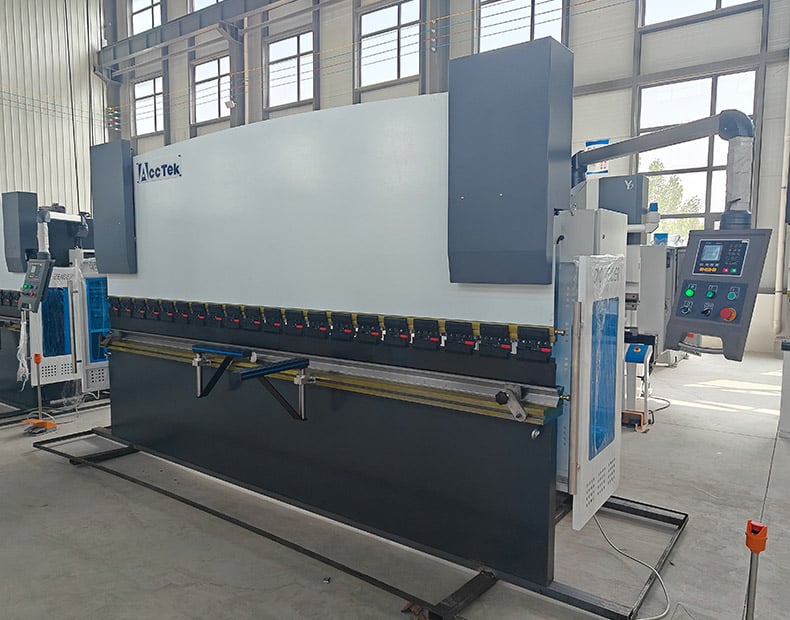

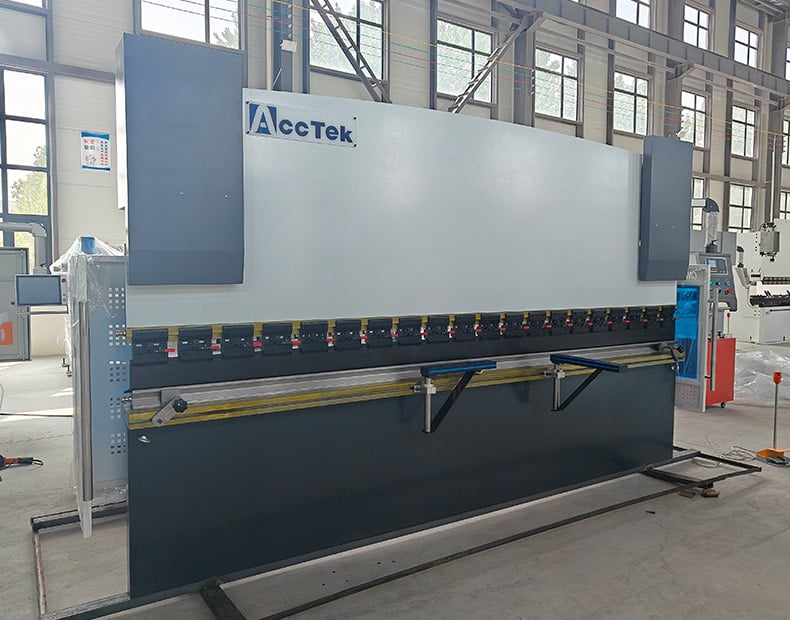

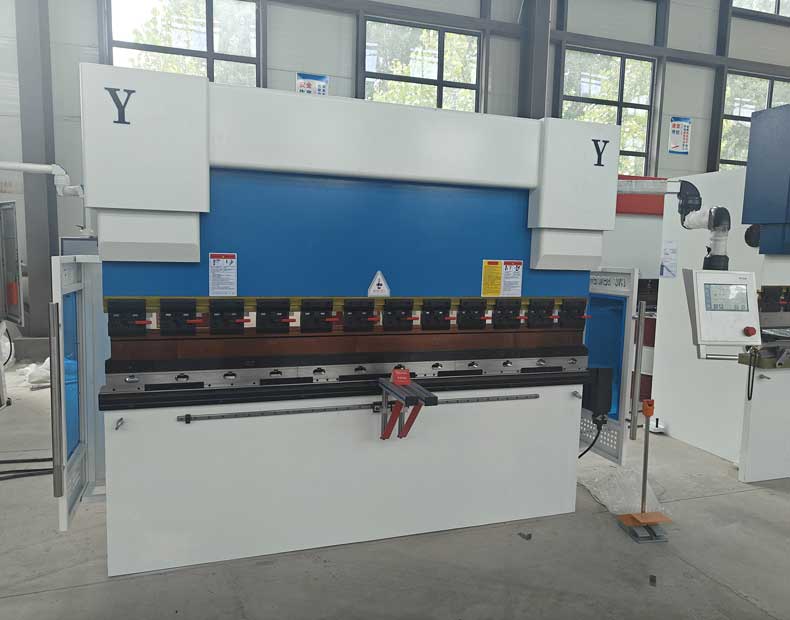

At the heart of the Torsion Axis CNC Press Brake is the innovative torsion-axis drive, which ensures uniform pressure across the entire length of the machine’s work area. This mechanism is designed to compensate for distortion or deflection during bending, resulting in more precise and consistent bends, particularly in thick or high-strength materials.

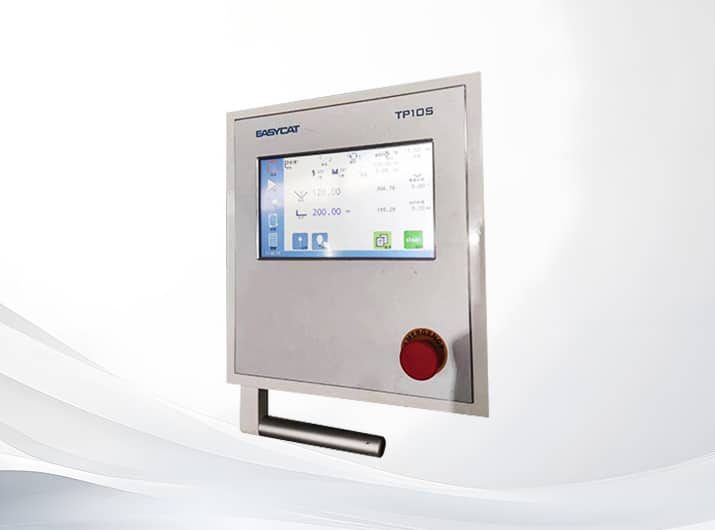

The TP10S control system is designed for ease of use. It supports various bending functions like angle setting, tool position adjustment, and automatic compensation for material thickness variations. Operators can program bending sequences, adjust for tool wear, and access pre-set bending libraries.

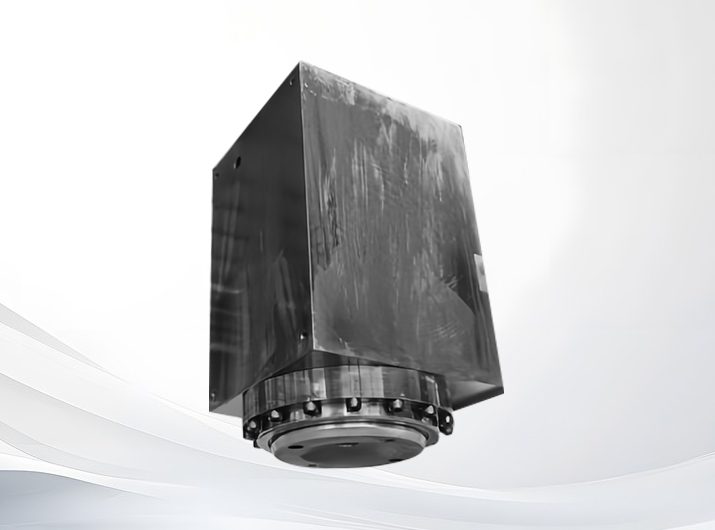

The Torsion Axis CNC Press Brake Machine typically uses a hydraulic system to provide the necessary force for bending. The hydraulic pressure is controlled by the CNC system to precisely manage the force applied to the material during each bend. The hydraulic components are carefully calibrated to ensure smooth, controlled operation with minimal risk of overloading or inaccuracies.

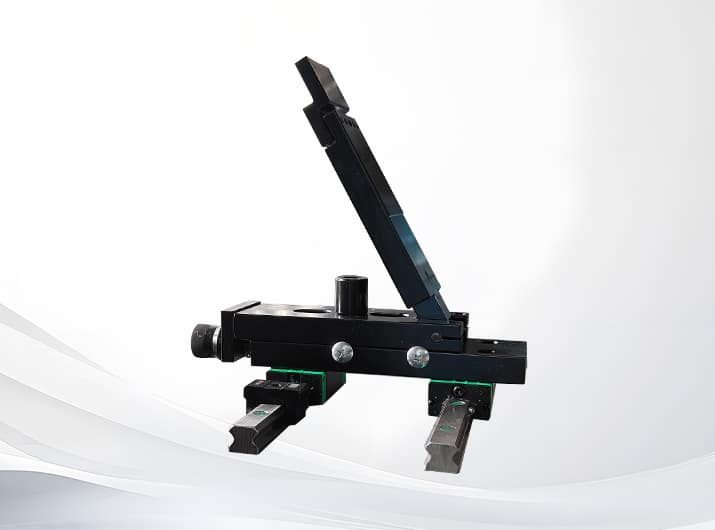

The machine includes an adjustable backgauge, which positions the material accurately during the bending process. The CNC-controlled backgauge can be programmed to move along the X and Z axes, providing flexibility in material placement and allowing for precise bending of parts with varying dimensions.

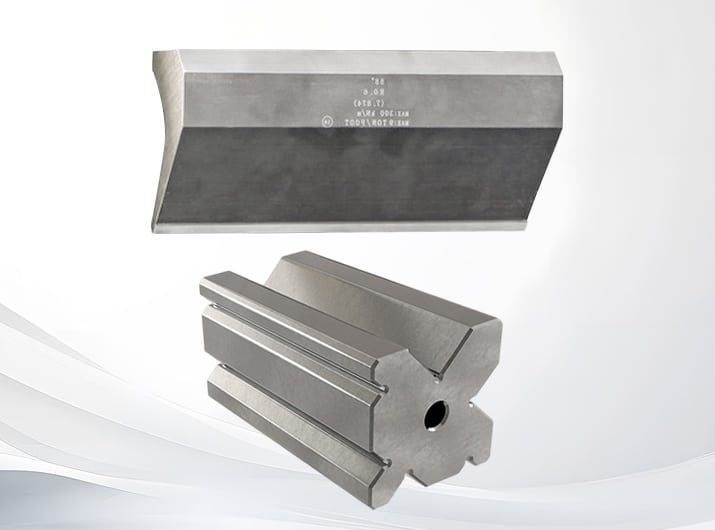

The machine uses a variety of punches and die sets depending on the material type and bending requirements. The tooling system is designed for quick and easy setup. Tooling can be adjusted based on the material thickness and bending angle, ensuring flexibility for different applications.

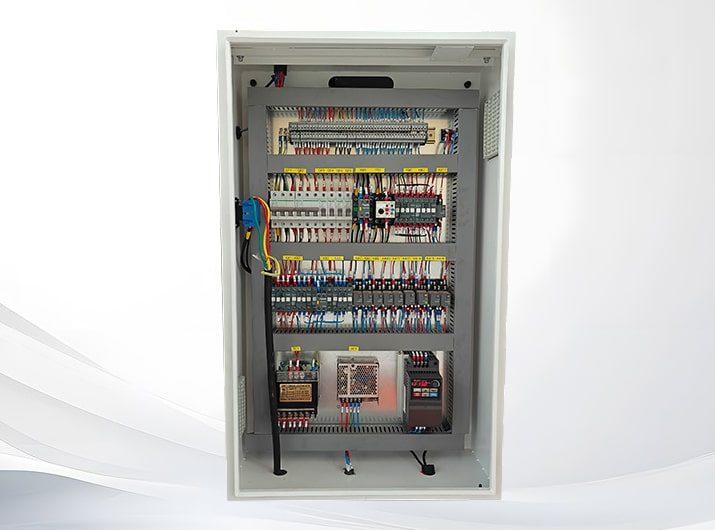

Wiring: High-quality wiring ensures stable power delivery to the CNC system, motors, and hydraulic units. The control panel houses the main electrical components and interfaces with the TP10S control system for easy access and diagnostics.

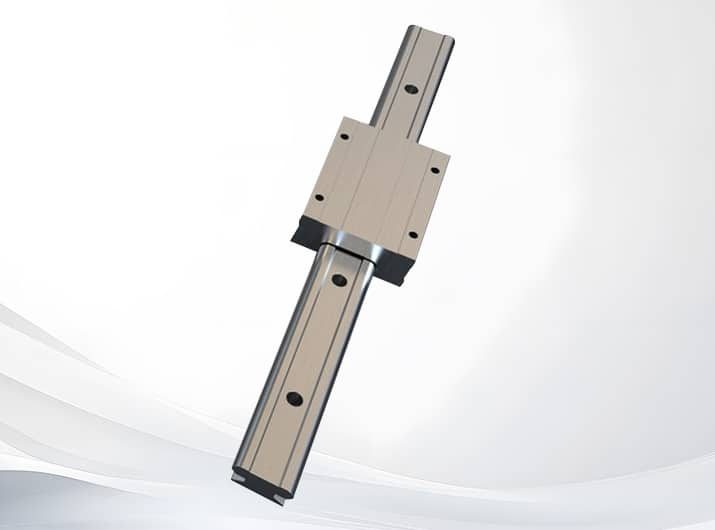

Made with high-quality materials like stainless steel or hardened steel, linear guides are highly durable and can withstand heavy loads and frequent motion cycles. They are used to support and guide moving parts, providing smooth and precise linear motion in CNC press brakes.
| Model | WC67K-30T | WC67K-40T | WC67K-63T | WC67K-80T | WC67K-100T | WC67K-125T | WC67K-160T | WC67K-200T | WC67K-250T | WC67K-300T | WC67K-400T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Bending Pressure | 300KN | 400KN | 630KN | 800KN | 1000KN | 1250KN | 1600KN | 2000KN | 2500KN | 3000KN | 4000KN |
| Working Length | 1600mm | 1600mm | 2500mm | 2500mm | 2500mm | 2500mm | 2500mm | 2500mm | 3200mm | 3200mm | 3200mm |
| Optional Length | 2000mm | 3200mm | 3200mm | 3200mm | 3200mm | 3200mm | 4000mm | 4000mm | 4000mm | ||
| Optional Length | 2500mm | 4000mm | 4000mm | 4000mm | 4000mm | 6000mm | 6000mm | 6000mm | |||
| Optional Length | 6000mm |

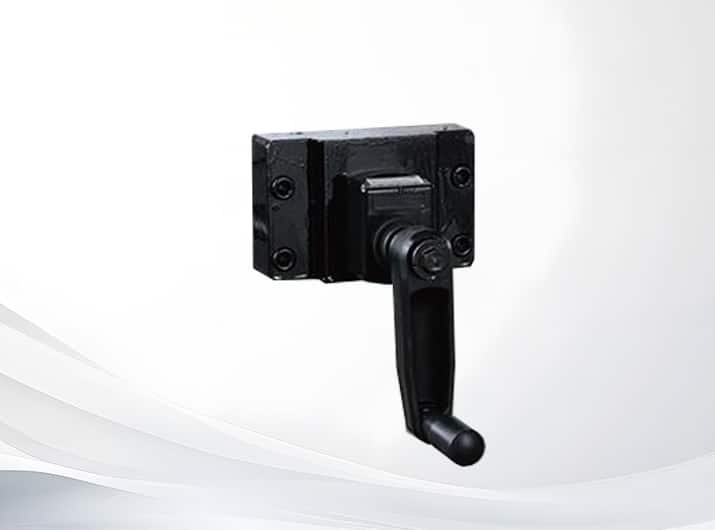

A manual mechanical crowning table is designed to compensate for the natural deflection of the press brake’s bed during the bending process, ensuring uniform pressure distribution across the entire length of the material. Operators can manually adjust the crowning system to compensate for bed deflection by turning a screw or knob at both ends of the table. This allows for precise control over the amount of compensation applied.
A motorized mechanical crowning table automates the process of compensating for bed deflection, providing more accurate and consistent results compared to manual adjustment. The motorized system automatically adjusts the crowning mechanism as needed during the bending process, based on real-time factors like material thickness, length, and force applied.

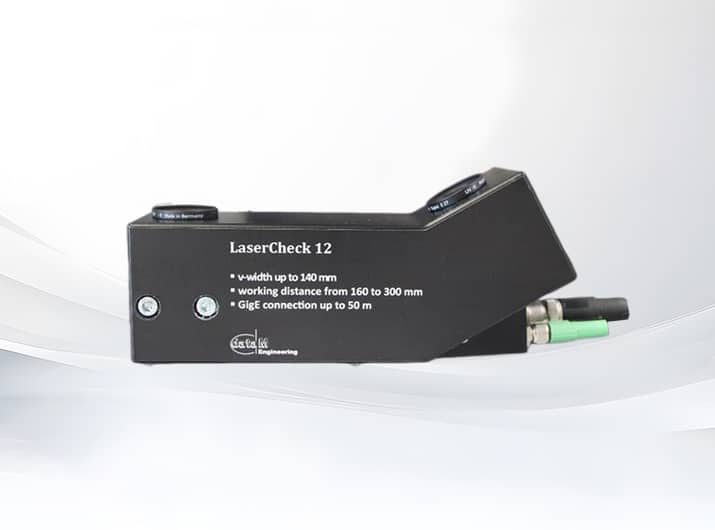

The use of a laser angle measurement system can ensure a stable workpiece bending angle and improve the efficiency and stability of automatic machining.

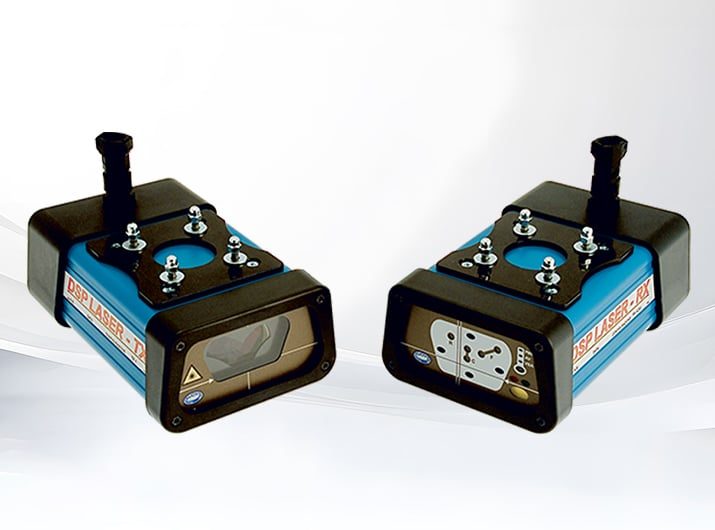

Provide comprehensive protection for the operator in a place close to the workpiece.
Our CNC press brake machines feature advanced CNC controllers, precision back gauge systems, and stable hydraulic components to deliver accurate bending angles and repeatable results across demanding production environments.
Every machine is built with a reinforced steel frame and high-quality mechanical components, providing excellent stability, reduced vibration, and reliable long-term performance during continuous industrial operation.
Our machines are equipped with user-friendly CNC systems that simplify programming, improve operational efficiency, reduce setup time, and help operators complete complex bending tasks more accurately.
AccTek Group provides professional installation guidance, operator training, remote technical assistance, and responsive after-sales service to ensure your CNC press brake machine operates efficiently and reliably.
The machine can bend a wide variety of metal materials, including carbon steel, stainless steel, aluminum, galvanized sheets, and copper. The bending capacity depends on the machine’s tonnage, working length, and tooling configuration.
Torsion-axis press brakes provide moderate precision and excellent repeatability for standard manufacturing tasks. For industries requiring ultra-high precision and multi-axis control, an electro-hydraulic servo press brake may be more suitable.
Machine selection mainly depends on the thickness, length, and type of metal you plan to bend. Buyers should consider factors such as bending force (tonnage), working table length, throat depth, and future production requirements before choosing a model.
Routine maintenance includes checking hydraulic oil levels, lubricating moving components, inspecting electrical connections, cleaning tooling surfaces, and monitoring hydraulic seals and hoses. Regular maintenance helps extend machine life and maintain bending accuracy.
Yes. Although torsion-axis press brakes are relatively easy to operate, proper training is important for safe operation, accurate bending, and efficient machine use. Most manufacturers provide operation manuals, training videos, or technical support.
Yes. AccTek offers optional configurations such as different CNC controllers, upgraded backgauge systems, quick clamps, laser protection systems, motorized crowning tables, and additional axis controls based on customer requirements.
Our CNC press brake machine package includes comprehensive technical support options designed to ensure smooth operation and help you maximize machine efficiency. We offer:
Both support options are aimed at helping you achieve the best possible results with your machine. Please let us know if you’d like further details or if you’re interested in arranging on-site training.
AccTek torsion axis CNC press brake machine is supplied with standard upper punches and lower dies. Optional tooling for special bending applications, different material thicknesses, or custom profiles can also be provided according to production requirements.
