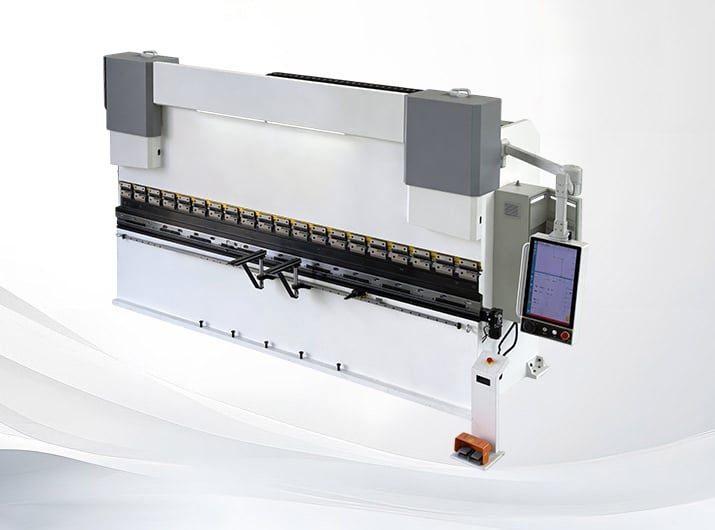

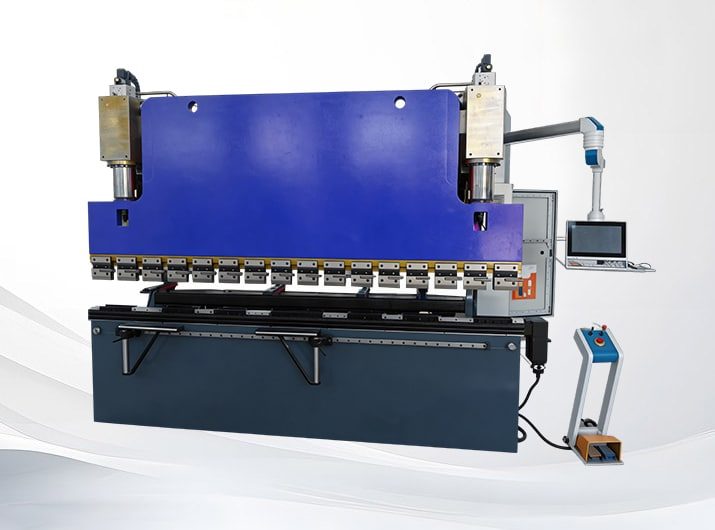

The machine is built with a robust, high-strength steel frame designed to withstand heavy loads and ensure stability during operation. The frame is engineered to minimize deflection under load, providing a solid base for the bending process.
Unlike traditional hydraulic systems, the electro-hydraulic servo drive applies force more precisely and consumes less energy. The system uses a servo motor to control the hydraulic pump, enabling smooth acceleration and deceleration during bends. This not only improves bending accuracy but also reduces wear on components and provides quieter operation, enhancing both durability and workplace comfort.

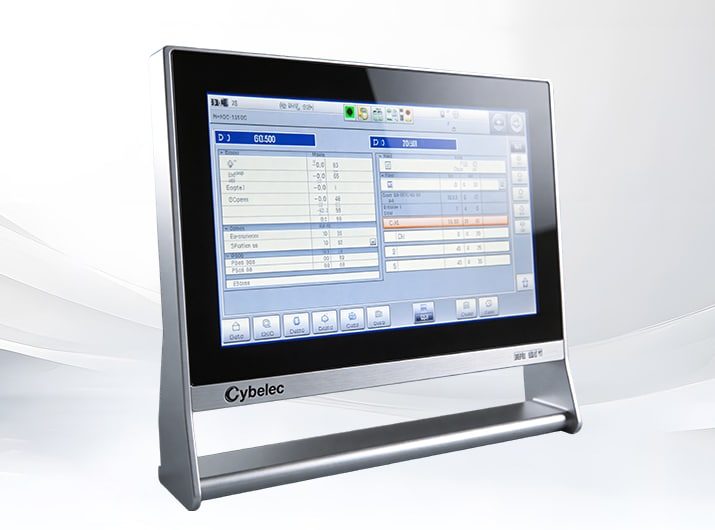

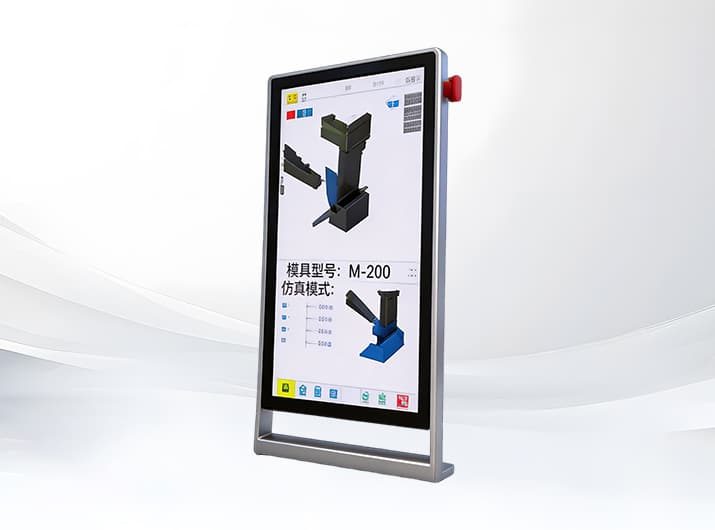

It is a high-performance CNC control solution designed for advanced press brakes. It offers precise multi-axis back gauge control, programmable bending sequences, and real-time angle correction, ensuring consistent and accurate bending across complex parts. Renowned for its reliability and responsiveness, it provides the control and precision needed for high-volume, high-accuracy production in demanding industrial environments.
The machine is equipped with two movable front support arms. Depending on the workpiece length, these arms can be manually positioned along linear guides and secured to facilitate material feeding. Featuring both rotational and height-adjustment capabilities, the arms are designed to avoid interference during bending, thereby assisting and optimizing your bending operations.
The machine includes an adjustable backgauge, which positions the material accurately during the bending process. The CNC-controlled backgauge can be programmed to move along the X and Z axes, providing flexibility in material placement and allowing for precise bending of parts with varying dimensions.
The machine is compatible with standard V-dies and punches, allowing users to execute a variety of bend angles and profiles. Optional custom tooling can further extend capabilities for specialized production, making it versatile for different materials and product designs.
Wiring: High-quality wiring ensures stable power delivery to the CNC system, motors, and hydraulic units. The control panel houses the main electrical components and interfaces with the TP10S control system for easy access and diagnostics.
Made with high-quality materials like stainless steel or hardened steel, linear guides are highly durable and can withstand heavy loads and frequent motion cycles. They are used to support and guide moving parts, providing smooth and precise linear motion in CNC press brakes.
| Model | WE67K-50T | WE67K-70T | WE67K-80T | WE67K-110T | WE67K-130T | WE67K-170T | WE67K-220T | WE67K-250T | WE67K-300T | WE67K-400T | WE67K-500T | WE67K-600T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bending Pressure | 500KN | 700KN | 800KN | 1100KN | 1300KN | 1700KN | 2200KN | 2500KN | 3000KN | 4000KN | 5000KN | 6000KN |
| Working Length | 1600mm | 1600mm | 2500mm | 2500mm | 2500mm | 3200mm | 3200mm | 3200mm | 3200mm | 3200mm | 3200mm | 3200mm |
| Optional Length | 2500mm | 3200mm | 3200mm | 4000mm | 4000mm | 4000mm | 4000mm | 4000mm | 4000mm | 4000mm | ||
| Optional Length | 4000mm | 4000mm | 6000mm | 6000mm | 6000mm | 6000mm | 6000mm | 6000mm |
The use of a laser angle measurement system can ensure a stable workpiece bending angle and improve the efficiency and stability of automatic machining.
Provide comprehensive protection for the operator in a place close to the workpiece.
Offers 3D file import, automatic sorting, and interference detection.
With an intuitive interface and memory storage for frequently used programs, the SCS700 simplifies workflow while maintaining consistent bending quality.
Our CNC press brake machines feature advanced CNC controllers, precision back gauge systems, and stable hydraulic components to deliver accurate bending angles and repeatable results across demanding production environments.
Every machine is built with a reinforced steel frame and high-quality mechanical components, providing excellent stability, reduced vibration, and reliable long-term performance during continuous industrial operation.
Our machines are equipped with user-friendly CNC systems that simplify programming, improve operational efficiency, reduce setup time, and help operators complete complex bending tasks more accurately.
AccTek Group provides professional installation guidance, operator training, remote technical assistance, and responsive after-sales service to ensure your CNC press brake machine operates efficiently and reliably.
The machine can bend a wide variety of metal materials, including carbon steel, stainless steel, aluminum, galvanized sheets, and copper. The bending capacity depends on the machine’s tonnage, working length, and tooling configuration.
Machine selection mainly depends on the thickness, length, and type of metal you plan to bend. Buyers should consider factors such as bending force (tonnage), working table length, throat depth, and future production requirements before choosing a model.
Regular maintenance includes checking hydraulic oil levels, lubricating moving parts (including the ball screws), and keeping the work area clean. The electro-hydraulic servo system requires minimal maintenance compared to traditional hydraulic systems.
Yes. Although electro-hydraulic servo press brakes are relatively easy to operate, proper training is important for safe operation, accurate bending, and efficient machine use. We provide operation manuals, training videos, or technical support.
Yes. AccTek offers optional configurations such as different CNC controllers, upgraded backgauge systems, quick clamps, laser protection systems, motorized crowning tables, and additional axis controls based on customer requirements.
Our CNC press brake machine package includes comprehensive technical support options designed to ensure smooth operation and help you maximize machine efficiency. We offer:
Both support options are aimed at helping you achieve the best possible results with your machine. Please let us know if you’d like further details or if you’re interested in arranging on-site training.
AccTek electro-hydraulic servo CNC press brake machine is supplied with standard upper punches and lower dies. Optional tooling for special bending applications, different material thicknesses, or custom profiles can also be provided according to production requirements.
Absolutely. The motorized back gauge and programmable CNC system allow high-volume batch production with repeatable accuracy, reducing setup times and minimizing errors.
