Product Introduction

Aluminum laser welding machines are precision-engineered systems designed to tackle the unique challenges of welding aluminum and its alloys. Aluminum’s high thermal conductivity and low melting point make it difficult to weld using traditional methods, often resulting in distortion, cracking, or weak joints. Laser welding solves these issues by using a concentrated beam of energy to create deep, narrow welds with minimal heat input. These machines offer fast, clean, and highly accurate welds on a wide range of aluminum grades and thicknesses, from thin sheets used in electronics and enclosures to structural components in aerospace, automotive, and marine industries. Advanced control features enable precise parameter adjustments to match different alloy properties, minimizing porosity and ensuring consistent quality. Aluminum laser welding machines are compatible with automation and robotic systems, making them ideal for high-volume production environments. They also reduce the need for filler material and post-weld cleanup, improving overall efficiency. Whether you’re fabricating EV battery housings, lightweight frames, or precision enclosures, these machines provide the strength, speed, and repeatability required for modern aluminum manufacturing.

Types of Aluminum Laser Welding Machines

Welding Thickness Reference

Laser Power Welding Form Thickness Welding Speed Defocus Amount Protective Gas Blowing Method Flow Welding Effect
1000W Butt Welding 0.5mm 70~80 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 1mm 50~60 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 1.5mm 30~40 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 2mm 20~30 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
1500W Butt Welding 0.5mm 80~90 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 1mm 70~80 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 1.5mm 50~60 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 2mm 30~40 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 3mm 10~20 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
2000W Butt Welding 0.5mm 90~100 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 1mm 80~90 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 1.5mm 70~80 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 2mm 40~50 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 3mm 20~30 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
3000W Butt Welding 0.5mm 100~110 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 1mm 90~100 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 1.5mm 80~90 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 2mm 70~80 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 3mm 40~50 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 4mm 20~30 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
6000W Butt Welding 1mm 110~120 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 1.5mm 100~110 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 2mm 90~100 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 3mm 80~90 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 4mm 70~80 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 5mm 40~50 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 6mm 20~30 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely

Compatible Aluminum Grades

  • 1050
  • 1060
  • 1070
  • 1100
  • 1145
  • 1235
  • 1350
  • 2011
  • 2014
  • 2024
  • 2219
  • 3003
  • 3004
  • 3004
  • 3105
  • 5005
  • 5050
  • 5052
  • 5056
  • 5083
  • 5086
  • 5154
  • 5182
  • 5251
  • 5454
  • 5754
  • 6010
  • 6060
  • 6061
  • 6063
  • 6106
  • 6181
  • 6201
  • 6262
  • 7005
  • 7050
  • 7072
  • 7075
  • 7475
  • 8011

Application of Aluminum Laser Welding Machines

Aluminum laser welding machines are widely used in industries where lightweight, high-strength, and corrosion-resistant components are essential. In the automotive and electric vehicle sectors, they are ideal for welding battery enclosures, structural frames, heat exchangers, and lightweight body parts. Aerospace manufacturers rely on laser welding for fuel tanks, wing panels, and internal structures where precision and minimal heat distortion are critical. In the electronics industry, these machines are used for assembling aluminum casings, connectors, and heat sinks with fine tolerances and clean aesthetics. The marine sector uses laser welding for hull components and brackets where resistance to saltwater corrosion is key. These machines are also popular in manufacturing aluminum doors, windows, piping systems, and frames in construction. Thanks to their high speed, accuracy, and compatibility with robotic automation, aluminum laser Welding Machines are a go-to solution for both high-volume production and precision fabrication in demanding environments.

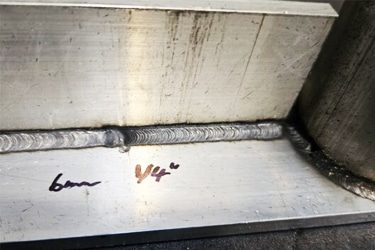

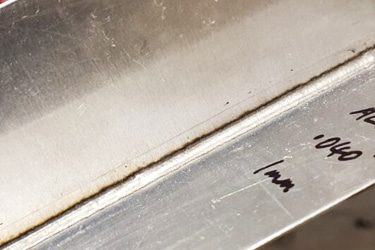

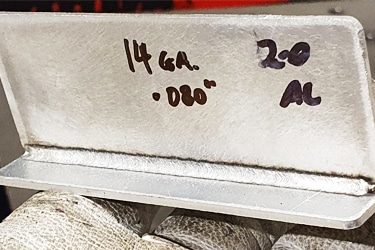

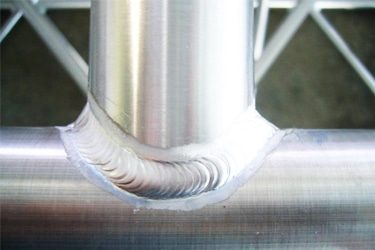

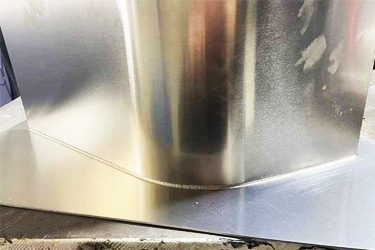

Aluminum Laser Welding Sample
Aluminum Laser Welding Sample
Aluminum Laser Welding Sample
Aluminum Laser Welding Sample
Aluminum Laser Welding Sample
Aluminum Laser Welding Sample
Aluminum Laser Welding Sample
Aluminum Laser Welding Sample

Customer Testimonials

This machine handles aluminum better than any system we’ve used before. The welds are strong and clean, even on thin material. We used to struggle with burn-through and inconsistent seams, but that’s no longer an issue. Setup was easy, and the learning curve for operators was short. Our production speed has improved without sacrificing quality. It's also helped us cut down on extra steps like grinding and polishing. One of the smartest purchases we’ve made this year.
TravisWelding Line Manager
Welding aluminum used to be one of our biggest challenges. This laser welding machine changed that. The results are smooth, the bead is solid, and we don’t have to babysit the process. It handles both thin and thick sections well without overheating or distortion. The interface is simple, which makes daily use stress-free. We’ve already noticed better customer satisfaction thanks to the clean finish. The machine runs reliably even during long production runs. Couldn’t ask for better performance at this level.
NatalieFabrication Supervisor
This machine has been a huge upgrade for our aluminum welding department. The weld quality is excellent—very little warping and strong penetration. We use it for frames and housings, and it hasn’t missed a beat. Maintenance has been easy, and the machine hasn’t needed any major adjustments since day one. It gives consistent results across all our product sizes. Training our team took very little time, which helped with a smooth transition. It’s fast, clean, and built for real-world use.
CarlosSenior Assembly Technician
We do a lot of custom work in aluminum, and this laser welding machine gives us the control we need. The welds are precise and require almost no finishing. For parts that need to look good and hold up under stress, this machine delivers. It’s efficient too—we’ve cut down on production time across several product lines. Even with back-to-back jobs, there’s no drop in performance. It’s a dependable tool that helps us maintain high standards while staying on schedule.
BriannaCustom Parts Specialist
I’ve worked with plenty of welding equipment, and this machine stands out for aluminum. It gives smooth, consistent welds that don’t crack or pit. The weld penetration is just right, and we haven’t had any issues with heat distortion. It also uses less power than our older units. We were up and running in no time, and the team quickly got comfortable with the controls. It’s reliable and solidly built—exactly what we needed for production work.
MalcolmTooling Engineer
We brought this unit in to improve speed on aluminum panel jobs, and it’s done more than that. The surface finish is excellent, and there’s almost no spatter. That saves us a lot of cleanup time. Operators like how easy it is to set up and adjust, even on different material thicknesses. It also runs quietly, which makes the work area more comfortable. The improvement in efficiency and quality was noticeable right away. This has been a strong addition to our welding setup.
KaylaLead Production Planner

Comparison VS Other Welding Technologies

Comparison Item Laser Welding MIG Welding TIG Welding Stick Welding
Heat Input Low (minimal distortion) Moderate Low to Moderate High (risk of burn-through)
Weld Speed Very High High Low Moderate
Precision Very High Moderate High Low
Weld Cleanliness Excellent (no spatter, minimal oxidation) Fair (some spatter, oxidation) Excellent Poor (slag, rough)
Thin Material Capability Excellent Poor (burn-through likely) Excellent Poor
Filler Material Requirement Often not required Required Often required Required
Post-Weld Cleanup Minimal Moderate to High Low High
Porosity Control Good with proper settings Moderate (prone to porosity) Good Poor
Joint Appearance Smooth, narrow, aesthetically clean Acceptable Excellent Rough
Weld Strength High (if properly configured) High High Moderate
Automation Compatibility Excellent (ideal for robotic systems) Good Moderate Poor
Production Throughput Very High High Low Moderate
Operator Skill Requirement Moderate (automated systems available) Moderate High Low to Moderate
Initial Equipment Cost High Moderate Moderate Low
Operating Cost Low (efficient, minimal consumables) Moderate High (slower, more gas use) Low

Why Choose Us

AccTek Group is a professional manufacturer of laser welding machines, delivering precise, efficient, and reliable welding solutions for a wide range of industries. Our machines are designed to meet the growing demand for high-strength, low-distortion welding in applications such as sheet metal processing, automotive manufacturing, electronics, and aerospace. We combine advanced laser technology with user-friendly design to help businesses improve welding quality, reduce labor costs, and boost production efficiency. Whether you’re handling fine parts or large-scale components, our systems offer the flexibility and performance needed to meet modern manufacturing standards. With a strong focus on quality, innovation, and customer support, AccTek Group is your trusted partner for laser welding solutions.

High Precision

Our machines deliver accurate, clean welds with minimal heat input, reducing distortion and ensuring strong, consistent joints across a wide range of materials and thicknesses.

Easy Operation

Designed with intuitive controls and user-friendly interfaces, our systems allow both experienced operators and new users to achieve professional results with minimal training.

Durable & Reliable

Built with high-quality components and strict quality standards, our welding machines provide stable performance, long service life, and low maintenance requirements.

Custom Options

We offer a variety of models and customizable features to match specific production needs, helping businesses improve workflow and adapt to changing manufacturing demands.

Related Resources

Does Laser Welding Require Gas

Does Laser Welding Require Gas?

2025-08-12

This article explores the role of shielding gas in laser welding, covering when it’s required, different gas types, delivery methods, material-specific needs, and best practices.

What Are The Hazards of Laser Welding

What Are The Hazards of Laser Welding?

2025-07-25

This article explores the various hazards of laser welding, including radiation, fumes, electrical risks, and safety standards, with detailed insights and prevention strategies.

Laser Welding VS TIG Welding

Laser Welding VS TIG Welding

2025-06-19

This article compares laser welding and TIG welding across key factors, including process, equipment, applications, costs, and suitability for various industries.

Frequently Asked Questions

What Are The Optional Powers Of Aluminum Laser Welding Machines?
Aluminum laser welding machines are available in a range of power levels, each tailored to specific application needs such as speed, joint type, and automation requirements. Because aluminum has high reflectivity and thermal conductivity, laser welding it requires precise control and matching the right power level to the job.

  • 1000W Laser Welding Machines: This entry-level power setting is ideal for light-duty fabrication and precision welding tasks.
  1. Commonly used for enclosures, electronics, and small brackets
  2. Delivers clean, narrow seams with low heat input
  3. Requires good joint fit-up and clean surfaces for best results
  • 1500W Laser Welding Machines: A balanced choice for many industrial applications requiring moderate weld strength and efficiency.
  1. Suitable for automotive panels, appliance housings, and architectural components
  2. Often paired with wobble welding heads for better weld formation
  3. Offers faster travel speeds and more consistent results than lower-power units
  • 2000W Laser Welding Machines: Provides strong, stable performance for general-purpose aluminum welding.
  1. Frequently used in automated systems and high-throughput production lines
  2. Compatible with a wide range of aluminum alloys, including structural grades
  3. Capable of both pulsed and continuous welding modes
  • 3000W Laser Welding Machines: Designed for more demanding fabrication needs, where deeper fusion and higher travel speeds are required.
  1. Common in industrial equipment manufacturing, transport systems, and large frames
  2. Works well with robotic systems for high-precision multi-axis welding
  3. Requires precise gas shielding and beam control
  • 6000W Laser Welding Machines: High-power systems built for advanced, high-volume manufacturing environments.
  1. Used in aerospace, marine, and defense industries
  2. Supports complex weld paths and thicker assemblies
  3. Requires advanced optics, cooling systems, and operator expertise

Aluminum laser welding machines are offered in 1000W, 1500W, 2000W, 3000W, and 6000W power levels, each serving specific use cases across industries. Selecting the appropriate power level ensures a balance between welding speed, joint integrity, and production efficiency while maintaining control over heat input and weld quality.
Laser welding aluminum requires high precision and power, especially due to the metal’s high reflectivity and rapid heat conduction. Unlike steel, aluminum reflects much of the laser beam and dissipates heat quickly, making deep penetration more difficult. The maximum weldable thickness depends directly on the laser power being used, along with factors like joint fit-up, shielding gas, and beam control.

  • At 1000 watts, lasers can typically weld aluminum up to 2 mm thick. This range is ideal for thin sheet metal applications such as enclosures, brackets, and lightweight covers, where minimal heat input and precise control are important.
  • With 1500W or 2000W, aluminum thickness up to 3 mm can be reliably welded. These power levels are commonly used in automotive bodywork, appliance panels, and general-purpose aluminum components that require moderate strength and clean seams.
  • Increasing to 3000 watts allows for welding aluminum up to 4 mm thick. This power range is suitable for more demanding structural applications, such as transportation parts or medium-duty machine frames. At this level, maintaining beam focus and controlling the heat input become more critical to avoid porosity or burn-through.
  • At the highest range, 6000-watt laser welding machines can handle aluminum sections up to 7 mm thick. These systems are typically used in industrial and aerospace settings where full penetration and structural integrity are essential. With the right shielding gas (often helium or helium-argon mixtures), tight joint tolerances, and clean surfaces, thick aluminum can be welded efficiently and with high mechanical strength.

Laser welding machines can join aluminum at thicknesses ranging from 2 mm with 1000W systems to 7 mm with 6000W equipment. As the material thickness increases, higher power and more precise control are required to ensure consistent penetration, avoid weld defects, and maintain the structural quality of the joint.
Laser welding aluminum presents a unique challenge due to its highly reflective surface, especially at room temperature. This reflectivity can cause inefficient energy absorption and even damage to the laser equipment. However, with the right techniques and technology, laser welding can still produce strong, clean welds on aluminum.

  • Use of Fiber Lasers: Fiber lasers are more effective than CO2 lasers when welding reflective metals like aluminum.
  1. They emit at a shorter wavelength (around 1 µm), which is more readily absorbed by metal surfaces than the longer wavelength of CO2 lasers
  2. Better beam quality and focus allow higher energy density, improving penetration and weld consistency
  3. Less risk of back-reflection damaging internal optics
  • Surface Preparation: Reducing surface reflectivity improves initial energy absorption.
  1. Mechanical abrasion, chemical cleaning, or anodizing can dull the surface to help the laser couple more efficiently
  2. Removing oxide layers and surface oils is essential to prevent porosity and improve weld quality
  3. Surface coatings (like blackening compounds) are sometimes used in automated systems
  • Higher Power Density and Tight Focus: Laser systems handle reflection by delivering concentrated energy quickly.
  1. Using a tightly focused beam ensures that once melting begins, absorption increases rapidly
  2. High power density helps overcome the initial resistance to energy input from the reflective surface
  3. Pulse or wobble welding techniques can assist in stabilizing the arc and managing reflectivity
  • Angle of Incidence Control: Altering the angle at which the beam hits the surface reduces the chance of harmful reflections.
  1. Tilting the laser slightly can redirect reflected energy away from sensitive optical components
  2. Especially important in robotic or automated systems where consistent angle control is possible
  • Beam Oscillation (Wobble Welding): Oscillating the laser beam in a circular or figure-eight pattern spreads energy more evenly.
  1. Helps break through reflective surfaces more smoothly
  2. Reduces hot spots and allows better fusion between aluminum parts
  3. Often combined with fiber lasers for optimized weld quality

Laser welding manages aluminum’s reflectivity by using fiber lasers, surface preparation, focused beam control, and beam oscillation techniques. These strategies improve energy absorption, minimize reflection risks, and allow reliable fusion—even on bright, clean aluminum surfaces. Proper system setup and material preparation are key to welding success in this highly reflective metal.
Laser welding offers several key advantages when working with aluminum, making it an increasingly popular choice in industries like automotive, aerospace, and electronics. Aluminum is a lightweight but challenging material to weld due to its reflectivity and thermal conductivity—yet laser welding meets these challenges with precision, speed, and minimal thermal distortion.

  • High Welding Speed: Laser welding operates at high travel speeds, especially when paired with fiber lasers.
  1. Greatly reduces production cycle times in automated or robotic systems
  2. Ideal for large-scale aluminum assembly in automotive and aerospace manufacturing
  3. Efficient for continuous or long seam welding applications
  • Low Heat Input: The highly focused laser beam minimizes the heat-affected zone (HAZ), which is important for aluminum.
  1. Reduces distortion, warping, and material softening
  2. Preserves the mechanical properties and surface finish of heat-sensitive components
  3. Enables clean, fine welds on thin-gauge aluminum without burn-through
  • Non-Contact Process: Since the laser doesn’t physically touch the material, mechanical stress is avoided.
  1. No tool wear or pressure applied to the workpiece
  2. Well-suited for delicate or precision-engineered parts
  3. Easier to integrate into automated production lines
  • Narrow, Precise Welds: Laser beams produce narrow weld seams with minimal spatter.
  1. Requires less post-weld cleanup or grinding
  2. Enhances aesthetic quality and dimensional accuracy
  3. Allows welding in tight or complex joint configurations
  • Excellent Repeatability: Laser welding systems are highly consistent when programmed correctly.
  1. Delivers uniform weld quality part after part
  2. Ideal for high-volume production with minimal variability
  3. Supports multi-axis robotic welding and vision-guided alignment
  • Suitable for Dissimilar Metal Joining: Laser welding can join aluminum to other metals, such as copper or steel, with proper setup.
  1. Useful in EV battery packs, electronics, and aerospace applications
  2. May require tailored pulse control and filler materials for compatibility
  3. Reduces the need for fasteners or adhesive bonding

Laser welding aluminum offers fast, precise, and low-distortion joining, even with the metal’s reflective and conductive challenges. Its ability to produce strong, clean welds with minimal thermal damage makes it especially valuable in industries that demand lightweight structures, visual quality, and high-speed fabrication.
Aluminum laser welding machines vary widely in cost depending on their configuration, laser power, and degree of automation. The two main categories are handheld units and fully or semi-automated systems, each designed to meet different production demands and welding environments.

  • Handheld aluminum laser welding machines are a more affordable and flexible option. These systems are typically used for manual fabrication, on-site repair, or custom part assembly. Entry-level models include basic 1000W setups suitable for light aluminum welding, while higher-end handheld units with 2000W–3000W power, wobble heads, and wire feeders support more demanding tasks. These machines are popular in small workshops and prototyping environments where mobility and ease of use are priorities.
  • Automated aluminum laser welding machines are built for continuous, high-precision operations in industrial settings. These systems are integrated with CNC motion platforms, robotic arms, or multi-axis controls. Lower-priced models in this category offer basic automation and are well-suited for medium-volume production with consistent weld paths. Higher-end systems include advanced beam control, real-time monitoring, and seamless integration into existing production lines, making them ideal for applications in the automotive, aerospace, and electronics industries.

Aluminum laser welding machines range from compact handheld tools to sophisticated automated systems. The total cost depends on laser power, system features, and the level of automation required for your workflow. Choosing the right machine involves balancing performance needs with budget and production scale.
Laser welding aluminum requires effective shielding to prevent oxidation and porosity, both of which aluminum is highly prone to due to its reactive surface and rapid thermal conductivity. The choice of shielding gas plays a critical role in achieving clean, high-strength welds and ensuring stable process performance.

  • Argon: Argon is the most commonly used shielding gas for laser welding aluminum.
  1. It is inert, readily available, and provides a stable welding environment
  2. Helps protect the weld pool from oxygen and nitrogen in the air
  3. Reduces the risk of porosity and prevents surface oxidation
  4. Works well in both pulsed and continuous-wave laser welding systems
  5. Often used alone in low- to mid-power applications and for thin aluminum sections
  • Helium: Helium is sometimes used by itself or blended with argon to improve weld penetration.
  1. Offers higher thermal conductivity than argon, which promotes deeper keyhole formation
  2. Especially effective in high-speed or high-power aluminum welding setups
  3. Helps reduce reflectivity-related issues at the start of the weld
  4. More expensive than argon but often worth the cost for thick or high-reflectivity aluminum alloys
  • Argon–Helium Mixtures: Gas mixtures offer the advantages of both elements and are commonly used for optimized weld quality.
  1. Typical ratios include 75% argon / 25% helium or 50/50, depending on material thickness and laser power
  2. Enhances arc stability and reduces the chance of pore formation
  3. Allows better control over heat input and bead shape in automated welding lines
  • Gas Flow Control: Regardless of gas type, consistent shielding is critical.
  1. Too little gas allows oxygen to contaminate the weld pool
  2. Excessive gas flow can create turbulence and lead to porosity
  3. Shielding gas nozzles should be properly aligned and kept clean for even coverage

Laser welding aluminum typically uses argon, helium, or a combination of both as shielding gases. Argon is the standard choice for most applications, while helium or argon-helium blends are preferred for thicker materials or when deeper penetration and reduced porosity are needed. Proper gas selection and flow control are essential to produce clean, strong aluminum welds.
Laser welding aluminum offers high-speed and precision joining, but controlling the heat-affected zone (HAZ) and minimizing deformation are critical for achieving clean, dimensionally stable results. Aluminum’s high thermal conductivity, low melting point, and tendency to expand rapidly under heat make it particularly sensitive to warping and internal stress during welding.

  • Optimize Heat Input: Excessive heat can enlarge the HAZ and increase the chance of deformation.
  1. Use the lowest laser power necessary to achieve full penetration
  2. Increase welding speed to reduce the time heat stays concentrated in one spot
  3. Consider pulsed or wobble welding modes to distribute energy more evenly
  • Use Proper Fixturing: Clamping and fixtures help hold the material in place during welding.
  1. Secure the aluminum parts tightly to prevent movement as they expand and contract
  2. Use thermal sinks or backing plates to draw heat away from critical areas
  3. Fixtures should be heat-resistant and allow for slight expansion to reduce stress buildup
  • Apply Preheating Selectively: In some cases, preheating the material can reduce thermal shock.
  1. Helps control thermal gradients and minimizes cracking in the HAZ
  2. Should be applied carefully—excess preheat can increase warping instead of preventing it
  3. Typically used for thicker aluminum parts or highly restrained joints
  • Design for Symmetry and Balance: Joint design has a direct impact on heat concentration and part distortion.
  1. Use symmetrical weld paths to balance shrinkage forces
  2. Stagger welds or alternate sides during multi-pass welding to prevent heat buildup on one side
  3. Avoid over-welding—oversized beads add unnecessary heat and increase stress
  • Post-Weld Cooling and Stress Relief: Proper cooling can reduce internal stress and prevent part distortion.
  1. Allow parts to cool slowly and evenly; avoid forced cooling unless uniform
  2. For critical components, consider post-weld heat treatment to normalize internal structure
  3. In some applications, mechanical straightening or reshaping may be required after welding
  • Material and Alloy Selection: Some aluminum alloys handle heat better than others.
  1. 5xxx and 6xxx series generally offer better weldability and lower risk of deformation
  2. Alloys with high silicon content tend to resist cracking and shrinkage more effectively
  3. Avoid high-strength or heat-treated alloys if post-weld deformation is a concern

To manage the heat-affected zone and minimize deformation in laser-welded aluminum, focus on heat control, fixturing, joint design, cooling strategy, and alloy selection. These factors help ensure dimensional stability, preserve mechanical properties, and produce clean, reliable welds with minimal post-processing.
Laser welding aluminum poses unique challenges, especially thermal cracking, which can weaken joints and compromise structural integrity. Aluminum’s wide solidification temperature range, high thermal conductivity, and low viscosity make it prone to hot cracking (also known as solidification cracking) during rapid cooling. However, several techniques can reduce this sensitivity and ensure stronger, more reliable welds.

  • Choose the Right Aluminum Alloy: Not all aluminum alloys weld equally well. Some are far more crack-prone than others.
  1. 5xxx and 6xxx series alloys (e.g., 5052, 6061) generally show lower thermal crack sensitivity compared to high-strength 2xxx or 7xxx series alloys.
  2. Avoid alloys with high copper or zinc content, which are particularly susceptible to cracking.
  3. Select filler wire compatible with the base material, often with higher silicon content to reduce brittleness.
  • Use Proper Filler Material: The filler wire composition plays a critical role in crack resistance.
  1. ER4047 (12% Si) and ER4045 (10% Si) filler wires are often used to reduce hot cracking due to their lower solidification temperature and increased fluidity.
  2. Higher silicon reduces the freezing range of the weld pool, minimizing crack formation during solidification.
  • Control Heat Input and Cooling Rate: Thermal cracking is often a result of excessive shrinkage stresses from rapid temperature changes.
  1. Use the lowest effective laser power and faster travel speeds to keep heat input controlled.
  2. Avoid preheating unless necessary. It may reduce cracking in some thick-section or highly restrained joints, but can also increase heat-affected zone (HAZ) width if not managed properly.
  3. Maintain a stable, shallow weld pool to reduce shrinkage stress buildup.
  • Joint Design and Fit-Up: Poor joint geometry or excessive gaps can increase cracking risk.
  1. Use a tight, consistent joint fit-up to avoid stress concentrations.
  2. Favor joint types like lap joints or butt joints with proper edge prep over configurations that introduce uneven thermal stress.
  3. Minimize restraint during welding to allow the material to expand and contract more freely.
  • Optimize Shielding Gas: Shielding gas protects the molten pool from oxidation and contamination.
  1. Argon is the standard shielding gas for aluminum, providing excellent arc stability.
  2. Helium or argon-helium mixtures may improve penetration and fluidity but can also increase heat input, so they should be used with caution.
  • Post-Weld Treatments and Stress Relief: After welding, the joint remains vulnerable to residual stress and microcracks.
  1. Post-weld heat treatment can be used in critical applications to relieve residual stresses.
  2. In some cases, mechanical straightening or surface grinding helps eliminate visible surface defects and stress concentrations that could propagate cracks.

Reducing the thermal crack sensitivity of laser-welded aluminum involves a strategic balance of material selection, filler compatibility, thermal control, joint design, and welding technique. By managing each of these factors, manufacturers can produce durable aluminum welds with minimal cracking risk, even in demanding applications.

Get Aluminum Welding Solutions

Unlock the full potential of aluminum welding with our advanced aluminum laser welding machines. Designed to handle the unique challenges of welding aluminum, these machines deliver precise, high-quality welds with minimal distortion and a smooth finish. Whether you’re working with thin or thick aluminum, our machines offer the control and consistency needed to achieve strong, durable joints without compromising on material integrity.
Our laser welding technology ensures excellent heat control, which is essential for aluminum’s low melting point and high thermal conductivity. This results in reduced heat-affected zones, minimized warping, and fewer defects. Ideal for industries such as automotive, aerospace, and electronics, these machines help streamline production while maintaining the highest standards of quality.
With customizable settings, automated features, and reliable performance, our aluminum welding solutions offer flexibility for diverse applications. From intricate designs to large-scale projects, our machines provide the efficiency and precision necessary to meet your aluminum welding needs.
* We value your privacy. AccTek Group is committed to protecting your personal information. Any details you provide when submitting the form will be kept strictly confidential and used only to assist with your inquiry. We do not share, sell, or disclose your information to third parties. Your data is securely stored and handled by our privacy policy.
AccTek Logo
Powered by  GDPR Cookie Compliance
Privacy Overview

This website uses cookies so that we can provide you with the best user experience possible. Cookie information is stored in your browser and performs functions such as recognising you when you return to our website and helping our team to understand which sections of the website you find most interesting and useful.
