Nickel Alloy Laser Welding Machines

Nickel alloy laser welding machines provide fast, precise, and durable welds—ideal for high-performance nickel components in aerospace, energy, and chemical processing industries.
Home » Laser Welding Machines » Nickel Alloy Laser Welding Machines

Product Introduction

Nickel alloy laser welding machines are advanced systems designed to weld a wide range of nickel-based alloys with high precision, strength, and reliability. Nickel alloys are commonly used in harsh environments due to their excellent corrosion resistance, heat tolerance, and mechanical strength. However, their high melting points, thermal conductivity, and tendency to crack make them challenging to weld with traditional methods. Laser welding offers a superior solution by delivering a concentrated, high-energy beam that enables deep, narrow welds with minimal heat-affected zones and distortion. These machines are widely used in industries such as aerospace, power generation, chemical processing, marine, and medical manufacturing. Typical applications include the welding of turbine components, heat exchangers, exhaust systems, pressure vessels, and high-performance parts exposed to extreme temperatures or corrosive environments. Nickel alloy laser welding machines feature advanced controls, automated alignment, and compatibility with robotic or CNC platforms for precise, repeatable results. They are capable of welding thin or thick sections of alloys such as Inconel, Monel, Hastelloy, and other specialty nickel grades. Whether for production or repair, these machines offer unmatched performance for joining critical components where quality and integrity cannot be compromised.

Types of Nickel Alloy Laser Welding Machines

Welding Thickness Reference

Laser Power Welding Form Thickness Welding Speed Defocus Amount Protective Gas Blowing Method Flow Welding Effect
1500W Butt Welding 0.5mm 40~50 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
2000W Butt Welding 0.5mm 50~60 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 1mm 20~30 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
3000W Butt Welding 0.5mm 60~70 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 1mm 40~50 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 1.5mm 30~40 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
6000W Butt Welding 0.5mm 60~70 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 1mm 50~60 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 1.5mm 40~50 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely
Butt Welding 2mm 30~40 mm/s -1~1 Ar Coaxial/Paraaxial 5~10 L/min Welded Completely

Compatible Nickel Alloy Grades

Application of Nickel Alloy Laser Welding Machines

Nickel alloy laser welding machines are essential in industries that demand extreme durability, corrosion resistance, and heat tolerance. In the aerospace sector, they are used to weld turbine blades, engine components, and exhaust systems made from high-performance alloys like Inconel and Hastelloy. The power generation industry relies on these machines to fabricate heat exchangers, boilers, and nuclear components that must withstand high temperatures and aggressive environments. In chemical processing, they are ideal for welding pipes, tanks, and reactors exposed to corrosive media. The marine industry uses nickel alloy laser welding for building propeller shafts, seawater piping, and heat-resistant components. Medical device manufacturers also depend on these machines for joining implants and surgical tools made from biocompatible nickel-based materials. Thanks to precise energy control and compatibility with CNC and robotic systems, nickel alloy laser welding machines deliver clean, strong, and repeatable welds for both high-volume manufacturing and mission-critical custom fabrication.

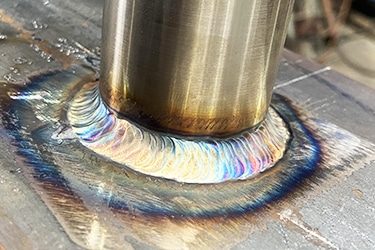

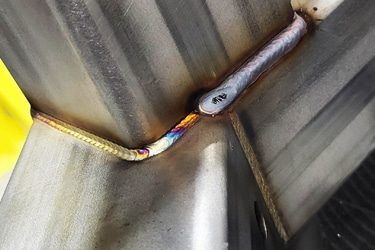

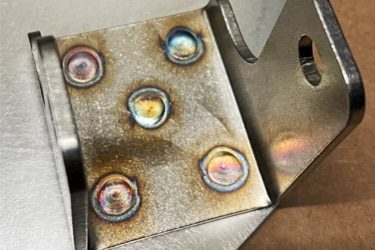

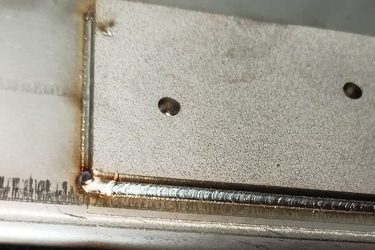

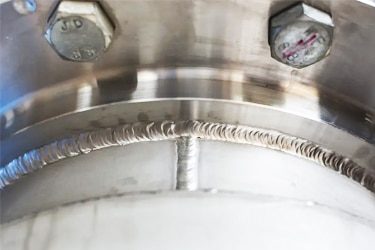

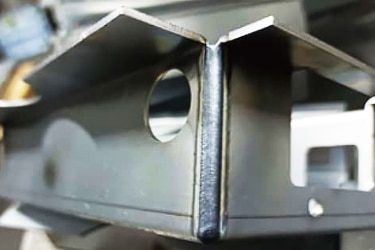

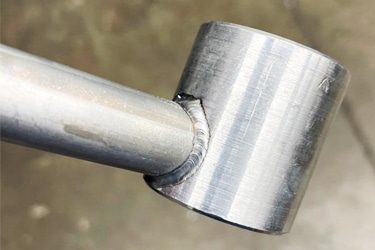

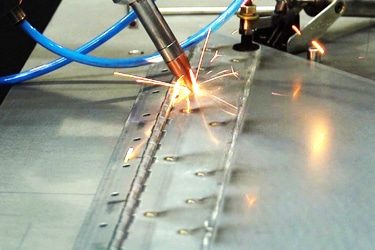

Nickel Alloy Laser Welding Samples
Nickel Alloy Laser Welding Samples
Nickel Alloy Laser Welding Samples
Nickel Alloy Laser Welding Samples
Nickel Alloy Laser Welding Samples
Nickel Alloy Laser Welding Samples
Nickel Alloy Laser Welding Samples
Nickel Alloy Laser Welding Samples

Customer Testimonials

Comparison VS Other Welding Technologies

Comparison Item Laser Welding MIG Welding TIG Welding Stick Welding
Heat Input Low (precise and localized) High (can cause distortion) Moderate to High High (less controlled)
Weld Speed Very High High Low Moderate
Weld Precision Extremely High Moderate High Low
Weld Cleanliness Excellent (minimal contamination) Moderate (some spatter and oxidation) Good (clean but slow) Poor (slag, oxidation)
Porosity Control Excellent Moderate (fumes and impurities) Good Poor
Suitable for Thin Sections Excellent Poor (overheating risk) Good Poor
Suitable for Thick Sections Good (with high power) Good Good Moderate
Joint Appearance Smooth, narrow, and aesthetic Rough (may need finishing) Smooth Rough and inconsistent
Post-Weld Cleanup Minimal Moderate Low High (slag removal)
Shielding Gas Requirement Required (inert atmosphere) Required Required Not required (but causes oxidation)
Automation Compatibility Excellent (CNC/robotic integration) Good Moderate Poor
Operator Skill Requirement Moderate (automated options) Moderate High Low to Moderate
Weld Strength High (deep penetration, minimal flaws) High (if well executed) High Moderate
Production Throughput Very High High Low Moderate
Initial Equipment Cost High Moderate Moderate Low

Why Choose Us

AccTek Group is a professional manufacturer of laser welding machines, delivering precise, efficient, and reliable welding solutions for a wide range of industries. Our machines are designed to meet the growing demand for high-strength, low-distortion welding in applications such as sheet metal processing, automotive manufacturing, electronics, and aerospace. We combine advanced laser technology with user-friendly design to help businesses improve welding quality, reduce labor costs, and boost production efficiency. Whether you’re handling fine parts or large-scale components, our systems offer the flexibility and performance needed to meet modern manufacturing standards. With a strong focus on quality, innovation, and customer support, AccTek Group is your trusted partner for laser welding solutions.

High Precision

Our machines deliver accurate, clean welds with minimal heat input, reducing distortion and ensuring strong, consistent joints across a wide range of materials and thicknesses.

Easy Operation

Designed with intuitive controls and user-friendly interfaces, our systems allow both experienced operators and new users to achieve professional results with minimal training.

Durable & Reliable

Built with high-quality components and strict quality standards, our welding machines provide stable performance, long service life, and low maintenance requirements.

Custom Options

We offer a variety of models and customizable features to match specific production needs, helping businesses improve workflow and adapt to changing manufacturing demands.

Related Resources

Laser Welding VS TIG Welding

Laser Welding VS TIG Welding

This article compares laser welding and TIG welding across key factors, including process, equipment, applications, costs, and suitability for various industries.

Laser Welding VS MIG Welding

Laser Welding VS MIG Welding

This article compares laser welding and MIG welding in terms of process, applications, cost, quality, and efficiency to help readers understand their key differences.

What Is Laser Welding

What Is Laser Welding?

Explore the principles of laser welding, its benefits, applications, and how it compares to traditional welding methods. Learn how this advanced technology enhances precision and efficiency.

Frequently Asked Questions

What Are The Optional Powers Of Nickel Alloy Laser Welding Machines?
Laser welding machines for nickel alloys come in a variety of power levels to suit different industrial applications, material thicknesses, and production speeds. The most commonly available output options include:

  • 1000W: This lower-power system is ideal for thin-gauge nickel alloy sheets and components that require precision and minimal heat input. It works well in electronics, battery tabs, and fine instrumentation where weld seams must be narrow and heat-affected zones are kept small.
  • 1500W: A mid-range option suitable for light structural parts, sensor housings, and components that fall between micro-welding and heavier fabrication. It balances control and penetration depth, making it a versatile choice for many job shops handling nickel alloys.
  • 2000W: Offers deeper penetration and higher speed compared to 1500W. It’s effective for medium-thickness nickel alloys, especially in aerospace or chemical processing equipment where structural integrity is critical. This power level supports both continuous and pulsed modes for better thermal control.
  • 3000W: Ideal for thicker sections, multi-pass welding, or applications requiring full penetration in a single pass. 3000W machines are commonly used in industries where nickel alloys are subjected to high thermal or mechanical stress, such as gas turbines or marine hardware.
  • 6000W: High-powered systems like this are used in demanding environments where speed, depth, and reliability matter. They are suited for large components or automated production lines handling high-strength nickel-based superalloys in aerospace, nuclear, and petrochemical sectors.

Each power level presents a trade-off between weld depth, processing speed, and thermal impact. Selection depends on the specific alloy composition, part geometry, and performance demands of the final product.
Nickel alloy laser welding machines are available in both handheld and automatic configurations, with price ranges depending on power output, system complexity, and automation level.

  • Handheld Nickel Alloy Laser Welding Machines ($3,500–$18,000): These portable machines are great for repairs, small-scale production, and field maintenance tasks. Lower-priced models (around $3,500 to $8,000) usually include basic manual settings and air cooling. Higher-end options approaching $18,000 may offer touchscreen interfaces, enhanced safety features, advanced shielding gas control (for argon or helium), and better beam stability—important for nickel alloys, which require precise thermal control to avoid cracking.
  • Automatic Nickel Alloy Laser Welding Machines ($10,000–$30,000): Designed for industrial production, these systems are built with CNC or robotic integration to ensure repeatability and accuracy. Systems on the lower end of the range ($10,000–$18,000) may offer semi-automatic controls and manual loading. Fully automated models ($20,000–$30,000) include features like seam tracking, real-time temperature feedback, integrated cooling, and inert gas enclosures to protect the weld zone from oxidation and contamination.

When investing in a nickel alloy laser welding machine, it’s important to consider gas purity, shielding system integration, and post-weld inspection tools. These affect not only weld quality but also long-term durability in high-temperature or corrosive environments where nickel alloys are commonly used.
Laser welding nickel alloys requires a shielding gas that prevents oxidation, stabilizes the arc, and ensures a clean, strong weld. The most commonly used gases include:

  • Argon: Argon is the most widely used shielding gas for laser welding nickel alloys. It is inert, non-reactive, and provides excellent protection against atmospheric contamination. Argon minimizes weld porosity, prevents oxidation, and stabilizes the molten pool. It is suitable for both manual and automated welding setups. Flow rates typically range from 15 to 25 liters per minute, depending on the torch design and the joint configuration.
  • Helium: Helium can be used either alone or mixed with argon. It offers deeper penetration due to its higher thermal conductivity, which is especially useful when welding thicker nickel alloy sections. However, helium is more expensive and requires higher flow rates, generally between 20 and 30 liters per minute. It is often chosen for applications demanding minimal heat input distortion or where faster weld speeds are needed.
  • Argon-Helium Mixtures: Using a mixture of argon and helium allows for better control over penetration and heat distribution. A common blend might be 75% argon and 25% helium. This combination balances arc stability with improved fusion characteristics, especially for alloy grades like Inconel or Monel.
  • Nitrogen (Limited Use): In specific, non-critical applications, nitrogen might be used in small amounts as a backing gas. However, for most nickel alloys—especially high-performance aerospace or chemical-grade materials—nitrogen is avoided because it can form nitrides that weaken the weld.

Using the right gas ensures minimal spatter, reduced porosity, and a solid, defect-free joint—essential when working with nickel alloys known for their high strength and corrosion resistance.
Laser welding is a precise and efficient method for joining nickel alloys, which are known for their strength, corrosion resistance, and high-temperature performance. The thickness of nickel alloy materials that can be welded depends largely on the laser power used. Here’s a breakdown of typical welding capabilities by power level:

  • 1000W: At this entry-level power, nickel alloys up to approximately 0.5 mm thick can be welded. This setting is typically used for fine components in electronics or thin-walled medical and aerospace parts, where minimal heat input is needed to avoid distortion or microstructural changes.
  • 1500W: With 1500W, the weldable thickness increases to around 1 mm. This power level is suitable for moderate-strength joints in instrumentation, turbine parts, or corrosion-resistant components that need both precision and a slightly deeper penetration.
  • 2000W: Laser welding systems operating at 2000W can effectively weld nickel alloys up to about 1.5 mm. This setting allows for broader industrial use, including chemical processing equipment and structural parts in demanding environments, while still maintaining fine control over the weld profile.
  • 3000W: Although data can vary by alloy type, at 3000W, nickel alloys can typically be welded up to 5mm or slightly more, depending on joint design and welding speed. This level is well-suited for aerospace assemblies, gas turbines, and high-stress parts requiring stronger welds.
  • 6000W: With high-power 6000W lasers, deep penetration welds are achievable in nickel alloys up to 2 mm or beyond, though actual performance depends on alloy composition, joint geometry, and heat management. This power is used for high-throughput, precision-critical applications in energy, aerospace, and marine industries.

When laser welding nickel alloys, it’s essential to maintain precise control of heat input and shielding gas coverage to prevent cracking, porosity, and oxidation. Proper setup ensures clean, reliable welds even in demanding environments.
Laser welding machines are highly adaptable and can handle a range of joint configurations when welding nickel alloys. These materials are often used in demanding industries like aerospace, nuclear, and chemical processing, where joint integrity and precision are critical. Here are the common joint shapes that can be effectively laser welded:

  • Butt Joints: This is the most straightforward joint, where two pieces of nickel alloy are aligned edge-to-edge. Laser welding works well here due to the narrow heat-affected zone and deep penetration. It’s suitable for thin to moderately thick materials and ideal for structural and pressure-containing components.
  • Lap Joints: In lap joints, one piece overlaps the other. This configuration is often used in sheet metal fabrication, and when access to only one side of the workpiece is possible. Nickel alloys respond well to laser lap welding, but care must be taken to control heat input to prevent porosity between the overlapping sections.
  • T-Joints: Laser welding can also be applied to T-joints, where one part is joined perpendicular to another. T-joints are common in frameworks or enclosure designs. They require careful focus alignment to ensure proper weld penetration at the intersection, especially for thicker nickel sections.
  • Corner Joints: These joints are formed at the outer edges of two metal sheets. They are useful for constructing enclosures, panels, or casings made from nickel alloys. A focused laser beam can produce a strong, clean weld with minimal distortion in corner joints.
  • Edge Joints: Though less common, edge joints can be welded using lasers when the material thickness is low and the design permits. This configuration involves fusing the adjoining edges without overlapping or angling, and is mainly used in non-structural or low-load applications.
  • Flange Joints (Specialized): In some custom applications, nickel alloys may be joined at flanged edges. Laser welding offers precise heat control that helps avoid warping these often complex shapes, especially when components are thin or intricately formed.

Nickel alloys are particularly well-suited to laser welding due to their high thermal conductivity and resistance to cracking, making these joint shapes not only feasible but effective in high-spec applications.
Nickel alloys are widely used in high-temperature and corrosion-resistant applications, and controlling heat input is critical during laser welding to maintain their mechanical properties and prevent cracking. Here’s how heat input can be effectively managed:

  • Laser Power Settings: Start with the lowest laser power that achieves full penetration. For most nickel alloys, lower power combined with a slower travel speed produces a deeper, narrower weld. Excessive power leads to overheating, which can cause grain growth, distortion, or hot cracking.
  • Welding Speed: Travel speed directly affects heat input. A faster speed reduces the amount of energy introduced to the material, minimizing the size of the heat-affected zone (HAZ). Slower speeds may be necessary for thicker materials, but should be balanced to avoid excessive thermal load.
  • Pulse Mode vs. Continuous Wave: Using a pulsed laser mode instead of a continuous beam allows for better control over thermal input. Pulsed welding delivers energy in short bursts, giving the material time to cool slightly between pulses, reducing heat buildup and improving weld appearance and consistency.
  • Beam Focus and Spot Size: A tightly focused beam (small spot size) concentrates energy into a narrow area, leading to precision welding with reduced heat dispersion. Adjusting the focal position slightly above the work surface can reduce penetration and heat input for delicate components.
  • Shielding Gas Selection: Inert gases like argon and helium are often used for shielding. Helium has a higher ionization potential and better thermal conductivity, which can help distribute heat more evenly and reduce localized overheating. Proper gas flow also minimizes oxidation, which can raise surface temperature and heat retention.
  • Preheat and Interpass Temperature Control: In some cases, slight preheating may be used to reduce thermal gradients and avoid cracking, especially with thicker sections. However, controlling interpass temperature (keeping it low between weld passes) is just as important to avoid cumulative heat input.
  • Joint Design and Fit-Up: Tightly fitted joints require less filler and lower energy input. Poor fit-up often leads to gaps, which require more heat or filler to bridge, increasing total heat input. For critical applications, machining or laser cutting joints in advance helps maintain consistency.
  • Use of Heat Sinks or Clamping Fixtures: For thin or heat-sensitive components, external heat sinks or copper backup bars can be used to absorb excess heat. Rigid clamping fixtures also help maintain alignment and minimize distortion during welding.
  • Monitoring and Feedback Systems: Advanced laser welding systems often include real-time monitoring of power, temperature, and weld pool dynamics. These allow fine-tuning on the fly and can trigger automatic adjustments to maintain optimal heat input.

By carefully managing these parameters, manufacturers can ensure the weld maintains the high strength, corrosion resistance, and fatigue life that nickel alloys are valued for, while avoiding defects caused by overheating or thermal stress.
Laser welding is a precise and efficient method for joining nickel alloys, but despite its advantages, it also presents several challenges that need to be considered depending on the application. Here are the key disadvantages:

  • Hot Cracking Susceptibility: Nickel alloys are particularly prone to solidification cracking during laser welding. This occurs when the weld pool cools too quickly and lacks sufficient ductility to accommodate thermal stresses. High heat gradients from the concentrated laser beam make this issue more pronounced than with traditional welding methods.
  • Porosity Formation: Laser welding can introduce porosity in nickel alloys, especially when there’s contamination (such as moisture or oils), improper shielding gas, or too high a heat input. Trapped gases in the molten weld pool can form small voids, weakening the final weld.
  • High Equipment Cost: The initial investment in laser welding machines—especially those capable of welding high-performance alloys like nickel—is substantial. While handheld systems may start at $3,500, automated setups designed for precision work can easily exceed $30,000. This limits accessibility for small shops or low-volume production.
  • Surface Reflectivity: Nickel alloys, particularly in polished or untreated form, can reflect part of the laser beam. This reflection not only reduces the efficiency of the weld but also poses a risk to the optics or the laser source itself. Surface pre-treatment (like roughening or coating) is often necessary to mitigate this.
  • Shielding Gas Sensitivity: Nickel alloys are highly reactive at high temperatures. Poor shielding gas coverage or the wrong type (e.g., using CO2 instead of argon or helium) can lead to oxidation or contamination, degrading corrosion resistance and weld quality. Precise gas control adds complexity to the process.
  • Limited Tolerance for Joint Gaps: Laser welding is best suited for precision-fit joints. Even minor misalignments or gaps in nickel alloy joints can cause poor fusion or underfill, as the laser beam doesn’t easily bridge large separations. High machining accuracy and fixturing are often required.
  • Need for Skilled Setup and Monitoring: Achieving high-quality welds in nickel alloys with lasers requires fine-tuned parameters—power, speed, focus, gas flow, and more. Improper settings can result in defects or part damage, so trained technicians or automated monitoring systems are essential.
  • Potential for Grain Growth or HAZ Weakness: Due to the high energy density and rapid cooling, laser welding can sometimes cause unwanted metallurgical changes near the weld, such as excessive grain growth in the heat-affected zone (HAZ). This may reduce fatigue strength or impact resistance, especially in demanding environments.
  • Incompatibility with Some Nickel Grades: Not all nickel alloys respond equally to laser welding. Alloys with high sulfur or carbon content, or those designed for machining rather than welding, may crack or fail under laser conditions. Material selection must be matched carefully to laser capabilities.

While laser welding offers speed and precision, its effectiveness with nickel alloys depends heavily on proper process control, joint design, and material condition. Addressing these disadvantages requires a combination of equipment investment, skilled labor, and tight quality standards.
Nickel alloy laser welding machines require regular and careful maintenance to ensure consistent performance, long service life, and high weld quality. Because nickel alloys are sensitive to contamination and require precise heat control, the machines used to weld them must remain in top condition. Here’s how to maintain these machines effectively:

  • Laser Source Maintenance: The fiber or solid-state laser module is the core of the system. Regularly inspect the power output and beam quality. Clean optics and lenses using proper, lint-free materials and isopropyl alcohol. Replace protective windows or collimating lenses when signs of clouding, burns, or pitting appear. Most manufacturers recommend checking alignment and recalibrating the beam path periodically.
  • Cooling System Care: Laser welding systems typically rely on water chillers to maintain a stable temperature. For nickel alloy welding, which often involves long or continuous welds, proper cooling is crucial. Check fluid levels weekly, clean or replace filters monthly, and flush the coolant loop at least every 6 months. Use manufacturer-recommended coolant and monitor for leaks or corrosion in the lines.
  • Shielding Gas Delivery: Because nickel alloys oxidize quickly at high temperatures, the shielding gas system must function flawlessly. Inspect gas hoses for cracks or leaks, ensure flow regulators are working properly, and calibrate flow meters to avoid over- or under-delivery. Use high-purity argon or helium, and check that gas nozzles are clean and free of spatter buildup.
  • Nozzle and Tip Maintenance: Regularly clean or replace welding nozzles, as buildup of spatter or oxidation can disrupt shielding gas flow and affect weld quality. For machines using wire feed, inspect the contact tips and wire guides for wear or debris. These components directly influence arc stability and heat input control.
  • Control Software and Firmware Updates: Keep the machine’s software and firmware up to date. Manufacturers often release updates that improve welding parameters, efficiency, and diagnostics. Back up control settings regularly, especially if custom profiles are used for welding specific nickel alloy grades.
  • Alignment and Calibration Checks: Perform monthly mechanical and optical alignment checks to ensure beam precision. Slight misalignments in focus or angle can result in undercutting or incomplete fusion, especially with thin-gauge or high-value nickel alloy components. Use alignment targets or built-in diagnostic modes if available.
  • Clean the Workspace and Enclosure: Dust, metal fumes, and debris can accumulate inside the machine or optical enclosures. Use anti-static vacuum systems to clean interiors and fans. Keep the workspace clean to prevent particles from being drawn into sensitive components during welding.
  • Log and Monitor Performance Metrics: Track machine hours, error codes, cooling performance, and laser output over time. This data helps predict when maintenance is needed and reduces the risk of unexpected downtime. Some high-end machines include built-in diagnostics and remote monitoring features—use them to their full advantage.

Nickel alloy laser welding requires precise energy control and gas purity. Keeping the machine clean, calibrated, and cool is essential to avoid heat-related defects, contamination, or equipment failure. A well-maintained machine produces clean, consistent welds and minimizes costly downtime.

Get Nickel Alloy Welding Solutions

Unlock the power of precision welding with our nickel alloy laser welding machines, engineered to deliver exceptional results for this high-performance material. Nickel alloys are widely used in industries such as aerospace, chemical processing, and power generation due to their strength, corrosion resistance, and ability to withstand high temperatures. Our advanced laser technology ensures clean, strong welds with minimal distortion and oxidation, making it the ideal solution for even the most demanding nickel alloy applications.
Our machines are designed to provide precise heat control, allowing for optimal fusion without compromising the integrity of the material. This reduces the risk of defects such as cracking or porosity, ensuring a high-quality, durable weld every time. Whether working with thin or thick materials, our nickel alloy welding machines offer flexibility, efficiency, and long-term reliability for both small-scale and high-volume production.
With customizable settings and cutting-edge automation, our welding solutions are perfect for tackling any nickel alloy welding challenge.
