Nickel Alloy Laser Cutting Machines

Nickel-alloy laser cutting machine optimized for Inconel, Hastelloy, and Monel: oxide-free edges, ±0.05 mm accuracy, low HAZ, automated loading—perfect for aerospace, energy, and chemical parts.
Home » Laser Cutting Machines » Nickel Alloy Laser Cutting Machines
Whatsapp Envelope Phone-alt

Product Introduction

Nickel-alloy laser cutting machines are built for metals that conventional tools struggle with—high-strength, heat-resistant grades such as Inconel®, Hastelloy®, Monel®, Alloy 625, and 718. A high-power fiber laser (1kW–40kW) concentrates energy into a micron-scale spot, melting and expelling material while keeping the heat-affected zone below 0.15 mm. Inert assist gases—typically nitrogen or argon—shield the cut, preventing oxide formation and preserving the alloy’s corrosion and creep resistance. Rigid gantry drives, linear motors, and capacitive height sensors maintain ±0.05 mm positional accuracy from thin foil to 25mm plate. Integrated beam-shaping optics handle reflective surfaces, while active cooling and sealed lenses prolong optic life. Fume-extraction and filtration systems capture nickel and chromium particulates, meeting OSHA, REACH, and CE safety standards. Smart CNC software optimizes pierce times, gas flow, and nesting patterns, pushing material utilization above 90% and enabling unmanned, lights-out shifts with automated load/unload towers. Compared with waterjet or mechanical machining, laser cutting slashes cycle times, eliminates tool wear, and minimizes post-processing. From aerospace turbine vanes and subsea manifolds to chemical-process linings and medical implants, nickel-alloy laser cutting machines deliver repeatable, high-precision parts that excel in the harshest operating environments.

Types of Nickel-Alloy Laser Cutting Machines

Cutting Thickness Reference

Laser Power Thickness (mm) Cutting Speed (m/min) Focus Position (mm) Cutting Height (mm) Gas Nozzle (mm) Pressure (bar)
1KW 1 2.4-3.6 0 0.8 N2 1.4 14
2 1.0-1.4 -0.8 0.8 N2 1.4 14
3 0.5-0.7 -1.2 0.6 N2 1.8 16
1.5KW 1 3.0-4.5 0 0.8 N2 1.4 14
2 1.2-1.8 -0.8 0.8 N2 1.4 14
3 0.6-0.9 -1.2 0.6 N2 1.8 16
4 0.4-0.6 -1.2 0.6 N2 1.8 16
2KW 1 3.6-5.4 0 0.8 N2 1.4 14
2 1.4-2.2 -0.8 0.8 N2 1.4 14
3 0.7-1.1 -1.2 0.6 N2 1.8 16
4 0.5-0.7 -1.2 0.6 N2 1.8 16
5 0.4-0.5 -1.8 0.6 N2 1.8 16
3KW 1 4.8-7.2 0 0.8 N2 1.4 14
2 1.9-2.9 -0.8 0.8 N2 1.4 14
3 1.0-1.4 -1.2 0.6 N2 1.8 16
4 0.6-1.0 -1.2 0.6 N2 1.8 16
5 0.5-0.7 -1.8 0.6 N2 1.8 16
6 0.-0.6 -1.8 0.6 N2 1.8 16
4KW 1 5.8-8.6 0 0.8 N2 1.4 14
2 2.3-3.5 -0.8 0.8 N2 1.4 14
3 1.2-1.7 -1.2 0.6 N2 1.8 16
4 0.8-1.2 -1.2 0.6 N2 1.8 16
5 0.6-0.9 -1.8 0.6 N2 1.8 16
6 0.5-0.7 -1.8 0.6 N2 1.8 16
8 0.3-0.4 -2.5 0.6 N2 2.2 16
6KW 1 7.2-10.8 0 0.8 N2 1.4 14
2 2.9-4.3 -0.8 0.8 N2 1.4 14
3 1.4-2.2 -1.2 0.6 N2 1.8 16
4 1.0-1.4 -1.2 0.6 N2 1.8 16
5 0.7-1.1 -1.8 0.6 N2 1.8 16
6 0.6-0.9 -1.8 0.6 N2 1.8 16
8 0.4-0.5 -2.5 0.6 N2 2.2 16
10 0.2-0.4 -2.5 0.6 N2 2.2 16
12KW 1 10.8-16.2 0 0.8 N2 1.4 14
2 4.3-6.5 -0.8 0.8 N2 1.4 14
3 2.2-3.2 -1.2 0.6 N2 1.8 16
4 1.4-2.2 -1.2 0.6 N2 1.8 16
5 1.1-1.6 -1.8 0.6 N2 1.8 16
6 0.9-1.3 -1.8 0.6 N2 1.8 16
8 0.5-0.8 -2.5 0.6 N2 2.2 16
10 0.4-0.5 -2.5 0.6 N2 2.2 16
12 0.3-0.4 -3.2 0.5 N2 2.2 16
14 0.2-0.3 -3.2 0.5 N2 2.6 18
20KW 1 15.6-23.4 0 0.8 N2 1.4 14
2 6.2-9.3 -0.8 0.8 N2 1.4 14
3 3.1-4.7 -1.2 0.6 N2 1.8 16
4 2.1-3.1 -1.2 0.6 N2 1.8 16
5 1.6-2.3 -1.8 0.6 N2 1.8 16
6 1.2-1.9 -1.8 0.6 N2 1.8 16
8 0.8-1.1 -2.5 0.6 N2 2.2 16
10 0.5-0.8 -2.5 0.6 N2 2.2 16
12 0.4-0.5 -3.2 0.5 N2 2.2 16
14 0.23-0.4 -3.2 0.5 N2 2.6 18
16 0.2-0.3 -3.2 0.5 N2 2.6 18
18 0.15-0.2 -4 0.5 N2 2.6 18
30KW 1 19.2-28.8 0 0.8 N2 1.4 14
2 7.7-11.5 -0.8 0.8 N2 1.4 14
3 3.8-5.8 -1.2 0.6 N2 1.8 16
4 2.6-3.8 -1.2 0.6 N2 1.8 16
5 1.9-2.9 -1.8 0.6 N2 1.8 16
6 1.5-2.3 -1.8 0.6 N2 1.8 16
8 1.0-1.4 -2.5 0.6 N2 2.2 16
10 0.6-1.0 -2.5 0.6 N2 2.2 16
12 0.4-0.7 -3.2 0.5 N2 2.2 16
14 0.3-0.5 -3.2 0.5 N2 2.6 18
16 0.25-0.4 -3.2 0.5 N2 2.6 18
18 0.2-0.3 -4 0.5 N2 2.6 18
20 0.15-0.2 -4 0.5 N2 2.6 18
25 0.1-0.15 -4 0.5 N2 3 18
40KW 1 21.6-32.4 0 0.8 N2 1.4 14
2 8.6-13.0 -0.8 0.8 N2 1.4 14
3 4.3-6.5 -1.2 0.6 N2 1.8 16
4 2.9-4.3 -1.2 0.6 N2 1.8 16
5 2.2-3.2 -1.8 0.6 N2 1.8 16
6 1.7-2.6 -1.8 0.6 N2 1.8 16
8 1.1-1.6 -2.5 0.6 N2 2.2 16
10 0.7-1.1 -2.5 0.6 N2 2.2 16
12 0.5-0.8 -3.2 0.5 N2 2.2 16
14 0.4-0.5 -3.2 0.5 N2 2.6 18
16 0.3-0.4 -3.2 0.5 N2 2.6 18
18 0.2-0.3 -4 0.5 N2 2.6 18
20 0.15-0.25 -4 0.5 N2 2.6 18
25 0.12-0.18 -4 0.5 N2 3 18
30 0.09-0.13 -5 0.5 N2 3 20

Compatible Nickel-Alloy Grades

  • Nickel 200 (UNS N02200)
  • Nickel 201 (UNS N02201)
  • Monel 400 (UNS N04400)
  • Monel K-500 (UNS N05500)
  • Inconel 600 (UNS N06600)
  • Inconel 601 (UNS N06601)
  • Inconel 602CA (UNS N06025)
  • Inconel 617 (UNS N06617)
  • Inconel 625 (UNS N06625)
  • Inconel 686 (UNS N06686)
  • Inconel 690 (UNS N06690)
  • Inconel 718 (UNS N07718)
  • Inconel 725 (UNS N07725)
  • Inconel 751 (UNS N07751)
  • Inconel 783 (UNS R30783)
  • Incoloy 800 (UNS N08800)
  • Incoloy 800H (UNS N08810)
  • Incoloy 800HT (UNS N08811)
  • Incoloy 825 (UNS N08825)
  • Incoloy 925 (UNS N09925)
  • Alloy 20 (UNS N08020)
  • Alloy 28 (UNS N08028)
  • Alloy 59 (UNS N06059)
  • Hastelloy B-2 (UNS N10665)
  • Hastelloy B-3 (UNS N10675)
  • Hastelloy C-22 (UNS N06022)
  • Hastelloy C-276 (UNS N10276)
  • Hastelloy C-2000 (UNS N06200)
  • Hastelloy X (UNS N06002)
  • Haynes 230 (UNS N06230)
  • Haynes 188 (UNS R30188)
  • Haynes 214 (UNS N07214)
  • Nimonic 75 (UNS N06075)
  • Nimonic 80A (UNS N07080)
  • Nimonic 90 (UNS N07090)
  • Waspaloy (UNS N07001)
  • Rene 41 (UNS N07041)
  • Alloy X-750 (UNS N07750)
  • Invar 36 (UNS K93600)
  • Kovar (UNS K94610)

Application of Nickel-Alloy Laser Cutting Machines

Nickel-alloy laser cutting machines shine wherever parts must survive extreme heat, pressure, or corrosion. In aerospace and gas-turbine manufacturing, they profile combustor liners, nozzle guide vanes, and heat shields from Inconel 718 and Hastelloy X with micron-level accuracy. Power-generation firms use them for HRSG baffles, super-heater plates, and nuclear steam-generator tubes, where tight tolerances and oxide-free edges cut assembly time. In oil-and-gas service, laser-cut Alloy 625 forms downhole screens, wellhead gaskets, and subsea brackets that resist sour environments. Chemical-processing plants rely on clean-edged Hastelloy C-276 and Alloy 59 parts—reactor trays, pump housings, valve bodies—to combat aggressive media. Marine and offshore builders create corrosion-proof exhaust ducts and splash-zone fittings from Monel 400 and Alloy 825. Even in medical and electronics, fine slots and micro tabs in nickel-based superalloys provide implant housings, battery connectors, and EMI shields. From prototype to 24/7 production, laser cutting delivers the speed, precision, and edge integrity that nickel alloys demand.

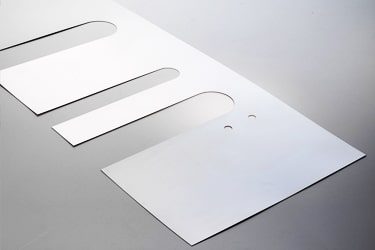

Nickel Alloy Laser Cutting Samples

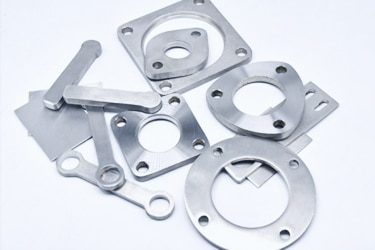

Nickel Alloy Laser Cutting Samples

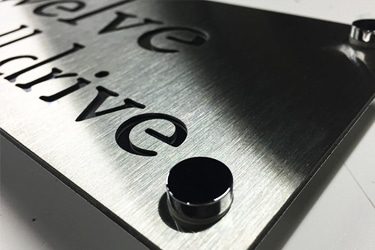

Nickel Alloy Laser Cutting Samples

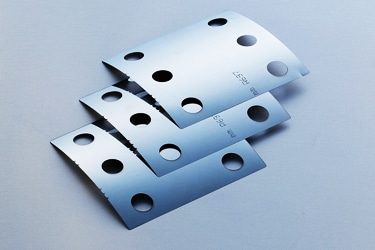

Nickel Alloy Laser Cutting Samples

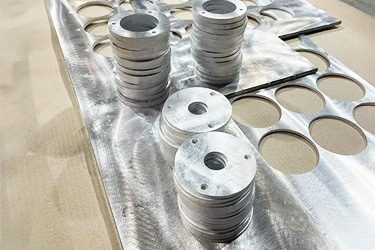

Nickel Alloy Laser Cutting Samples

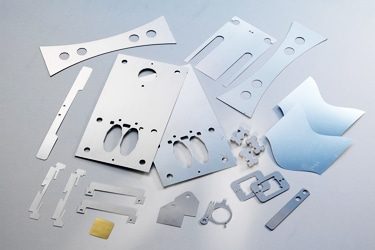

Nickel Alloy Laser Cutting Samples

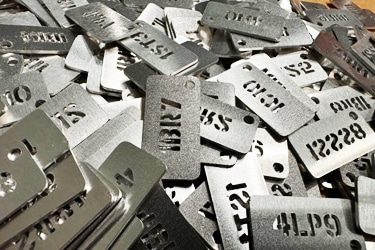

Nickel Alloy Laser Cutting Samples

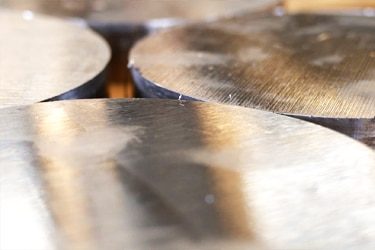

Nickel Alloy Laser Cutting Samples

Customer Testimonials

The fiber laser slices 3 mm Inconel sheets without warping, and 12 mm plate cuts cleanly in one pass. Barcode loading prevents program mix-ups. Kerf stays under 0.1 mm, so edges need no grind. After four months of two-shift use, accuracy still holds ±0.04 mm, and uptime sits at ninety-eight percent.
TobyTurbine Component Supervisor
The machine cuts Hastelloy C-276 flanges daily, leaving bright edges that pass leak tests. Nitrogen assist stops oxidation, saving post-work. Quick lens swaps let us jump between 2 mm shims and 10 mm covers in minutes. Scrap fell by eleven percent, boosting material yield. Staff training finished in a single afternoon.
NatalieChemical Plant Fabrication Lead
Prototyping Inconel brackets demands tight tolerances. The laser holds ±0.03 mm across the sheet, even after long runs. Low heat-affected zone keeps grain structure intact, vital for fatigue testing. Control interface imports SolidWorks files directly, cutting prep time. Sample turnaround has halved since installation, impressing management. Operator feedback remains very positive.
SamuelAerospace R&D Engineer
Cutting 8 mm Monel tube saddles used to require a saw and mill. Now the laser finishes each piece in under two minutes, with edges ready for welding. Height sensor tracks slight warp, avoiding crashes. The monthly electric bill dropped almost twenty percent, helping margins. Customers noticed a better fit-up.
LingPower Generation Shop Owner
In-house nickel-alloy cutting eliminated outside vendor delays, reducing overall lead time by two weeks. Nesting software improved sheet use by eight percent, lowering material spend. Remote app lets me track runs and gas levels from home. Finance projects full payback within sixteen months. Extra capacity opens new contract opportunities.
HelenSupply Chain Analyst
Alloy 625 nozzles need precise slots. This laser cuts a 4 mm plate smoothly, leaving square walls. Oxygen assist raises speed, and the heat zone is minimal, so warping is gone. Pallet changer loads the next sheet in seconds, boosting throughput by twenty-five percent. Workers appreciate the quiet, clean environment.
RashidOil Refinery Fabrication Foreman

Comparison VS Other Cutting Technologies

Feature Laser Cutting Plasma Cutting Waterjet Cutting Flame Cutting
Cut Quality Smooth, burr-free edges Dross often present Excellent, smooth Rough, irregular
Dimensional Precision ±0.05 mm typical ±0.5 mm ±0.2 mm > ±1 mm
Edge Oxidation / Metallurgical Integrity Minimal with N₂/Ar assist Significant None Severe oxidation
Kerf Width 0.1–0.3 mm 2–4 mm ~1 mm > 4 mm
Cutting Speed Fast Moderate Slow Very slow
Thickness Capability Foil to ~25 mm ~3–50 mm Foil to > 150 mm Limited / impractical
Tool Wear / Consumables No tool wear; optics last long Electrode/nozzle erosion Garnet abrasive consumed Tips/torches degrade
Post-Processing Needs Little or none Grinding usually required Minimal Heavy grinding & scaling
Initial Equipment Cost High Moderate High Low
Operating Cost Moderate (power + gas) Low High (abrasive + water) Low
Environmental Impact Low; filtered fumes Metal & ozone fumes Water/abrasive disposal Heavy smoke & NOx
Noise Level Low High Low Very high
Automation / CNC Full lights-out capable Good Good Limited
Fine-Detail Suitability Excellent for micro features Poor Good Not suitable

Why Choose Us

AccTek Group is a leading laser cutting machine manufacturer, dedicated to delivering high-quality, precision-driven solutions for industries worldwide. With years of experience in laser technology, we design and produce laser cutting machines that enhance efficiency, reduce production costs, and improve overall productivity. Our machines are widely used in metal fabrication, automotive, aerospace, and other industries that require precise and efficient cutting. We prioritize technological innovation, strict quality control, and exceptional customer service to ensure that every machine meets international standards. Our goal is to provide durable, high-performance solutions that help businesses optimize their operations. Whether you need a standard machine or a customized cutting system, AccTek Group is your trusted partner for reliable laser cutting solutions.

Advanced Technology

Our laser cutting machines feature high-speed, precision cutting with the latest laser technology, ensuring smooth edges, minimal waste, and superior efficiency across various materials and thicknesses.

Reliable Quality

Each machine undergoes rigorous quality control and durability testing to ensure long-term stability, low maintenance, and consistent high performance, even under demanding industrial conditions.

Comprehensive Support

We provide full technical support, including installation guidance, operator training, and after-sales service, ensuring smooth machine operation and minimal downtime for your business.

Cost-Effective Solutions

Our machines offer high performance at competitive prices, with customizable options to fit different production needs, helping businesses maximize their investment without compromising on quality.

Related Resources

Laser Cutting VS Waterjet Cutting

Laser Cutting VS Waterjet Cutting

2025-07-01

This article compares laser cutting and waterjet cutting technologies, examining their principles, applications, costs, advantages, and key considerations for choosing between them.

Frequently Asked Questions

Why Are Nickel Alloys Difficult To Cut?
Nickel alloys are known for their exceptional strength, corrosion resistance, and high-temperature performance, but these same properties also make them difficult to cut with lasers. Unlike softer metals or organic materials, nickel-based alloys challenge even high-powered fiber laser cutting systems due to their thermal conductivity, reflectivity, and mechanical toughness.

  • High Thermal Conductivity: Nickel alloys absorb heat slowly and conduct it away from the laser’s focal point, reducing the localized temperature rise needed for efficient melting and vaporization. As a result, the laser has to work harder—and stay longer in one spot—to make a clean cut, which slows down processing speed and increases the risk of heat-affected zones.
  • High Melting Point: Most nickel alloys have a melting point above 1300℃, which is significantly higher than aluminum or mild steel. This requires more laser energy and precise focus control to initiate and sustain the cut. Insufficient power or poor beam quality can lead to incomplete penetration, dross buildup, or edge deformation.
  • Work-Hardening and Toughness: Nickel alloys tend to work-harden under mechanical or thermal stress, meaning that the area near the cut becomes even tougher as the laser progresses. This makes it harder for the beam to continue cutting at a consistent rate, especially on curved profiles or intricate details. Edge burrs and irregular kerfs are common if the cutting parameters aren’t perfectly dialed in.
  • Reflectivity at Laser Wavelengths: Some nickel alloys, particularly those containing chromium or molybdenum, have high reflectivity at near-infrared wavelengths, which reduces energy absorption. This is less of a problem for fiber lasers than CO2 lasers, but it still demands careful focus and surface preparation to prevent back-reflection and inefficient cutting.
  • Reactive Fume Formation: Cutting nickel alloys often produces dense metallic fumes, including oxides of nickel, chromium, or iron. These fumes can reduce visibility, contaminate optics, and pose health risks if not properly extracted. Accumulated vapor may also interfere with the laser beam path, further reducing cutting quality.
  • Tight Process Window: Unlike more forgiving materials, nickel alloys have a narrow range of optimal cutting parameters. Small deviations in focus, gas pressure, or feed rate can quickly lead to defects. This makes process control and machine calibration especially important when working with these metals.

Despite the challenges, nickel alloys can still be laser-cut successfully when the machine is properly configured and the cutting environment is tightly controlled. Advanced fiber lasers with auto-focus heads, high-pressure nitrogen assist gas, and integrated fume extraction are essential for clean, consistent results.
Laser cutting is a precise and efficient method for processing nickel alloys, but the high temperatures and concentrated energy involved can alter material properties near the cut zone, potentially affecting the alloy’s performance, especially in demanding applications like aerospace, power generation, or chemical processing.

  • Heat-Affected Zone (HAZ): One of the primary concerns with laser cutting nickel alloys is the formation of a heat-affected zone—a narrow band along the cut edge where the alloy’s microstructure can change due to thermal stress. While the HAZ is typically shallow with fiber lasers, it may still lead to grain growth, reduced toughness, or localized hardening depending on the alloy type. In critical applications, this could reduce fatigue life or impact how the part responds to stress or vibration.
  • Oxidation and Surface Contamination: If not properly shielded with nitrogen or argon, laser cutting can introduce surface oxidation or inclusions at the edge. These can interfere with welding, brazing, or further machining. In some high-performance alloys like Inconel or Hastelloy, even small amounts of oxidation or slag can reduce corrosion resistance in harsh environments.
  • Mechanical Integrity at the Edge: Poorly tuned cutting parameters may leave rough edges, burrs, or microcracks that act as stress concentrators. These imperfections can reduce tensile strength or cause premature failure in service. Post-processing, such as deburring or edge smoothing, is often necessary to restore mechanical consistency.
  • Residual Stresses: Rapid heating and cooling during laser cutting can introduce residual stresses into the part, especially in thicker or tightly contoured sections. These stresses may not cause immediate problems, but they can distort dimensional tolerances or lead to cracking during subsequent fabrication steps like forming or welding.
  • Weldability Impacts: Nickel alloys are commonly welded after cutting, and the laser-cut edge must be clean and oxide-free to ensure strong, defect-free welds. Improper laser settings may leave behind carbon deposits, zinc contamination (if alloyed), or altered surface chemistry that could negatively affect weld penetration or metallurgical compatibility.

Despite these potential effects, laser cutting remains a reliable method for processing nickel alloys when handled correctly. Using high-pressure inert assist gases, minimizing heat input, and applying post-cut cleaning or finishing steps help preserve the alloy’s structural and chemical integrity. With proper controls in place, most performance-critical properties remain intact after laser processing.
Laser cutting nickel alloys requires precise control over heat and edge quality, which makes the choice of auxiliary gas essential. The assist gas not only clears molten material from the cut path but also influences the oxidation level, surface finish, and cut integrity. For nickel alloys, the most commonly used gases are nitrogen and argon, with oxygen used in very specific scenarios.

  • Nitrogen: Nitrogen is the primary auxiliary gas used when cutting nickel alloys. As an inert gas, nitrogen prevents oxidation by displacing oxygen from the cutting area. This helps maintain the chemical purity and corrosion resistance of the alloy. Nitrogen also produces clean, oxide-free edges, which are essential for applications that require post-process welding, forming, or exposure to aggressive environments. High-pressure nitrogen is often required to maintain kerf clarity and cut stability, especially for thicker sections or intricate patterns.
  • Argon: Argon is another inert gas option and is typically used when even higher protection against oxidation is needed. It’s more expensive than nitrogen but offers better shielding for heat-sensitive or high-performance nickel alloys like Inconel, Hastelloy, or Monel. Argon is preferred when the alloy composition demands zero atmospheric contamination, such as in medical, nuclear, or aerospace parts. While not always necessary for standard cuts, it’s valuable for precision-critical components.
  • Oxygen (Selective Use): Oxygen can be used when cutting speed is prioritized over edge quality. It initiates an exothermic reaction with the metal, adding heat to the cut and reducing the required laser power. However, this reaction also leads to edge oxidation, surface discoloration, and potential degradation of corrosion resistance. For this reason, oxygen is generally reserved for non-critical parts or where downstream finishing (like machining or grinding) is planned.

Gas purity, flow rate, and pressure also play a big role in cut quality. Impurities in the gas can lead to contamination, especially in high-alloy materials. Ensuring the use of high-purity, dry assist gases with stable delivery pressure is vital when working with nickel alloys.
Nickel alloy laser cutting machines fall within a broad price range of $15,000 to $200,000, depending on their power level, build quality, precision systems, and automation features. These machines typically use fiber laser technology, which is better suited for cutting reflective and high-melting-point metals like Inconel, Hastelloy, or Monel.

  • Entry-Level Systems ($15,000–$40,000): Basic fiber laser machines in this price range typically offer 1000W to 1500W of power. These are capable of cutting thin nickel alloy sheets with acceptable precision, but at slower speeds. These machines are best for light-duty applications, prototyping, or lab-based environments where cutting quality can be traded for lower investment cost. Expect manual loading, limited software features, and small worktables.
  • Mid-Range Machines ($40,000–$100,000): These systems often feature 2000W to 6000W lasers, larger cutting beds, and more refined motion controls. They are built for shops that cut nickel alloys regularly for industrial parts, aerospace brackets, or turbine components. They provide better fume extraction, higher cut quality, and support for high-pressure nitrogen or argon assist gases. You’ll also find smart control interfaces, auto-focus heads, and nesting software in this category.
  • High-End Industrial Systems ($100,000–$200,000+): Top-tier machines in this bracket offer 12kW or more of cutting power and are equipped for continuous, high-volume production of nickel alloy parts. These include integrated fume management systems, automated loading/unloading platforms, dual cutting tables, and advanced cooling systems. They are used by defense contractors, aerospace manufacturers, and energy sector fabricators that require extreme precision and reliability when cutting difficult metals.

When cutting nickel alloys, investing in the right laser source, optics, and process control ensures both part quality and long-term machine durability. Machines toward the upper end of this price spectrum deliver more value over time by reducing rework, increasing speed, and maintaining edge quality on even the most demanding jobs.
Laser cutting nickel alloys is effective but technically demanding, as these materials are known for their hardness, thermal resistance, and reflectivity. These same properties that make nickel alloys ideal for aerospace and energy applications also introduce challenges during cutting, which can affect edge quality, efficiency, and machine reliability if not properly managed.

  • Poor Edge Quality and Burr Formation: Nickel alloys are tough and resist rapid melting, which can result in rough edges, burrs, or striations along the cut path. This is especially true if the cutting speed is too low or the laser power is insufficient. Burrs not only affect the appearance but may also interfere with part fit or weldability, requiring additional post-processing like grinding or sanding.
  • Inconsistent Penetration or Cut Failure: Due to their high melting point and strong thermal conductivity, nickel alloys can cause the laser to struggle with full penetration, particularly on thicker parts or tight curves. Inconsistent gas flow, improper focus, or low power can cause incomplete cuts, dross buildup, or excessive tapering of the kerf.
  • Heat-Affected Zone (HAZ) Problems: Laser cutting creates a concentrated heat zone that can alter the microstructure of the alloy along the cut edge. In nickel alloys, this may lead to grain growth, localized hardening, or brittleness near the cut. If these parts are intended for high-stress environments, this can reduce fatigue life or cause cracking under load.
  • Oxidation and Surface Contamination: Without proper shielding gas—usually nitrogen or argon—the heat from the laser can cause edge oxidation or unwanted chemical changes in the alloy. Oxidized zones may appear discolored and are often less corrosion-resistant, especially problematic in chemical or marine environments.
  • Fume and Dust Generation: Nickel alloys produce dense, reactive metal fumes when cut. These fumes can deposit on optics, contaminate surrounding parts, and pose health risks if inhaled. Poor ventilation or clogged fume extractors increase the chance of reduced visibility and optical degradation during extended runs.
  • Increased Wear on Nozzles and Optics: The reflective nature of many nickel alloys can scatter laser energy, causing back reflections that wear down or damage cutting nozzles and protective lenses over time. Regular cleaning and part replacement are necessary to maintain consistent performance.
  • Gas Consumption and Cost Overruns: Cutting nickel alloys often requires high-pressure inert gas (especially nitrogen or argon) to keep the cut clean. If flow rates or pressure settings are poorly optimized, gas usage can spike without improving cut quality, leading to unnecessary operational costs.
  • Machine Instability or Overheating: Cutting nickel alloys generates sustained heat. If the machine’s cooling system isn’t properly maintained, it can lead to thermal drift, reduced accuracy, or unexpected downtime.

To minimize these issues, operators should use high-quality optics, precisely tuned parameters, and inert gas shielding, along with a clean, well-maintained fume extraction system. With these controls in place, the laser cutting of nickel alloys becomes a stable and repeatable process suitable for high-performance parts.
Nickel alloy laser cutting machines demand regular and precise maintenance due to the tough nature of the material being processed. Nickel alloys generate intense heat, dense metal fumes, and reflectivity-related challenges that can accelerate wear and degrade cutting performance if not addressed. Keeping the system in top condition ensures consistent edge quality, long machine life, and safe operation.

  • Optics and Lens Cleaning: Cutting nickel alloys produces metallic vapors that can quickly cloud or contaminate the protective lens and focusing optics. Regular cleaning with lint-free wipes and lens-safe solvents is essential. Dirty optics not only reduce beam efficiency but can also cause lens overheating and cracking, especially under high power.
  • Nozzle and Gas Line Maintenance: Nickel cutting requires high-pressure nitrogen or argon. Nozzles must be inspected for wear, warping, or spatter buildup, which can disrupt gas flow and cause rough edges. Gas lines and regulators should be checked for leaks, clogs, or pressure drops, especially when cutting at high volume. Damaged nozzles also increase the risk of back spatter onto the optics.
  • Fume Extraction System Checks: Nickel alloys emit dense metal fumes and fine particulates, which accumulate quickly in filters. Fume extractors should be inspected daily and filters replaced according to usage frequency. Blocked systems not only compromise air quality but also allow fumes to settle inside the machine enclosure, causing long-term contamination.
  • Cooling System Servicing: High thermal loads from cutting nickel demand effective cooling. The laser’s chiller should be kept clean and full, and coolant should be changed periodically to prevent scale buildup or bacterial growth. Overheating can damage laser diodes, reduce cutting consistency, and increase downtime.
  • Alignment and Calibration: Over time, cutting nickel alloys can cause thermal drift or mechanical stress on motion components. Periodic calibration of the laser head, beam path, and motion system ensures dimensional accuracy and kerf consistency. Machines with auto-focus or capacitive height control should also be recalibrated to handle variations in the material surface.
  • Assist Gas Supply Monitoring: Due to the high pressure and purity required, assist gas tanks or generators must be inspected for contamination, and pressure settings should be logged and verified. Any drop in pressure or flow rate can lead to poor kerf evacuation or oxidation along the cut.
  • Laser Source and Electrical System Inspection: While fiber lasers require less frequent service than CO2 sources, components like the power supply, fiber connections, and drive electronics must be checked for dust, heat buildup, or wear. Preventive maintenance logs should include thermal imaging or diagnostic readouts if available.
  • Software and Firmware Updates: Modern machines include onboard diagnostics, cut optimization tools, and smart gas control. Keeping the software up to date helps improve cutting efficiency and integrates new settings for emerging alloy grades or gas combinations.

Routine maintenance for nickel alloy cutting machines is not just about preventing breakdowns—it’s about ensuring high-precision performance in demanding environments. Regular servicing reduces downtime, extends part life, and supports consistent, clean cutting across a variety of nickel-based materials.
Laser cutting nickel alloys does produce toxic fumes, and managing these emissions is critical for maintaining a safe working environment. The intense heat from the laser vaporizes not only the base metal but also alloying elements like chromium, cobalt, molybdenum, and iron, all of which can release hazardous compounds when cut.

  • Nickel Oxide Fumes: When nickel is exposed to high temperatures, it forms nickel oxide, a compound classified as a carcinogen and respiratory irritant. Inhalation of nickel oxide particles can cause lung inflammation, allergic reactions, or long-term respiratory issues, especially in poorly ventilated areas. Prolonged exposure has also been linked to more serious health risks in industrial settings.
  • Chromium and Cobalt Compounds: Many high-performance nickel alloys contain chromium and cobalt, both of which produce hazardous fumes when laser-cut. Chromium can oxidize into hexavalent chromium (Cr⁶⁺), a highly toxic and carcinogenic form that poses serious health risks. Cobalt exposure may cause asthma, skin sensitization, or cardiac issues with repeated inhalation.
  • Fine Particulate Matter: In addition to chemical toxicity, laser cutting nickel alloys releases ultrafine metal dust, which can penetrate deep into the lungs if not properly filtered. These particles can aggravate existing respiratory conditions and are especially dangerous in enclosed or high-volume cutting operations.
  • Risk Management Measures:
  1. High-efficiency fume extraction systems with HEPA or activated carbon filters should be installed directly at the cut zone.
  2. Cutting should always occur in enclosed or ventilated areas to minimize operator exposure.
  3. Workers in proximity to active cutting should wear respirators rated for metal fume filtration, particularly when cutting for extended periods.
  4. Regular air quality monitoring can help ensure exposure levels stay within safe occupational limits.

Unlike materials like PVC or chlorine-based rubbers, nickel alloys don’t release corrosive gases, but the metallic fumes are still highly toxic and should never be underestimated. Safe handling, proper ventilation, and personal protection are essential when laser cutting any alloy containing nickel and its reactive companions.
Laser cutting nickel alloys is safe when done with the proper equipment, environmental controls, and protective protocols. These materials are commonly processed in industries like aerospace, power generation, and chemical engineering, but they come with specific safety considerations due to their high reflectivity, heat resistance, and toxic fume output.

  • Fume Hazards: Nickel alloys release toxic metal fumes during cutting, including nickel oxide, cobalt oxide, and possibly hexavalent chromium (if chromium is present in the alloy). These fumes are hazardous to inhale and can cause respiratory issues, allergic reactions, or long-term health effects. Cutting must be performed with a fume extraction system equipped with HEPA and carbon filters, and operators should wear respirators or personal air filtration in high-exposure zones.
  • Thermal and Optical Safety: Nickel alloys reflect more laser energy than other metals, increasing the risk of back-reflection, which can damage the laser head or injure nearby personnel. Modern fiber laser systems are built with protective optics, beam isolators, and anti-reflection coatings, but operators should avoid open setups and always use enclosures when possible. Machine doors, viewports, and access panels should be interlocked to prevent accidental exposure to laser radiation.
  • Particulate and Fire Risk: The intense heat generated during cutting can cause the buildup of fine metal dust, which, if not collected, may pose a fire or explosion hazard in enclosed spaces. Routine cleaning of the cutting bed, nozzle area, and filtration units helps prevent dust accumulation. Machines should be grounded properly to prevent static discharge in dust-laden environments.
  • Mechanical Safety: As with all CNC laser systems, cutting machines include moving components, pressurized gas lines, and electrical circuits. Operators should be trained to follow lockout/tagout procedures during maintenance, wear protective gloves and eyewear, and avoid manual intervention during cutting.
  • Safe Practices for Nickel Alloy Cutting Include:
  1. Using inert assist gases like nitrogen or argon to prevent oxidation and control slag.
  2. Installing high-efficiency extraction and ventilation systems to control airborne contaminants.
  3. Regular inspection and maintenance of optics, nozzles, filters, and chiller systems.
  4. Wearing PPE suited for both metalworking and laser environments.

In short, laser cutting nickel alloys is safe, but it is not forgiving. The process must be tightly controlled, with dedicated infrastructure, trained personnel, and rigorous safety protocols in place to protect both equipment and human health. When done right, laser cutting remains one of the cleanest, most precise ways to process these demanding materials.

Get Nickel-Alloy Cutting Solutions

Conquering Inconel®, Hastelloy®, Monel®, and other nickel-based alloys demands more than brute power—it takes a laser platform engineered for extreme metallurgy. Our fiber-laser systems deliver focused energy, inert-gas shielding, and closed-loop height control to slice through thin foil or 25mm plate with oxide-free edges and ±0.05mm precision. Intelligent nesting software, high-speed autofocus, and automated load/unload towers keep material yield high and labor low, turning notoriously hard alloys into effortless, lights-out production.
We provide complete, end-to-end support: application trials to dial in parameters, ROI analysis to justify investment, expert installation, and operator training that has your team cutting parts on day one. Remote diagnostics, preventive-maintenance kits, and rapid-response service plans protect uptime and optics alike.
Ready to transform how you cut nickel alloys? Contact us now for a tailored consultation, sample cuts on your material, and a competitive quote that fits your production goals and budget.
* We value your privacy. AccTek Group is committed to protecting your personal information. Any details you provide when submitting the form will be kept strictly confidential and used only to assist with your inquiry. We do not share, sell, or disclose your information to third parties. Your data is securely stored and handled by our privacy policy.
Product
Services
Quick Links
Get In Touch With Us
  • [email protected]
  • +8618766185593
  • Headquarters: 3-1007, Minghu Plaza, Minghu West Street, Jinan City
  • Branch: A3-2-1206, Hanyu Jingu, High-tech Zone, Jinan City
  • Factory: No. 3, Zone A, Lunzhen Industrial Zone, Yucheng City, Dezhou City
Facebook X-twitter Facebook Linkedin Youtube Linkedin
Copyright © Jinan AccTek Machinery Co., Ltd
AccTek Logo
Powered by  GDPR Cookie Compliance
Privacy Overview

This website uses cookies so that we can provide you with the best user experience possible. Cookie information is stored in your browser and performs functions such as recognising you when you return to our website and helping our team to understand which sections of the website you find most interesting and useful.
