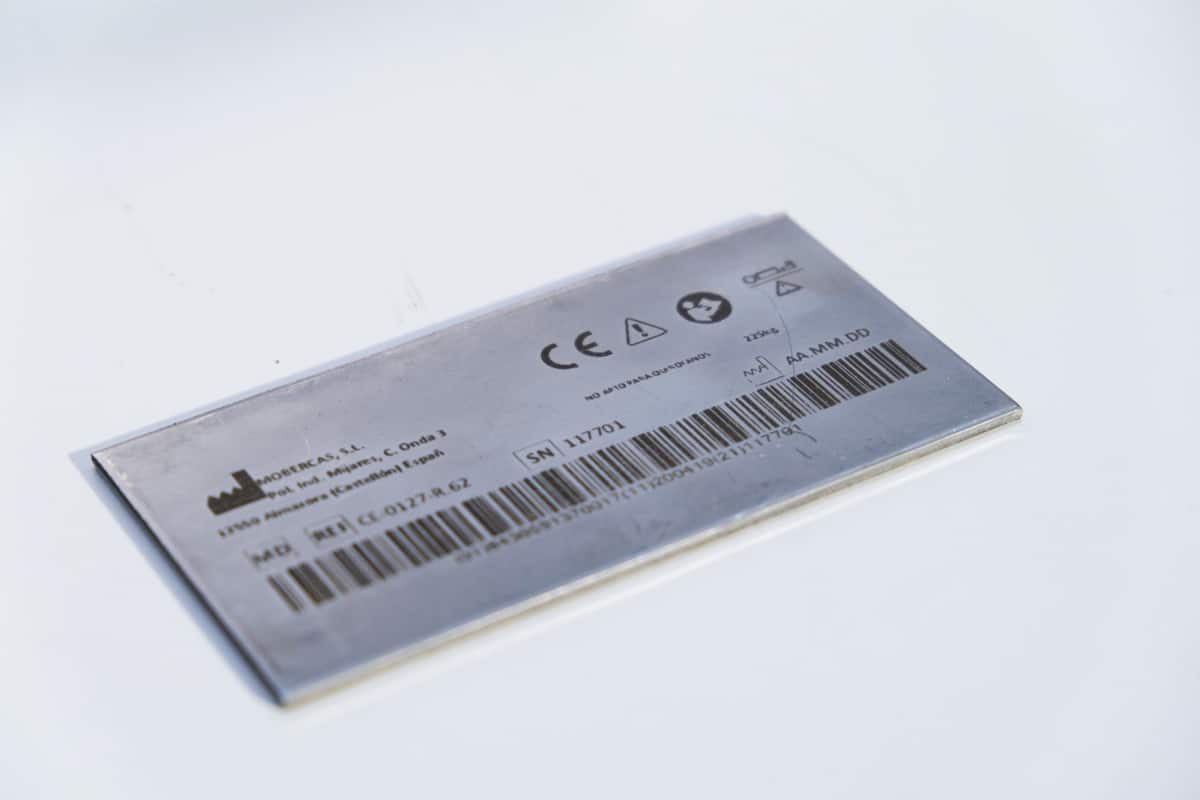

How Accurate Is Laser Marking
Laser marking has become one of the most precise and reliable methods for adding permanent information to materials — from serial numbers on medical tools to barcodes on electronic parts. Unlike traditional methods such as ink printing or mechanical engraving, laser marking uses a focused beam of light to alter the surface of a material with extreme accuracy. This technology offers clean, durable, and high-contrast results that resist wear, corrosion, and fading.
However, when industries demand tight tolerances and flawless legibility — especially in aerospace, automotive, and microelectronics — the question arises: just how accurate is laser marking? The answer depends on several factors, including the type of laser used, the material’s properties, the motion system’s precision, and the quality of the marking software. Modern laser marking systems can achieve accuracy measured in microns, but that level of performance requires optimal setup and control.
This article examines the actual accuracy of laser marking, its measurement, and the factors that influence it in real-world conditions. By understanding the technical limits and influencing factors, manufacturers can make informed decisions about using laser marking for critical applications where precision isn’t optional — it’s essential.
Table of Contents
How Laser Marking Works
Laser marking stands out among all marking technologies because of its inherent precision — it’s not a coincidence but a result of physics, optics, and control systems working in perfect coordination. To understand why laser marking is naturally accurate, it helps to look at what happens inside the machine and how each component contributes to sub-millimeter precision. Two key aspects define this accuracy: the physics behind laser precision and the role of galvo scanning technology in maintaining both speed and accuracy.
The Physics Behind Laser Precision
At its core, a laser is a concentrated beam of coherent light — meaning all light waves move in the same direction, at the same frequency, and in phase with one another. This coherence allows the beam to be tightly focused to an extremely small spot size, often less than 20 micrometers in diameter. The smaller the spot, the finer the detail the laser can mark.
When this beam hits a surface, its energy is absorbed and converted into heat (or, in the case of ultrafast lasers, directly into material vaporization through ablation). Because the laser’s energy delivery is highly controlled and localized, there is minimal thermal spread beyond the target area. This ensures that the mark is clean, sharp, and dimensionally stable, with virtually no unwanted material deformation or burning.
Precision also comes from how laser marking systems regulate key parameters such as pulse duration, pulse frequency, and power output. Modern laser controllers can adjust these parameters in microseconds, tailoring energy delivery to the exact requirements of different materials — metals, plastics, ceramics, or composites. For instance, fiber lasers used for metal marking operate with a beam quality defined by the M² factor (typically near 1.0), which indicates how close the beam is to a perfect Gaussian profile. A near-ideal beam produces a consistent, focused energy distribution, ensuring every pulse lands exactly where intended.
This high degree of control — down to micro-level timing and positioning — gives laser marking an inherent accuracy that’s difficult for mechanical or chemical marking methods to match.
Galvo Scanning — The Key to Speed and Accuracy
While the laser beam itself provides precision, it’s the galvanometer scanning system (or galvo system) that gives laser marking its remarkable combination of accuracy and speed. A galvo system uses two mirrors, each mounted on a high-speed motor, to steer the laser beam across the marking surface. One mirror controls the X-axis and the other the Y-axis, allowing for rapid and exact positioning of the beam without physically moving the workpiece.
Galvo scanners can reposition the beam thousands of times per second with angular precision measured in microradians. This means the laser can create intricate shapes, small text, or detailed 2D codes in a fraction of a second — all while maintaining tight positional accuracy. Because no heavy mechanical components are moving across the work area, there’s no inertia, backlash, or mechanical wear that could degrade precision over time.
The accuracy of a galvo system depends on several factors: mirror size and flatness, motor response time, optical feedback control, and lens calibration. High-end systems use digital servo control loops and position sensors to constantly monitor mirror angles, correcting even the slightest deviation in real time. The result is a system capable of marking complex geometries with micrometer-level precision, even at high speeds.
Moreover, galvo systems are often paired with f-theta lenses, which ensure the laser beam stays perpendicular to the surface across the entire marking field. This minimizes distortion and keeps the mark’s dimensions consistent from edge to edge. When combined with modern motion control software, galvo scanners make it possible to synchronize marking with conveyor systems or robotic automation — maintaining both precision and productivity.
Laser marking is naturally accurate because of the physics of the laser beam and the precision engineering behind galvo scanning systems. The laser’s coherent light can be focused to microscopic dimensions, delivering energy exactly where it’s needed without mechanical contact or distortion. The galvo mirrors then guide this beam with astonishing speed and repeatability, ensuring every mark is positioned and formed with exact consistency.
Together, these elements eliminate many sources of error common in traditional marking — no tool wear, no ink spreading, no mechanical backlash. What remains is pure, digitally controlled precision. That’s why laser marking has become the go-to solution for industries where clarity, repeatability, and reliability are not optional but essential.
Understanding Accuracy in Laser Marking
Accuracy in laser marking is the foundation of quality, consistency, and traceability across industries that rely on permanent identification — such as aerospace, automotive, electronics, and medical manufacturing. When people refer to “accuracy” in laser marking, they often think of how precisely a laser can engrave a logo or serial number. In reality, it’s a complex interplay of several performance factors that determine how accurately a laser system can position, shape, and reproduce a mark. These include positional accuracy, dimensional accuracy, repeatability, resolution, edge definition, and marking depth and uniformity. Each of these contributes to how reliable and visually precise the final result will be.
Positional Accuracy
Positional accuracy measures how precisely the laser can focus on and mark a specific coordinate on the workpiece. It’s the difference between where the system intends to mark and where the laser actually hits. This accuracy depends on the calibration of the galvanometer mirrors (which direct the beam), the precision of the motion system (in gantry-based setups), and the alignment between optics and workpiece.
High-end laser marking systems can achieve positional accuracies within ±10 micrometers. For industries like microelectronics, where marks must align perfectly with circuit paths or fiducials, even small deviations can lead to misalignment. Maintaining stable temperature conditions, minimizing vibration, and routinely calibrating the optical path are essential to preserving positional accuracy.
Dimensional Accuracy
Dimensional accuracy defines how true the marked shapes and characters are to their intended size. A line designed to be 1.000 mm long should not appear as 0.985 mm or 1.015 mm on the part. Deviations occur due to lens distortion, focal plane curvature, or scaling errors in the scanning field.
For example, wide-field lenses used for large marking areas often introduce slight nonlinearity at the edges, causing stretching or compression of the mark. Compensation algorithms in modern laser marking software correct these distortions, ensuring uniform dimensions across the entire field. Consistent focus and beam quality (M² factor) are also vital — the more uniform the beam, the more accurately the energy distribution follows the programmed pattern.
Repeatability
Repeatability is the system’s ability to produce the same mark multiple times, in the same position, size, and quality. It’s a measure of consistency over time, rather than a single act of precision. In automated manufacturing, high repeatability ensures that every component in a batch receives identical identification — essential for traceability and product validation.
Repeatability depends on mechanical rigidity, scanning system stability, and consistent laser output. Factors like galvanometer drift, bearing wear, or fluctuating power supply can cause deviations. Well-maintained systems typically achieve repeatability better than ±5 micrometers, making them suitable for high-volume production where visual or functional uniformity is mandatory.
Resolution
Resolution refers to the smallest feature size that the laser can accurately reproduce. It determines how finely detailed a mark can be — for instance, whether a small QR code remains readable under magnification. The laser’s spot size (typically between 10–50 micrometers for fiber lasers) and pulse frequency play key roles in defining resolution.
A smaller spot size allows tighter line spacing and finer detail, but achieving this requires excellent beam focusing and material response. The marking material also influences resolution; metals like stainless steel and titanium can hold fine detail better than softer materials, which may melt or deform slightly under heat.
Edge Definition
Edge definition describes the clarity and sharpness of the boundaries of a mark. When viewed under magnification, well-defined edges appear crisp, with minimal thermal distortion or burrs. Poor edge definition can make characters look fuzzy or uneven, compromising legibility and professional appearance.
Edge quality is influenced by factors such as laser pulse duration, pulse overlap, and the material’s heat conductivity. Continuous wave lasers tend to produce broader heat-affected zones, while pulsed or ultrafast lasers (picosecond or femtosecond) create precise edges with minimal melting. Proper focusing and motion control ensure that the laser energy is confined exactly to the intended marking path.
Marking Depth and Uniformity
Marking depth determines how deeply the laser alters or removes the material surface. Uniformity ensures that the depth and appearance are consistent across the entire marked area. Depth affects not only visual contrast but also durability — deeper marks resist wear, corrosion, and surface finishing processes such as anodizing or coating.
Depth control depends on laser power, pulse duration, scan speed, and focus stability. For shallow annealing marks (like those on medical instruments), the goal is surface color change with minimal material removal. For deep engraving, the laser must deliver uniform energy density throughout the operation to maintain consistent depth and avoid tapering or uneven shading. Automated focus tracking systems and precision scanning optics help maintain uniformity, even on curved or irregular surfaces.
Laser marking accuracy is a multi-layered performance metric, not a single value. It’s the harmony between mechanical precision, optical focus, and energy control. Positional accuracy ensures the mark lands exactly where it should; dimensional accuracy keeps proportions true; repeatability guarantees consistency; resolution defines the level of detail; edge definition sharpens clarity; and marking depth and uniformity ensure long-term readability and visual consistency.
When these factors are optimized together, modern laser marking systems can achieve precision down to a few microns — a level unmatched by traditional marking methods. For manufacturers, understanding these aspects is key to selecting the right laser technology and process parameters to achieve reliable, high-quality results every time.
Types of Laser Marking Technologies and Their Accuracy Levels
Not all laser marking systems deliver the same level of precision. Different types of lasers use different wavelengths, pulse durations, and power characteristics, each suited to specific materials and accuracy requirements. Understanding the strengths and limitations of each laser type is essential for choosing the right system — especially when tight tolerances and high-quality markings are required.
Fiber Laser Marking Accuracy
Fiber lasers are among the most widely used marking systems, especially for metals such as stainless steel, aluminum, titanium, brass, and alloys. They generate light at a wavelength of approximately 1064 nanometers, which is strongly absorbed by metals, allowing for precise and high-contrast marks.
Fiber lasers achieve accuracy levels typically within ±10 micrometers, depending on the system’s optics and mechanical stability. Their beam quality (M² close to 1.0) produces a small, consistent spot size — usually between 20 to 30 micrometers — which makes them excellent for engraving serial numbers, barcodes, and detailed logos. Because they use solid-state optical fibers to guide and amplify light, they’re also highly stable, with minimal alignment drift or power fluctuation over time.
However, fiber lasers are less suitable for marking plastics or materials that are transparent or poorly absorb infrared wavelengths. In such cases, other laser types provide better control and accuracy.
MOPA Fiber Laser Accuracy
The MOPA (Master Oscillator Power Amplifier) fiber laser is a more advanced version of the standard fiber laser, offering greater flexibility and precision control. The key advantage lies in its adjustable pulse duration — typically from a few nanoseconds up to several hundred nanoseconds. By tuning the pulse width and frequency, users can fine-tune how the laser interacts with different materials.
This adaptability allows MOPA lasers to produce extremely fine, detailed markings with minimal heat damage or discoloration. For example, they can achieve color markings on stainless steel or black markings on anodized aluminum without affecting the surrounding surface. The accuracy is typically in the range of ±5–10 micrometers, making them ideal for high-end electronics, aerospace components, and medical devices where micro-marking and surface uniformity are critical.
MOPA lasers also excel in repeatability — every pulse can be precisely controlled, ensuring consistent results even on complex geometries or sensitive materials.
UV Laser Marking Accuracy
UV (ultraviolet) lasers, operating at around 355 nanometers, are known for their cold marking process. Unlike infrared lasers, UV lasers work through photoablation, where high-energy photons directly break molecular bonds rather than generating heat. This allows for extremely fine and precise marking, especially on delicate or heat-sensitive materials such as plastics, glass, silicon, and ceramics.
Because of their very small spot size (as little as 10 micrometers) and minimal thermal impact, UV lasers can mark micro text, tiny QR codes, and intricate graphics with outstanding clarity and contrast. Their accuracy often reaches the ±3–5 micrometer range — among the best in laser marking technology.
This level of precision makes UV lasers a top choice for electronics manufacturing, semiconductor components, and medical device labeling, where micro-scale marking and non-destructive results are essential. However, their power output is relatively low, making them less suitable for deep engraving or high-speed industrial marking.
Green Laser Marking Accuracy
Green lasers operate at a wavelength of 532 nanometers — half that of a fiber laser — and are often described as the “bridge” between UV and infrared systems. This wavelength is well absorbed by both metals and nonmetals, making green lasers highly versatile.
Their shorter wavelength allows for a smaller focal spot than traditional infrared lasers, giving them superior marking precision, typically around ±5–8 micrometers. They excel in applications involving reflective materials like gold, silver, copper, and certain polymers, where infrared lasers might struggle or cause excessive heat buildup.
Green lasers are widely used in the electronics, medical, and jewelry industries for applications requiring precise, gentle marking with high contrast. Their ability to deliver accurate, shallow marks with minimal surface damage makes them particularly valuable for fine engraving on delicate components.
CO2 Laser Marking Accuracy
CO2 lasers, emitting at a wavelength of 10.6 micrometers, are primarily used for marking nonmetallic materials such as wood, glass, paper, leather, plastics, and ceramics. While they offer excellent marking quality and speed for these materials, their accuracy is generally lower than that of solid-state lasers.
Typical positional accuracy for CO2 laser marking systems is around ±20–30 micrometers, depending on setup and material properties. Their larger beam spot and longer wavelength make them less suited for ultra-fine or micro-scale applications. However, for engraving or etching organic materials, CO2 lasers deliver clean and consistent results with good edge definition and depth control.
Their advantage lies in uniform energy distribution and smooth surface finishing rather than micron-level precision. For industries like packaging, signage, and consumer goods, where decorative or readable marks are more important than submicron accuracy, CO2 lasers remain highly effective.
Each laser marking technology has its own precision profile, shaped by wavelength, pulse control, and material compatibility. Fiber lasers deliver robust accuracy for metals, while MOPA fiber lasers push that precision further with superior pulse flexibility and surface control. UV lasers lead in micro-marking accuracy, ideal for small-scale, heat-sensitive components. Green lasers balance precision and versatility, excelling with reflective and hybrid materials. CO₂ lasers, though less precise in micrometer terms, provide clean, efficient marking for nonmetals.
In short, the “accuracy” of laser marking depends as much on the technology as it does on the application. For sub-micron detail and delicate surfaces, UV and MOPA fiber systems dominate. For durable, high-speed industrial marking, standard fiber lasers are unmatched. Understanding these distinctions allows manufacturers to match the right laser type to their precision and performance needs — ensuring the best possible marking quality every time.
Key Factors That Influence Laser Marking Accuracy
Laser marking is renowned for its precision, but achieving that precision consistently requires more than just a high-quality laser. Accuracy is the result of multiple interdependent factors — optical, mechanical, environmental, and human. Even the most advanced laser system can produce inconsistent or distorted markings if one of these elements is not properly controlled. Below are the key factors that directly influence the accuracy, repeatability, and overall quality of laser marking.
Laser Source Quality
The laser source is the heart of any marking system. Its stability, beam quality, and power consistency directly determine how precisely the laser can deliver energy to the material. High-end lasers have a near-perfect beam profile (M² close to 1.0), allowing for tight focusing and uniform energy distribution. Poor beam quality, on the other hand, produces uneven marking lines, inconsistent depth, or blurred edges.
A stable power output ensures that each pulse delivers the same energy, which is critical for repeatability — especially in micro-marking or when working on materials that are sensitive to thermal variation. Regular monitoring of laser power output helps maintain consistent accuracy over time.
Lens and Optics Quality
Optical components — including mirrors, lenses, and protective glass — play a critical role in guiding and focusing the beam. Any imperfection, dust, or degradation in these optics can scatter light and distort the focal point, reducing precision. The f-theta lens, in particular, is responsible for maintaining a flat field and uniform marking size across the working area.
High-quality, anti-reflective coated lenses minimize optical distortion and ensure energy is distributed evenly. Proper cleaning and periodic replacement of lenses help maintain optimal focus and sharpness, which are essential for consistent accuracy.
Focusing Distance
Focusing distance — the space between the lens and the workpiece — determines how sharply the laser beam converges on the surface. Even a deviation of a few tenths of a millimeter can cause the spot size to enlarge, reducing both resolution and energy density.
Accurate focusing is especially critical when marking curved or uneven surfaces. Many modern laser marking systems use auto-focus sensors or height-adjustable stages to maintain perfect focus, ensuring consistent line width, depth, and clarity across the entire mark.
Galvo Performance
The galvanometer (galvo) system controls the beam’s movement through high-speed mirrors. Its responsiveness, linearity, and feedback precision directly affect positional accuracy. A well-tuned galvo can position the beam within a few micrometers of the target point, while a poorly calibrated one may introduce drift or distortion, especially during long runs or high-speed marking.
Top-tier galvos use closed-loop control systems and precision encoders to maintain accuracy over time, even under continuous operation. Vibrations, mirror misalignment, or servo lag can compromise accuracy, so routine calibration and maintenance are essential.
Marking Speed
There’s always a trade-off between speed and accuracy. Higher marking speeds can increase throughput but may reduce the laser’s interaction time with the material, resulting in lower contrast or inconsistent depth. Extremely fast scanning can also cause dynamic errors, such as slight angular distortions or skipping on tight curves.
To maintain accuracy at higher speeds, laser systems must balance power, pulse frequency, and scanning velocity. Modern motion control software often compensates for speed-induced errors through dynamic power modulation and beam path correction.
Material Characteristics
Different materials respond to laser energy in unique ways. Metals, plastics, ceramics, and composites each have distinct reflectivity, thermal conductivity, and absorption rates. For example, highly reflective materials like copper or gold require higher precision and controlled pulse timing to prevent scattering and uneven marking.
Surface condition also matters — rough, coated, or oxidized surfaces can scatter the beam, while polished or coated materials may reflect it. Selecting the right wavelength and optimizing parameters for each material type ensures consistent marking depth, edge quality, and dimensional accuracy.
Motion System and Workpiece Fixturing
For systems that use moving stages or adjustable platforms, the motion system’s precision is crucial. Any mechanical backlash, misalignment, or slip in the axes can cause positional inaccuracies. High-quality linear stages and servo-driven motors minimize these issues by ensuring precise, smooth movement.
Equally important is how the workpiece is held in place. Inconsistent or unstable fixturing can cause the part to move slightly during marking, misaligning the pattern or distorting shapes. Custom jigs or vacuum fixtures are often used to ensure perfect alignment and repeatability.
Environmental Conditions
Environmental stability plays a larger role than many realize. Temperature fluctuations can cause optical expansion, electronic drift, and even small mechanical shifts that affect accuracy. Dust, humidity, and vibration from nearby machinery can further degrade performance.
Maintaining a clean, temperature-controlled workspace (typically around 20–25℃) and isolating the marking station from external vibrations helps ensure consistent results. Enclosed laser marking systems often perform better because they’re less exposed to environmental interference.
Software Calibration and Compensation
Software acts as the brain of the laser marking system. It translates design files into precise beam movement commands and compensates for mechanical and optical distortions. Calibration ensures that the marked output matches the intended design, even at the edges of the marking field where slight distortions may occur.
Advanced systems use correction algorithms to linearize the galvo’s motion, adjust for lens distortion, and synchronize pulse timing with scanning speed. Regular software calibration ensures that the virtual geometry perfectly matches physical output — a key factor in maintaining dimensional accuracy.
Operator Calibration and Maintenance
Even the best technology depends on the skill of the operator. Proper setup, parameter adjustment, and periodic maintenance all influence accuracy. Misalignment during setup, poor focusing, or incorrect power settings can result in significant deviations.
Routine maintenance tasks — such as cleaning optics, checking focus, verifying calibration marks, and inspecting fixtures — prevent small errors from accumulating into major inconsistencies. Skilled operators also understand how to adjust settings for different materials and marking conditions, further enhancing accuracy and consistency.
Laser marking accuracy is not determined by a single factor but by the balance of an entire ecosystem — from the laser source and optics to the operator and environment. A high-quality laser can only perform as well as its supporting components allow. Stability, calibration, and control are the cornerstones of precision.
In short, achieving micron-level accuracy in laser marking requires a combination of advanced engineering, proper setup, and disciplined maintenance. When all these factors are optimized together, the result is unmatched consistency — clean, legible, and precisely placed markings that meet the most demanding industrial standards.
Accuracy by Material Type
Laser marking accuracy is not solely defined by the machine’s specifications — the material being marked plays an equally crucial role. Every material interacts differently with laser energy depending on its absorption rate, reflectivity, density, and thermal conductivity. These properties determine how cleanly, deeply, and consistently a mark can be made. Even with the most advanced equipment, results can vary significantly between metals, plastics, ceramics, glass, wood, coated surfaces, and organic materials. Understanding these variations is essential to achieving optimal accuracy and consistent quality across different materials.
Metals
Metals are among the most common materials used in laser marking due to their durability, conductivity, and widespread industrial applications. They generally absorb infrared laser wavelengths (like 1064 nm from fiber lasers) efficiently, allowing for fine, high-contrast markings.
Laser marking accuracy on metals can reach the micrometer range — typically ±5–10 μm — depending on the system and surface preparation. However, reflectivity can vary: highly reflective metals like copper, gold, and aluminum require precise control of laser parameters to prevent scattering or unwanted heat buildup. Fiber and MOPA fiber lasers are preferred for metals because they deliver concentrated energy with minimal thermal distortion.
Surface finish also affects marking precision. Polished or anodized metals reflect more light, potentially reducing depth uniformity, while rougher surfaces tend to absorb more energy and produce consistent results. With proper calibration, laser marking on metals produces crisp lines, sharp edges, and permanent, corrosion-resistant marks suitable for aerospace, automotive, and medical device industries.
Plastics
Plastics are more challenging to mark accurately due to their lower melting points and varying chemical compositions. Their response depends on pigmentation, additives, and polymer structure. Some plastics absorb laser light readily, while others require specific wavelengths — such as those from UV or green lasers — for precise marking.
Accuracy on plastics can reach ±10–15 μm with the right laser setup. UV lasers are particularly effective because they use a cold marking process, minimizing thermal damage, melting, or surface distortion. MOPA fiber lasers are also used for color changes in certain plastics without material removal, enabling high-resolution logos or barcodes without affecting surface integrity.
However, consistent results require tuning pulse duration and power carefully. Overexposure can cause charring, while underexposure can lead to poor contrast or incomplete marking. Proper focus and wavelength selection are crucial to achieving uniform, detailed results on plastic materials used in electronics, medical devices, and consumer goods.
Ceramics
Ceramics are dense, brittle, and highly heat-resistant materials that respond well to laser marking when using the correct wavelength and energy density. Fiber and UV lasers are commonly used to achieve fine, high-contrast marks without cracking the material.
Ceramic marking accuracy typically ranges from ±5–10 μm, but maintaining structural integrity is key. The goal is to remove or discolor only the top layer without inducing micro-fractures or thermal stress. Ultrafast pulsed lasers (picosecond or femtosecond) excel here because they minimize heat-affected zones (HAZ), producing clean, sharp markings ideal for electronics, medical implants, and industrial components.
The main challenge lies in balancing power and pulse duration. Too much energy can cause localized cracking; too little results in faint marks. Properly tuned laser marking systems, however, achieve exceptionally stable and precise results with high edge definition and durability.
Glass
Glass is a difficult material for precision marking due to its transparency, brittleness, and sensitivity to thermal shock. Standard fiber or CO2 lasers often cause cracks or stress lines. UV and green lasers, with shorter wavelengths and higher photon energy, offer much greater control.
Accuracy on glass typically falls within ±10 μm when using UV lasers. These laser marking systems induce micro-ablation on the surface or within the subsurface layer without generating significant heat, allowing for permanent, smooth, and fine marks. Applications include medical syringes, laboratory glassware, and decorative products.
The key challenge is avoiding internal stress and maintaining clarity. A well-calibrated UV laser marking system can create crisp engravings or frosted textures without compromising transparency or causing fractures — a precision process that demands tight control of focus and pulse frequency.
Wood and Organic Materials
Wood and other organic materials (such as leather, paper, and textiles) are highly variable in density and moisture content, which directly affects marking accuracy. CO2 lasers, operating at a wavelength of 10.6 μm, are ideal for these materials because they interact efficiently with organic compounds, producing high-contrast and aesthetically pleasing marks.
Accuracy in wood and organics is generally within ±30–50 μm, depending on grain texture, fiber direction, and consistency. Variations in density can cause uneven burning or shading, so precision marking requires power modulation and proper speed control. Lower laser power with multiple passes often yields the most consistent results.
While laser marking on wood isn’t typically measured in microns (as in metal marking), it can still achieve excellent visual precision for branding, engraving, and decorative work. The natural variation of the material, however, makes absolute dimensional accuracy difficult to maintain.
Coated Surfaces
Coated or treated surfaces, such as anodized aluminum, painted metal, or powder-coated parts, respond differently from bare materials. The laser must remove or modify only the coating layer without penetrating the substrate below. MOPA fiber and UV lasers are preferred for this type of precision marking.
Accuracy levels for coated surfaces can reach ±5–10 μm. The key is controlling pulse energy and duration to avoid charring or burning through the coating. In anodized aluminum, for example, the laser removes or changes the oxide layer’s color without altering the metal underneath — allowing for high-resolution marks with consistent tone and contrast.
For painted or powder-coated materials, marking quality depends on coating thickness and adhesion. Fine-tuned laser parameters ensure clear markings with sharp edges while maintaining the integrity of the protective layer beneath.
Organics
In specialized fields such as medical research, food processing, or biotechnology, laser marking is used on organic or biological materials like bone, tissue scaffolds, or biodegradable polymers. These materials are extremely sensitive to heat, requiring ultra-precise, low-energy laser systems — typically UV or femtosecond lasers.
Accuracy in organic marking can reach ±3–5 μm, but the focus is not just on geometric precision — it’s about achieving controlled energy deposition that avoids thermal damage or contamination. Applications include micro-patterning of cell scaffolds, traceability on medical implants, and safe food labeling.
The cold marking process used by ultrafast lasers allows precise surface modification without compromising biological integrity, making laser marking one of the few viable non-contact marking methods for sensitive organic materials.
Laser marking accuracy varies across material types, governed by how each material absorbs and reacts to laser energy. Metals offer the highest consistency and micron-level precision; plastics require controlled, cold marking for clarity; ceramics demand careful power balance to avoid cracking; glass benefits from short-wavelength lasers for clean, stress-free engraving; wood and organics prioritize contrast and aesthetics over absolute dimensional precision; coated surfaces depend on selective layer removal; and biological organics require gentle, ultrafast marking to maintain integrity.
In essence, the “accuracy” of laser marking is not universal — it’s material-dependent. By understanding these behaviors and selecting the correct laser type, wavelength, and process parameters, manufacturers can achieve consistent, high-precision markings on virtually any substrate, from hardened steel to delicate polymers and beyond.
Why Laser Marking Is More Accurate Than Other Methods
Laser marking has become the benchmark for precision identification and traceability across industries — from aerospace and automotive to electronics and medical devices. Compared with conventional marking methods such as mechanical engraving, chemical etching, ink printing, or stamping, laser marking stands out for one key reason: its ability to deliver micron-level accuracy with consistency and repeatability. This precision is not achieved by chance but is rooted in how laser technology interacts with materials — cleanly, controllably, and without physical or chemical distortion.
No Tool Contact
One of the biggest advantages of laser marking is that it’s a non-contact process. Unlike mechanical engraving or stamping, which require physical tools to cut or press into a surface, laser marking uses a focused beam of light to modify the material at the molecular level.
Because there’s no physical contact, there’s no tool wear, vibration, or mechanical pressure — all of which are major sources of inaccuracy in traditional methods. Engraving tools dull over time, altering line width and depth; stamps deform or misalign after repeated use. A laser, by contrast, produces the same precision on the first mark as it does on the ten-thousandth.
This lack of mechanical interference also means the workpiece doesn’t need to be clamped with excessive force, which prevents deformation in delicate components. As a result, the mark’s position, depth, and geometry remain consistent and true to the programmed design, even on thin or fragile materials.
Consistency Across Large Batches
Consistency — not just precision — is where laser marking truly outperforms other marking methods. In large-scale manufacturing, maintaining uniform marking quality from one part to the next is critical. Mechanical or chemical methods often suffer from variability due to tool wear, inconsistent ink deposition, or uneven surface reactions.
Laser marking eliminates these inconsistencies. Every parameter — power, pulse duration, frequency, and scan speed — is digitally controlled and repeatable. Once a marking program is set, the same settings can be applied across thousands of parts with negligible variation. The result is uniform depth, edge definition, and contrast, even over long production runs.
Furthermore, laser marking systems integrate seamlessly with automated production lines and vision inspection systems. This allows real-time quality monitoring, automatic positioning, and marking verification. The combination of automation and digital control ensures repeatability and consistency far beyond what manual or semi-mechanical processes can achieve.
Micro-Scale Control
Laser marking’s accuracy also comes from its exceptional level of control at the micro scale. The beam can be focused to a spot size smaller than 20 micrometers, allowing for precise manipulation of material properties — something impossible with mechanical or chemical techniques.
This micro-scale control enables the marking of intricate graphics, tiny QR codes, and microtext that remain readable under magnification. The system can precisely adjust marking depth and width by altering laser parameters in real time, allowing for exact replication of complex geometries.
In applications such as microelectronics, medical implants, or aerospace components, where even a fraction of a millimeter matters, this control ensures that marks are not only visually perfect but also dimensionally exact. The ability to operate within micrometer-level tolerances gives laser marking a decisive edge in industries where precision is non-negotiable.
No Chemical Reactions During Application
Chemical etching and ink printing rely on physical or chemical reactions to transfer or remove material, which inherently limits precision. These reactions can be influenced by temperature, humidity, surface contamination, or material composition — factors that often lead to inconsistent results, poor resolution, or environmental concerns.
Laser marking, by contrast, uses pure photothermal or photochemical energy. The process is entirely controlled by light, meaning there are no secondary chemical reactions, solvents, or inks involved. This eliminates variability due to reaction rates or chemical diffusion.
Because the laser’s interaction is localized and predictable, it can alter the surface in a tightly confined zone — ensuring that only the intended area is affected. The absence of chemicals not only increases accuracy but also enhances sustainability, as there’s no need for hazardous materials, waste disposal, or post-processing.
Laser marking’s superior accuracy comes from the precision and purity of its process. With no physical contact, it avoids the wear, vibration, and deformation inherent in mechanical methods. Through digital control, it maintains consistency across large batches, producing identical results every time. Its micro-scale precision allows for ultra-fine detail and controlled energy delivery that traditional tools simply can’t match. And because there are no chemical reactions involved, the process remains stable, clean, and environmentally safe.
In essence, laser marking doesn’t rely on tools, inks, or reactions — it relies on light, governed by physics and software precision. This makes it not only more accurate than other marking methods but also more reliable, repeatable, and future-proof for industries that demand nothing less than perfection.
How to Achieve the Highest Possible Accuracy in Laser Marking
Achieving the highest level of accuracy in laser marking requires more than just purchasing a high-end machine. Precision results from careful optimization of multiple factors — from focus and optics to environment and material consistency. Even small deviations in setup or maintenance can lead to micro-level errors in position, depth, or clarity. To consistently produce crisp, high-contrast, and dimensionally accurate markings, manufacturers must pay attention to every stage of the process.
Optimize Focus
Proper focusing is the foundation of precision laser marking. The focus determines the beam’s spot size — and even a slight misalignment can drastically affect marking quality. If the laser is too close or too far from the ideal focal plane, the beam spreads out, reducing energy density and leading to blurred edges, inconsistent depths, and loss of detail.
To maintain optimal focus, operators should calibrate the working distance using a focus gauge or automatic focusing system before every batch. For surfaces that are curved or uneven, dynamic focusing systems or 3D scanners can automatically adjust the focal point in real time, ensuring consistent accuracy across complex geometries. In critical applications such as micro-marking or electronic components, maintaining micron-level focus stability is essential for clear, uniform results.
Maintain Optics
Clean, well-maintained optics — including mirrors, lenses, and protective glass — are crucial for high accuracy. Any dust, debris, or contamination can scatter the laser beam, alter its focus, and cause energy loss. This leads to uneven marking depth and reduced edge definition.
Regular cleaning with appropriate, lint-free materials and non-reactive solvents keeps the optical path clear. Over time, even minor residue buildup can distort beam quality, so periodic inspection and calibration are necessary. Using protective windows or air purging systems helps prevent contamination in dusty environments. In high-precision production, optics should be checked weekly or after extended runs to ensure consistent beam quality.
Choose Appropriate Laser Type
Selecting the right laser type for the material and application is one of the most important steps in achieving high accuracy. Each laser technology operates at a different wavelength and pulse duration, which determines how it interacts with the material.
- Fiber lasers are ideal for metals and deliver fine detail with minimal thermal distortion.
- MOPA fiber lasers provide additional pulse control for color marking or delicate surfaces.
- UV lasers offer cold marking with superior precision on plastics, glass, and ceramics.
- Green lasers excel at reflective materials like copper or gold.
- CO2 lasers are best suited for organic materials, wood, or coated surfaces where deep engraving isn’t needed.
Choosing the correct laser ensures optimal energy absorption, minimal material damage, and precise mark reproduction. Mismatched laser types can cause excessive heating, poor contrast, or uneven marking — all of which reduce accuracy.
Use Proper Fixtures
Even the most precise laser can’t compensate for a moving or misaligned part. Proper fixturing is critical to holding the workpiece steady and maintaining consistent positioning throughout marking.
High-precision fixtures eliminate vibration, rotation, or shifting during the process, ensuring every mark lands exactly where it should. Custom-designed fixtures or vacuum chucks are often used for small or irregularly shaped components. For automated systems, precision indexing or robotic positioning can maintain alignment between cycles, allowing for repeatable, error-free marking across large production batches.
Good fixturing also ensures that every workpiece is placed at the same height and angle, maintaining a uniform focal distance — a key factor in achieving both dimensional and positional accuracy.
Control the Environment
Environmental stability plays a bigger role in laser marking accuracy than many operators realize. Factors such as temperature, humidity, vibration, and dust can affect both the laser system and the workpiece.
Temperature fluctuations can cause optical components or metal machine frames to expand and contract, leading to minute shifts in alignment or focus. Excessive vibration from nearby machinery can disrupt the galvo mirrors or the positioning of the workpiece, resulting in misaligned or distorted marks.
To minimize environmental impact, laser marking stations should be located in temperature-controlled, low-vibration areas. Enclosed systems with filtered airflows are ideal, as they protect optics from dust and debris while maintaining thermal stability. Consistent environmental control ensures every mark remains within tight accuracy tolerances.
Use Accurate Software Settings
Software is the control center of the laser marking system. It translates the digital design into physical marks, controlling every variable — power, speed, frequency, pulse width, and scan path. Even small deviations in these settings can cause differences in depth, width, or contrast.
To maximize accuracy, software calibration should match the actual performance of the system. This includes compensating for lens distortion, galvo nonlinearity, and scaling errors across the marking field. Many high-end systems include automatic calibration and distortion correction features to ensure geometric accuracy across the entire working area.
Operators should also verify that the laser parameters are optimized for each material type. For example, lower power and slower speed produce fine, detailed markings on delicate materials, while higher power and faster scanning are suitable for deep engravings. Maintaining standardized, documented settings ensures consistency across production runs and minimizes human error.
Keep Workpiece Surface Consistent
Surface consistency is often overlooked but directly affects marking accuracy and quality. Variations in surface finish, coating thickness, or cleanliness can alter how the material absorbs laser energy. A polished or reflective surface may reflect part of the beam, while a rough or oxidized surface may absorb unevenly, leading to inconsistent line thickness or depth.
Before marking, workpieces should be cleaned of oil, dust, or residue. If coatings or finishes vary in thickness, it’s important to adjust laser parameters accordingly or standardize the coating process. For critical applications, pre-treatment such as sandblasting or polishing can help achieve a uniform surface response, enhancing both accuracy and contrast.
Consistent surface properties allow the laser to interact predictably with the material, resulting in repeatable, high-quality marks every time.
Maximizing laser marking accuracy requires a holistic approach — precision isn’t achieved by any single adjustment but by aligning every component of the process. Perfect focus ensures the smallest possible beam spot; clean optics maintain consistent energy delivery; selecting the right laser optimizes material interaction; and stable fixturing guarantees that the mark lands exactly where it should. A controlled environment prevents external interference, while precise software calibration translates digital precision into physical perfection. Finally, consistent surface preparation ensures the material responds uniformly to the laser beam.
When all these elements work in harmony, laser marking systems can deliver sub-micron precision, repeatability, and long-term reliability — producing clean, consistent, and permanent markings that meet even the most demanding industrial standards.
Real-World Accuracy Expectations Across Industries
While laser marking systems are capable of micron-level precision in laboratory conditions, real-world performance depends on the demands of each industry, the materials used, and production environments. Some sectors require marks that are visually perfect and dimensionally exact; others prioritize durability, readability, or traceability under harsh conditions. Understanding how different industries define and measure “accuracy” helps clarify what manufacturers can realistically expect from laser marking in practical applications.
Electronics
In electronics manufacturing, precision is critical — components are often measured in millimeters or even micrometers, leaving no room for error. Laser marking is used to apply data matrices, serial numbers, and microtext to circuit boards, semiconductors, and microchips.
Accuracy in this industry typically ranges from ±3 to ±10 micrometers, depending on the component size and the marking system used. UV and MOPA fiber lasers are preferred because of their ability to produce fine, high-contrast markings without damaging delicate substrates like silicon, ceramics, or polymer coatings.
The key requirement is not only positional accuracy but also thermal control. Marks must not alter the electrical or physical properties of components, so cold marking methods — where the laser modifies the surface with minimal heat — are often employed. Automation plays a major role, ensuring marks are perfectly aligned even on densely packed circuit boards. For traceability and quality assurance, this level of accuracy guarantees that every electronic component can be uniquely identified and verified throughout its lifecycle.
Automotive
In the automotive industry, laser marking serves both functional and regulatory purposes. Components such as engine parts, VIN plates, sensors, and brake systems must be permanently identified for traceability and quality control.
Accuracy requirements here are slightly more forgiving than in microelectronics, typically in the ±10–20 micrometer range. However, durability and consistency across large batches are more important than micro-scale precision. Fiber lasers are commonly used for metals, while CO2 lasers are applied for nonmetals like plastics and composites.
Automotive environments are harsh — marked parts must withstand extreme temperatures, friction, and exposure to chemicals. As a result, laser marks must be deep, permanent, and perfectly aligned, even on complex shapes or curved surfaces. Robotic integration and automated focusing systems help maintain accuracy in high-speed production lines. The emphasis is on repeatability and readability, ensuring that every mark remains legible after years of use.
Medical Device Manufacturing
Laser marking in the medical device sector demands the highest combination of accuracy, consistency, and biocompatibility. Components like surgical instruments, implants, stents, and diagnostic tools require permanent marks for identification and traceability — but these marks must not alter the surface properties that contact the human body.
Typical accuracy expectations are within ±5 micrometers, achieved using ultrafast fiber or UV lasers. These laser marking systems produce cold or low-thermal marks that preserve surface integrity, preventing corrosion or material fatigue. The marks often include UDI (Unique Device Identification) codes or microtext that must remain readable even after repeated sterilization, abrasion, or exposure to bodily fluids.
In this industry, precision is not just about legibility — it’s about compliance with strict international standards such as FDA and ISO 13485. Even the slightest variation in mark depth or location can result in a regulatory non-conformance. Therefore, medical device manufacturers use automated vision systems and strict calibration protocols to ensure flawless repeatability and traceability.
Aerospace
Aerospace manufacturing pushes laser marking accuracy to its limits. Every component — from turbine blades to fasteners and instrumentation panels — must carry traceable identification that can withstand extreme conditions: vibration, pressure, radiation, and temperature fluctuations.
Accuracy expectations in aerospace typically fall between ±5 and ±15 micrometers. More critical components, such as turbine parts and flight-critical hardware, demand higher precision, both in positioning and depth control. Fiber and MOPA fiber lasers are favored for metals like titanium, Inconel, and stainless steel due to their ability to produce permanent, high-contrast marks without weakening the material.
Beyond accuracy, aerospace marking requires absolute reliability. Marks must remain readable throughout the component’s service life, often decades long. As a result, laser marking systems are integrated into quality-controlled environments with automated inspection, ensuring that each mark meets strict specifications for alignment, clarity, and uniformity. In aerospace, laser marking isn’t just a manufacturing step — it’s a data integrity guarantee.
Jewelry and Luxury Goods
In jewelry and luxury manufacturing, laser marking combines precision with artistry. Here, accuracy is not only a technical metric but also an aesthetic one. Laser marking is used for engraving serial numbers, brand logos, hallmarks, and intricate decorative patterns on metals, ceramics, and gemstones.
Accuracy levels typically reach ±5 micrometers or better, especially for micro-engraving on small surfaces such as rings, watch components, or gemstone edges. Fiber and green lasers are commonly used due to their fine beam control and ability to produce delicate marks without overheating reflective materials like gold, silver, or platinum.
The focus in this industry is on visual perfection and repeatability. Every engraving must be centered, crisp, and flawlessly aligned. Customers expect the same logo to appear identical on every piece, regardless of size or curvature. Laser technology enables this consistency without physical contact or tool wear, preserving the material’s finish while delivering microscopic precision.
Laser marking accuracy in real-world applications varies across industries — not because of limitations in the technology, but because of differing operational priorities. In electronics, the goal is micron-level marking without heat damage; in automotive, it’s durable, repeatable identification on mass-produced parts; in medical manufacturing, it’s sterile, corrosion-free marking that complies with strict regulations; in aerospace, it’s permanent, traceable marks that survive extreme environments; and in luxury goods, it’s aesthetic perfection with microscopic precision.
Across all these sectors, laser marking consistently outperforms traditional methods in accuracy, repeatability, and reliability. Whether it’s etching a microscopic code on a circuit board or engraving a serial number on a jet turbine blade, laser technology delivers the precision modern industries demand — not just in theory, but in real-world production environments where accuracy truly matters.
Common Accuracy Problems and How to Troubleshoot Them
Even with high-quality equipment, laser marking systems can experience accuracy issues that affect mark clarity, consistency, and dimensional precision. These problems often stem from small misalignments, improper parameter settings, environmental factors, or mechanical wear. Understanding the most common issues — and knowing how to troubleshoot them — is essential for maintaining consistent accuracy and high-quality results.
Blurry Edges
- The Problem: Blurry or fuzzy edges occur when the laser beam loses focus or energy density at the marking surface. Instead of a sharp, defined line, the result appears hazy or uneven, reducing legibility and visual appeal.
- Root Causes:
- Incorrect focus distance (beam not focused precisely on the material surface)
- Dirty or damaged optics (lens contamination or wear)
- Excessive marking speed or incorrect pulse frequency
- Mechanical vibration during marking
- Troubleshooting: Start by verifying and adjusting the focal distance — even a deviation of 0.1 mm can cause blurring. Use the laser’s autofocus or manual focusing tools to ensure the beam converges at the optimal point. Inspect and clean all optical components with approved solvents and lint-free wipes. If the machine is near heavy equipment, isolate it from vibration sources or use damping mounts. Adjust scanning speed and pulse overlap so that each pulse contributes to a sharp, continuous line.
Consistent focus and clean optics are the most common fixes for restoring crisp, well-defined marks.
Distorted Shapes
- The Problem: Distorted or stretched shapes happen when the mark doesn’t match its digital design — circles may appear oval, text may lean, or geometric patterns may lose proportion. This distortion undermines dimensional accuracy and professional appearance.
- Root Causes:
- Galvo scanner calibration errors or mirror misalignment
- Lens distortion (especially at the edges of the marking field)
- Software scaling or coordinate errors
- Uneven or sloped workpiece surface
- Troubleshooting: Run a galvo calibration routine to ensure both mirrors move in perfect synchronization. Check for linearity and scaling accuracy in the marking software, particularly if distortions appear consistently in one direction. For systems using f-theta lenses, inspect for optical distortion and apply field correction settings if necessary.
If the distortion occurs only at the edges of the marking area, reduce the working field or reposition the part closer to the lens center, where distortion is minimal. For uneven surfaces, use a 3D focus adjustment system to compensate for surface variation. Accurate calibration and consistent positioning typically eliminate shape distortion.
Inconsistent Depth
- The Problem: Marks that vary in depth across different parts — or even within the same mark — indicate fluctuations in energy delivery. The result is uneven engraving or partial visibility, which can affect readability and durability.
- Root Causes:
- Fluctuating laser power output
- Improper focus or uneven surface height
- Variations in material thickness or surface coating
- Inconsistent scan speed or overlap
- Troubleshooting: First, verify that the laser source is delivering stable power; unstable output or power supply issues can cause inconsistent ablation. Recalibrate focus to maintain a consistent beam waist across the surface, especially for curved or uneven parts.
Check that the marking parameters (speed, frequency, and power) are balanced — increasing overlap between pulses often produces a smoother, more uniform depth. For materials with inconsistent coatings or oxidation, pre-cleaning or standardizing the surface can help achieve even absorption. If inconsistencies persist, inspect the galvanometer motors for erratic motion, which may cause local variations in energy distribution.
Position Shift Between Parts
- The Problem: When marks appear in slightly different positions from part to part, even though the program remains unchanged, this indicates a positional accuracy or repeatability issue. In industries requiring serialized traceability, even small shifts can cause alignment or readability problems.
- Root Causes:
- Loose or unstable fixturing
- Vibration or movement during marking
- Mechanical backlash in motion systems
- Misalignment in the galvo system or coordinate calibration
- Inconsistent part placement by the operator or automation system
- Troubleshooting: Inspect and tighten all fixturing to ensure parts remain stationary during marking. If manual placement is used, introduce alignment jigs, pins, or templates for consistent positioning. For automated setups, recalibrate the robot or conveyor positioning system.
Check the galvo system for drift or misalignment and recalibrate using a precision test pattern. If mechanical backlash exists in moving stages, service or replace worn bearings or drive components. Consistency in both fixture and calibration eliminates most position shift problems.
To verify repeatability, run a test series of marks on identical parts and measure alignment using a vision inspection tool. A deviation of less than ±10 micrometers is considered excellent in most industrial settings.
Accuracy issues in laser marking are usually the result of small deviations — improper focus, unstable fixturing, dirty optics, or calibration drift. These problems manifest as blurry edges, distorted shapes, inconsistent depth, uneven contrast, or positional shifts between parts. Fortunately, each issue can be diagnosed and corrected through systematic inspection and maintenance.
In most cases, maintaining proper focus, keeping optics clean, ensuring stable fixturing, and running regular calibration routines resolve the majority of accuracy challenges. For high-volume or precision applications, integrating automated focusing, environmental control, and vision-based alignment systems can further enhance consistency.
Ultimately, achieving and maintaining peak laser marking accuracy is about control over every variable that affects how light interacts with material. With disciplined setup, maintenance, and process monitoring, even the smallest marks can remain sharp, consistent, and perfectly placed, part after part.
Summary
Laser marking stands as one of the most precise, reliable, and versatile marking technologies available today. Its accuracy — often measured in micrometers — is the result of combining finely controlled laser physics with advanced motion systems, optics, and software. Unlike traditional marking methods, laser marking is non-contact, tool-free, and digitally driven, which eliminates mechanical wear, ink variation, and chemical inconsistencies. The result is consistent, repeatable, and permanent marks that maintain their clarity and alignment across thousands of parts.
Accuracy in laser marking depends on several factors: the quality of the laser source, the stability of the machine structure, focus precision, material characteristics, and environmental conditions. Modern systems, especially fiber, MOPA, and UV lasers, can deliver incredibly fine detail with sharp edges, uniform depth, and clean contrast on a wide range of materials — metals, plastics, ceramics, glass, and more.
Across industries — from aerospace and automotive to medical devices, electronics, and luxury goods — laser marking delivers not just precision but also durability and traceability. When properly calibrated and maintained, it consistently outperforms mechanical and chemical methods, offering unmatched accuracy, longevity, and efficiency. In short, laser marking defines the modern standard for precision identification and product marking worldwide.
Get Laser Marking Solutions
At AccTek Group, we specialize in delivering intelligent laser marking solutions designed for industries that demand precision, consistency, and long-term reliability. As a professional manufacturer of advanced laser equipment, we understand that accuracy isn’t just a specification — it’s a vital part of your production quality, traceability, and brand integrity. That’s why our laser marking systems are engineered to provide micron-level precision, superior edge definition, and exceptional repeatability across a wide range of materials.
AccTek Group offers a comprehensive lineup of laser marking machines, including fiber lasers, MOPA fiber lasers, UV lasers, CO2 lasers, and MOPA lasers — each optimized for different materials and marking requirements. Whether you’re engraving metal components, labeling electronic parts, or adding permanent identification to medical or aerospace equipment, our solutions ensure clean, sharp, and consistent results every time.
Beyond powerful hardware, our team provides complete integration support, from system customization and software calibration to operator training and maintenance. We help manufacturers optimize marking parameters for maximum efficiency and precision.
With AccTek Group’s intelligent laser technology, you gain more than a marking tool — you gain a precision partner. Contact AccTek Group today to discover how our tailored laser marking solutions can elevate your production accuracy and quality standards.
