Can Pulsed Laser Cleaning Damage the Substrate?

Pulsed laser cleaning is an advanced surface-treatment technology that uses short, high-energy laser pulses to remove rust, paint, oxides, oil, coatings, and other contaminants from a material. Unlike abrasive blasting, chemical cleaning, or mechanical grinding, the process is non-contact and can be precisely controlled. However, because laser energy interacts directly with the workpiece, an important question arises: Can pulsed laser cleaning damage the substrate?
The short answer is yes—substrate damage is possible if the laser parameters, equipment configuration, or operating method are unsuitable. Excessive energy density, incorrect pulse frequency, slow scanning speed, poor focusing, or repeated exposure can overheat, melt, discolor, oxidize, roughen, or otherwise alter the underlying material. Sensitive substrates, thin components, reflective metals, polymers, composites, and coated surfaces may face a higher risk when cleaning conditions are not properly optimized.
Nevertheless, pulsed laser cleaning is generally considered highly selective and controllable. Contaminants and substrates often absorb laser energy differently and have different ablation thresholds. When the laser settings are adjusted correctly, the contaminant absorbs enough energy to vaporize, fracture, or detach, while the substrate remains below its damage threshold. This selective ablation makes pulsed laser cleaning systems especially suitable for applications requiring precision, such as mold cleaning, historical artifact restoration, weld preparation, oxide removal, and maintenance of high-value components.
Protecting the substrate requires more than simply selecting a suitable laser power. Operators must consider pulse energy, pulse width, repetition rate, scanning speed, spot size, focal position, overlap ratio, cleaning pattern, material properties, contaminant thickness, and heat accumulation. Preliminary sample testing and close surface inspection are also essential.
This article explains how pulsed laser cleaning interacts with different substrates, what types of damage may occur, which parameters increase the risk, and how operators can optimize the process. Understanding these factors helps achieve effective contaminant removal while preserving the substrate’s appearance, dimensions, mechanical properties, and surface integrity.

What Counts as Substrate Damage?

Substrate damage refers to any unintended change in the appearance, structure, dimensions, or performance of the material beneath the contamination being removed. During pulsed laser cleaning, contaminants absorb laser energy and are rapidly heated, fractured, vaporized, or separated from the surface. Ideally, the laser removes only the unwanted layer while leaving the underlying material within the specified quality limits. However, if the energy delivered to the surface exceeds the substrate’s tolerance, the process may modify both its surface and its internal properties.
Damage is not always obvious to the naked eye. Some problems appear immediately as burning, melting, or discoloration, while others can only be detected through microscopy, roughness measurement, hardness testing, dimensional inspection, or functional evaluation. Furthermore, not every change should automatically be classified as damage. A slight increase in roughness may improve paint or adhesive bonding, while the same change could make a precision mold or optical component unacceptable. Substrate damage must therefore be evaluated according to the material, application, surface specification, and intended result.

Visible Surface Damage

Visible surface damage includes changes that can usually be identified through direct observation or basic inspection. Common examples include discoloration, burn marks, oxidation, melting, pitting, cracking, warping, and an uneven surface finish. These defects often indicate that the laser energy density was too high, the scanning speed was too slow, the beam overlap was excessive, or the same area was cleaned too many times.
On metals, excessive heat may produce blue, brown, yellow, or black discoloration caused by thermal oxidation. Localized melting can create shiny patches, resolidified material, raised edges, or small depressions. Thin sheets and delicate components may bend or distort when heat accumulates faster than it can dissipate. On rough or porous materials, aggressive cleaning may enlarge existing pores, remove loose surface particles, or create an irregular texture.
Nonmetallic substrates can show different forms of visible damage. Plastics and composites may soften, bubble, char, or develop exposed fibers. Stone, ceramics, and concrete can experience flaking, color changes, or the loss of surface grains. Wood may darken or burn when the laser settings are unsuitable. Painted or coated components may also suffer unintended removal beyond the targeted layer, especially when the coating and substrate have similar absorption characteristics.
Visible damage is often the easiest type to detect, but visual inspection alone is not sufficient. A surface may appear clean and undamaged while still containing microscopic or functional changes.

Microscopic and Functional Damage

Microscopic damage includes small-scale alterations that may not be visible without specialized inspection equipment. Examples include microcracks, grain-boundary changes, localized melting, altered surface roughness, residual stress, and changes in the heat-affected zone. These effects can occur when the substrate absorbs enough laser energy to experience rapid heating and cooling, even if there is no obvious surface burning.
In metals, excessive laser exposure can modify hardness, microstructure, corrosion resistance, or fatigue performance. Rapid thermal cycling may produce fine cracks or residual stresses that reduce the component’s service life. Sensitive alloys may undergo phase changes, while highly polished surfaces may lose their original smoothness or reflectivity. Precision components can also experience small dimensional changes that interfere with assembly, sealing, friction, or alignment.
Functional damage occurs when laser cleaning changes how the component performs. For example, excessive roughening may affect a sealing surface, bearing area, mold cavity, or electrical contact. Changes in surface chemistry can influence corrosion resistance, conductivity, wettability, adhesion, or biocompatibility. On composites, the resin matrix may degrade before visible fiber damage appears. On polymers, laser exposure may cause chemical decomposition, embrittlement, or reduced strength beneath an apparently acceptable surface.
Identifying microscopic and functional damage may require optical or electron microscopy, surface profilometry, hardness testing, chemical analysis, dimensional measurement, adhesion testing, corrosion testing, or mechanical performance evaluation. The appropriate inspection method depends on the substrate and the component’s final use.

Acceptable Surface Modification Versus Unacceptable Damage

The difference between acceptable modification and unacceptable damage depends on the cleaning objective and the component’s quality requirements. Pulsed laser cleaning can intentionally modify surface texture, chemistry, or energy. A controlled increase in roughness, for example, may improve coating adhesion, adhesive bonding, or weld preparation. Removing oxides may expose fresh metal and change its color or reflectivity without reducing its performance. In these situations, surface modification is a planned part of the process rather than damage.
A modification becomes unacceptable when it exceeds established limits or reduces the value, reliability, appearance, or function of the component. Melting, deep pitting, microcracking, excessive material removal, distortion, loss of dimensional accuracy, and reduced mechanical strength are generally considered damage. Even a minor cosmetic change may be unacceptable for decorative products, historical artifacts, precision molds, or customer-facing components. Conversely, the same visual change may be acceptable on an industrial part if its dimensions and performance remain unaffected.
Clear acceptance criteria should therefore be established before cleaning begins. These criteria may include maximum allowable roughness, color variation, material removal depth, temperature, dimensional change, hardness variation, or coating residue. Sample testing on an unused area or representative workpiece helps determine a safe processing window. The operator can then optimize pulse energy, frequency, scanning speed, focal position, overlap, and number of cleaning passes.

Substrate damage includes more than obvious burning or melting. It can involve visible defects, microscopic structural changes, altered surface properties, dimensional variation, or reduced functional performance. Whether a particular change is acceptable depends on the substrate, the purpose of the cleaning process, and the component’s final application.
Effective pulsed laser cleaning requires the contaminant to be removed while keeping the substrate below its damage threshold. This balance should be confirmed through controlled testing, appropriate parameter selection, and inspection methods suited to the application. By defining acceptable surface conditions in advance and monitoring both visible and hidden changes, operators can distinguish beneficial surface modification from genuine substrate damage.

How Pulsed Laser Cleaning Works

Pulsed laser cleaning removes rust, paint, oxides, oil, and other unwanted layers by delivering concentrated laser energy in extremely short pulses. Unlike continuous-wave cleaning, which supplies energy without interruption, a pulsed laser cleaning system allows the surface to cool between pulses. This makes heat input easier to control and reduces the risk of excessive heat accumulation in the underlying material.
The effectiveness and safety of the process depend on how the laser energy interacts with both the contamination and the substrate. When the operating parameters are correctly selected, the unwanted layer absorbs enough energy to fracture, vaporize, or separate, while the substrate remains below its damage threshold. Understanding pulse delivery, energy absorption, ablation behavior, and pulse duration helps explain why pulsed laser cleaning can remove contaminants selectively without damaging the workpiece.

Delivery of Short Laser Pulses

Pulsed laser cleaning systems generate a sequence of short laser pulses rather than a continuous beam. Each pulse contains a controlled amount of energy delivered within a very brief period. The beam is directed through an optical system and rapidly moved across the workpiece by a scanning head. The combination of pulse energy, pulse width, repetition rate, spot size, scanning speed, focal position, and overlap determines how much energy reaches each area of the surface.
Although each pulse lasts only a fraction of a second, it can produce very high peak power. This concentrated energy creates rapid heating at the point of contact without necessarily heating the entire component. Between pulses, some heat can dissipate into the surrounding material and environment, helping limit the size of the heat-affected area.
The energy delivered per unit area is known as fluence, commonly expressed in joules per square centimeter. If the fluence is too low, it may not remove the contaminant completely. If it is too high, it may melt, discolor, roughen, or otherwise modify the substrate. Successful cleaning therefore requires a processing window in which the fluence exceeds the removal threshold of the contaminant but remains below the damage threshold of the underlying material.

Interaction Between the Laser and Contamination

When a laser pulse reaches the surface, some of its energy is reflected, while the remainder is absorbed by the contaminant and substrate. The proportion absorbed depends on several factors, including laser wavelength, material composition, surface color, roughness, temperature, and coating thickness. Dark rust, paint, grease, and oxide layers often absorb laser energy differently from the clean material beneath them.
The absorbed energy can remove contamination through several related mechanisms. Rapid heating may cause the contaminant to vaporize or decompose. Thermal expansion can create stress between the contaminant and substrate, weakening their bond. Very rapid expansion may also generate pressure waves that fracture brittle deposits or lift particles away from the surface. At sufficiently high energy densities, a small plasma plume can form and contribute to the removal process.
These mechanisms may occur simultaneously, and their relative importance changes with the material and laser parameters. Thick coatings may require multiple passes, while thin oxide films can often be removed more quickly. The resulting particles, vapor, and fumes must be captured by an appropriate extraction and filtration system.
As the laser exposes the underlying surface, the interaction can change because the clean substrate may absorb less energy or have a higher ablation threshold. This difference can make the process partially self-limiting, but it does not guarantee complete protection. Incorrect settings or excessive repeated exposure can still damage the substrate.

Why Substrate Protection Is Possible

Selective cleaning is possible because contaminants and substrates frequently have different optical and thermal properties. They may differ in absorption, reflectivity, thermal conductivity, melting temperature, vaporization behavior, and ablation threshold. The ablation threshold is the minimum energy density required to remove or significantly alter a particular material.
Ideally, the laser fluence is set above the contaminant’s removal threshold but below the substrate’s damage threshold. Within this operating window, the contamination is removed while the base material experiences little or no unacceptable change. For example, a surface oxide may absorb the laser efficiently and fracture, while the metal underneath reflects more of the beam or conducts heat away more effectively.
The pulsed delivery of energy also supports substrate protection. Short exposure times concentrate the cleaning action near the surface, and the intervals between pulses help reduce cumulative heating. High scanning speeds distribute the energy across the workpiece, while controlled overlap prevents untreated gaps without repeatedly exposing the same location.
However, substrate protection depends on careful parameter optimization. A safe process for thick steel may damage thin metal foil, plastic, composite material, polished metal, or a sensitive coating. Preliminary tests should therefore be performed using conservative settings. Operators can gradually increase pulse energy or reduce scanning speed until the required cleaning result is achieved. Surface temperature, appearance, roughness, dimensions, and functional properties should then be checked against the application’s acceptance criteria.

Nanosecond and Ultrashort Pulsed Laser Cleaing Systems

Nanosecond laser cleaning systems generate pulses that typically last billionths of a second. They are widely used for industrial applications such as rust removal, paint stripping, oxide cleaning, mold cleaning, and weld preparation. Nanosecond systems generally offer practical cleaning speeds, robust equipment designs, and relatively favorable costs.
Because nanosecond pulses remain on the surface longer than ultrashort pulses, some laser energy can diffuse into the surrounding material as heat. When properly controlled, this thermal input can support efficient contaminant removal without causing unacceptable substrate changes. However, excessive fluence, slow scanning, high overlap, or too many passes can produce discoloration, melting, roughening, or a larger heat-affected area.
Ultrashort pulsed laser cleaning systems use picosecond or femtosecond pulses. A picosecond equals one trillionth of a second, while a femtosecond equals one quadrillionth of a second. These extremely short pulses deliver energy faster than significant heat can spread into the surrounding material. Material removal can therefore occur with a very small heat-affected zone, often described as “cold” or near-cold ablation.
Ultrashort pulsed lasers are well suited to delicate, high-value, and precision applications where even minor thermal changes may be unacceptable. Examples include electronics, aerospace components, precision molds, medical devices, thin films, and sensitive multilayer surfaces. They can provide highly controlled removal with limited melting, charring, or structural alteration.
Nevertheless, ultrashort systems are not automatically the best option for every task. They are generally more expensive, and their cleaning rate, system complexity, and maintenance requirements must be evaluated against production needs. Nanosecond systems remain suitable for many industrial applications when the process parameters are correctly matched to the contaminant and substrate.

Pulsed laser cleaning works by delivering short, concentrated bursts of energy that cause contamination to vaporize, fracture, decompose, or separate from the substrate. The process can protect the underlying material because the contaminant and substrate often have different absorption characteristics and ablation thresholds. By maintaining the laser fluence above the contaminant’s removal threshold but below the substrate’s damage threshold, selective cleaning becomes possible.
Pulse duration has a major influence on heat transfer and cleaning behavior. Nanosecond systems provide efficient and economical cleaning for many industrial tasks, although they require careful control of heat accumulation. Picosecond and femtosecond systems offer even more precise energy delivery and smaller heat-affected zones for sensitive applications.
Regardless of the laser type, safe cleaning depends on balancing pulse energy, frequency, scanning speed, focal position, overlap, and the number of passes. Sample testing and surface inspection remain essential because no single parameter set is appropriate for every contaminant, substrate, or quality requirement.

Understanding Cleaning Thresholds and Damage Thresholds

The safety and effectiveness of pulsed laser cleaning depend on controlling how much laser energy reaches the surface. If the delivered energy is too low, the laser may leave rust, paint, oxide, or other contamination behind. If it is too high, it may discolor, roughen, melt, crack, or otherwise alter the substrate. The objective is therefore not simply to use the highest available laser power but to operate between the energy level required for cleaning and the level at which unacceptable substrate damage begins.
These limits are commonly described using laser fluence, which is the pulse energy delivered per unit area and is often expressed in joules per square centimeter. Cleaning performance is also influenced by pulse duration, wavelength, repetition rate, beam profile, spot size, scanning speed, line spacing, and pulse overlap. For this reason, cleaning and damage thresholds should be treated as application-specific operating limits rather than fixed values for a particular material.

The Contaminant Removal Threshold

The contaminant removal threshold is the minimum laser fluence needed to detach, fracture, vaporize, or decompose an unwanted surface layer. Below this threshold, the laser may heat the contamination without removing it effectively. The surface may remain partially covered, requiring additional passes or a change in processing parameters.
Different contaminants have different removal thresholds because they vary in composition, thickness, density, adhesion, thermal conductivity, and optical absorption. Loose rust generally responds differently from tightly bonded oxide, while oil, paint, carbon deposits, and corrosion products each interact with laser energy in their own way. A thick multilayer coating may also require more energy or repeated passes than a thin surface film.
Removal does not always occur through complete vaporization. Rapid heating can create thermal expansion and mechanical stress at the interface between the contamination and substrate. These forces may crack the unwanted layer or weaken its adhesion, allowing it to separate from the surface. Short pulses can also generate pressure waves and localized plasma that assist particle removal.
In practical operation, the cleaning threshold is reached when the contamination can be removed consistently at the required production speed and cleanliness level. A setting that removes only part of the layer or requires an impractical number of passes may technically initiate cleaning but may not represent an effective industrial operating point.

The Substrate Damage Threshold

The substrate damage threshold is the minimum laser fluence or cumulative exposure at which the base material experiences an unacceptable change. Possible changes include discoloration, oxidation, melting, pitting, excessive roughening, microcracking, distortion, or loss of dimensional accuracy. Damage may also involve changes in hardness, microstructure, corrosion resistance, conductivity, reflectivity, or fatigue performance.
The first detectable surface modification is not always the same as unacceptable damage. A small change in roughness may be beneficial for coating adhesion or weld preparation, but it could be unacceptable on a polished mold, electrical contact, sealing surface, or decorative component. The damage threshold must therefore be defined according to the application’s acceptance criteria.
Substrate damage can result from a single high-energy pulse or from accumulated exposure over many lower-energy pulses. Thin materials and components with poor heat dissipation may reach damaging temperatures more quickly than thick, thermally conductive workpieces. Plastics, composites, painted assemblies, and heat-sensitive alloys may also have narrower safety margins than robust steel components.
Determining the damage threshold may require more than visual inspection. Surface profilometry, microscopy, hardness testing, dimensional measurement, chemical analysis, adhesion testing, or mechanical evaluation may be necessary for critical applications. The threshold should be based on the first unacceptable change in the properties that matter to the component’s intended function.

The Usable Processing Window

The usable processing window is the range in which the applied laser fluence is high enough to remove the contaminant but low enough to avoid unacceptable substrate damage. In simplified terms, the contaminant removal threshold forms the lower boundary, while the substrate damage threshold forms the upper boundary.
A wide processing window makes cleaning easier to control. This occurs when the contaminant absorbs the laser strongly or has a relatively low removal threshold. At the same time, the substrate reflects more energy, conducts heat efficiently, or has a higher resistance to ablation. In such cases, moderate variations in scanning speed, overlap, or surface condition are less likely to cause cleaning failure or substrate damage.
A narrow processing window requires much tighter process control. This situation can arise when the contaminant and substrate have similar absorption properties, when the unwanted layer is extremely thin, or when the substrate is sensitive to heat. It may also occur when the goal is to remove one coating without disturbing another layer underneath.
Operators should normally begin near the lower end of the usable window and gradually adjust the parameters until the required cleaning result is achieved. The selected production settings should include a reasonable safety margin rather than operating immediately below the damage threshold. This margin helps compensate for variations in contamination thickness, surface geometry, focus position, material composition, and operator movement.

Why Thresholds Depend on Processing Conditions

Cleaning and damage thresholds are not universal values because laser-material interaction changes with processing conditions. Wavelength affects how strongly the contaminant and substrate absorb the beam. Pulse duration influences the time available for heat to spread into the surrounding material. Spot size and focus determine the energy density, while the beam profile controls how evenly that energy is distributed.
Scanning speed, line spacing, and overlap determine how many pulses reach each location. Increasing overlap may improve cleaning uniformity, but it also raises cumulative exposure and heat input. Repetition rate influences both processing speed and the amount of time available for the surface to cool between pulses. At high repetition rates, heat may accumulate even when the energy of each pulse appears safe.
Surface conditions also affect the threshold. Color, oxidation, roughness, temperature, curvature, moisture, and contamination thickness can change energy absorption. A heavily rusted area may initially absorb energy efficiently, but the exposed clean metal may respond differently once the rust has been removed. Edges, corners, thin sections, and recessed areas can also behave differently from broad, flat surfaces.
Equipment condition introduces additional variables. Dirty protective lenses, incorrect focal distance, unstable pulse output, poor beam alignment, and inconsistent scanning movement can alter the actual energy reaching the workpiece. Therefore, parameter values developed for one machine, optical setup, or surface condition should not be transferred to another application without verification.

Multiple Pulses and Incubation Effects

A surface is usually exposed to more than one laser pulse during cleaning. As the beam scans across the workpiece, neighboring pulses overlap, and multiple passes may be used to remove thick or strongly bonded contamination. The total effect therefore depends on cumulative exposure as well as the energy of each pulse.
Repeated pulses can gradually weaken a contaminant through heating, cracking, expansion, and changes in adhesion. As a result, several moderate-energy pulses may remove a layer that a single pulse at the same fluence cannot. This can support controlled cleaning, especially when gradual removal is safer than aggressive one-pass processing.
However, repeated exposure can also reduce the energy required to modify or damage the substrate. This behavior is known as the incubation effect. Earlier pulses may create microscopic defects, alter surface roughness, change optical absorption, or generate residual stress. Later pulses can then interact more strongly with the modified area, causing damage at a fluence that initially appeared safe.
Thermal accumulation is another concern. If pulses arrive faster than heat can dissipate, the surface temperature rises progressively. High repetition rates, slow scanning, dense overlap, and repeated passes increase this risk. The substrate may eventually discolor, oxidize, soften, melt, or distort even though no individual pulse exceeds its single-pulse damage threshold.
For this reason, the number of pulses per spot should be treated as a critical process parameter. Operators must consider pulse overlap, repetition rate, scanning pattern, dwell time, and the interval between passes. Testing should reproduce the actual production process rather than evaluating only isolated pulses.

The contaminant removal threshold and substrate damage threshold define the basic operating limits of pulsed laser cleaning. Effective cleaning begins when the applied energy is sufficient to remove the unwanted layer, while unacceptable damage begins when the underlying material experiences harmful visual, structural, dimensional, or functional changes. The range between these limits is the usable processing window.
These thresholds are affected by the contaminant, substrate, laser wavelength, pulse duration, fluence, repetition rate, focal position, scanning speed, overlap, surface geometry, and environmental conditions. They may also change during cleaning as the contaminant becomes thinner and the substrate is exposed.
Multiple pulses can improve removal, but they can also create incubation effects and thermal accumulation that gradually lower the substrate’s tolerance. A safe process must therefore account for total exposure rather than pulse energy alone. Controlled sample testing, inspection, and a suitable safety margin are essential for identifying a stable processing window that achieves the required cleanliness without causing unacceptable substrate damage.

Mechanisms That Can Damage the Substrate

Pulsed laser cleaning is designed to remove contamination while preserving the underlying substrate. However, damage can occur when the laser delivers more energy than the substrate can safely absorb or when repeated pulses cause heat and stress to accumulate. The resulting changes may be visible, such as melting or discoloration, or hidden below the surface, such as microcracking, residual stress, and altered mechanical properties.
Damage is rarely controlled by laser power alone. Pulse energy, fluence, pulse duration, wavelength, repetition rate, scanning speed, focal position, overlap, beam profile, and number of passes all affect the laser–material interaction. Substrate composition, thickness, geometry, surface condition, and thermal properties are equally important. Understanding the principal damage mechanisms makes it easier to select a safe processing window and recognize when cleaning parameters should be adjusted.

Excessive Heating and Localized Melting

When the substrate absorbs laser energy faster than it can dissipate that energy, its surface temperature rises. Moderate heating may produce no harmful effect, but excessive heat can cause discoloration, oxidation, softening, charring, or localized melting. Thin components, sharp edges, corners, and materials with low thermal conductivity are especially vulnerable because heat cannot spread away from the irradiated area efficiently.
Localized melting occurs when the surface temperature exceeds the substrate’s melting point. The molten material may flow and resolidify, leaving shiny patches, raised rims, pits, ripples, or an uneven surface texture. On precision parts, even a very thin resolidified layer can change dimensions, friction, sealing performance, reflectivity, or coating adhesion.
Heat accumulation is strongly influenced by repetition rate, scanning speed, pulse overlap, and the number of cleaning passes. A single pulse may not cause damage, but closely spaced pulses can raise the surface temperature progressively. Slow scanning or repeatedly cleaning the same location can create a larger heat-affected area. Reducing fluence, increasing scanning speed, lowering overlap, or allowing more cooling time between passes can help control thermal damage.

Direct Ablation and Material Loss

Direct ablation occurs when the applied laser fluence exceeds the removal threshold of the substrate itself. Instead of removing only the contaminant, the laser begins vaporizing, ejecting, or otherwise removing the base material. This can happen immediately with an overly energetic pulse or gradually through repeated exposure.
The risk often increases after the contaminant has been removed. While rust, paint, oil, or oxide remains on the surface, much of the laser energy may be absorbed by that layer. Once the clean substrate is exposed, continued scanning delivers energy directly to the base material. If the process does not stop or the settings are not reduced, pitting, erosion, excessive roughness, and measurable material loss may result.
Direct ablation is particularly important when cleaning thin sheets, precision molds, turbine components, electrical contacts, engraved features, and parts with tight dimensional tolerances. Even micrometer-scale material removal may affect fit, alignment, sealing, or surface performance. On multilayer components, an aggressive process can also remove a protective coating or functional layer that was intended to remain.
Avoiding direct ablation requires maintaining the process below the substrate’s damage threshold and limiting unnecessary passes. Controlled trials, surface profiling, weight-loss measurement, and dimensional inspection can help determine whether substrate material is being removed.

Thermal Stress and Mechanical Damage

Laser cleaning produces rapid heating followed by rapid cooling. This creates temperature differences between the irradiated surface and the cooler material beneath it. Because heated material expands and cooler material resists that expansion, thermal stresses can develop within the substrate.
If these stresses exceed the material’s strength or fracture resistance, they may produce microcracks, surface cracks, flaking, distortion, or delamination. Brittle materials such as ceramics, stone, concrete, and certain hardened metals can be especially sensitive to thermal shock. In composites, differences in thermal expansion between fibers, resin, coatings, and bonded layers can cause separation or internal cracking.
Mechanical damage can also result from rapid contaminant expansion, recoil pressure, or laser-induced pressure waves. These effects can be useful for breaking and lifting unwanted deposits, but excessive mechanical force may dislodge weak surface grains or damage fragile features. Pre-existing cracks, corrosion pits, and poorly bonded layers may expand during cleaning.
The risk increases when high pulse energy is concentrated into a small spot or when the beam remains too long in one area. Curved surfaces, edges, joints, thin walls, and parts containing internal stress may respond differently from flat test samples. A safe process should therefore consider both thermal input and the mechanical condition of the workpiece.

Microstructural and Mechanical Property Changes

A substrate may appear visually undamaged while experiencing changes in its microstructure. Rapid heating and cooling can modify grain structure, phase distribution, precipitates, hardness, and residual stress near the surface. The extent of these changes depends on the peak temperature, heating and cooling rates, exposure time, and material composition.
In steels, excessive heating may cause localized hardening, tempering, or phase transformation. Aluminum, titanium, nickel alloys, and other engineered metals can undergo changes that affect hardness, fatigue resistance, wear behavior, or corrosion performance. If a surface melts and resolidifies, it may form a modified layer with properties that differ from those of the original material.
Repeated pulses can intensify these effects through cumulative heating and laser incubation. Earlier pulses may roughen the surface or create microscopic defects, causing later pulses to be absorbed more strongly. A setting that appears harmless during brief testing may therefore become damaging after many overlapping pulses or repeated cleaning cycles.
For critical aerospace, automotive, medical, energy, or precision-manufacturing applications, visual inspection alone may be insufficient. Microscopy, microhardness testing, residual-stress measurement, fatigue testing, or metallographic analysis may be required to confirm that the cleaning process has not altered essential material properties.

Chemical Changes and Surface Reactions

Laser exposure can change the chemical condition of a substrate even when there is little visible material loss. High surface temperatures may accelerate reactions between the substrate and the surrounding atmosphere. In air, metals can form new oxide layers, producing discoloration or changes in corrosion behavior. Under certain conditions, reactions involving oxygen, nitrogen, moisture, or residues from the contaminant may alter the surface composition.
Laser cleaning may also remove naturally formed passivation layers or intentionally applied conversion coatings. Although the surface may look clean, the loss of these layers can reduce corrosion resistance or change bonding, painting, electrical, or biological performance. Stainless steel, aluminum, titanium, and other reactive metals may require suitable parameters or post-cleaning treatment to restore the desired protective surface condition.
On polymers and composites, excessive exposure can break chemical bonds, degrade resin, produce charring, or release volatile compounds. This may cause embrittlement, color changes, reduced adhesion, or loss of strength. Residues can also be redeposited if fumes and particles are not removed effectively.
Surface chemistry directly affects wettability, surface energy, conductivity, adhesion, and corrosion resistance. Some chemical modifications are intentional and beneficial, especially when laser cleaning is used before welding, coating, or adhesive bonding. They become damaging when they move the surface outside the required specification or reduce the component’s long-term performance.

Pulsed laser cleaning can damage a substrate through excessive heating, localized melting, direct ablation, thermal stress, mechanical shock, microstructural alteration, and chemical reactions. These mechanisms may occur independently or simultaneously, and some damage may remain invisible without detailed testing.
The risk increases when fluence, repetition rate, overlap, or exposure time is too high for the substrate. Material thickness, geometry, thermal conductivity, surface condition, and sensitivity to oxidation or structural change also influence the outcome. Damage may become more likely after the contaminant has been removed because the exposed substrate receives the laser energy directly.
Preventing damage requires operating within a verified processing window, minimizing unnecessary exposure, and evaluating the surface according to its final function. Sample testing, controlled parameter adjustment, and suitable inspection methods help ensure that the process removes contamination without compromising the substrate’s appearance, dimensions, structure, or performance.

Material Properties That Influence Damage Risk

The risk of substrate damage during pulsed laser cleaning depends not only on the laser parameters but also on how the workpiece responds to light, heat, and mechanical stress. Two substrates exposed to the same pulse energy can behave very differently because of variations in composition, surface condition, thermal conductivity, reflectivity, hardness, and structural integrity. Even different areas of the same component may respond differently if they have uneven corrosion, changing thickness, complex geometry, or previous surface treatments.
Understanding these material properties helps operators predict how much energy the substrate will absorb, how quickly heat will spread, and whether rapid heating and cooling could produce cracking, melting, distortion, or microstructural changes. This information is essential for establishing a reliable processing window between effective contaminant removal and unacceptable substrate damage.

Optical Absorption and Reflectivity

Optical absorption determines how much of the incident laser energy enters the contaminant or substrate, while reflectivity determines how much energy is redirected away from the surface. These properties depend strongly on the laser wavelength. A material that reflects most of one wavelength may absorb another wavelength more efficiently, so safe cleaning parameters cannot be based on material type alone without considering the laser source.
A highly reflective substrate may absorb relatively little energy when it is clean, giving it a higher apparent resistance to heating and ablation. In contrast, dark, rough, oxidized, or coated surfaces generally absorb more energy than smooth, polished ones. This contrast can support selective cleaning when the contamination absorbs the beam more efficiently than the underlying substrate.
However, optical behavior changes during the cleaning process. A heavily oxidized metal may absorb substantial energy at the beginning, but its reflectivity may increase as clean metal is exposed. In other cases, cleaning may roughen the surface and increase its absorption, causing later pulses to interact more strongly. Heating can also temporarily change a material’s optical properties.
Surface color, finish, angle, and contamination thickness further influence absorption. Curved or irregular surfaces may reflect the beam in different directions, while recessed areas can experience multiple reflections. Because optical absorption is dynamic, parameters that are safe during the first pass may not remain appropriate after the contaminant has been removed.

Thermal Properties

Thermal conductivity, thermal diffusivity, specific heat capacity, melting point, decomposition temperature, and thermal expansion all influence how a substrate responds to pulsed laser energy. Materials with high thermal conductivity can transfer heat away from the irradiated area relatively quickly. This may reduce localized temperature rise, although additional energy may be required to achieve the desired surface interaction.
Materials with low thermal conductivity retain heat near the laser spot and are more likely to experience localized overheating. Plastics, composites, ceramics, stone, and some coated materials can therefore be sensitive to slow scanning, high repetition rates, or excessive pulse overlap. Heat may accumulate near the surface even when the average laser power appears moderate.
Specific heat capacity affects the amount of energy required to raise the material’s temperature. The melting, softening, or decomposition temperature determines when visible or structural damage may begin. Metals may melt and resolidify, polymers may soften or char, and composite resins may degrade before their reinforcing fibers show obvious damage.
Thermal expansion is also important because rapid and uneven temperature changes create stress. If different parts of the material expand at different rates, cracking, warping, coating separation, or delamination can occur. Thin sections, edges, corners, and small features heat more quickly than large, solid areas. Consequently, the workpiece’s thickness and geometry must be considered together with its basic thermal properties.

Mechanical and Metallurgical Condition

The mechanical condition of the substrate influences its ability to withstand thermal stress, pressure waves, and rapid surface expansion. Hard, brittle materials may resist deformation but be more vulnerable to microcracking or chipping. Ductile materials can accommodate some stress through deformation, although thin components may warp if heat input is excessive.
The substrate’s metallurgical condition is equally important. Alloy composition, grain structure, heat-treatment history, hardness, phase distribution, and residual stress all affect its response to laser exposure. Hardened steels, cast materials, welded regions, and heat-treated alloys may contain areas with different thermal and mechanical properties. A parameter set that is safe for the base metal may alter a weld, heat-affected zone, or previously repaired section.
Rapid heating and cooling can cause localized tempering, hardening, phase transformation, or changes in precipitate structure. These effects may alter wear resistance, fatigue strength, corrosion performance, or dimensional stability without producing obvious visible damage. Materials already containing high residual stress may be especially sensitive because additional thermal stress can initiate cracking or distortion.
Coated and multilayer materials require further attention. Differences in thermal expansion, adhesion strength, and mechanical properties between layers can lead to peeling or delamination. If one functional coating must remain while another layer is removed, the usable processing window may be narrow. The process should therefore be validated on material with the same alloy, temper, heat treatment, coating system, and manufacturing history as the actual component.

Surface Structure and Existing Deterioration

Surface roughness, porosity, cracks, pits, grooves, and other physical features affect how the laser beam and heat are distributed. Rough surfaces may absorb more energy than polished surfaces because the beam undergoes multiple reflections between microscopic peaks and valleys. They can also trap contamination, making uniform removal more difficult and increasing the number of passes required.
Porous materials can contain contamination below the visible surface. Attempting to remove deeply embedded residues may expose the substrate to excessive energy before complete cleaning is achieved. Stone, concrete, ceramics, cast metals, and composite materials may also contain pores or weak grains that can fracture or detach under rapid thermal and mechanical loading.
Existing deterioration is an important source of risk. Corrosion can thin the substrate, create deep pits, weaken grain boundaries, and hide cracks beneath surface deposits. When corrosion products are removed, pre-existing defects may become visible. This does not necessarily mean that the laser created the damage; the cleaning process may simply have revealed deterioration that was already present. Nevertheless, aggressive settings can enlarge weakened areas or remove fragile material surrounding corrosion pits.
Previous grinding, welding, coating, chemical treatment, and repeated cleaning can also create variations in hardness, roughness, residual stress, and surface chemistry. Edges, threads, engraved features, thin walls, and repaired areas may require lower energy or faster scanning than the main surface. Careful pre-cleaning inspection helps identify these vulnerable locations and supports the use of localized parameter adjustments.

Material properties play a central role in determining whether pulsed laser cleaning removes contamination safely or damages the substrate. Optical absorption and reflectivity control how much laser energy enters the surface, while thermal properties determine how quickly that energy spreads and how close the material comes to melting, softening, or decomposition.
Mechanical strength, brittleness, heat-treatment condition, microstructure, and residual stress influence the substrate’s ability to withstand rapid heating, cooling, and pressure. Surface roughness, porosity, geometry, corrosion, cracks, and previous treatments can create localized areas with much lower damage thresholds than the surrounding material.
Because these characteristics vary between materials, components, and even different areas of one workpiece, cleaning parameters should not be selected solely from a general material category. The actual substrate condition must be inspected and tested. Using representative samples, beginning with conservative settings, and evaluating both visible and functional changes helps establish a processing window that removes contamination without compromising the substrate.

Damage Risks for Common Metal Substrates

Pulsed laser cleaning can safely remove rust, paint, oxides, oil, carbon deposits, and other contaminants from many metals. However, each metal responds differently to laser energy. Optical absorption, reflectivity, thermal conductivity, melting temperature, alloy composition, hardness, surface treatment, and metallurgical condition all influence the substrate damage threshold.
The same laser settings should not be applied indiscriminately to different metals. A process developed for thick carbon steel may overheat thin stainless steel, roughen aluminum, crack hardened tool steel, or change the surface composition of brass. Damage risk also varies between alloy grades and product forms. Representative sample testing is therefore necessary before production cleaning, especially for precision, heat-treated, coated, or safety-critical parts.

Carbon Steel

Carbon steel is one of the most common substrates cleaned with pulsed lasers. Rust, mill scale, paint, and carbon deposits often absorb laser energy more strongly than the exposed steel, creating a useful processing window. Thick structural steel generally tolerates controlled laser cleaning well because it can conduct heat away from the treated surface and is not easily distorted.
Damage can still occur when pulse energy, overlap, or dwell time is excessive. Possible effects include heat tint, renewed oxidation, surface melting, pitting, roughening, and the formation of a resolidified layer. Thin sheets may warp when repeated passes concentrate too much heat in one area. Edges, corners, and previously corroded sections can reach damaging temperatures faster than thick, flat surfaces.
High-carbon and heat-treated steels require greater care than mild steel. Localized heating may change hardness, residual stress, or microstructure. A surface can appear clean while containing softened, hardened, or thermally modified areas. Cleaning parameters should therefore reflect the steel grade, thickness, heat-treatment condition, surface specification, and final use.

Cast Iron

Cast iron can be laser cleaned to remove rust, coatings, oil, and combustion deposits, but its relatively brittle structure makes thermal and mechanical damage an important concern. Gray cast iron contains graphite flakes that can concentrate stress, while ductile iron contains graphite nodules and generally offers better toughness. Different grades should therefore be evaluated separately.
Rapid heating and cooling can generate thermal stress, particularly around existing cracks, pores, sharp features, and sections with uneven thickness. Excessive energy may cause microcracking, chipping, localized melting, or the release of weak surface particles. Repeated exposure can also roughen the surface or alter the appearance of graphite-rich regions.
Cast surfaces are often porous and irregular, allowing oil, corrosion products, or other contaminants to penetrate below the visible surface. Attempting to remove deeply embedded contamination completely may require repeated passes that increase the risk of substrate damage. Conservative fluence, controlled overlap, and gradual cleaning are generally preferable. Components should also be inspected for pre-existing cracks before cleaning because removing corrosion may reveal damage that was already present.

Tool Steel

Tool steel requires careful control because its performance depends heavily on hardness, heat treatment, surface finish, and dimensional accuracy. Pulsed laser cleaning is used on molds, dies, cutting tools, and forming components. Still, these parts often have polished surfaces, sharp edges, textured patterns, or tight tolerances that can be affected by small amounts of material removal.
Excessive heat may locally temper hardened tool steel, reducing surface hardness and wear resistance. Under other conditions, rapid heating and cooling can create hardened zones, residual stress, or microcracking. If the laser fluence exceeds the substrate’s ablation threshold, it may remove fine surface features, round sharp edges, enlarge existing defects, or produce a resolidified layer.
Tool steels may also contain carbides and alloying elements that respond differently to rapid thermal cycling. For critical molds and tools, visual inspection should be supported by roughness measurement, dimensional checks, hardness testing, or microscopy. Low fluence, fast scanning, limited overlap, and multiple controlled passes are often safer than aggressive one-pass cleaning.

Stainless Steel

Stainless steel is widely cleaned with pulsed lasers before welding, coating, bonding, or restoration. Its corrosion resistance depends on a thin chromium-rich passive film, so surface chemistry can be as important as visible appearance. Improper cleaning may discolor the metal, modify the passive layer, or produce an oxide condition that reduces corrosion resistance.
Austenitic stainless steels have lower thermal conductivity than carbon steel and can retain more heat near the treated area. Excessive pulse overlap, high repetition rates, or slow scanning may produce yellow, brown, blue, or black heat tint. Severe exposure can cause localized melting, roughening, distortion, or changes in the near-surface microstructure. Thin sheets and precision components are particularly sensitive.
Different stainless steel families—including austenitic, ferritic, martensitic, duplex, and precipitation-hardening grades—have different thermal and metallurgical responses. A setting qualified for one grade should not automatically be used for another. After cleaning, critical surfaces may require examination for color, roughness, contamination, and corrosion resistance. Depending on the application and resulting surface condition, controlled passivation may also be necessary.

Aluminum Alloys

Aluminum presents a distinctive cleaning challenge because clean aluminum is highly reflective at common near-infrared laser wavelengths, while oxide, paint, and contamination may absorb considerably more energy. This difference can support selective removal, but the interaction changes rapidly as the clean metal becomes exposed.
Aluminum has high thermal conductivity, which helps spread heat, but it also has a relatively low melting temperature. Excessive fluence can cause localized melting, pitting, crater formation, roughening, or the loss of fine features. Thin aluminum sheets and lightweight components can distort if heat accumulates through slow scanning or repeated passes.
Many aluminum alloys rely on carefully controlled heat treatment and precipitate structures for their strength. Although pulsed cleaning usually affects only a shallow region, excessive thermal exposure may alter near-surface hardness or mechanical properties. Removing the natural oxide layer can also temporarily change corrosion behavior, surface energy, and electrical contact characteristics. The alloy grade, temper, thickness, surface finish, and required post-cleaning condition should all be considered when selecting parameters.

Copper, Brass, and Bronze

Copper and copper alloys can be difficult to process with common near-infrared pulsed lasers because clean copper is highly reflective and has high thermal conductivity. Oxides, paint, and dark contamination may absorb the beam efficiently at first, but absorption can decrease significantly once reflective metal is exposed. Operators may be tempted to increase energy to maintain the cleaning rate, which can narrow the safety margin.
Excessive energy can melt or roughen copper, damage thin conductive features, alter electrical contact surfaces, or create new oxide discoloration. Copper’s high thermal conductivity spreads heat rapidly, but nearby heat-sensitive components, insulation, brazed joints, or electronic assemblies may still be affected.
Brass and bronze require additional caution because they contain multiple alloying elements. Overheating brass can cause preferential loss of zinc near the surface, altering color, composition, and corrosion behavior. Bronze compositions vary widely, and excessive exposure may affect tin-rich or other alloy phases. Leaded copper alloys also require effective extraction because hazardous fumes and particles may be generated during cleaning.
The exact alloy composition should be identified whenever possible. Conservative testing is particularly important for electrical contacts, decorative parts, historical objects, and components where surface color or conductivity must remain unchanged.

Titanium and Nickel Alloys

Titanium and nickel alloys are commonly used in aerospace, energy, chemical processing, and medical applications where surface integrity is critical. These materials may be laser cleaned to remove oxides, coatings, lubricants, or manufacturing residues, but even subtle changes in chemistry, microstructure, or fatigue performance can be unacceptable.
Titanium has relatively low thermal conductivity and a strong affinity for oxygen at elevated temperatures. Excessive heating in air can produce discoloration, oxidation, or an oxygen-enriched surface layer. High fluence may also cause roughening, melting, residual stress, or microstructural changes. Medical and aerospace titanium components may require controlled-atmosphere processing or detailed post-cleaning verification.
Nickel alloys and superalloys are designed around carefully controlled alloy phases and heat treatments. Excessive thermal input may alter surface oxides, precipitate structures, hardness, or residual stress. Components with thermal barrier coatings, diffusion coatings, or other engineered surface layers require especially precise control because cleaning one layer without affecting another may leave only a narrow processing window.
For titanium and nickel alloys, process qualification should consider more than visible cleanliness. Depending on the application, microscopy, roughness measurement, chemical analysis, hardness testing, corrosion evaluation, or fatigue-related testing may be required.

The damage risk associated with pulsed laser cleaning varies significantly among metal substrates. Carbon steel generally offers a practical cleaning window, but thin, high-carbon, or heat-treated grades can experience distortion or metallurgical changes. Cast iron is sensitive to thermal shock and pre-existing defects, while tool steel requires strict protection of hardness, precision, and surface finish.
Stainless steel can develop heat tint or changes in its passive surface. Aluminum is reflective and thermally conductive but has a relatively low melting temperature and may lose dimensional accuracy under excessive exposure. Copper alloys require careful control because of changing reflectivity and the possibility of selective alloy-element loss. Titanium and nickel alloys demand particularly rigorous parameter control because surface chemistry and microstructure are critical to their performance.
Safe cleaning requires parameters developed for the specific alloy, condition, geometry, contamination, and quality requirement. Conservative sample testing and appropriate inspection help confirm that the contaminant is removed without compromising the metal’s surface, dimensions, corrosion resistance, hardness, or mechanical performance.

How Contaminants and Protective Layers Affect the Risk

The risk of substrate damage during pulsed laser cleaning depends on more than the underlying material’s properties. The composition, thickness, color, adhesion, thermal behavior, and optical absorption of the surface layer determine how much laser energy is required for removal and how much energy eventually reaches the substrate. A dark, strongly absorbing deposit may respond quickly, while a reflective or transparent layer may require different parameters.
Contamination can temporarily shield the substrate from direct exposure, but this protection disappears as the layer becomes thinner or is completely removed. Continuing to apply the same energy after the substrate is exposed can cause overheating, roughening, discoloration, or direct ablation. Protective and functional coatings create an additional challenge because they may need to be preserved rather than removed. The cleaning objective must therefore identify exactly which layers should be eliminated and which must remain unchanged.

Rust, Corrosion Products, and Mill Scale

Rust and other corrosion products often absorb laser energy more effectively than the clean metal beneath them. Their porous, brittle structures can be fractured and removed through rapid heating, thermal expansion, vaporization, and laser-induced pressure. This contrast frequently creates a useful processing window for cleaning steel and iron surfaces.
However, corrosion layers are rarely uniform. Loose red rust may be relatively easy to remove, while dense black oxides, tightly bonded scale, and corrosion products inside deep pits may require greater energy or repeated passes. If the process is adjusted for the most resistant areas, regions with thin rust may be overexposed after their contamination has already been removed.
Mill scale presents a different challenge because it is normally denser and more strongly bonded than loose rust. Its multilayer oxide structure can have varying absorption and thermal properties. Higher fluence or multiple passes may be needed, increasing the risk of roughening or melting the steel underneath. Rapid thermal expansion between the scale and metal can assist removal, but excessive stress may also affect fragile edges or already weakened surfaces.
Corrosion may have caused pitting, thinning, cracks, or loss of material before cleaning begins. When laser cleaning exposes these defects, they may be mistaken for laser damage. A pre-cleaning inspection helps distinguish existing deterioration from changes produced by the process. Operators should avoid trying to remove every trace from deep pits if doing so would require excessive exposure of the surrounding sound metal.

Paint, Oil, Grease, and Carbon Deposits

Paints and organic coatings can absorb laser energy strongly, allowing them to decompose, vaporize, fracture, or separate from the substrate. Their removal behavior depends on pigment, resin, color, thickness, curing condition, and adhesion. A thin decorative coating may respond quickly, while a thick industrial coating containing primers, fillers, and topcoats may require staged removal.
Once the paint becomes thin or develops openings, laser energy can reach the substrate directly. If the operator continues using parameters selected for the original coating thickness, exposed areas may discolor, melt, or become rough. Paint residues can also char instead of being completely removed, creating a dark layer that absorbs subsequent pulses more strongly and increases localized heating.
Oil and grease may form thin, irregular films that move, vaporize, burn, or leave carbonaceous residues during cleaning. Heavy deposits can generate smoke and decomposition products that interfere with the beam or redeposit on nearby surfaces. Preliminary wiping or degreasing may reduce the laser exposure needed and improve process stability, provided the cleaning procedure allows it.
Carbon and combustion deposits are usually dark and highly absorbing. This supports efficient removal but can also create intense localized heating. Thick carbon layers may have variable density and adhesion, while hard deposits may require multiple passes. Suitable fume extraction is essential because paints, oils, greases, and carbon deposits can release hazardous gases, vapors, and fine particles when exposed to the laser.

Plating, Anodizing, and Functional Coatings

Plating, anodized layers, conversion coatings, thermal spray coatings, and other functional surfaces should not automatically be treated as contamination. They may provide corrosion resistance, electrical conductivity, wear resistance, thermal protection, color, adhesion, or dimensional control. Removing or modifying them unintentionally can damage the component even if the underlying metal remains physically intact.
Thin metallic plating can have a damage threshold close to the contaminant removal threshold. Because the layer may be only a few micrometers thick, even limited ablation can expose the base metal or create uneven thickness. Nickel, chromium, zinc, copper, silver, and gold coatings also differ in reflectivity, conductivity, and melting behavior, so each system requires separate testing.
Anodizing is an intentionally formed oxide layer, most commonly used on aluminum. Laser exposure may discolor, thin, texture, or completely remove it. If the goal is to clean contamination while preserving the anodized finish, the processing window may be narrow. If selective anodizing removal is intentional, the process must still avoid melting or pitting the aluminum beneath it.
Functional coatings can be multilayered and may contain ceramics, polymers, metals, pigments, or lubricating compounds. Their response may not match that of either the contamination or the substrate. Before cleaning, operators should verify the coating type, thickness, purpose, and allowable change. Surface chemistry, coating adhesion, electrical performance, corrosion resistance, or thickness may need to be evaluated after treatment.

Uneven and Multilayer Contamination

Real-world contamination is often uneven. One area may contain a thin film, while another has thick rust, several paint layers, or a mixture of oil and corrosion products. A fixed parameter set may underclean the thick regions and overexpose the areas where the substrate becomes visible first.
Multilayer contamination is more complex because each layer may have a different removal threshold. A topcoat may absorb the laser strongly, while the primer underneath is more reflective or firmly bonded. Oil over rust, paint over mill scale, or carbon over an oxide layer can also produce changing interactions as cleaning progresses. Parameters that work well during the first pass may become too aggressive or ineffective on the next layer.
Interfaces between layers can generate additional thermal and mechanical effects. Different expansion rates may promote separation, which can assist cleaning, but they may also cause flaking, cracking, or delamination of layers intended to remain. Voids, moisture, and trapped residues can expand rapidly and eject particles unpredictably.
Staged cleaning is often safer than attempting complete removal in one aggressive pass. Operators can use moderate fluence, faster scanning, controlled overlap, and repeated inspection between passes. Different settings may be applied to heavy and light contamination or to successive layers. Automated laser cleaning systems may use cameras, sensors, or process monitoring to detect changes in the surface and adjust the cleaning operation, but the control strategy must still be validated for the actual workpiece.

Contaminants and protective layers directly influence the amount of laser energy required for cleaning and the amount that reaches the substrate. Rust, corrosion products, mill scale, paint, oil, grease, and carbon deposits differ in absorption, thickness, adhesion, and removal behavior. These differences affect both cleaning efficiency and the risk of overheating or ablating the underlying material.
Plating, anodizing, and functional coatings require particular care because they may be essential parts of the component rather than unwanted layers. Unintentional thinning, discoloration, or removal can reduce corrosion protection, conductivity, wear resistance, appearance, or other required properties.
Uneven and multilayer contamination causes the laser–surface interaction to change as cleaning progresses. A safe process should therefore account for the exposed substrate, not only the original contaminated condition. Pre-cleaning inspection, representative testing, staged removal, conservative parameters, and repeated evaluation help achieve the required cleanliness without damaging the substrate or any protective layer that must remain.

Laser Parameters That Control Substrate Damage

Substrate damage during pulsed laser cleaning is governed by the amount of energy delivered, the speed at which it is delivered, and how that energy is distributed across the surface. A machine’s rated wattage alone does not determine whether cleaning will be safe. Two laser cleaning systems with the same average power can produce very different results if they use different pulse energies, durations, repetition frequencies, wavelengths, spot sizes, or beam profiles.
These parameters must be considered together with scanning speed, line spacing, pulse overlap, focal position, and the number of passes. Changing one setting often alters several aspects of the process simultaneously. Safe cleaning therefore requires a verified combination of parameters that exceeds the contaminant removal threshold while remaining below the substrate damage threshold under actual production conditions.

Average Power and Pulse Energy

Average power describes the total laser energy delivered over time and is normally expressed in watts. Higher average power can increase cleaning speed, but it can also increase cumulative heat input. When the beam moves too slowly or repeatedly passes over the same area, high average power may cause heat accumulation, discoloration, oxidation, distortion, or changes in the substrate’s microstructure.
Pulse energy is the energy contained in each pulse, usually expressed in millijoules. It strongly influences the intensity of each laser–surface interaction. A higher pulse energy can remove thick rust, paint, mill scale, or carbon deposits more efficiently, but it can also generate deeper craters, stronger pressure waves, localized melting, or direct substrate ablation.
Average power and pulse energy are related to pulse repetition frequency. In simplified terms, average power equals pulse energy multiplied by the number of pulses delivered per second. However, the exact relationship depends on the laser design and operating mode. On some systems, increasing the repetition frequency at a fixed average-power setting reduces the energy available in each pulse.
A safe process should distinguish between damage caused by an individual energetic pulse and damage caused by cumulative heating. Lower pulse energy does not guarantee safety if a high repetition rate and slow scanning expose the same area to a large number of pulses.

Fluence and Spot Size

Fluence is the laser energy delivered per unit area during a pulse and is commonly expressed in joules per square centimeter. It is one of the most useful parameters for comparing the applied energy with the contaminant removal threshold and substrate damage threshold.
Fluence depends on pulse energy and spot area. If the same pulse energy is focused into a smaller spot, the fluence increases. If it is spread across a larger spot, the fluence decreases. A small change in spot diameter can therefore produce a substantial change in energy density because spot area changes with the square of the diameter.
If fluence is below the contaminant removal threshold, cleaning may be incomplete or inefficient. If it falls within the usable processing window, the contamination can be removed without unacceptable substrate changes. Once it exceeds the substrate damage threshold, the risk of pitting, roughening, melting, discoloration, or material loss increases.
Focal position directly affects spot size. Holding the cleaning head too close to or too far from the surface may change the spot and produce a fluence different from the programmed value. Surface curvature, component height variation, and inconsistent manual movement can therefore create uneven cleaning. Operators should also recognize that calculated average fluence may not represent the highest local fluence when the beam has a nonuniform profile.

Pulse Duration and Peak Power

Pulse duration is the length of time over which each pulse delivers its energy. Nanosecond pulses last billionths of a second, while picosecond and femtosecond pulses operate on much shorter timescales. Pulse duration affects how far heat can spread into the substrate during the laser–material interaction.
Peak power represents the instantaneous power reached during a pulse. In simplified terms, it is related to pulse energy divided by pulse duration. When the same pulse energy is delivered in a shorter time, peak power rises. This can produce rapid ablation, strong thermal expansion, pressure waves, and plasma formation.
Longer pulses generally allow more time for heat to diffuse into the surrounding material. This can support efficient industrial cleaning but may increase the heat-affected area if the parameters are too aggressive. Shorter pulses can confine energy closer to the surface and reduce thermal diffusion. Picosecond and femtosecond systems are therefore often selected for sensitive or precision components.
However, short pulse duration does not automatically eliminate damage. Ultrashort pulses can produce extremely high peak intensities and directly ablate the substrate if fluence is excessive. Pulse duration must be matched with suitable pulse energy, spot size, scanning speed, and overlap.

Pulse Repetition Frequency

Pulse repetition frequency is the number of laser pulses produced per second, usually expressed in kilohertz or megahertz. It influences cleaning speed, pulse spacing, overlap, pulse energy, and heat accumulation.
At a given scanning speed, increasing the repetition frequency places pulses closer together along the scan path. This can improve coverage and cleaning uniformity, but it also increases the number of pulses received by each area. Excessive pulse overlap may raise the surface temperature progressively, leading to discoloration, oxidation, softening, melting, or distortion.
A lower repetition frequency generally increases the distance between pulses unless scanning speed is also reduced. If the spacing becomes too large, untreated gaps or an uneven finish may result. On some laser cleaning systems, lower repetition frequencies permit higher pulse energy, potentially increasing the risk of single-pulse ablation even though cumulative heating is reduced.
Repetition frequency should therefore be evaluated together with pulse energy and scanning speed. The safest setting is not necessarily the highest or lowest frequency. It is the frequency that provides sufficient coverage and cleaning efficiency without exposing the substrate to damaging pulse energy or cumulative heat.

Laser Wavelength

Laser wavelength determines how strongly the contaminant and substrate absorb or reflect the beam. A wavelength that is absorbed strongly by the contamination but weakly by the underlying material can create a wider usable processing window. If both layers absorb the wavelength similarly, selective removal becomes more difficult.
Many industrial pulsed laser cleaning systems use near-infrared fiber lasers operating around 1 micrometer. These systems are effective for numerous metal-cleaning applications, but highly reflective materials such as clean aluminum and copper can respond differently from rusted, oxidized, or coated surfaces. Their absorption may change significantly as the contaminant is removed.
Shorter wavelengths, including visible and ultraviolet wavelengths, can be absorbed more strongly by certain polymers, oxides, thin films, and nonmetallic materials. They may provide greater selectivity or finer control for specialized applications. However, wavelength selection also affects available power, optical design, equipment cost, processing rate, and safety requirements.
The correct wavelength should be selected according to the optical properties of both the layer being removed and the material that must remain. Parameters developed for one wavelength cannot be transferred directly to another because the absorption behavior and damage thresholds may be substantially different.

Beam Profile and Energy Distribution

The beam profile describes how energy is distributed within the laser spot. A Gaussian beam has the highest intensity at its center and gradually lower intensity toward its edges. As a result, the center may exceed the substrate damage threshold even when the calculated average fluence appears acceptable.
A top-hat or flat-top beam distributes energy more evenly across the spot. This can produce more uniform cleaning and reduce extreme central intensity, although the actual result depends on beam quality and optical design. Ring-shaped, line-shaped, rectangular, and other beam patterns may also be used to match particular cleaning tasks.
Irregular energy distribution can produce streaks, hot spots, incomplete cleaning, or alternating areas of excessive and insufficient exposure. Optical contamination, damaged lenses, beam misalignment, or an unsuitable scanner configuration may further distort the profile. The condition of the optical system should therefore be checked when cleaning results become uneven.
Energy distribution is also influenced by the scanning pattern. Adjacent scan lines must overlap enough to prevent gaps, but excessive line overlap can create bands of higher cumulative exposure. Uniform substrate protection requires control of both the pulse-level beam profile and the larger pattern formed by the moving beam.

Parameter Interdependence and Machine Limits

Laser parameters do not operate independently. Increasing average power may raise pulse energy, repetition frequency, or both, depending on the machine. Changing repetition frequency may alter pulse energy, pulse duration, or waveform. Adjusting focal position changes spot size and fluence, while modifying scanning speed changes pulse spacing and the number of pulses reaching each location.
For example, a higher repetition frequency may reduce individual pulse energy but increase cumulative heating. A smaller spot may improve the removal of a resistant contaminant but also raise local fluence above the substrate damage threshold. Faster scanning can reduce heat input per area, but it may create incomplete cleaning unless line spacing, frequency, or the number of passes is adjusted.
Every laser source also has physical and software-defined operating limits. Maximum pulse energy may be available only within a certain frequency range. Pulse duration may be fixed, adjustable only in steps, or linked to a particular waveform. Scanner speed, field size, focal length, and optical power capacity impose additional restrictions. The values shown on the control interface may also represent commanded settings rather than direct measurements at the workpiece.
Operators should work within the manufacturer’s approved parameter range and avoid assuming that settings from another machine will produce the same output. Process development should use the actual laser source, optics, scanning head, focal distance, and production geometry. Measuring output and documenting validated parameter combinations can improve repeatability and reduce damage risk.

Average power, pulse energy, fluence, spot size, pulse duration, peak power, repetition frequency, wavelength, and beam profile all influence whether pulsed laser cleaning removes contamination safely or damages the substrate. Average power affects total energy delivery, while pulse energy and fluence determine the severity of individual interactions. Pulse duration controls how quickly energy is deposited, and repetition frequency influences pulse spacing and cumulative heating.
Wavelength governs absorption and reflectivity, while the beam profile determines whether energy is distributed uniformly or concentrated into local hot spots. None of these parameters should be evaluated in isolation because changing one setting can alter several others.
A reliable cleaning process must account for actual machine limits, optical configuration, scanning conditions, surface geometry, and cumulative exposure. Controlled sample testing, gradual parameter adjustment, and verification of the cleaned surface are essential for identifying a stable processing window that provides effective contaminant removal without unacceptable substrate damage.

Scanning, Focus, and Workpiece Geometry

The programmed laser settings do not by themselves determine how much energy reaches each part of a workpiece. Scan speed, pulse overlap, hatch spacing, focal position, beam angle, and component geometry control the actual local exposure. Even when pulse energy and average power remain constant, variations in motion or working distance can produce areas that are undercleaned and others that are overheated.
A parameter set developed on a flat test coupon may behave differently on a curved, recessed, thin, or complex component. Edges can heat rapidly, curved surfaces can move in and out of focus, and scanner turnarounds can concentrate pulses near the ends of a cleaning path. Safe process development must therefore reproduce the real scanning pattern and workpiece geometry rather than evaluating laser output in isolation.

Scan Speed and Local Exposure

Scan speed determines how quickly the laser spot moves across the surface. At a fixed pulse repetition frequency, slower movement places pulses closer together and exposes each area to more energy. This can improve the removal of thick or strongly bonded contamination, but it also increases cumulative heating and the risk of discoloration, oxidation, roughening, melting, or distortion.
Faster scanning reduces the energy delivered per unit area and gives the substrate more time to dissipate heat. However, if the speed is too high, pulse spacing may become excessive. The result can be incomplete cleaning, visible stripes, or contamination left between individual pulse locations. Additional passes may then be necessary, and their combined exposure must be considered.
Local scan speed may differ from the nominal setting when the beam accelerates, decelerates, changes direction, or follows a complex path. Handheld operation introduces further variation because the operator may slow down over resistant contamination or pause while repositioning. These actions can raise local exposure even though the machine settings have not changed.
The selected scan speed should provide adequate contaminant removal without requiring unnecessary dwell time. Stable mechanical movement, consistent manual technique, and programmed speed control help maintain repeatable exposure across the entire cleaning area.

Pulse Overlap and Hatch Spacing

Pulse overlap describes how much consecutive laser spots overlap along the scan direction. It is controlled by spot size, repetition frequency, and scan speed. Suitable overlap provides continuous coverage and helps create a uniform finish. Too little overlap leaves untreated gaps, while excessive overlap exposes the same area to many pulses and increases heat accumulation.
Hatch spacing is the distance between neighboring scan lines. Wide hatch spacing can leave stripes or contamination between lines. Narrow spacing increases line-to-line overlap and improves coverage, but it also raises the cumulative energy delivered to the surface. Areas where pulse overlap and line overlap combine may receive substantially more exposure than a simple fluence calculation suggests.
The beam profile also affects the required overlap. A Gaussian beam has lower intensity near the edges of the spot, so some overlap may be needed to produce uniform cleaning. A flat-top or specially shaped beam may support more even coverage with a different spacing strategy. The correct values therefore depend on spot size, beam distribution, contaminant response, and the required surface quality.
Overlap should be calculated and validated under actual operating conditions. Changes in scanning speed, repetition frequency, focus, or spot size can alter it. A previously safe hatch pattern may become too aggressive when any of these parameters change.

Focus Position and Working Distance

Focus position determines the beam size and energy density at the workpiece. When the surface is at or near the focal plane, the beam may reach its smallest spot and highest fluence. Moving the surface away from focus generally enlarges the spot and lowers the energy density, although the precise behavior depends on the optical system and beam design.
An incorrect working distance can therefore produce incomplete cleaning or substrate damage. If the spot becomes smaller than expected, fluence may rise above the substrate damage threshold. If the spot becomes too large, the energy may fall below the contaminant removal threshold. The operator might then compensate by slowing the scan or increasing power, potentially creating other forms of excessive exposure.
Maintaining a consistent working distance is especially difficult on warped sheets, curved parts, irregular castings, and manually cleaned surfaces. Small changes in head angle or standoff can alter both focus and the shape of the beam footprint. Tilting the beam increases the apparent spot area and can change absorption because the angle of incidence is different.
Focus should be established using the machine manufacturer’s procedure and verified on representative parts. Automated height sensing, distance control, robotic path planning, or fixtures can improve consistency. Protective lenses should also be kept clean because contamination or damage in the optical path can distort the focus and energy distribution.

Edges, Curves, Recesses, and Thin Sections

Edges and corners often have less surrounding material available to absorb and dissipate heat. They can therefore reach higher temperatures than the center of a thick, flat component. The beam may also partially overshoot an edge, producing an irregular exposure pattern or interacting with surfaces behind the intended cleaning area. Sharp features can lose definition if direct ablation occurs.
Curved surfaces change the working distance and angle of incidence as the beam moves. A path that remains correctly focused at the top of a cylinder may become defocused along its sides. The projected spot can become elongated, and the amount of absorbed energy may vary. Robotic or multi-axis motion may be needed to keep the beam approximately normal to the surface and maintain the intended standoff.
Recesses, grooves, threads, and internal corners may be shadowed from the beam or difficult to keep in focus. Reflections from nearby surfaces can redistribute energy, while smoke and particles may accumulate in confined spaces and interfere with cleaning. Attempting to compensate by increasing power can damage accessible areas before the deepest contamination is removed.
Thin sections, foils, fins, and lightweight panels have limited thermal mass and can heat or distort quickly. Welded joints, brazed areas, adhesive bonds, seals, and components containing heat-sensitive materials may also be affected by heat conducted away from the cleaning zone. These regions often require lower average power, faster motion, reduced overlap, shorter cleaning intervals, or separate parameter programs.

Turnarounds, Pauses, and Multiple Passes

At the end of each scan line, the beam must slow down, reverse direction, and accelerate again. If laser output remains active throughout this movement, the turnaround area may receive more pulses than the center of the path. This can produce darker bands, deeper cleaning, localized roughness, or thermal damage near the edges of the scan field.
Modern scanner controls may compensate by switching the laser off during deceleration, extending the path beyond the cleaning area, or adjusting pulse timing. These functions must be configured correctly because the programmed speed may not reflect the instantaneous speed during acceleration and reversal. Cleaning patterns with many short lines or tight corners are particularly sensitive to turnaround effects.
Pauses create an even greater risk. A stationary or slowly moving beam can deliver many pulses to one location within a short time. This may occur during handheld hesitation, robot path transitions, fault recovery, or software delays. Appropriate laser gating, interlocks, motion monitoring, and operator training should prevent emission when the beam is not moving as intended.
Multiple passes can provide safer and more controlled removal than one aggressive pass, especially for thick or multilayer contamination. However, each pass adds cumulative exposure. After the first pass removes most of the contaminant, later passes interact more directly with the substrate and may require lower fluence or faster scanning.
Allowing cooling time between passes can reduce thermal accumulation. Changing the scanning direction may also improve uniformity and prevent repeated heating along the same lines. The number of passes, interval between passes, cleaning direction, and total exposure should be documented as part of the validated process.

Scan speed, overlap, hatch spacing, focus, working distance, and component geometry determine how laser energy is distributed across the workpiece. Slow scanning, dense overlap, narrow hatch spacing, or an unexpectedly small focused spot can raise local exposure above the substrate damage threshold. Excessive speed, wide spacing, or defocus can leave contamination behind and create uneven cleaning.
Edges, curves, recesses, and thin sections require particular attention because they change heat dissipation, beam angle, focal distance, and accessibility. Scanner turnarounds and pauses can produce concentrated exposure even when the nominal parameters appear safe. Multiple passes support gradual cleaning but must be evaluated according to their cumulative effect and the changing condition of the surface.
A reliable cleaning process should reproduce the actual geometry, motion path, focus control, and pass sequence used in production. Consistent scanning, controlled standoff, suitable fixtures, and inspection of vulnerable areas help prevent localized overheating, direct ablation, distortion, and other forms of substrate damage.

Pulsed Laser Cleaning Compared With Other Methods

Every cleaning method can change or damage a substrate if it is applied incorrectly. The differences lie in how energy or force reaches the surface, how precisely the process can be controlled, and what types of damage are most likely. Pulsed laser cleaning uses short bursts of optical energy, while continuous-wave lasers rely more heavily on sustained heating. Abrasive methods remove contamination through mechanical impact or friction, and chemical processes dissolve or react with unwanted layers.
Pulsed laser cleaning often offers greater selectivity and local control than conventional methods, but it is not automatically damage-free. Its suitability depends on the substrate, contamination, required cleaning rate, surface specification, geometry, and production environment. Comparing the possible damage mechanisms helps manufacturers choose the most appropriate process and establish realistic acceptance criteria.

Pulsed Versus Continuous-Wave Laser Cleaning

Pulsed laser cleaning delivers energy in short, separated pulses. Each pulse can produce high peak power, allowing contaminants to fracture, vaporize, or detach within a brief interaction time. The intervals between pulses allow some heat to dissipate, helping restrict thermal effects to the surface. This makes pulsed laser cleaning systems well suited to precision cleaning, selective coating removal, mold maintenance, weld preparation, and applications involving heat-sensitive or high-value components.
Continuous-wave laser cleaning supplies energy without intentional interruptions. These laser cleaning systems often use higher average power and can remove thick rust, paint, and other heavy contamination rapidly over large, robust surfaces. However, their cleaning action generally depends more strongly on sustained thermal input. If scanning speed is too low or the beam remains in one area, heat can spread deeper into the workpiece.
Compared with continuous-wave laser cleaning systems, a properly configured pulsed laser cleaning system usually provides better control over heat accumulation and the depth of material removal. It can reduce the risk of distortion, a large heat-affected zone, and excessive surface melting. This advantage is particularly important for thin sheets, precision tools, sensitive alloys, and components with strict dimensional requirements.
Nevertheless, pulsed laser cleaning systems can still cause damage. High pulse energy or fluence may directly ablate the substrate, while excessive repetition frequency, overlap, or repeated passes can produce cumulative heating. Continuous-wave cleaning may be more economical and productive for heavy-duty applications where minor surface modification is acceptable. The correct choice therefore depends on whether precision and substrate preservation or maximum removal rate is the primary requirement.

Abrasive and Mechanical Cleaning

Abrasive blasting removes contamination by propelling particles such as sand, glass beads, steel grit, or other media against the surface. Grinding, wire brushing, sanding, scraping, and needle scaling rely on direct mechanical contact. These methods can remove thick coatings, corrosion, and scale quickly and are widely available.
Mechanical methods can also remove part of the substrate. Abrasive particles and cutting tools may increase surface roughness, create scratches, round sharp edges, erase fine features, or alter dimensions. Aggressive blasting can peen the surface, introduce residual stress, or embed abrasive particles. Thin components may deform under impact, while brittle or deteriorated materials may crack or lose weak surface sections.
In some applications, these changes are intentional. Abrasive blasting can create the rough surface profile required for paint, thermal spray, or adhesive bonding. If a specified anchor profile is needed, laser cleaning may not produce the same result without deliberately modifying the surface. Mechanical methods can therefore be appropriate when controlled roughening is part of the preparation requirement.
Pulsed laser cleaning is non-contact and normally produces less bulk material removal than aggressive abrasive methods when operated within a suitable processing window. It can clean localized areas without blasting media and can be automated for repeatable paths. However, it may be slower or more expensive for very thick contamination over large structures.
The comparison should also consider secondary effects. Abrasive processes generate dust and spent media that must be collected, while mechanical tools wear and may contaminate the workpiece. Laser cleaning produces fumes and fine particles that also require effective extraction. Neither approach eliminates the need for suitable safety controls.

Chemical Cleaning and Other Alternatives

Chemical cleaning uses acids, alkalis, solvents, chelating agents, or specialized formulations to dissolve, soften, or separate contaminants. It can reach complex shapes, internal passages, and large batches of small parts that may be difficult to clean with a line-of-sight laser beam. Properly selected chemicals can also remove contamination with limited mechanical disturbance.
The main substrate risk is an unintended chemical reaction. Acids may etch metal, enlarge pits, change dimensions, or attack grain boundaries. Strong alkaline solutions can damage certain metals, including aluminum and zinc-containing alloys. Solvents may swell or degrade polymers, seals, adhesives, and coatings. Susceptible high-strength steels can also face hydrogen-related risks during some acid-cleaning or pickling processes if suitable controls are not used.
Chemical residues may continue reacting after cleaning if rinsing and neutralization are incomplete. Wastewater, spent chemicals, and contaminated rinse fluids require appropriate handling. Process temperature, concentration, exposure time, agitation, and bath contamination must be controlled to prevent inconsistent results.
Pulsed laser cleaning avoids liquid chemicals and can treat selected areas without immersing the entire component. It also begins and ends immediately when laser emission stops. However, it remains a line-of-sight process and may struggle to reach narrow internal spaces or hidden surfaces. Laser-generated fumes from paint, oil, or hazardous coatings must still be captured and filtered.
Other alternatives include dry ice blasting, high-pressure water cleaning, steam cleaning, ultrasonic cleaning, and plasma treatment. Dry ice blasting leaves no abrasive blasting medium, but particle impact and rapid cooling may affect fragile surfaces. High-pressure water can damage weak coatings, drive moisture into pores or joints, and promote corrosion if the component is not dried properly. Ultrasonic cleaning is effective for immersed small parts, but prolonged cavitation can erode delicate surfaces. Plasma treatment can remove thin organic residues and modify surface chemistry, although it is generally not intended for removing heavy corrosion or thick coatings.
No alternative is free from risk. The choice should be based on the contaminant, component geometry, substrate sensitivity, cleanliness requirement, environmental controls, production rate, and acceptable surface modification.

Pulsed laser cleaning generally offers more precise energy delivery and lower heat accumulation than continuous-wave laser cleaning. This makes it advantageous for sensitive substrates, selective removal, and applications requiring close control of surface quality. Continuous-wave laser cleaning systems may provide faster removal of heavy contamination from thick, robust components but usually present a greater risk of sustained heating.
Abrasive and mechanical methods are effective and widely accessible, but they can scratch, roughen, deform, or remove substrate material. Chemical cleaning can treat complex surfaces and batches of parts, yet unsuitable chemicals or exposure conditions may cause etching, corrosion, residue, or material degradation. Other alternatives also introduce their own mechanical, thermal, moisture-related, or chemical risks.
The safest method is not determined by technology alone. It depends on the substrate, contaminant, geometry, production requirements, and acceptable surface condition. Pulsed laser cleaning can minimize damage when its parameters are validated, but comparative testing may be necessary to confirm that it provides the required cleanliness, productivity, and substrate protection for a specific application.

How to Establish a Process That Protects the Substrate

Protecting the substrate requires more than finding a setting that appears to remove contamination successfully. A reliable process must achieve the required cleanliness while keeping visual, dimensional, chemical, metallurgical, and functional changes within acceptable limits. It must also remain stable when contamination thickness, workpiece geometry, operator movement, or environmental conditions vary.
Process development should identify both the lower boundary for effective contaminant removal and the upper boundary for unacceptable substrate modification. The selected production settings should remain comfortably between these limits rather than operating close to the damage threshold. A structured qualification procedure makes the cleaning result safer, more repeatable, and easier to verify.

Identify the Material and Required Outcome

Begin by identifying the substrate as precisely as possible. Record the material family, alloy or grade, thickness, heat-treatment condition, hardness, manufacturing process, and any previous surface treatment. Carbon steel, hardened tool steel, stainless steel, aluminum, copper alloys, and titanium can respond very differently to the same laser parameters. Even two grades within the same material family may have different thermal and metallurgical limits.
All surface layers should also be identified. Determine whether the workpiece contains rust, mill scale, paint, oil, plating, anodizing, conversion coatings, thermal spray coatings, or other functional layers. Clearly distinguish contamination that must be removed from coatings or surface features that must remain.
The required outcome should be defined in measurable terms. “Clean” may mean visibly free of rust, suitable for welding, prepared for adhesive bonding, ready for coating, or restored without changing its original appearance. Each purpose creates different requirements for residual contamination, roughness, surface chemistry, dimensions, color, hardness, and corrosion resistance.
Acceptance criteria should come from the component’s function, customer requirements, engineering specifications, and applicable quality procedures. Without clear criteria, beneficial surface preparation may be mistaken for damage, or harmful microscopic changes may be overlooked because the surface appears clean.

Record the Starting Condition

The workpiece should be documented before laser cleaning begins. Photographs under consistent lighting can record color, contamination coverage, visible corrosion, scratches, pits, cracks, and previous repairs. Heavily corroded parts should be examined carefully because cleaning may reveal deterioration that already exists beneath the rust.
Where relevant, record contamination type, estimated thickness, adhesion, distribution, and number of layers. Identify areas with unusually heavy or light deposits. The substrate’s initial dimensions, roughness, hardness, coating thickness, gloss, conductivity, or surface chemistry may also need to be measured, depending on the final application.
Each sample and test area should be labeled so that the cleaned result can be compared with its original condition. An untreated reference area is particularly valuable. It helps distinguish laser-induced changes from pre-existing defects and normal variation in the material.
The starting condition should also include process-related information such as workpiece temperature, cleaning orientation, surface moisture, and fixture arrangement. These details may affect heat dissipation, focus, and contaminant behavior. Accurate baseline records make later evaluation objective rather than dependent only on operator judgment.

Conduct Controlled Trials on Representative Samples

Trials should use samples that closely represent actual production parts. The material grade, temper, thickness, surface finish, contamination, coating structure, and geometry should be comparable. Testing on a thick, flat mild-steel coupon does not qualify a process for a thin stainless steel component with curved edges and a functional coating.
Begin with conservative settings near the expected contaminant removal threshold. Pulse energy, fluence, repetition frequency, scanning speed, hatch spacing, focal position, and number of passes can then be adjusted gradually. Using several moderate passes is often safer than attempting complete removal with one aggressive pass.
Only controlled changes should be made between trials. Changing several parameters simultaneously makes it difficult to determine which adjustment improved cleaning or caused damage. A structured test plan can compare different parameter combinations while limiting unnecessary experiments. For complex or high-value applications, a formal design-of-experiments approach may be appropriate.
The actual laser source, optical system, scanner, focal distance, and production cleaning pattern should be used whenever possible. Record the machine identification, lens configuration, waveform, power setting, pulse duration, frequency, scan speed, pattern, working distance, overlap, pass count, and cooling time. This information is essential because identical control-panel values do not always produce identical output on different machines.

Evaluate Cleaning Quality and Damage Together

Cleaning effectiveness and substrate protection must be evaluated at the same time. The most aggressive setting may produce the cleanest-looking surface, but it may also roughen, melt, discolor, or weaken the substrate. The goal is to identify the least aggressive stable process that meets all cleanliness requirements.
Cleaning quality may be evaluated through visual inspection, residue measurement, surface analysis, coating-adhesion testing, water-break testing, weld testing, or other application-specific methods. The selected method should confirm that remaining contamination will not interfere with the next manufacturing step or the component’s final function.
Damage evaluation should address the properties that matter to the substrate. Visual inspection can identify heat tint, melting, pitting, cracking, and uneven cleaning. Surface profilometry can measure roughness, while microscopy can reveal microcracks or resolidified material. Dimensional checks can detect material loss or distortion. Hardness testing, chemical analysis, corrosion testing, conductivity measurement, or mechanical testing may be needed for critical components.
Results should be compared with the original surface, an untreated reference, and the defined acceptance limits. A process should not be approved simply because no visible damage is present. Conversely, a small change in texture may be acceptable or beneficial if it improves coating or adhesive bonding without reducing performance.

Test Challenging Conditions

The cleaning process should be tested under the most demanding conditions reasonably expected in production. This includes the thickest and thinnest contamination, maximum allowable pass count, smallest working distance variation, highest expected part temperature, and areas with poor heat dissipation.
Edges, corners, holes, curves, recesses, threads, and thin sections should be evaluated separately from broad, flat surfaces. Scanner turnarounds, overlapping cleaning zones, and areas where an operator or robot changes direction can receive greater exposure than the center of a normal scan path. These locations may determine the true upper limit of the process.
Uneven and multilayer contamination should also be included. Settings must remove resistant deposits without damaging areas where the substrate becomes exposed earlier. If one parameter set cannot safely handle the full range, the process may require staged cleaning, separate programs, localized adjustments, or inspection between passes.
Production variability should be considered. For handheld cleaning, trials should include realistic differences in travel speed, standoff, and angle. Automated systems should be tested for path transitions, acceleration, focus tracking, and positioning tolerance. Credible equipment variation, including normal output drift and optical wear, should also be addressed through maintenance and verification procedures.
Challenge testing should be performed on samples or approved test pieces rather than valuable production components. The objective is to confirm that reasonable variation will not move the process outside the safe operating window.

Define and Document the Operating Window

A qualified operating window should specify acceptable ranges rather than only one preferred setting. It should identify the lower limits needed for complete cleaning and the upper limits beyond which substrate modification becomes unacceptable. A nominal production setting can then be selected with a suitable safety margin from both boundaries.
Documentation should include average power, pulse energy or source setting, pulse duration, repetition frequency, spot size or focal configuration, scan speed, hatch spacing, pattern, working distance, angle, number of passes, and cooling interval. It should also specify the approved material grades, thickness range, contamination types, coating conditions, and workpiece geometries.
Machine-specific information is essential because available pulse energy, waveform, beam profile, and optical performance vary between systems. Approved settings should not be transferred to another laser source or lens configuration without verification. Any change to the machine, optics, software, material, coating, or cleaning requirement should trigger an appropriate review.
The procedure should define inspection frequency, acceptance criteria, stop conditions, and required records. Operators should know when to reduce exposure, change programs, or stop cleaning because of discoloration, abnormal sound, visible melting, unexpected smoke, excessive temperature, or rapid changes in surface appearance.
Regular verification helps ensure that the validated process remains stable. Reference samples, periodic output checks, preventive maintenance, lens inspection, and operator training can reduce variation and support consistent substrate protection.

A substrate-protective laser cleaning process begins with accurate identification of the material, surface layers, and required result. The starting condition should be documented so that existing defects can be separated from laser-induced changes. Controlled trials must then use representative materials, contamination, geometry, equipment, and scanning conditions.
Cleaning quality and substrate damage should always be evaluated together. Testing must confirm both adequate contaminant removal and acceptable surface, dimensional, chemical, metallurgical, and functional properties. Challenging conditions—including edges, thin sections, uneven contamination, focus variation, turnarounds, and multiple passes—should be included before the process is released for production.
The final operating window should define validated parameter ranges, machine conditions, inspection requirements, and safety margins. When this information is properly documented and controlled, pulsed laser cleaning can deliver repeatable contaminant removal while minimizing the risk of unacceptable substrate damage.

How to Check Whether the Substrate Has Been Damaged

Determining whether pulsed laser cleaning has damaged a substrate requires more than checking whether the surface looks clean. Some problems, such as melting, discoloration, and distortion, are immediately visible. Others—including microcracks, hardness changes, residual stress, altered surface chemistry, and reduced corrosion resistance—may remain hidden until the component is inspected or tested.
The inspection method should reflect the material, component value, cleaning objective, and consequences of failure. A general industrial part may require visual and dimensional checks, while an aerospace component, precision mold, electrical contact, or medical device may need microscopic, chemical, metallurgical, and functional evaluation. Results should be compared with the documented starting condition, an untreated reference area, and clearly defined acceptance criteria.

Visual Inspection and Warning Signs

Visual inspection is the fastest way to identify obvious cleaning defects and should be performed under consistent, suitable lighting. The cleaned surface should be compared with an untreated reference area or a qualified sample. Photographs taken before and after cleaning can help distinguish process-induced changes from corrosion pits, scratches, cracks, and other defects that were already present.
Warning signs include unexpected color changes, dark bands, heat tint, shiny melted areas, pits, craters, ripples, raised edges, cracks, flaking, and loss of fine surface features. Alternating stripes may indicate unsuitable hatch spacing, while darker areas near scan-line endpoints can suggest excessive exposure during scanner turnarounds. Warping or buckling can indicate that too much heat accumulated in a thin component.
Magnification can reveal small defects that are difficult to see with the naked eye. A handheld magnifier, inspection microscope, or high-resolution camera may expose fine cracks, resolidified particles, excessive roughness, or uneven coating removal. Edges, corners, recesses, overlaps, and areas cleaned multiple times deserve particular attention.
Visual changes do not always prove that the substrate has been damaged. Laser cleaning may reveal corrosion pits or cracks that were previously hidden beneath rust or paint. A slight color or texture change may also be acceptable for weld or coating preparation. The finding must be evaluated against the original surface and the component’s functional requirements.

Surface Roughness and Dimensional Measurements

Surface roughness measurement can show whether laser cleaning has altered the texture beyond acceptable limits. Contact profilometers trace the surface with a stylus, while optical profilometers use light to measure topography without physical contact. Depending on the application, parameters such as average roughness, peak-to-valley height, and three-dimensional surface texture may be evaluated.
Measurements should be taken at representative locations, including the center of the cleaned area, scan overlaps, turnarounds, edges, and regions that received multiple passes. The same measurement direction and evaluation method should be used before and after cleaning because surface texture can vary with orientation.
An increase in roughness is not automatically harmful. Controlled texturing may improve paint, coating, or adhesive bonding. However, excessive roughness can affect sealing, friction, wear, reflectivity, electrical contact, or the release performance of a mold. A polished or precision-machined component may have much stricter limits than a structural surface prepared for coating.
Dimensional measurements can identify material loss, warping, or distortion. Micrometers, calipers, depth gauges, coordinate-measuring machines, laser scanners, or optical measurement systems may be used depending on the tolerance and geometry. Thin sheets should be checked for flatness, while precision features may require inspection of edges, holes, grooves, and critical mating surfaces. Any measured change should be compared with the component drawing and allowable tolerance.

Microscopic and Metallurgical Examination

Microscopic examination can detect damage that is invisible during normal inspection. Optical microscopy can reveal small pits, cracks, melted regions, redeposited particles, and changes in surface morphology. Scanning electron microscopy provides higher-resolution imaging and may be used when fine cracks, ablation features, or subtle surface changes must be investigated.
Cross-sectional examination can show the depth of a heat-affected, melted, or resolidified layer. A representative sample may be cut, mounted, polished, and etched to reveal changes beneath the surface. Because this method is destructive, it is normally performed on test coupons or sacrificial components rather than finished production parts.
Metallurgical evaluation can determine whether rapid heating and cooling altered the material’s grain structure, phase distribution, or heat-treatment condition. Microhardness testing can identify localized hardening or softening near the cleaned surface. Residual-stress or phase-analysis methods may be required for components where fatigue performance, dimensional stability, or resistance to cracking is critical.
Nondestructive testing can supplement microscopic examination. Dye-penetrant inspection may reveal surface-breaking cracks, while eddy-current or other suitable methods can help detect near-surface defects in certain conductive materials. The technique should be selected according to the alloy, geometry, defect type, and required sensitivity.

Surface Chemistry and Residue Analysis

A surface can look undamaged while containing chemical changes or remaining contamination. Laser exposure may remove or modify passive films, create new oxides, leave carbonized residues, or change the concentration of elements near the surface. These changes can influence corrosion resistance, conductivity, wettability, adhesion, and appearance.
Simple cleanliness checks may include solvent-wipe tests, water-break testing, contact-angle measurement, or residue collection. These methods can help identify oil, grease, particles, or changes in surface energy. They are particularly useful when the cleaned surface will be painted, bonded, welded, or coated.
More advanced methods may be required for critical applications. X-ray photoelectron spectroscopy can examine the chemical condition of the outermost surface, while energy-dispersive X-ray spectroscopy can identify elemental composition in selected areas. Fourier-transform infrared or Raman spectroscopy may help identify organic residues, oxides, or coating remnants. The appropriate technique depends on the suspected contamination and required detection limit.
Stainless steel, aluminum, titanium, and other corrosion-resistant alloys may require evaluation of oxide or passive-layer condition. If cleaning has altered the protective surface chemistry, corrosion testing or a controlled post-cleaning treatment may be necessary. Chemical analysis should compare cleaned samples with untreated and approved reference surfaces.

Functional Performance Testing

The most important question is whether the cleaned component still performs as required. Functional testing links surface changes to actual service conditions and can identify damage that visual or laboratory inspection alone may not fully predict.
For weld preparation, test welds can be evaluated for porosity, penetration, strength, and other required quality characteristics. Surfaces prepared for painting or bonding may require adhesion, peel, pull-off, or durability testing. Electrical contacts can be checked for resistance and conductivity, while optical components may require reflectivity or transmission measurements.
Sealing surfaces may need leak or pressure testing. Molds, dies, and sliding components may require verification of release behavior, friction, wear, or dimensional fit. Corrosion-resistant parts can be evaluated through appropriate exposure or electrochemical tests. Fatigue, tensile, impact, or other mechanical tests may be necessary when the application is safety-critical and thermal or metallurgical changes are a concern.
Some functional tests are destructive or time-consuming, so they are often used during process qualification rather than for every production part. Routine inspection can then rely on validated indicators such as appearance, roughness, dimensions, temperature limits, or process-monitoring data. If the material, contamination, machine, optics, or parameters change, the relationship between these indicators and functional performance should be reviewed.

Checking for substrate damage requires a combination of inspection and testing methods selected for the component’s material, tolerance, and final function. Visual inspection can identify heat tint, melting, pitting, cracking, and uneven exposure. Roughness and dimensional measurements can reveal changes in texture, material loss, or distortion.
Microscopy, metallography, hardness testing, and nondestructive examination can detect hidden structural changes. Surface chemistry and residue analysis can identify modified oxide films, remaining contamination, and chemical conditions that affect corrosion, coating, welding, or bonding. Functional testing confirms whether the cleaned component still performs as intended.
No single inspection method is sufficient for every application. Results should be compared with the documented starting condition, an untreated reference, and defined acceptance limits. By evaluating both visible and hidden changes, manufacturers can confirm that the cleaning process removes contamination without compromising the substrate’s surface integrity, dimensions, material properties, or service performance.

Maintaining Substrate Protection During Production

The cleaning process that performs well during initial trials can still produce substrate damage if production conditions are not controlled. Variations in operator movement, focus position, optical condition, extraction performance, workpiece temperature, contamination thickness, and material properties can move the process outside its validated operating window. Maintaining protection therefore requires consistent execution, preventive maintenance, effective debris control, and ongoing monitoring.
The approved parameter set should be treated as part of a complete production procedure rather than a collection of machine settings. Positioning, scanning path, working distance, pass count, cooling time, equipment condition, and inspection requirements must also remain within defined limits. When any relevant condition changes, the process should be reviewed before normal production continues.

Consistent Positioning and Operator Technique

The distance and angle between the cleaning head and workpiece affect focus, spot size, fluence, and energy distribution. If the head moves closer to the surface than intended, the spot may become smaller, and the local fluence may increase. An excessive or inconsistent working distance may enlarge the spot and reduce cleaning effectiveness, encouraging the operator to slow down or make unnecessary additional passes.
Handheld cleaning introduces natural variations in travel speed, angle, overlap, and dwell time. An operator may slow down over resistant contamination, pause while changing direction, or repeatedly clean an area that appears darker. These actions can increase cumulative exposure and create localized discoloration, roughening, melting, or distortion.
Standardized operating technique helps reduce this variation. Operators should follow defined requirements for standoff, head angle, scan speed, line spacing, pass count, movement direction, and cooling intervals. Guides, spacers, fixtures, templates, or mechanical supports can help maintain a consistent working distance and scanning path.
Automated and robotic systems also require accurate positioning. Fixtures should locate each workpiece repeatably, while robot paths should maintain the intended orientation and focal distance across curves, edges, and height changes. Calibration should include the robot, scanner, tooling, and workpiece reference system. Approved process recipes should be protected from unauthorized changes, and operators should receive training on warning signs and stop conditions.

Equipment Inspection and Maintenance

The laser cleaning system must remain in the same functional condition used during process qualification. Changes in output power, pulse behavior, beam alignment, focus, or scanner performance can alter the energy delivered to the workpiece even when the control-panel settings remain unchanged.
Protective windows, lenses, and other optical components should be inspected regularly for dust, coating residue, condensation, scratches, and thermal damage. Contaminated optics can absorb energy, distort the beam profile, shift the focus, reduce cleaning efficiency, or create local hot spots. Operators may then compensate by increasing power or slowing the scan, raising the risk of substrate damage.
The scanning head should be checked for stable motion, accurate positioning, and consistent line spacing. Galvanometer problems or calibration drift can create irregular overlap, excessive exposure at turnarounds, or gaps between scan lines. The fiber-delivery system, connectors, cooling system, electrical supply, and control software should also be maintained according to the manufacturer’s instructions.
Periodic output verification can confirm that actual laser performance remains consistent with the qualified condition. Preventive maintenance intervals should be based on operating hours, contamination level, process environment, and equipment guidance. Any replacement of the laser source, lens, scanner, protective window, or software that affects beam delivery may require parameter verification or process requalification.

Extraction and Debris Management

Pulsed laser cleaning produces vapor, smoke, gases, particles, and fragments of removed material. If these by-products are not captured effectively, they can interfere with the beam, redeposit on the workpiece, contaminate the optics, and create inconsistent cleaning results.
A dense plume can absorb or scatter some of the laser energy before it reaches the surface. The operator may then see incomplete cleaning and increase exposure unnecessarily. As the plume moves or extraction performance changes, the amount of energy reaching the workpiece may vary, producing an uneven finish.
Removed particles can settle back onto clean areas and absorb energy during later passes. Hot particles may also discolor or mark sensitive surfaces. Accumulated debris in corners, recesses, fixtures, or ventilation paths can make cleaning less predictable and may introduce fire or health hazards, depending on the contaminant.
The extraction inlet should be positioned close enough to capture emissions at their source without blocking the beam or disrupting the scanning path. Airflow should remain consistent across the cleaning area. Filters, ducts, separators, and collection containers should be inspected and serviced before excessive loading reduces extraction performance.
The extraction system must be suitable for the specific material being removed. Paints, oils, heavy metals, lead-containing coatings, and other hazardous substances may require specialized filtration and disposal procedures. Clean fixtures, nearby surfaces, and protective windows regularly so that accumulated debris does not affect subsequent workpieces.

Monitoring and Change Control

Production monitoring helps identify process drift before it causes widespread defects. Routine checks may include surface appearance, cleaning completeness, roughness, dimensions, temperature, and comparison with an approved reference sample. The inspection frequency should reflect the component’s value, process stability, and consequences of substrate damage.
Operators should watch for warning signs such as unexpected color changes, dark bands, sparks, abnormal plume behavior, increased smoke, unusual sound, inconsistent cleaning, rising surface temperature, or repeated need for additional passes. These observations can indicate focus changes, optical contamination, extraction problems, material variation, or incorrect parameters.
Automated laser cleaning systems may use cameras, temperature sensors, optical emission monitoring, acoustic signals, or other process data to detect changes in cleaning behavior. Such monitoring can support alarms, parameter adjustment, or automatic stopping. However, sensor limits must be established through correlation with actual cleaning quality and substrate inspection.
Production records should identify the machine, operator, material batch, workpiece type, program, parameter set, pass count, inspection result, and any deviation. These records make it easier to investigate defects and determine whether changes occurred gradually or after a specific event.
Change control is essential because an approved process may no longer be valid after modifications. A new alloy grade, material thickness, coating, contamination type, supplier, laser source, lens, scanner, fixture, software version, extraction system, or cleaning path can alter the processing window. Relevant changes should be reviewed, tested, and documented before full production resumes.

Maintaining substrate protection during production requires control of the entire cleaning operation. Consistent positioning and operator technique keep the working distance, angle, scan speed, overlap, and dwell time within validated limits. Fixtures, guides, protected recipes, and proper training help reduce variation in both manual and automated cleaning.
Regular equipment inspection ensures that the laser source, optics, scanner, cooling system, and controls continue to deliver the qualified output. Effective extraction removes fumes and debris before they interfere with the beam, contaminate the workpiece, or damage optical components.
Monitoring and change control provide early warning when the process begins to drift. Routine inspection, reference samples, production records, defined stop conditions, and requalification after significant changes help preserve the established operating window. Together, these controls support repeatable contaminant removal without unacceptable changes to the substrate’s appearance, dimensions, surface chemistry, microstructure, or functional performance.

Repeated Cleaning and Long-Term Component Performance

A pulsed laser cleaning process may produce no measurable damage during a single treatment but still affect a component after many cleaning cycles. This is especially important for molds, tools, fixtures, turbine parts, electrical contacts, and maintenance components that are cleaned repeatedly throughout their service lives. Small changes in roughness, dimensions, surface chemistry, hardness, or residual stress can accumulate even when each cleaning cycle appears acceptable.
Repeated cleaning should therefore be considered during process qualification rather than evaluated only as a one-time operation. The required service life, expected cleaning frequency, total number of cycles, and properties that must remain unchanged should all be defined. For critical components, testing should reproduce the maximum anticipated lifetime exposure and verify that the substrate continues to meet its functional requirements.

Cumulative Exposure Across Cleaning Cycles

Cumulative exposure includes all laser pulses and cleaning passes received by a surface over its service life. Each cleaning event may remove only a very small amount of substrate material or produce a barely measurable surface modification. After many cycles, however, these changes may become significant.
Repeated exposure can gradually increase roughness, deepen microscopic pits, modify optical absorption, or remove material from raised features. Earlier cleaning cycles may also create microscopic defects or residual stress that make the surface respond more strongly during later treatments. This is related to the incubation effect, in which repeated laser exposure can lower the energy required to alter a material.
The condition of the surface also changes between cleaning cycles. A newly contaminated surface may not interact with the laser in the same way as the original surface. Previous cleaning can alter roughness, oxide thickness, reflectivity, coating condition, or surface chemistry. The type and thickness of contamination may also vary from one maintenance cycle to the next.
A parameter set qualified for heavy initial contamination may be unnecessarily aggressive for later maintenance cleaning. Reusing the same settings can expose the substrate directly for a larger proportion of the cycle. Separate parameter programs may be needed for initial restoration, routine maintenance, and localized touch-up cleaning.
The cleaning history should be recorded for reusable components. Relevant information includes the number of cycles, parameter program, pass count, cleaned areas, inspection results, and any unusual conditions. If cumulative exposure is important, the process specification should establish a maximum number of cleaning cycles or a measurable retirement criterion rather than relying solely on calendar age.

Effects on Precision Features and Functional Surfaces

Precision features can be affected by material changes that would be insignificant on a general structural surface. Repeated direct ablation may gradually round sharp edges, widen grooves, reduce engraving depth, change thread profiles, or alter the dimensions of small holes. Molds and dies may lose fine textures or release characteristics, while sealing surfaces can develop roughness or flatness changes that cause leakage.
Electrical contacts may experience changes in roughness, oxidation, plating thickness, or conductivity. Repeated cleaning of plated or anodized components can progressively thin the functional layer until the base material is exposed. Optical and decorative surfaces may lose reflectivity, gloss, color consistency, or finish quality even if their structural strength remains unaffected.
Repeated thermal cycling can also influence long-term mechanical performance. Localized hardness changes, residual stress, microcracking, or surface defects may reduce wear resistance or fatigue life. The risk is particularly important for hardened tool steel, titanium, nickel alloys, and safety-critical components exposed to cyclic mechanical loading.
Sensitive areas should be identified before cleaning. Lower fluence, faster scanning, reduced overlap, or fewer passes may be required near edges, threads, thin walls, engraved features, sealing faces, and coated surfaces. Masking, exclusion zones, fixtures, or automated path controls can prevent unnecessary exposure. In some cases, a different cleaning method may be more appropriate for a specific feature than for the rest of the component.
Long-term inspection should focus on the properties connected to function. Depending on the application, this may include roughness, dimensions, flatness, hardness, coating thickness, conductivity, corrosion resistance, wear, sealing, adhesion, or fatigue-related performance.

Post-Cleaning Protection and Requalification

Laser cleaning often exposes a fresh, chemically active surface. If the component is left unprotected, moisture, oxygen, salts, fingerprints, or airborne contamination can cause rapid reoxidation or flash rust. Repeated cycles of contamination, cleaning, and corrosion may reduce component life even when the laser itself causes minimal direct damage.
Post-cleaning protection should match the material and final application. Possible measures include controlled drying, protective packaging, temporary corrosion inhibitors, oiling, painting, plating, passivation, conversion coating, or storage in a controlled environment. Surfaces intended for welding, coating, or adhesive bonding should proceed to the next operation within a defined time so that cleanliness and surface energy remain suitable.
Any post-cleaning treatment must be compatible with the component’s function and subsequent manufacturing steps. For example, oil may protect steel during storage but interfere with welding or bonding. Stainless steel may require evaluation of its passive condition, while aluminum, titanium, and other reactive materials may need controlled handling to preserve the required surface chemistry.
Requalification is necessary when changes could alter cumulative damage or surface performance. Examples include a new material grade, heat treatment, contamination type, coating system, cleaning frequency, laser source, optical configuration, scanning program, or acceptance requirement. A significant increase in the number of lifetime cleaning cycles should also trigger review.
Repeated-cycle qualification can use representative samples exposed to the maximum planned number of cleaning cycles, including realistic contamination and environmental intervals. The samples should then be examined for cumulative material loss, roughness changes, microstructure, hardness, surface chemistry, corrosion resistance, and functional performance. If acceptance limits are exceeded, the process may require lower exposure, fewer allowable cycles, additional protection, a different cleaning strategy, or component replacement.

Repeated pulsed laser cleaning can create cumulative effects even when one cleaning cycle produces no obvious damage. Gradual material removal, roughness changes, incubation effects, thermal cycling, and altered surface chemistry may eventually affect dimensions, corrosion resistance, wear behavior, fatigue life, or appearance.
Precision features and functional surfaces require particularly careful control because very small changes can affect sealing, electrical contact, mold performance, coating integrity, or dimensional fit. Cleaning history, lifetime cycle limits, inspection results, and parameter programs should therefore be documented.
Post-cleaning protection reduces recontamination and corrosion that could otherwise increase the need for aggressive future cleaning. Requalification should be performed when materials, equipment, parameters, contamination, or lifetime cleaning requirements change. By evaluating the full service life rather than only the first cleaning event, manufacturers can preserve both the substrate and the component’s long-term performance.

Choosing Equipment for Sensitive Substrates

Selecting pulsed laser cleaning machines for a sensitive substrate should begin with the required surface result rather than the highest available power. Delicate alloys, thin sheets, precision tools, functional coatings, electrical contacts, and high-value components may have narrow processing windows. They require equipment capable of delivering and controlling energy with sufficient accuracy.
Average power is only one part of the selection. Pulse energy, pulse duration, repetition frequency, wavelength, beam profile, focus control, scanning accuracy, and software capabilities all influence substrate protection. Equipment should also be evaluated through representative testing and judged by its ability to reproduce an approved result consistently over time.

Match Control Capabilities to the Application

The machine must provide an appropriate range of pulse energy and fluence for the contaminant and substrate. High-power laser cleaning systems that cannot operate stably at sufficiently gentle settings may be unsuitable for delicate surfaces. Conversely, low-energy laser cleaning systems may require excessive passes to remove thick contamination, increasing processing time and cumulative exposure.
Adjustable pulse duration and repetition frequency can help optimize the balance between peak intensity, removal efficiency, and heat accumulation. Some systems allow these parameters to be adjusted over wide ranges, while others provide only limited combinations. Buyers should confirm which settings are independently controllable and which are linked by the laser source.
Beam delivery is equally important. A suitable scanning head should provide stable speed, controlled hatch spacing, reliable turnaround behavior, and a scan field matched to the component. Beam-shaping options such as flat-top, Gaussian, line, ring, or rectangular patterns may improve uniformity for particular applications. The focus system should maintain a predictable spot size and working distance.
Curved or complex parts may require automated height control, robotic motion, multiple axes, or specialized fixtures. Thin components and functional surfaces may benefit from temperature monitoring, controlled pass limits, and software that prevents the beam from pausing on the workpiece. Recipe storage and access control can reduce unauthorized parameter changes.
Pulse technology should also match the required surface quality. Nanosecond systems are suitable for many industrial cleaning tasks and generally provide a practical balance of cost, speed, and control. Picosecond or femtosecond systems may be appropriate when the application permits very little thermal diffusion or material modification. However, ultrashort pulses can still ablate a substrate if the fluence is excessive, so they do not replace proper process development.

Require Representative Sample Demonstrations

Machine demonstrations should use the buyer’s actual parts or representative samples whenever possible. The samples should match the intended substrate grade, thickness, heat treatment, finish, coating structure, contamination type, and geometry. A successful demonstration on thick, flat carbon steel does not prove that the same equipment can safely clean thin aluminum, hardened tool steel, or a coated titanium component.
The test should include more than one ideal sample. It should cover realistic variations such as thick and thin contamination, edges, corners, curves, recesses, overlapping scan areas, and repeated passes. If the component will undergo regular maintenance cleaning, the demonstration should also evaluate repeated cleaning cycles.
The supplier should document the parameters used during each trial. These include average power, pulse energy or source setting, pulse duration, repetition frequency, scan speed, hatch spacing, focal position, working distance, scanning pattern, and number of passes. Cleaning time and effective production rate should also be recorded.
A clean-looking surface is not sufficient evidence. Demonstration results should be evaluated according to the application’s acceptance criteria. Roughness, dimensions, coating thickness, hardness, surface chemistry, corrosion resistance, conductivity, adhesion, or microscopic condition may need to be checked. The testing method should be agreed upon before the demonstration begins.
It is also useful to test a range of settings rather than only one successful combination. This helps show whether the equipment provides a wide, stable processing window or operates close to the substrate damage threshold. A wider window generally offers better tolerance for normal production variation.

Evaluate Repeatability and Technical Support

Sensitive-substrate cleaning requires consistent output from part to part and shift to shift. The laser source should provide stable pulse characteristics, while the scanner should maintain accurate speed, spacing, and positioning. The optical system should produce a predictable beam profile and focus across the required working area.
Repeatability should be demonstrated through multiple samples or repeated runs using the same approved recipe. Results should remain consistent after normal warm-up, extended operation, and routine production pauses. If the application is automated, repeatability should also include fixture positioning, robot accuracy, focus tracking, and path transitions.
The machine should make it possible to save, identify, and protect qualified parameter programs. User permissions, recipe version control, production records, and alarm histories can help prevent accidental changes and support troubleshooting. Monitoring functions may include temperature sensing, camera inspection, output verification, or process signals, depending on the application.
Technical support is particularly important because safe settings cannot always be selected from a generic parameter chart. The supplier should understand laser–material interaction and be able to assist with sample testing, parameter development, inspection methods, and process qualification. Training should cover equipment operation, focus control, scanning technique, extraction, maintenance, warning signs, and emergency procedures.
Buyers should also evaluate the availability of replacement protective windows, lenses, scanning-head components, filters, and other service parts. Calibration procedures, maintenance schedules, software support, remote assistance, and local service capability affect whether the validated process can be maintained throughout the machine’s life.

Equipment for sensitive substrates should be selected according to its control capabilities, not average power alone. Pulse energy, duration, repetition frequency, wavelength, beam profile, scanning performance, focus control, automation, and software safeguards all influence the ability to remain within a safe processing window.
Representative sample demonstrations are essential. Testing should reproduce the actual material, contamination, geometry, production rate, and repeated-cleaning requirements. The cleaned samples must be evaluated for both contaminant removal and possible changes in roughness, dimensions, chemistry, microstructure, or functional performance.
The final decision should also consider output stability, recipe control, maintenance, training, spare parts, and technical support. Equipment that can produce one successful sample but cannot repeat or maintain that result is unsuitable for a sensitive application. A properly matched and supported system provides the control needed to clean effectively while minimizing the risk of substrate damage.

Frequently Asked Questions

Pulsed laser cleaning can often remove contamination while leaving the underlying material within its required quality limits. However, the outcome depends on the substrate, surface layer, laser parameters, scanning conditions, and number of cleaning cycles. Questions about thickness loss, pitting, polished finishes, machine power, repeated cleaning, and coating preservation cannot be answered from average power alone.
The following questions address common concerns about substrate damage. In every case, representative testing and inspection are more reliable than relying on a general parameter chart or a successful result obtained on a different material.

Does Pulsed Laser Cleaning Reduce Metal Thickness?

Properly controlled pulsed laser cleaning should remove the contaminant with negligible or acceptable loss of the underlying metal. This is possible when the applied fluence exceeds the contaminant removal threshold but remains below the substrate damage threshold. Under these conditions, rust, paint, oil, oxide, or carbon deposits can be removed without significant direct ablation of the base material.
Metal thickness can still decrease if the fluence is too high, the beam moves too slowly, pulse overlap is excessive, or the same location receives too many passes. Small amounts of removal may initially appear only as increased roughness, shallow pitting, rounded edges, or loss of fine features. Repeated cleaning cycles can make these changes more significant.
When rust is removed, the component may also appear thinner because corrosion already consumed part of the original metal. The laser may simply reveal the remaining surface. For precision components, thickness, dimensions, roughness, and weight can be measured before and after cleaning to determine whether the process has removed substrate material.

Does Pitting After Rust Removal Mean the Laser Caused Damage?

Not necessarily. Rust frequently conceals corrosion pits, cracks, and areas where the original metal has already been lost. Once the corrosion products are removed, the underlying surface may look rough or deeply pitted even though the laser did not create those defects.
However, aggressive laser settings can enlarge existing pits or create new ablation craters. High fluence, slow scanning, dense overlap, and repeated passes over exposed metal can remove additional substrate material. The appearance of the pits, the applied parameters, and the original condition must therefore be evaluated together.
Photographing the workpiece before cleaning, examining partially cleaned areas, and comparing them with untreated reference areas can help identify pre-existing corrosion. Microscopy, surface profilometry, or dimensional measurement may be needed when the cause is uncertain. Testing on a representative sample also helps distinguish corrosion damage from laser-induced material removal.

Can Pulsed Laser Cleaning Preserve a Mirror Finish?

It may be possible to preserve a polished or mirror finish when the contamination has a lower removal threshold than the substrate, and the laser parameters are tightly controlled. A highly reflective metal surface may absorb less laser energy than a dark contaminant, providing some natural selectivity.
Nevertheless, mirror finishes are extremely sensitive to microscopic roughness, heat tint, oxidation, redeposited particles, and small ablation marks. A surface can appear generally clean while losing gloss or reflectivity because of changes too small to see under normal lighting. Beam hot spots, poor focus, overlapping scan lines, or unnecessary passes can leave visible bands or texture.
Sensitive polished surfaces often require low fluence, stable focus, uniform beam distribution, fast scanning, and careful control of overlap. Picosecond or femtosecond systems may offer advantages for some precision applications, but they can still damage the finish if the fluence is excessive. Representative sample tests should include roughness, gloss, or reflectivity measurements rather than relying only on visual inspection.

Is a Lower-Power Machine Always Safer?

No. Lower average power does not automatically mean lower substrate damage risk. A lower-power laser may still produce high pulse energy, high peak power, or high fluence when its energy is concentrated into a small spot. Slow scanning, high repetition frequency, excessive overlap, or repeated passes can also cause significant cumulative exposure.
A higher-average-power machine may clean safely if it uses suitable pulse energy, a controlled spot size, and sufficiently fast scanning. It may complete the process with fewer passes, reducing the time the substrate is exposed. Conversely, an underpowered system may require slow movement and repeated cleaning, increasing heat accumulation.
Safety depends on the complete parameter combination, including pulse energy, pulse duration, frequency, wavelength, spot size, beam profile, scan speed, hatch spacing, focal position, and pass count. Equipment should therefore be evaluated according to its controllable operating range and demonstrated performance on the actual application, not its wattage alone.

Can the Same Component Be Cleaned Indefinitely?

No component should be assumed to tolerate unlimited laser cleaning. Even if one cleaning cycle produces no obvious damage, repeated cycles can gradually alter roughness, dimensions, surface chemistry, hardness, residual stress, or coating thickness. Small changes may accumulate until they affect fit, sealing, conductivity, corrosion resistance, wear, or fatigue performance.
The surface may also respond differently after previous cleaning. Changes in roughness, oxide condition, and reflectivity can affect how later laser pulses are absorbed. A parameter program developed for heavy initial contamination may be too aggressive for lighter maintenance cleaning.
Reusable components should have a documented cleaning history and, where necessary, a maximum number of qualified cycles. Repeated-cycle tests can determine whether the part remains within its dimensional and functional specifications over the expected service life. If cumulative changes approach the acceptance limit, the cleaning parameters, inspection frequency, or replacement interval should be revised.

Can Laser Cleaning Preserve Galvanizing, Plating, or Anodizing?

Laser cleaning may preserve galvanizing, plating, or anodizing when the unwanted contamination can be removed at an energy level below the damage threshold of the protective layer. The possibility depends on the coating material, thickness, adhesion, laser wavelength, pulse duration, and optical difference between the contamination and coating.
These applications can have very narrow processing windows. Galvanized zinc coatings have different thermal properties from the steel beneath them and may melt, oxidize, or thin under excessive exposure. Metallic plating may be only a few micrometers thick, so minor ablation can expose the base material. Anodizing is itself an engineered oxide layer and may be discolored, textured, or removed by settings used to eliminate other oxides or deposits.
The protective layer must be treated as part of the surface that needs to remain, not as contamination. Testing should use the same coating type and thickness as the production component. Coating-thickness measurement, color inspection, adhesion testing, corrosion evaluation, conductivity testing, or surface analysis may be required. If the layer cannot be preserved reliably, masking, localized parameter changes, or another cleaning method should be considered.

Pulsed laser cleaning does not necessarily reduce metal thickness, create pitting, or destroy polished and coated surfaces. When the process operates within a verified cleaning window, it can remove contamination with little or no unacceptable substrate modification. However, excessive fluence, slow scanning, high overlap, repeated passes, and poor focus can cause material loss or surface changes.
Pitting revealed after rust removal may have existed before cleaning, while mirror finishes and thin functional coatings require particularly careful control. Lower average power is not automatically safer, and no component should be assumed to tolerate unlimited cleaning cycles.
Each application should be qualified using representative samples and suitable inspection methods. Evaluating dimensions, roughness, appearance, coating condition, surface chemistry, and functional performance provides the evidence needed to confirm that the substrate and any protective layers remain within specification.

Summary

Pulsed laser cleaning can damage a substrate, but damage is not an unavoidable result of the process. When the laser operates within a properly established processing window, it can remove rust, paint, oxides, oil, carbon deposits, and other contaminants while keeping the underlying material within its required quality limits. This window lies above the contaminant removal threshold and below the substrate damage threshold.
Damage may include discoloration, oxidation, localized melting, pitting, roughening, cracking, distortion, or measurable material loss. Less visible effects can include altered hardness, residual stress, microstructural changes, modified surface chemistry, reduced corrosion resistance, or impaired functional performance. The risk depends on the substrate’s absorption, reflectivity, thermal conductivity, thickness, geometry, alloy condition, and existing deterioration. Carbon steel, tool steel, stainless steel, aluminum, copper alloys, titanium, and nickel alloys therefore require different parameter strategies.
Average power alone does not determine safety. Pulse energy, fluence, spot size, pulse duration, peak power, repetition frequency, wavelength, beam profile, scanning speed, overlap, hatch spacing, focus, working distance, and pass count all influence the result. Edges, curves, recesses, thin sections, turnarounds, and uneven contamination can receive different exposure from flat central areas. Repeated passes and long-term cleaning cycles can also produce cumulative effects.
A substrate-protective process should begin with accurate identification of the material, contamination, protective layers, and required outcome. Representative samples should be tested using controlled parameter changes, including challenging geometries and realistic contamination variations. Cleaning quality must be evaluated together with possible damage through visual inspection, roughness and dimensional measurements, microscopy, surface analysis, and functional testing where necessary.
During production, consistent positioning, trained operators, maintained optics, effective extraction, process monitoring, and documented change control are essential. Pulsed laser cleaning is highly controllable, but its safety depends on qualified equipment, validated parameters, realistic acceptance criteria, and continued verification throughout the component’s service life.

Get Laser Cleaning Solutions

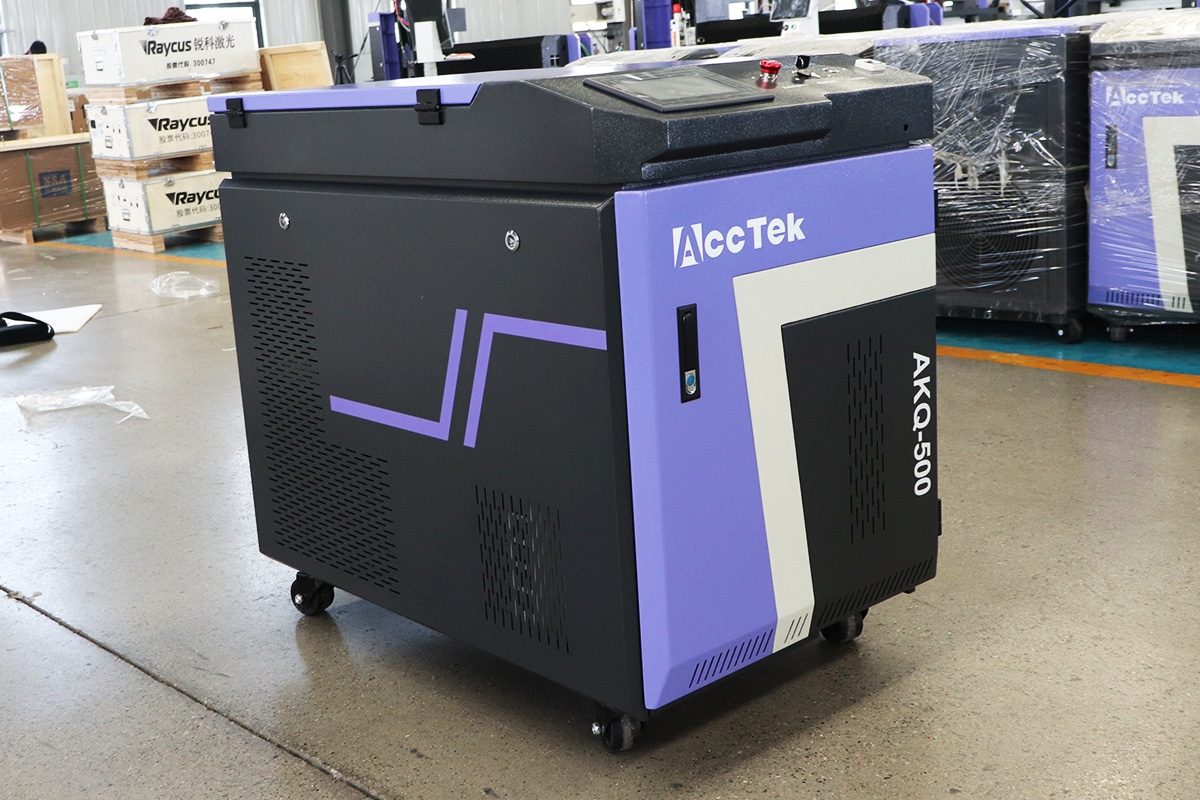

Protecting the substrate begins with selecting the right laser cleaning equipment and developing parameters for the actual material, contamination, geometry, and surface-quality requirements. A setting suitable for heavy rust on thick carbon steel may be inappropriate for thin stainless steel, polished tool steel, aluminum, copper alloys, or components with plating and anodizing. For sensitive applications, equipment selection should be based on controllability and verified sample results rather than average power alone.
AccTek Group is a professional manufacturer of intelligent laser equipment, providing laser cleaning solutions for rust, oxide, paint, oil, grease, carbon deposits, and other surface contaminants. Our team can help evaluate your substrate, contamination type, coating structure, cleaning area, production rate, and required finish. Based on these conditions, we can recommend a suitable system configuration and help identify a practical balance between cleaning efficiency and substrate protection.
Representative sample testing is especially valuable when the processing window is narrow. Customers can provide actual workpieces or comparable samples so that cleaning performance can be evaluated under realistic conditions. The results may be checked for contaminant removal, discoloration, roughness, pitting, dimensional changes, coating preservation, or other application-specific requirements. These trials can also help establish suitable pulse settings, scanning speed, hatch spacing, working distance, pass count, and cleaning pattern.
AccTek Group can support applications ranging from portable manual cleaning to automated production integration. When requesting a solution, provide the substrate grade and thickness, contaminant composition and depth, surface dimensions, component geometry, expected operating hours, and cleanliness requirements. You should also identify any plating, anodizing, passivation layer, precision feature, or functional surface that must remain intact.
Contact AccTek Group to discuss your laser cleaning application and arrange a sample evaluation. A solution based on representative testing, suitable equipment, and a documented operating window can deliver reliable contaminant removal while minimizing the risk of unacceptable substrate damage.

Products

Get In Touch

Submit The Form
