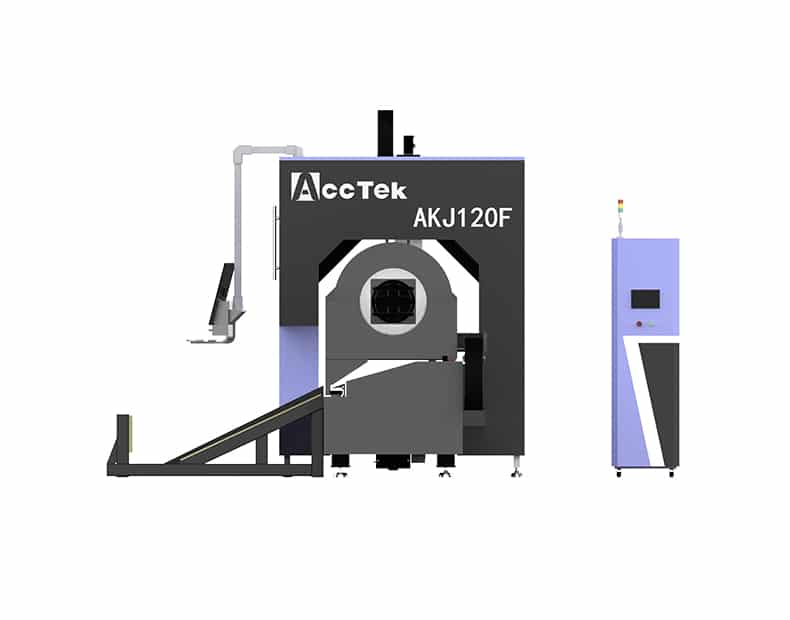

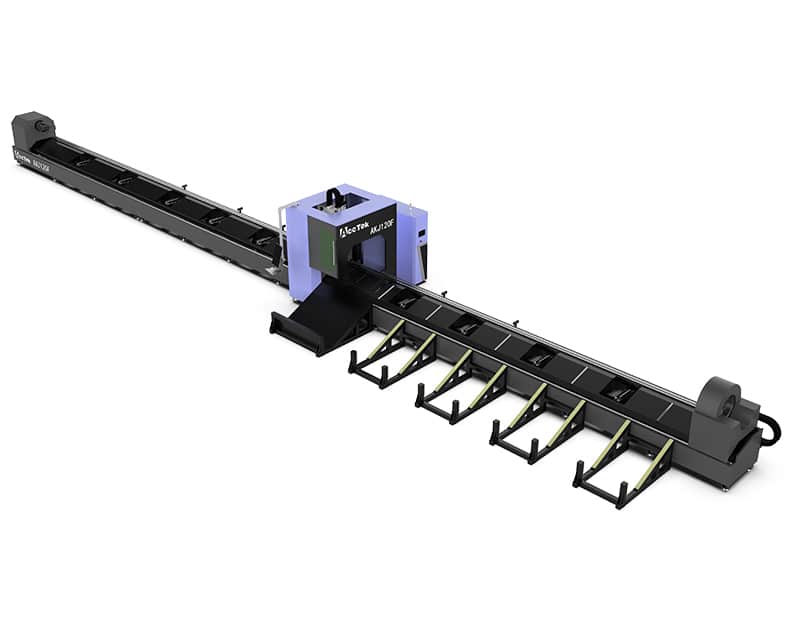

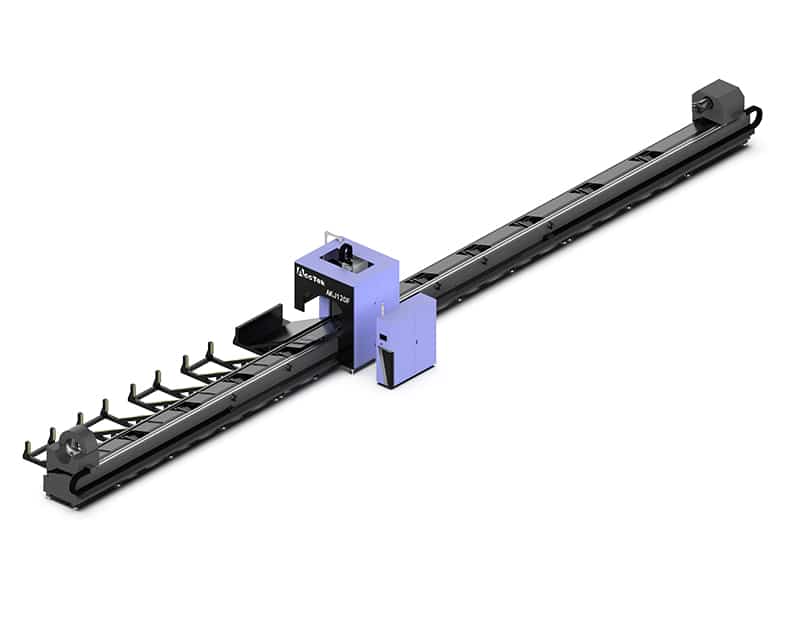

AKJ120F Tube Laser Cutting Machine
The 12-meter-long tube laser cutting machine AKJ120F is a high-performance equipment designed for processing extra-long metal pipes and profiles with precision and efficiency.
The Raytools laser cutting head is a high-precision component designed for fiber laser cutting machines, offering fast autofocus, stable performance, and high cutting efficiency. With advanced optical technology, anti-collision protection, and durability, it ensures smooth operation across various materials, improving cutting quality, speed, and overall machine productivity.
The laser generator (Raycus, Max, IPG) is the core component of a fiber laser cutting machine, providing stable and high-power laser output. Known for efficiency, reliability, and long lifespan, these generators ensure precise cutting with excellent beam quality. They support various power levels, enhancing cutting speed and material versatility.

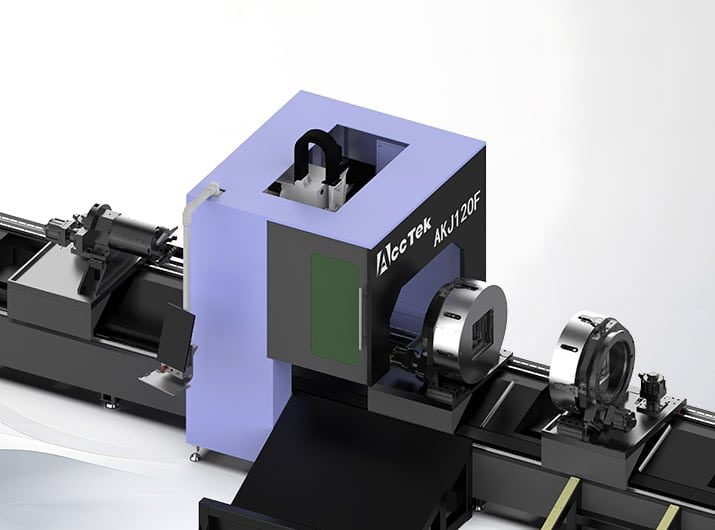

The three-jaw chuck is responsible for securely holding and rotating the workpiece during cutting. It uses three evenly distributed jaws that automatically center the tube, ensuring stable clamping and precise positioning without manual adjustment. Its strong clamping force allows the machine to process long and heavy pipes with ease, while its automatic adjustment capability enhances efficiency and safety. This design not only improves cutting accuracy but also reduces vibration, guaranteeing smooth and clean cuts.
The tube welding bed is a robust and durable foundation for the fiber laser cutting machine, ensuring high stability and long-term precision. Constructed using thick-walled, high-strength steel tubes, it undergoes stress-relief treatment to prevent deformation. This design enhances vibration resistance, improves cutting accuracy, and extends the machine’s lifespan.
The Cypcut control system is an advanced and user-friendly software solution for fiber laser cutting machines. It offers precise motion control, intelligent path optimization, and seamless automation. With an intuitive interface, real-time monitoring, and compatibility with various cutting processes, it enhances cutting efficiency, accuracy, and overall machine performance.
The Yaskawa servo motor is a high-performance drive system for fiber laser cutting machines, delivering precise motion control, high torque, and rapid response. Known for its stability, energy efficiency, and durability, it ensures smooth operation and enhanced cutting accuracy, improving overall machine performance and productivity in demanding cutting applications.
The Taiwan Hiwin guide rail ensures high precision, stability, and smooth motion in fiber laser cutting machines. Made from high-quality materials, it offers excellent wear resistance and durability. Its low-friction design enhances cutting accuracy and speed while reducing maintenance needs, ensuring long-term reliable performance for high-efficiency laser cutting operations.
The S&A water chiller provides efficient cooling for fiber laser cutting machines, ensuring stable laser performance and preventing overheating. Featuring precise temperature control, high cooling capacity, and energy efficiency, it enhances machine longevity and cutting accuracy. Its reliable operation and advanced protection features ensure continuous and safe laser processing.
| Model | AKJ-120F |
|---|---|
| Cutting Range | 350*12000mm |
| Pipe Size Range | Round Pipe: 20-350mm; Square Pipe: 20-350mm; Rectangular Pipe: 350mm ≥ Side Length ≥ 20mm; Circumscribed Circle Diameters: 350mm; |
| Laser Type | Fiber Laser |
| Laser Power | 1500-12000W |
| Laser Generator | Raycus/Max/IPG |
| Laser Cutting Head | Raytools/Boci |
| Transmission System | Gantry Double Drive Structure |
| Linear Guide Rail | Hiwin |
| Control System | Cypcut |
| Servo Motor | Yaskawa |
| Maximum Moving Speed | 100m/min |
| Maximum Acceleration | 1.0G |
| Positioning Accuracy | ±0.01mm |
| Repeat Positioning Accuracy | ±0.03mm |
| Voltage and Frequency | 380V 50Hz/60HZ |

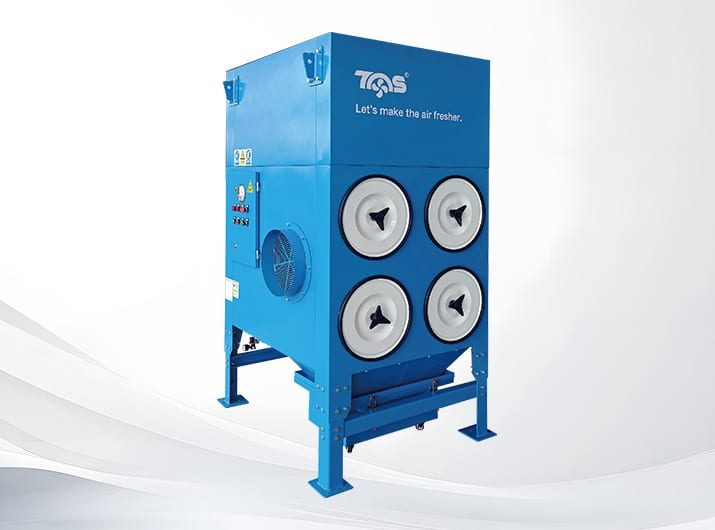

An industrial dust collector is a pulse blowback type industrial dust collector developed in accordance with environmental emission requirements. It has the characteristics of a large air volume, good dust-cleaning effect, stability and reliability, and a small footprint. Dust collectors are used for collecting dust and particles, whether for air pollution control or as part of production process equipment, with high filtration efficiency and the ability to work continuously.
The voltage stabilizer is an optional configuration for fiber laser cutting machines, designed to maintain a consistent power supply. It protects the machine from voltage fluctuations, preventing damage to sensitive components and ensuring stable operation. By enhancing the machine’s reliability and lifespan, it improves overall performance and minimizes maintenance costs.
The integrated air compressor is an optional configuration for fiber laser cutting machines, providing a reliable and efficient air supply for cutting operations. It ensures consistent air pressure, enhancing cutting quality and speed. Compact and easy to integrate, it reduces the need for external compressors, offering a space-saving and cost-effective solution.
The bevel-cutting function is an optional configuration for fiber laser cutting machines, enabling precise angled cuts on materials. Ideal for creating high-quality bevels on various metals, this feature enhances versatility and cutting flexibility. It improves edge quality, reduces post-processing work, and is perfect for applications requiring angled or tapered cuts.
Our laser cutting machines feature high-speed, precision cutting with the latest laser technology, ensuring smooth edges, minimal waste, and superior efficiency across various materials and thicknesses.
Each machine undergoes rigorous quality control and durability testing to ensure long-term stability, low maintenance, and consistent high performance, even under demanding industrial conditions.
We provide full technical support, including installation guidance, operator training, and after-sales service, ensuring smooth machine operation and minimal downtime for your business.
Our machines offer high performance at competitive prices, with customizable options to fit different production needs, helping businesses maximize their investment without compromising on quality.
The FOB (Free on Board) price of the AKJ120F laser cutting machine ranges from $70,000 to $220,000, depending on the laser power, working area, and standard configuration. If you require additional customization, the price may change accordingly. Common modifications include:
For an exact price quote and shipping cost, please contact us with your specific requirements, including machine configuration and delivery destination.
We offer laser generators from several leading brands known for their quality, performance, and reliability. Our machines are compatible with the following laser generator brands: IPG, Raycus, and Max Photonics.
Each of these brands has its unique advantages, allowing us to provide customized solutions based on your specific application requirements, budget, and performance expectations. Whether you need a high-power industrial laser for heavy-duty cutting or a more economical solution for standard applications, we can help you choose the right laser generator to meet your needs.
The AKJ120F laser cutting machine offers a variety of laser power options to meet various cutting needs: 1500W, 2000W, 3000W, 4000W, 6000W, and 12000W. These power levels are designed to handle a range of materials and thicknesses, providing flexibility for different industrial applications.
Selecting the appropriate laser power and generator brand ensures that the AKJ120F laser cutting machine meets your specific cutting needs, whether it’s for the precision cutting of thin materials or the efficient processing of thicker substrates.
The working area of a 12-meter pipe laser cutting machine generally refers to its maximum pipe processing length and diameter range. For this type of machine, the working length is up to 12,000 mm (12 meters), allowing it to handle extra-long tubes in a single setup.
In terms of diameter, most 12-meter pipe laser cutting machines can process round tubes from about 20 mm to 350 mm (or more, depending on the model), and square/rectangular tubes with side lengths typically ranging from 20 mm to 240–300 mm. Some advanced models also support cutting of oval and special-shaped tubes within a similar size range.
The AKJ120F laser cutting machine utilizes a rack and pinion motion system, a widely used mechanical transmission system known for its high precision, durability, and efficiency in industrial applications. This system plays a crucial role in ensuring accurate and stable movement of the laser head during the cutting process.
The rack and pinion motion system in the AKJ120F laser cutting machine ensures high precision, efficiency, and durability, making it ideal for industrial metal cutting applications. With stable motion, fast cutting speeds, and minimal maintenance, this system enhances the overall performance of the machine, ensuring accurate, clean, and high-quality cuts for various materials.
The AKJ120F laser cutting machine typically requires 30-50 working days for production, quality inspection, and shipping preparation. This timeframe ensures that every machine undergoes thorough assembly and rigorous testing before dispatch.
For standard configurations, production follows an optimized schedule, allowing for efficient manufacturing and quality assurance. However, if special customizations are requested (such as additional automation features), the production time may extend beyond 50 working days to accommodate these specific requirements.
Once the machine is ready for shipment, the actual transit time depends on the chosen shipping method and destination. Sea freight can range from 25 to 45 days, depending on regional logistics and customs processing. To get the most accurate delivery estimate, we recommend that you contact us when placing your order.
Our laser cutting machine is backed by a comprehensive warranty designed to give you peace of mind and protect your investment:
Please note that this warranty excludes damage resulting from improper use, mishandling, or other artificial causes.
Our laser-cutting machine is certified with internationally recognized standards to ensure quality, safety, and compliance with industry requirements.
If additional certifications are required for specific regions or industries, please let us know, and we can provide further information.
