What does the excellent woodworking cnc machine have to withdraw on configuration?

Updatetime: 2021-07-13 14:28View:
    It is well known that the operation of woodworking engraving machine is closely related to its control system. Summarizing the control system of woodworking engraving machine on the market, xiaobian thinks that it can be roughly divided into three categories: computer control, handle control and all-in-one machine control.
    1, computer control, that is, by installing the macro control card on the PCI slot of the computer motherboard, and installing the Macro software driver on the computer to control the engraving machine XYZ axis and spindle motor rotation, you can preview the processing effect, you can see the processing track at any time, if the program loading error can be corrected in time;Dimension macro control system is the most widely used system in the control system of engraving machine at present. The interface is humanized, the operation is simple and convenient, the function is complete, the program compatibility is extremely high, all kinds of CAM software of engraving type can be imported directly or indirectly.Disadvantage is the need for a separate configuration of a computer, but fortunately for the computer configuration requirements are very low, for the capital budget less customers, can be used to configure a second-hand computer.Now Weihong has launched a variety of different versions of control software and hardware, including multi-axis linkage.
    2. Handle control can be held in the hand to control the movement of the engraving machine.Save space, do not occupy the computer;The disadvantage is that the operation is relatively troublesome, after all, all the functions are set in a control panel, the operation is not skilled is easy to press the wrong function key.Widely used with a variety of engraving machine (including four axis linkage), no need to occupy a separate computer, greatly reduce the equipment floor space, in addition to the knife is also more convenient disadvantage is no preview and other functions, the interface is not as intuitive as the computer.

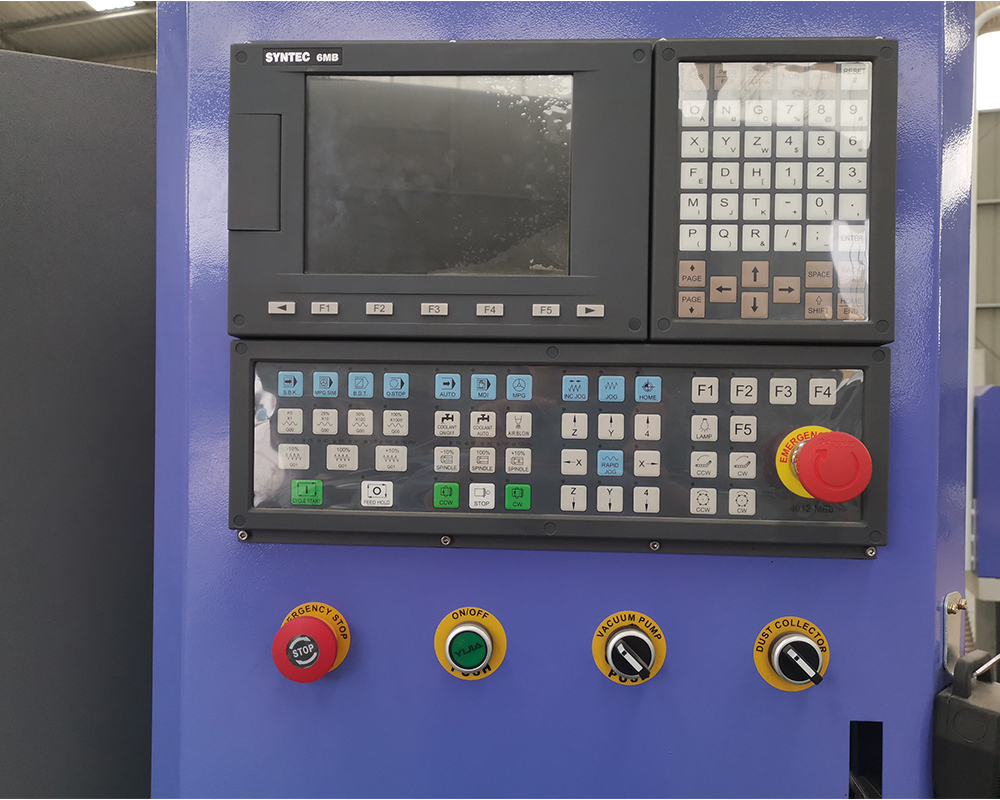

    3, integrated machine control: independent integrated design, using industrial computer, PLC and other integrated control, rich interface, complete functions, can achieve multi-axis control and automatic tool change.Is mainly used for high-end engraving machine, machining center, and some of the mould machine carved machine, the anti-interference ability of the control system, as well as all aspects of performance, control accuracy is superior to other categories, such as the system in nc operation system and not the mainstream, but in the engraving machine control system is all-in-one such other mainstream, the disadvantage is that the price on the high side, to be more CNC numerical control machine tool, operational for some customers simple operation is better than the former.
    For woodworking engraving machine, three kinds of control system each has advantages and disadvantages, so we must be careful when choosing.Users who use woodworking engraving machine to open materials generally choose all-in-one machine control and industrial panel, while customers who do embossing and latticework generally choose computer control or handle control.
control system

    Along with the rapid development of science and technology, numerical control carving technology is becoming more and more far away, now woodworking engraving machine technology has very mature, not only on line carve, lettering, hollow out velocity accuracy, especially for relief, stereo carve increases significantly, with human indifference, even higher than artificial accuracy, but the speed gap is heaven and in earth.Wood carving factory house at least 100 across the country, but each manufacturer of engraving machine each are not identical, this mainly embodies in appearance and configuration, when a customer in woodworking engraving machine of choose and buy, be sure to ask engraving machine configuration, not to mention here after sales and price, but from a quality, woodworking engraving machine, ok?Or configuration to calculate!
    1: spindle motor brand and power abroad have Italy HSD spindle motor well-known brands, domestic changzhou si qi spindle motor, power size is 1.5, 2.2, 3.0, 3.7, 4.0, 4.5 k is even higher, the power of different size corresponds to the different application field, relief is given priority to, you can choose to 1.5 or 2.2 k, give priority to with cutting, cutting, 3.0 kw to 9 kw is the direction of the customer to choose.
    2: guide: guide to the influence of woodworking engraving machine is mainly on the accuracy and the machine life, famous brand have silver and Yintai on Taiwan, said the second circle and square rail, but the circle is now very few people to use guide has 20, 25, 30, 30 guide rail is best, but the general woodworking engraving machine configuration is 25 guide rail
    3: fixture and vacuum adsorption: woodworking engraving machine fixed materials there are two ways :1 is fixture, 2 is vacuum adsorption, vacuum adsorption table convenient material, this is an advantage, the disadvantage is high power consumption
    4: drives and motors: most manufacturers choose is ray brand drive, this also is the domestic well-known brand, abroad have Japan yaskawa, this involves the workings of a woodworking engraving machine, stepper OR servo, if you have been communicating with multiple manufacturers, then you should know than stepping on the precision of servo system.
    5: Frequency converter: The famous frequency converter is Fuling. The engraving machine frequency is driven by the main motor of the engraving machine. The main requirements are stable operation and smooth rotation speed change.The full speed fluctuation is small, the low speed moment is big, may guarantee the low speed cutting.
    6: structure of lathe bed, bed have a light of lathe bed and heavy lathe bed, said the choice of this part is mainly aimed at the woodworking engraving machine will because when carving carving and shaking, most woodworking engraving machine Z axis stroke is 200 mm, but for some special industries such as: coffin coffin, must choose heavy body.
    Well, above is woodworking engraving machine very important 6 components, woodworking engraving machine is good?Is to rely on these accessories drive, so before the purchase of woodworking carving machine, must ask clearly these configurations, these things look complex above, actually not much, generally through the introduction of woodworking carving machine factory, will soon be familiar with, oneself can also have a general judgment.
cnc router
